Key Features
- Female
- Right Angle Orientation
- TRS Stereo Connections
- Solder Lugs
- Silver Contact Plating
Description

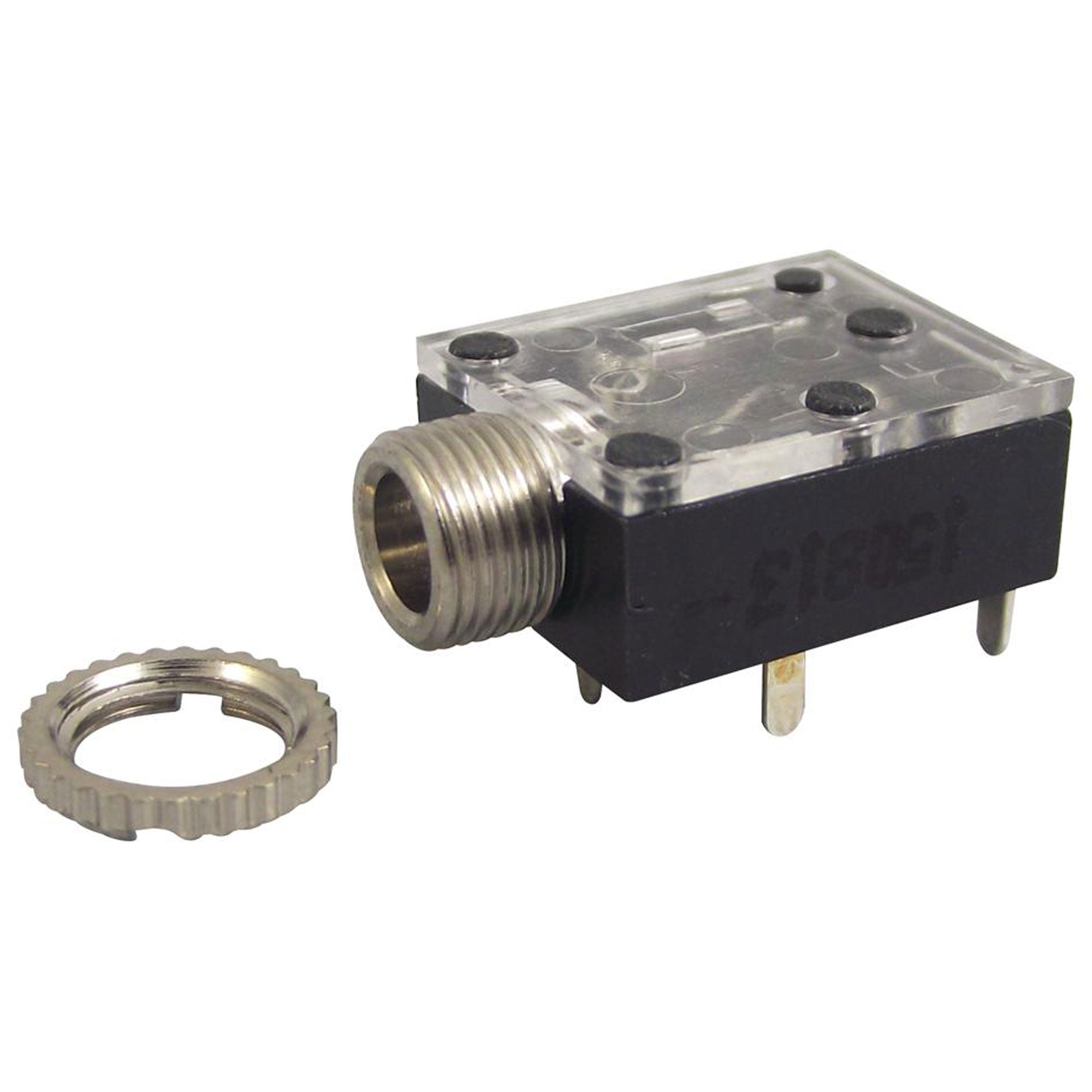

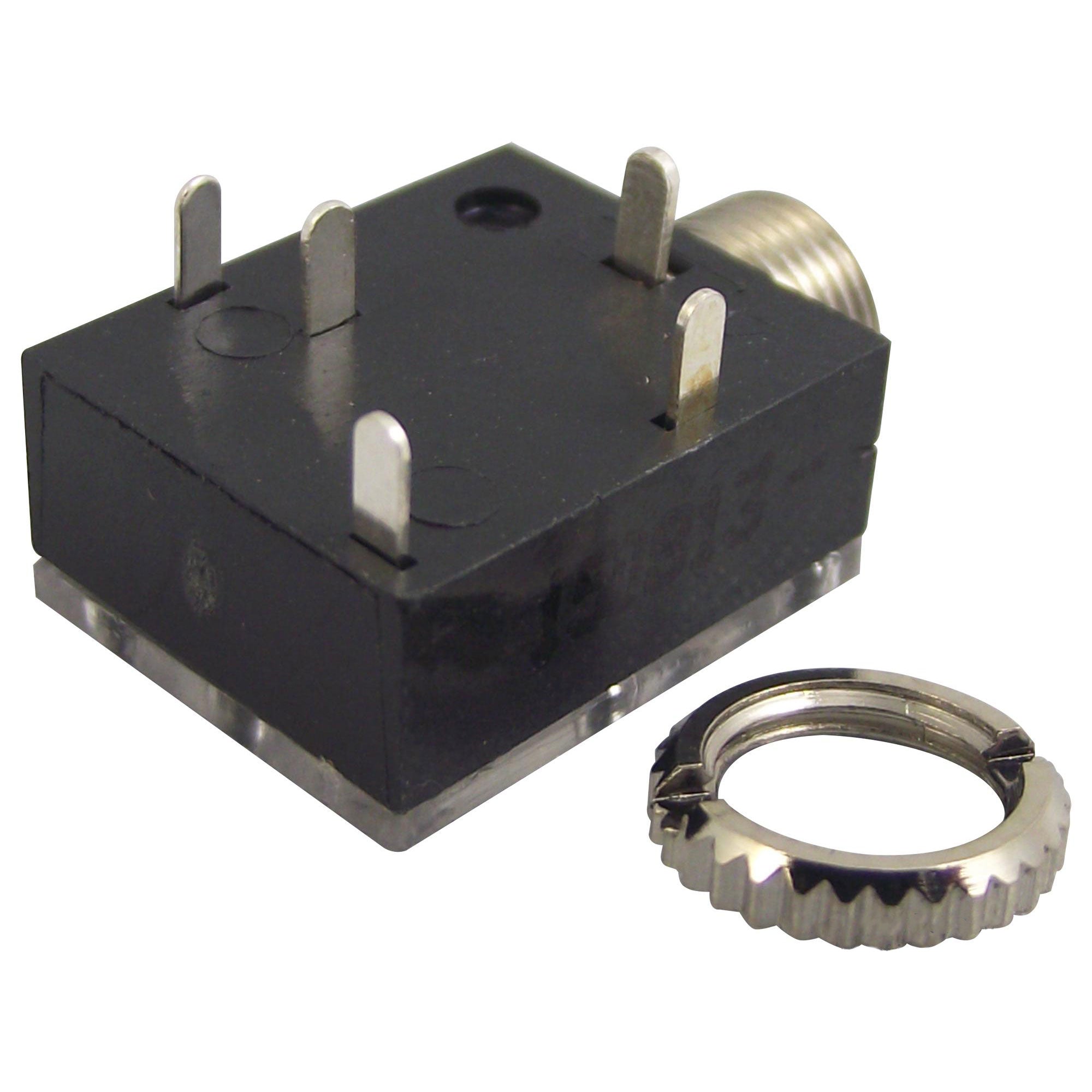

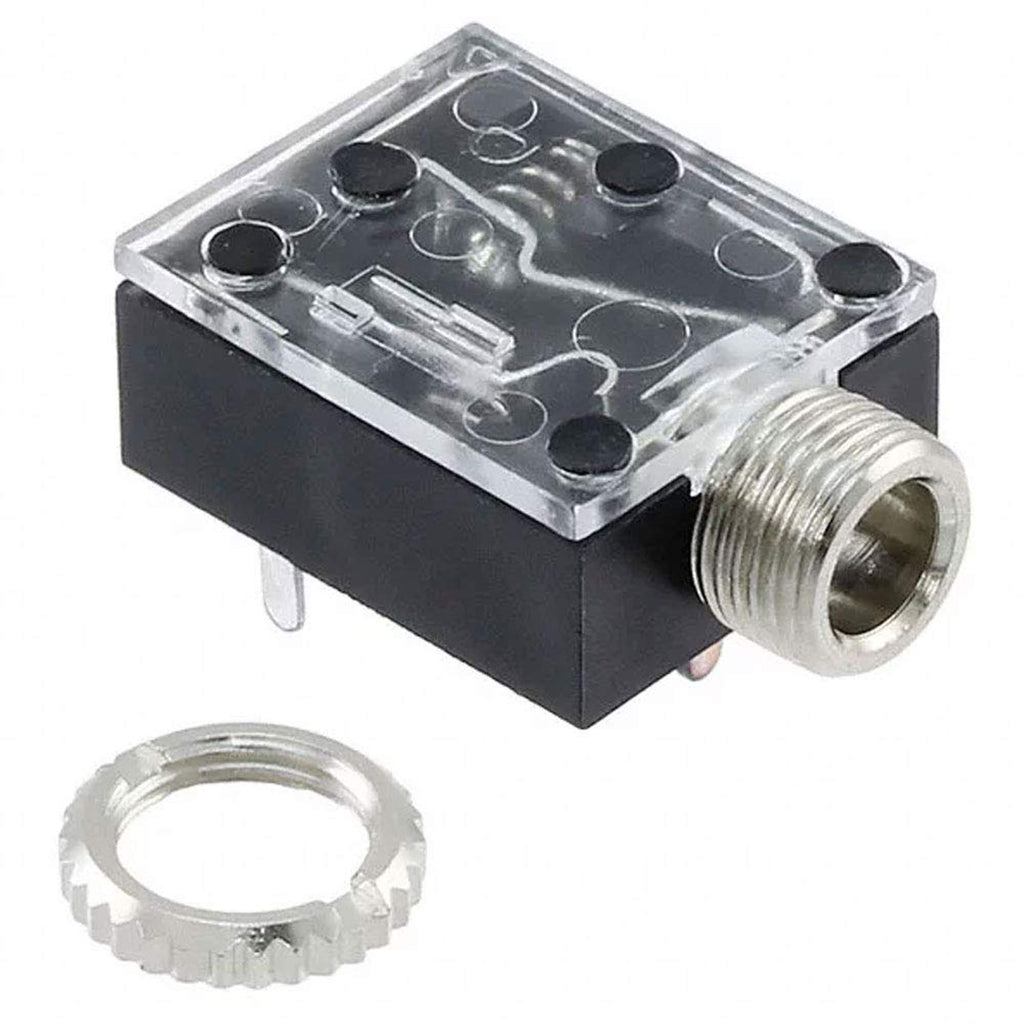

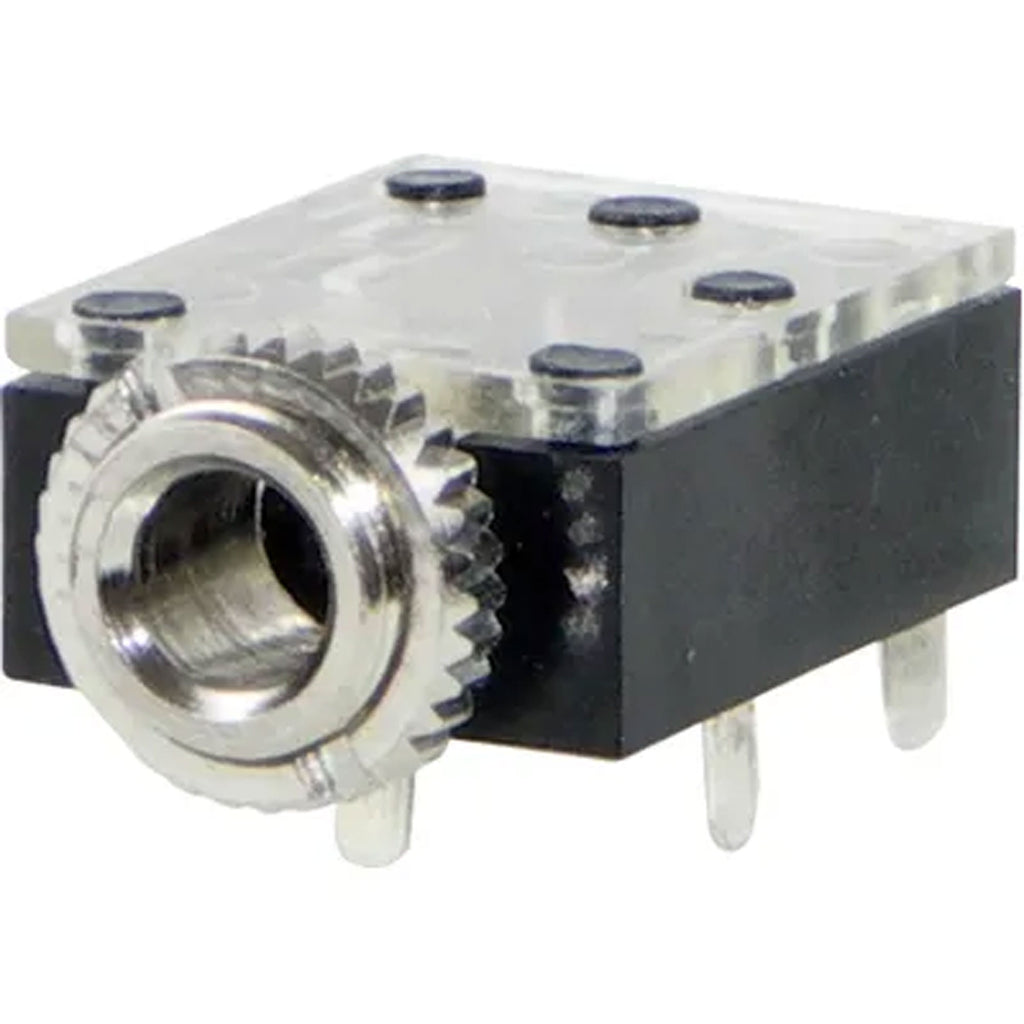

Right Angle 3.5mm TRS Stereo Phone Jack Black with Silver Contacts
The 35RAPC4BH3 is a 3.5mm Mono and Stereo PC Board Horizontal-mount Jack with black PBT housing, nickel-plated brass bushing, tin-plated phosphor bronze springs and a clear polycarbonate cover. The compact design and an easy of installation onto a PCB make this an ideal solution.
Features:
- 3-conductor, miniature phone jack mates with 3.5 mm finger plugs.
- Saves board space... two jacks in a single vertical mount footprint.
- Ideally suited for infra-red and convection oven soldering 235°C (455°F).
- Board retention pins accommodate PC board thickness range of .050 inches to .080 inches.
- Single-screw panel mounting hole is standard.
- EMI-RFI shield, optional.
- Housing UL 94V-0 rated against flammability.
Specifications:
- Manufacturer: Switchcraft
- Product Category: Phone Connectors
- RoHS: Details
- Standard: 3.5 mm, 1/8 in
- Gender: Female
- Number of Positions: 3 (TRS, Stereo)
- Switch Configuration: Switched
- Termination Style: Solder Pin
- Contact Plating: Nickel
- Voltage Rating: 500 V
- Orientation: Right Angle
- Series: 35RAPC
- Color: Black
- Brand: Switchcraft
- Contact Material: Copper Alloy
- Product Type: Phone Connectors
- Factory Pack Quantity: 560
- Subcategory: Audio & Video Connectors
- Unit Weight: 0.067021 oz
Details
- Manufacturer: Mouser
- MPN: 502-35RAPC4BH3
- Model Number: 502-35RAPC4BH3
- UPC:
