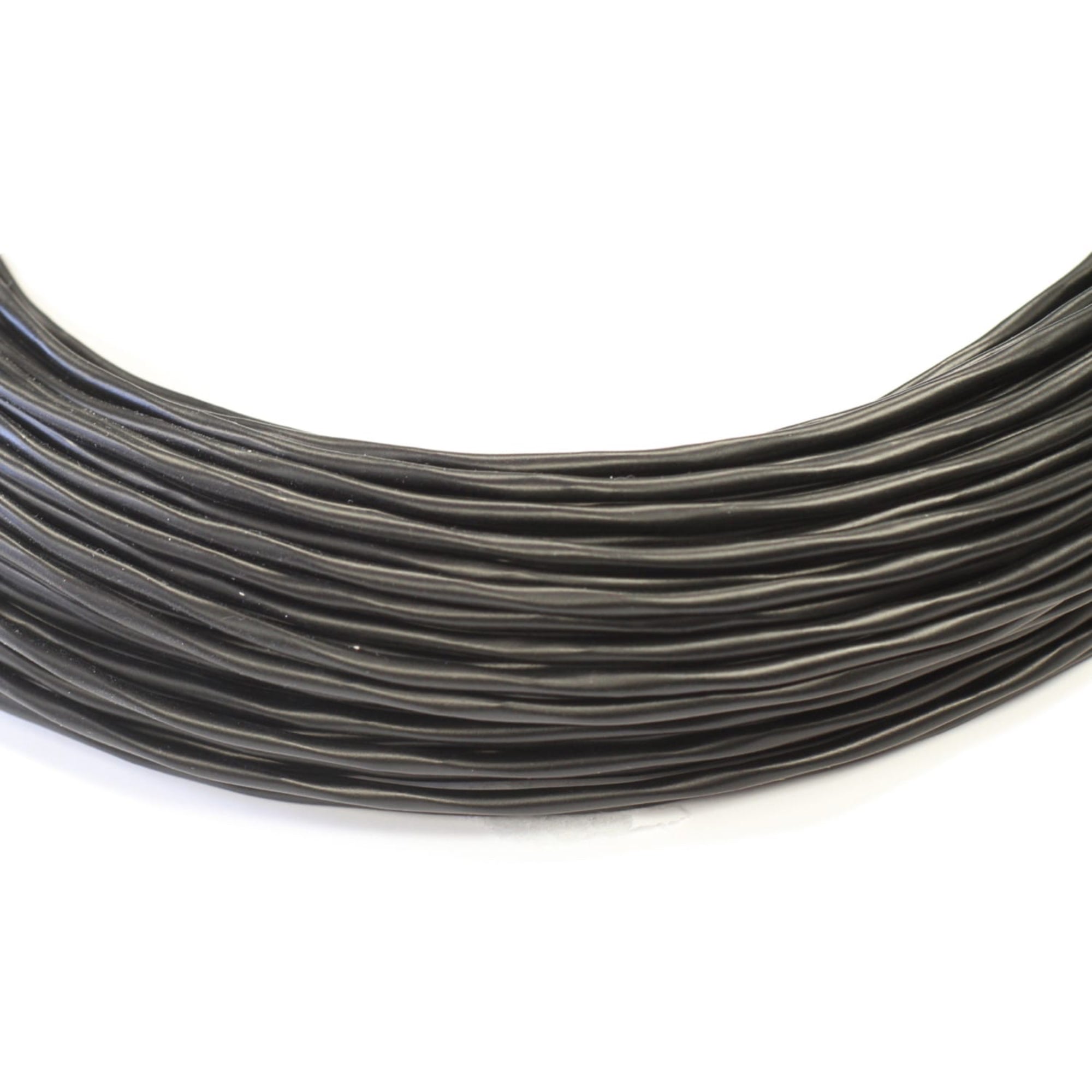

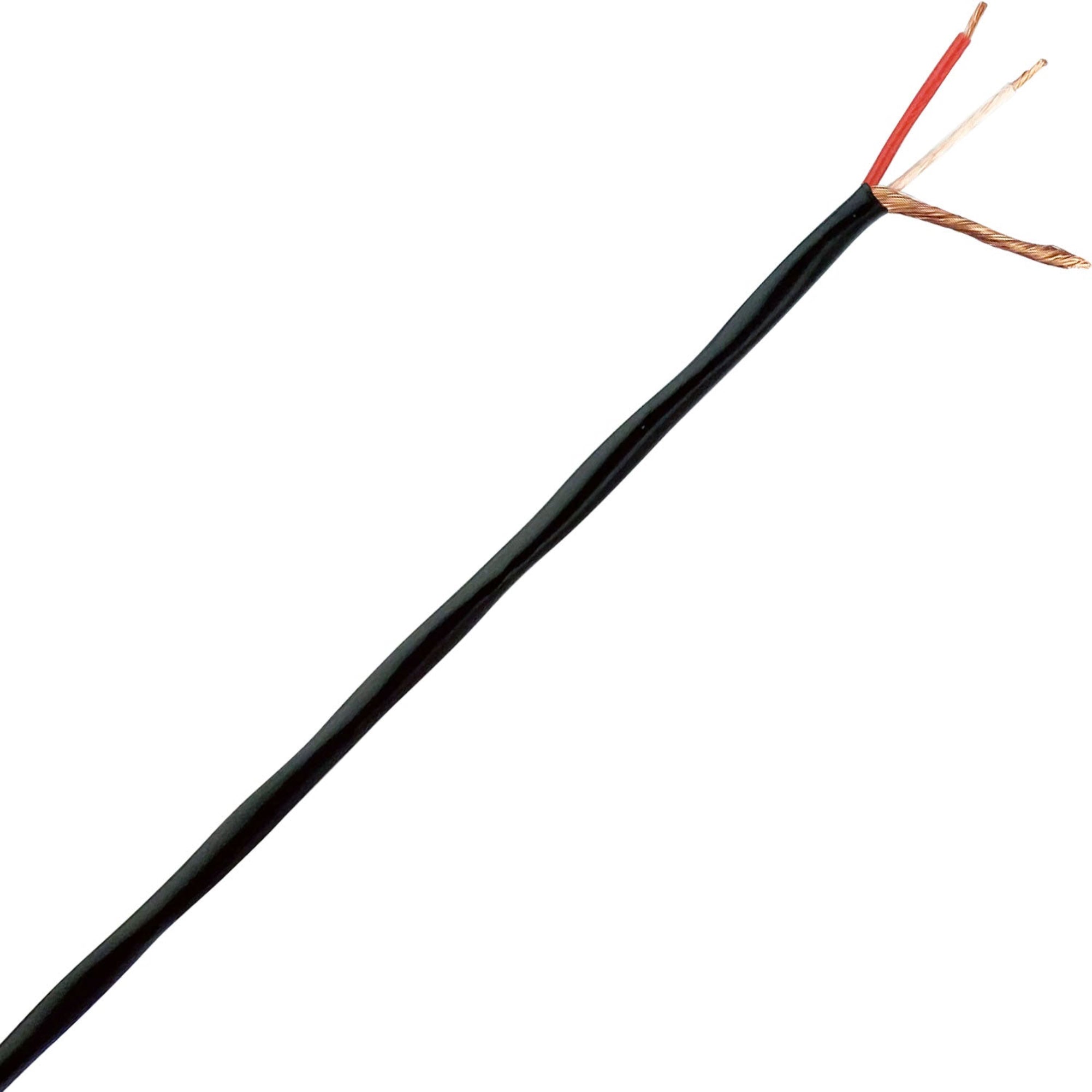

Mogami W2944 Console Cable (Black, 656'/200m Roll)

Black 2 Conductor 26awg Console Cable - Full 656'/200m Roll

The copper conductors of all these console cables are made of famous NEGLEX OFC, hence we can recommend any of these with confidence for the highest quality wiring of mixing consoles, rack panels, and studio equipment.

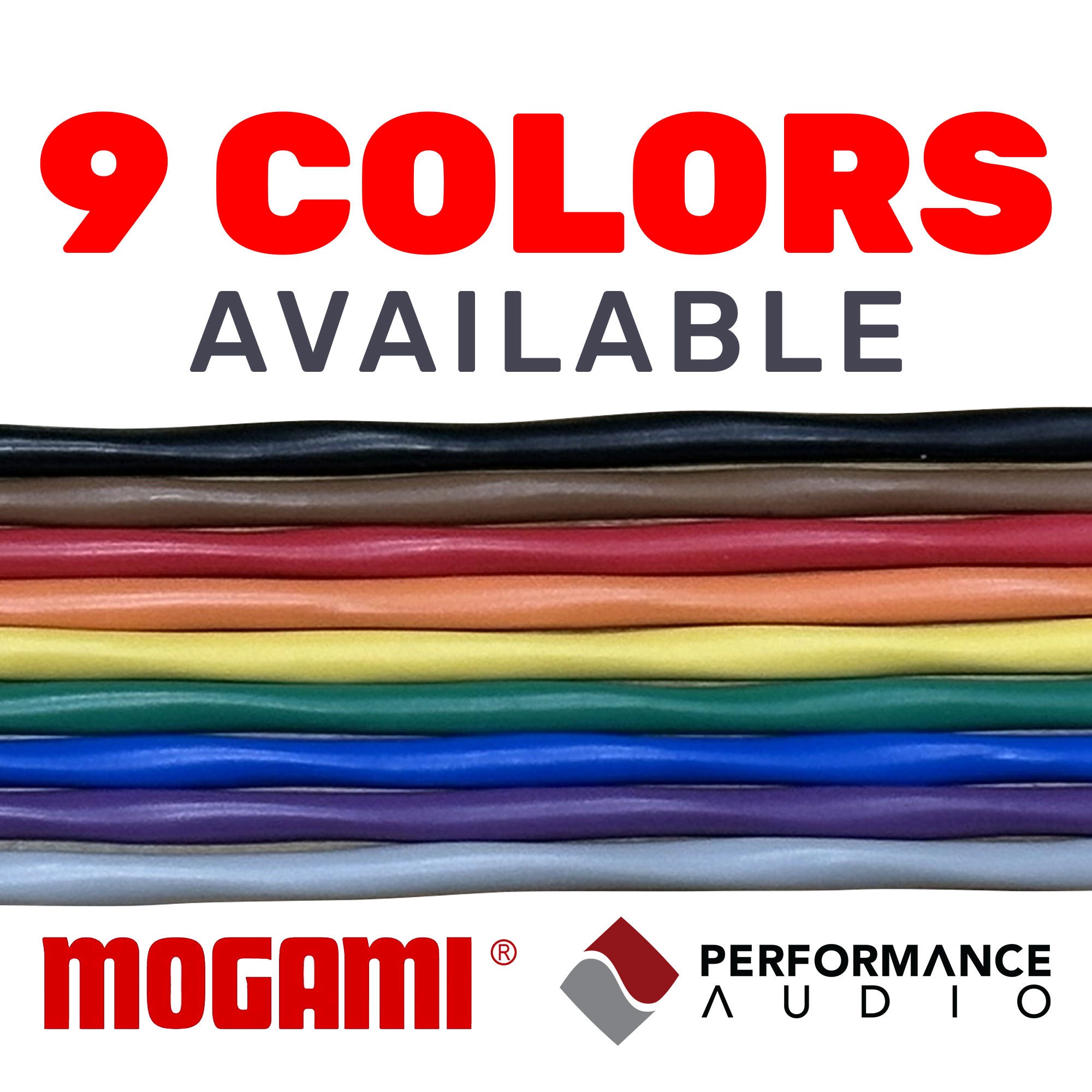

Available Colors: Black / Brown / Red / Orange / Yellow / Green / Blue / Purple / Gray / White

Standard Roll Lengths:

• 164 feet
• 328 feet
• 656 feet

Features:

• All cables feature XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering.

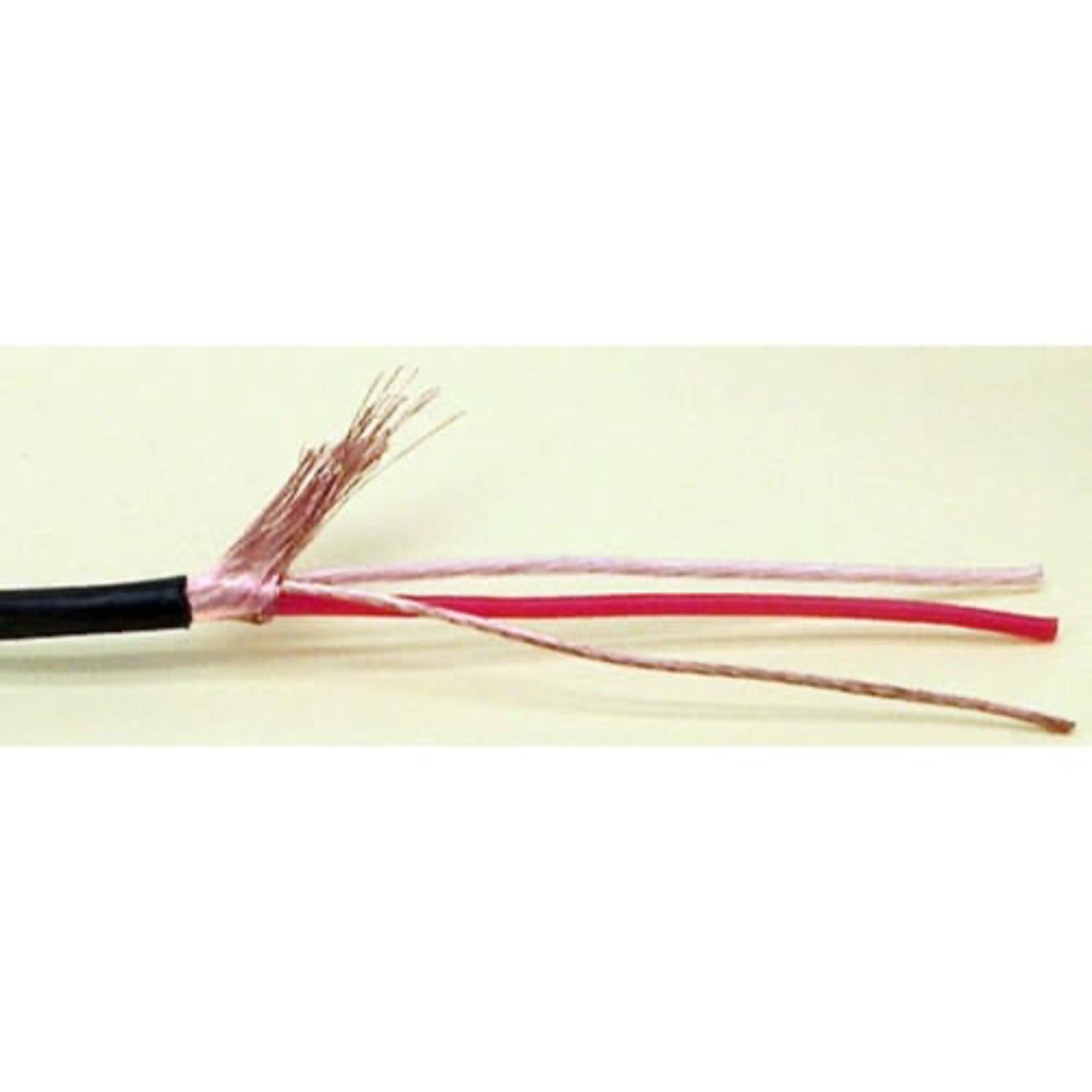

• Served (spiral) shield provides easier cable termination and better sound quality than braided shield.
• Small size for space saving.
• Very flexible and easy to use.
• Ten colors available for easy identification.
• Same configuration as the core of our standard multi mic. snake cable series (EZID models).

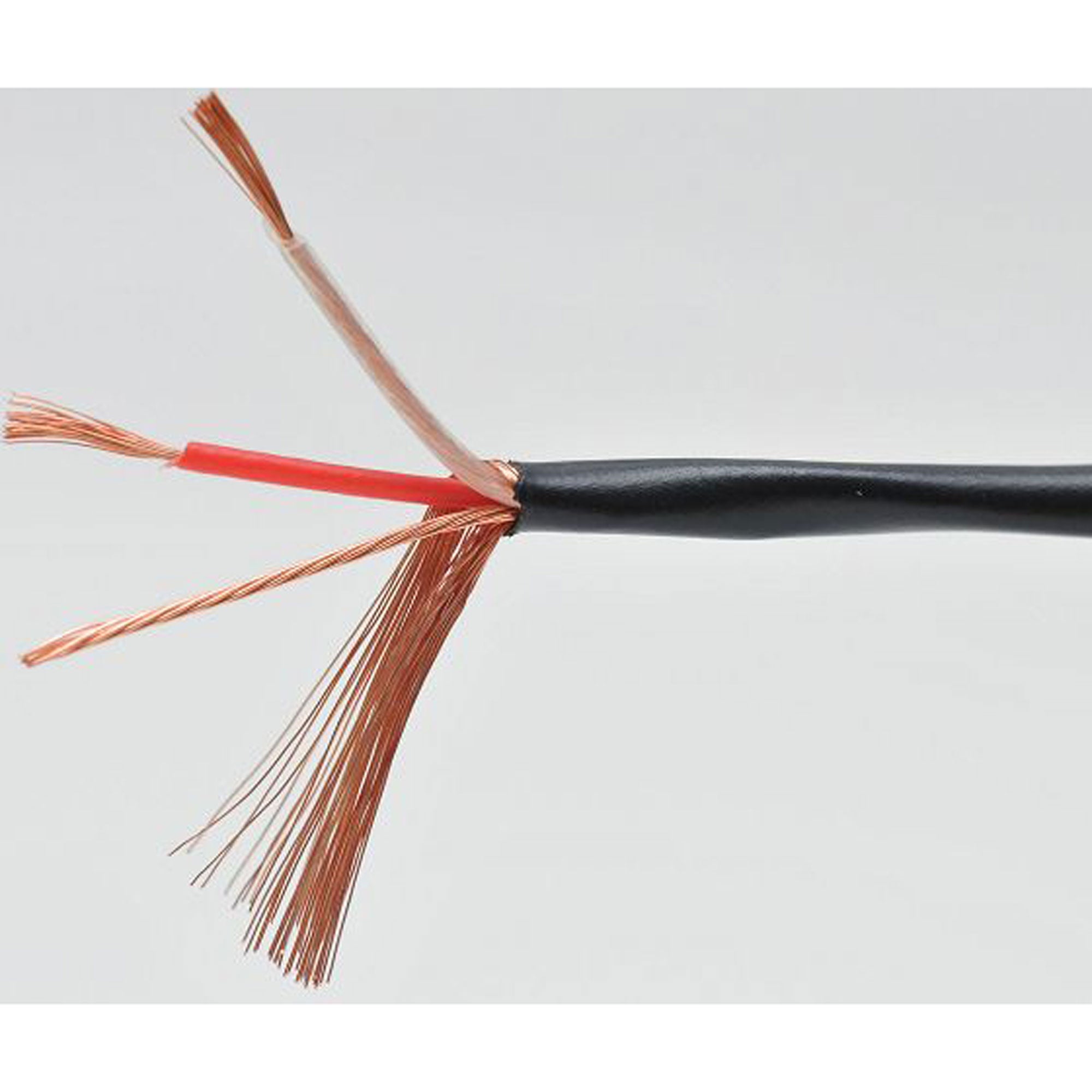

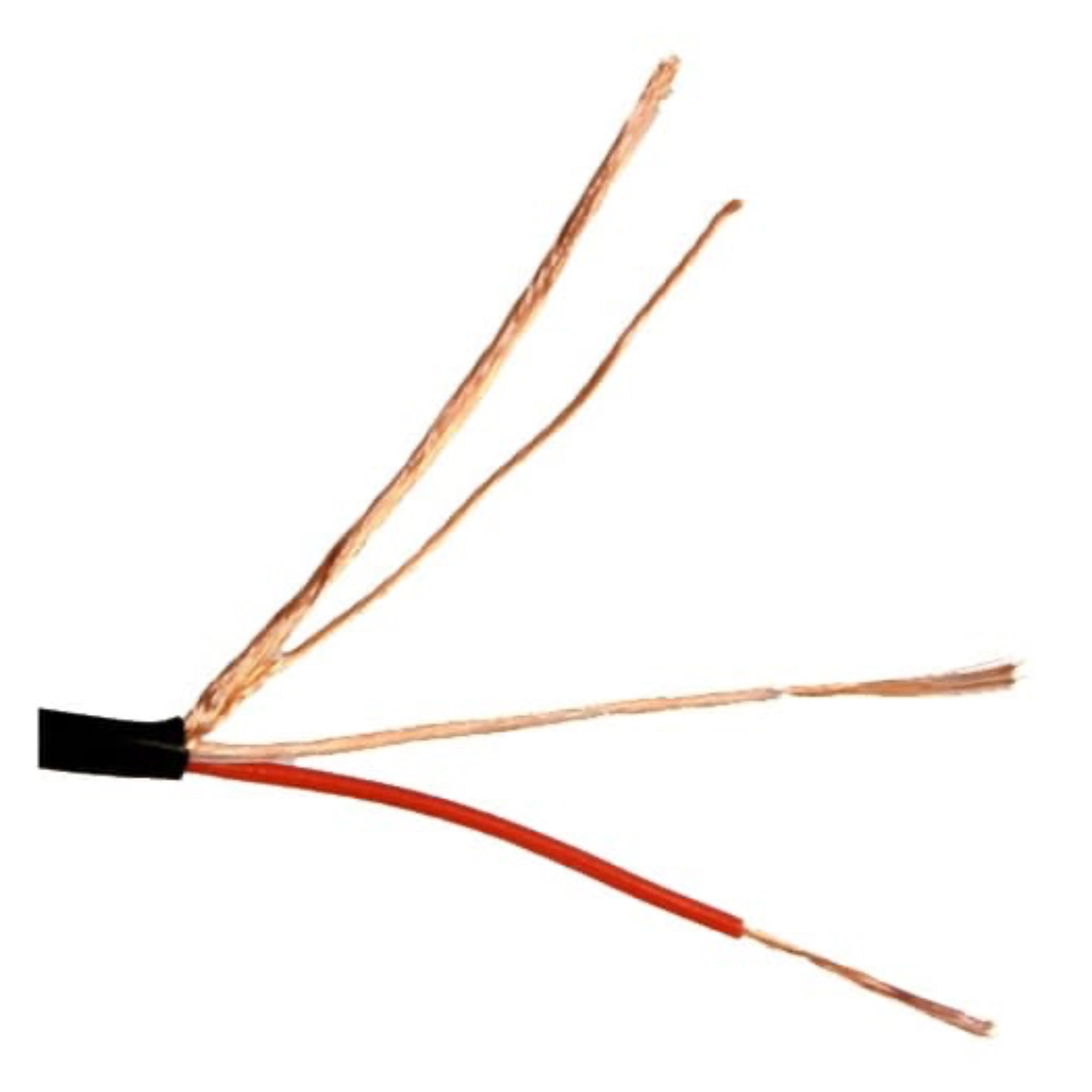

• Additional drain wire makes wiring efficient, as it can be crimped by the same size crimp terminal, as the conductors.

Specifications:

• Part No.: W2944
• No. of Conductor: 2
• Conductor Details: 30/0.08 OFC
• Conductor Size(mm²): 0.15mm² (#26AWG)
• Insulation Ov. Dia.(mm): 1.0Ø (0.039")
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Insulation Core Colors: Red / Clear
• Drain Wire Details: 7/0.18A
• Drain Wire Size: 0.18mm² (#25AWG)
• Served Shield: Approx. 58/0.10A
• Jacket Ov. Dia.(mm): 2.5Ø (0.098")
• Jacket Material: PVC
• Jacket Core Colors: Black / Brown / Red / Orange / Yellow / Green / Blue / Purple / Gray / White
• Roll Sizes:
  50m (164 Ft)
  100m (328Ft)

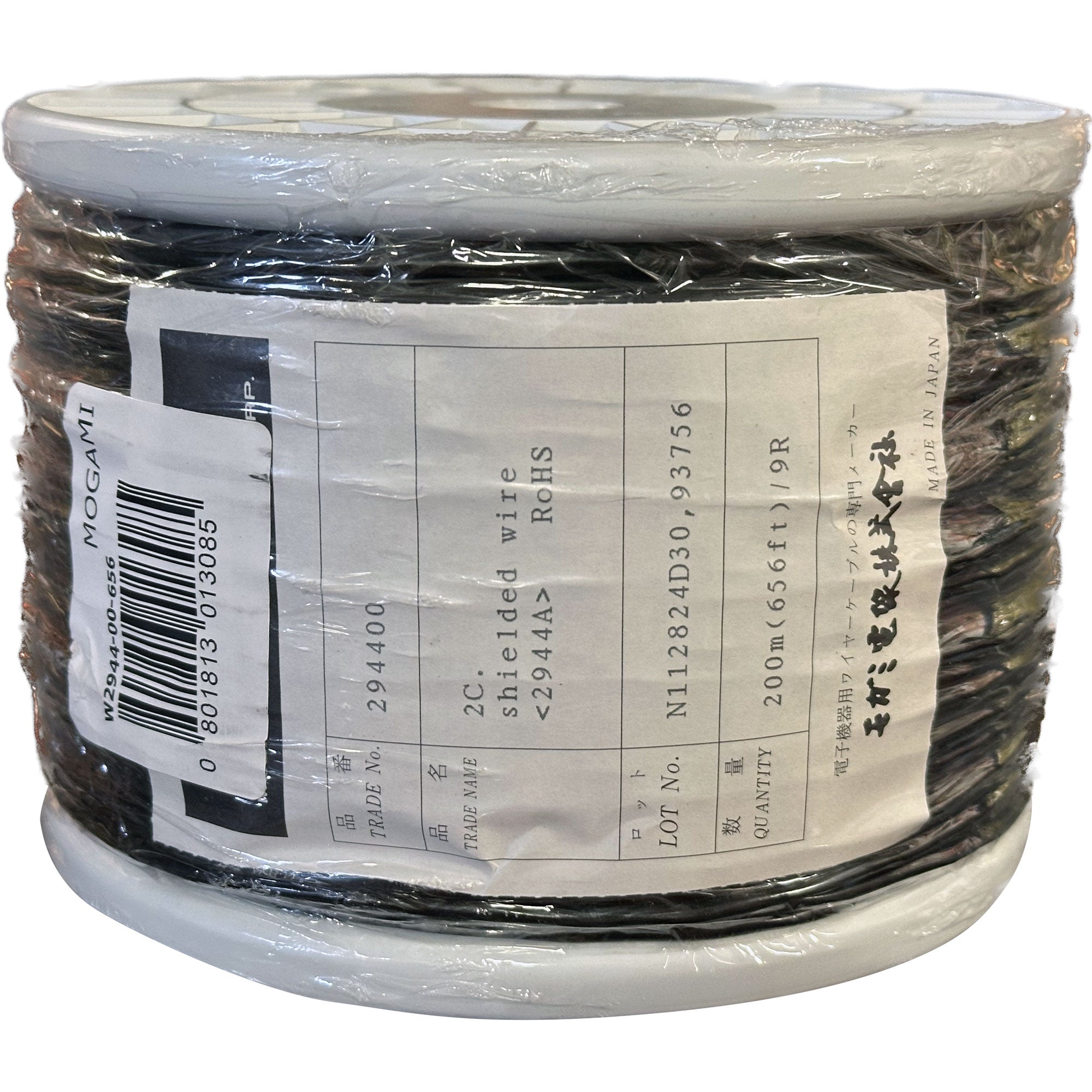

  200m (656Ft)
• Weight per 200m Roll: 2.5kg
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• DC Resistance at 20°C Inner Cond.: 0.13Ω/m(0.040Ω/Ft)
• DC Resistance at 20°C Shield: 0.035Ω/m(0.011Ω/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value) K0: 130pF/m(40pF/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value) K1: 12pF/m(3.7pF/Ft)
• Inductance between conductors at 1kHz, 20°C: 0.6µH/m(0.18µH/Ft)
• Electrostatic Noise**: 20mV Max.
• Electromagnetic Noise: 0.1mV Max.
