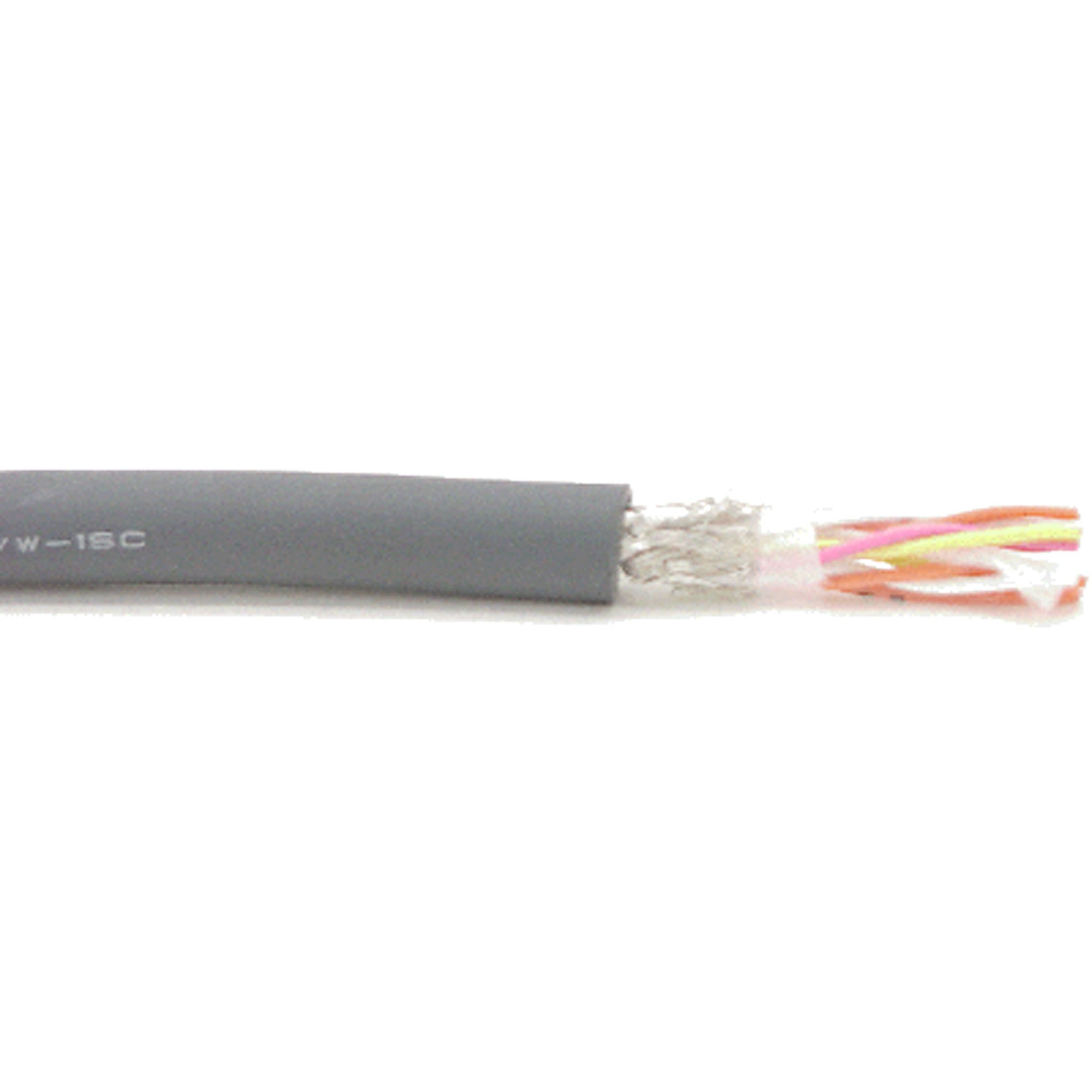

Mogami W2862 12 Conductor 28awg Superflexble Overall Shielded Cable (500' Roll)

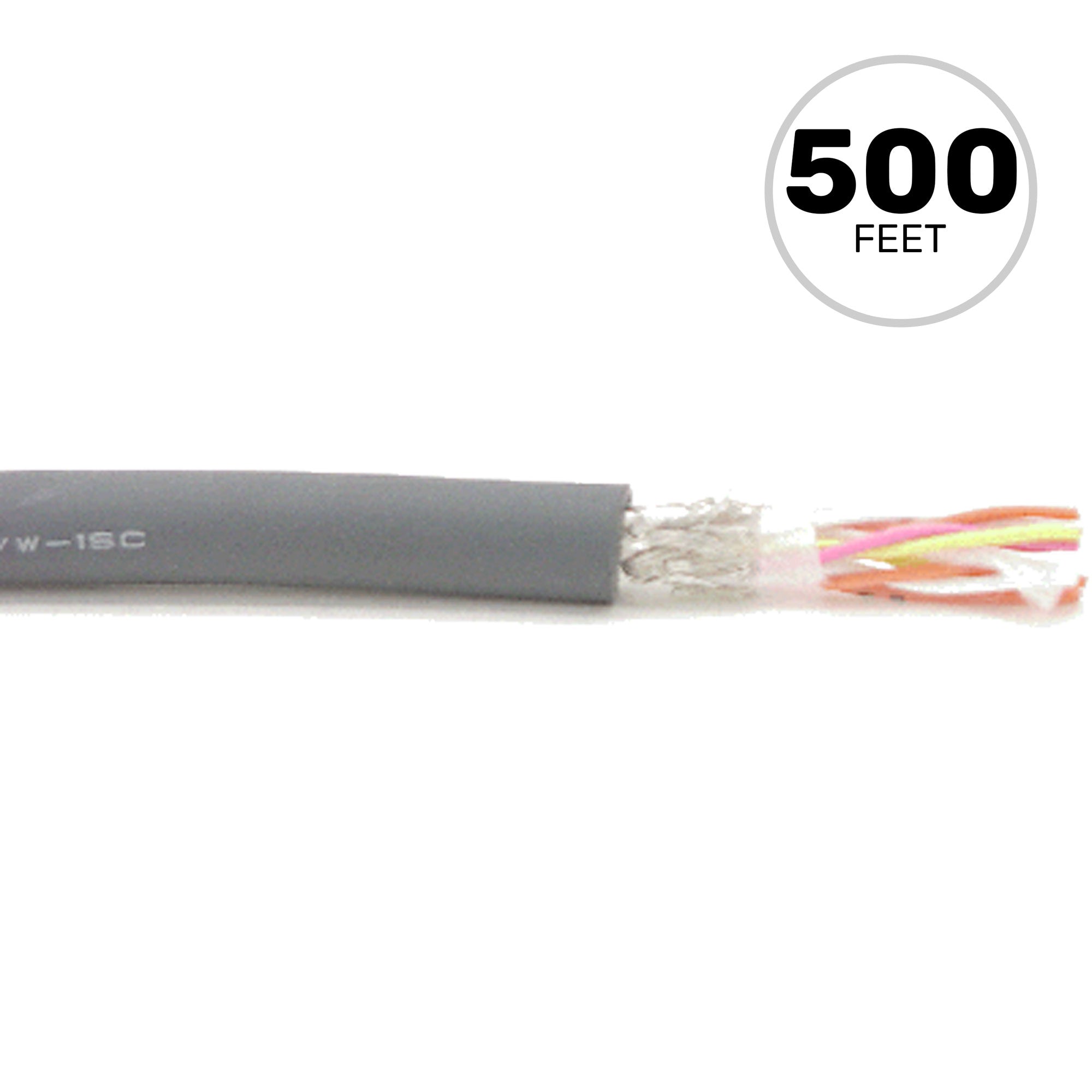

12 Conductor 28awg Superflexble Overall Shielded Cable - Full 500' Roll

Multi purpose #28AWG superflexble overall shielded cable available in twisted pair configuration for electromagnetic noise rejection as well as in economy and easy wiring general round configuration in compact gray jacket. All these cables are approved as UL SUBJECT 758 AWM 20002 VW-1SC.

Available Colors: Gray

Standard Roll Lengths:

• 500 feet

• Conductor:Details: 7/0.127TA (7 #37AWG)Size(mm(2)): 0.088mm(2) (#28AWG)
• Insulation:Ov. Dia.(mm): 0.95 diameter (0.0374")Material: PVC
• Overall Shield:Type: Braided shieldCoverage: Minimum 85%
• Ov. Jacket:Material: Flexible PVCColor: Dark Gray
• No. of Conductor: 12
• Ov. Dia. (mm): 6.4 diameter (0.252)
• Roll size and weight per roll: 8.5kg/153m (500Ft)

• DC Resistance at 20C: 0.21W/m(0.064W/Ft)
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 10000 MW m Min. at DC 500V , 20C
• Chracteristic Impedance*: 90 ~ 115W (at 10MHz)
• Cable Skew*: 0.517nS/m
• Delay Time*: 5.5 ~ 6.1n S/m
• Velocity Ratio*: 0.55 ~ 0.60
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20C~ +70C(-4F~ +158F)
• Standard: UL 758 AWM 20002 VW-1SC 30V 80C
