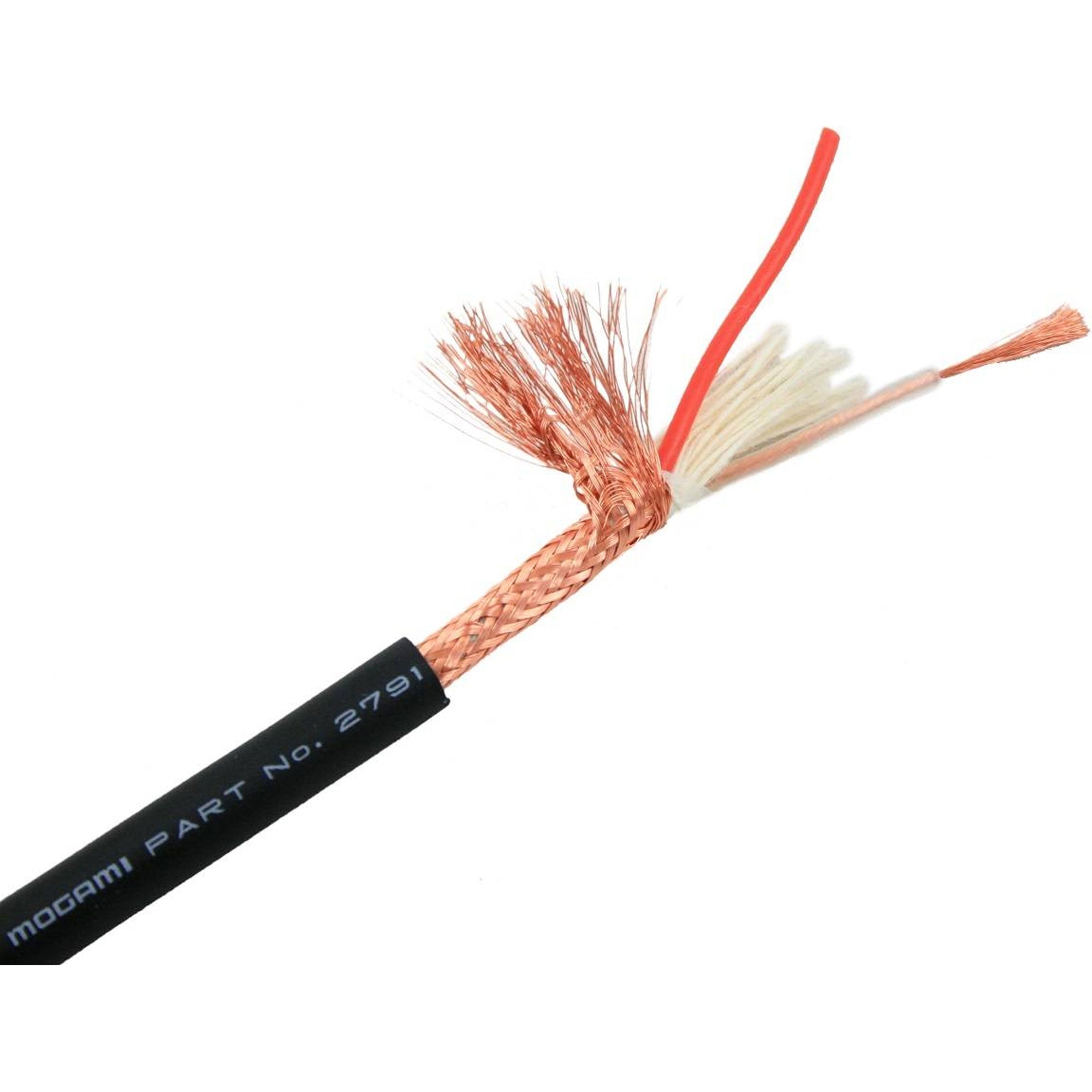

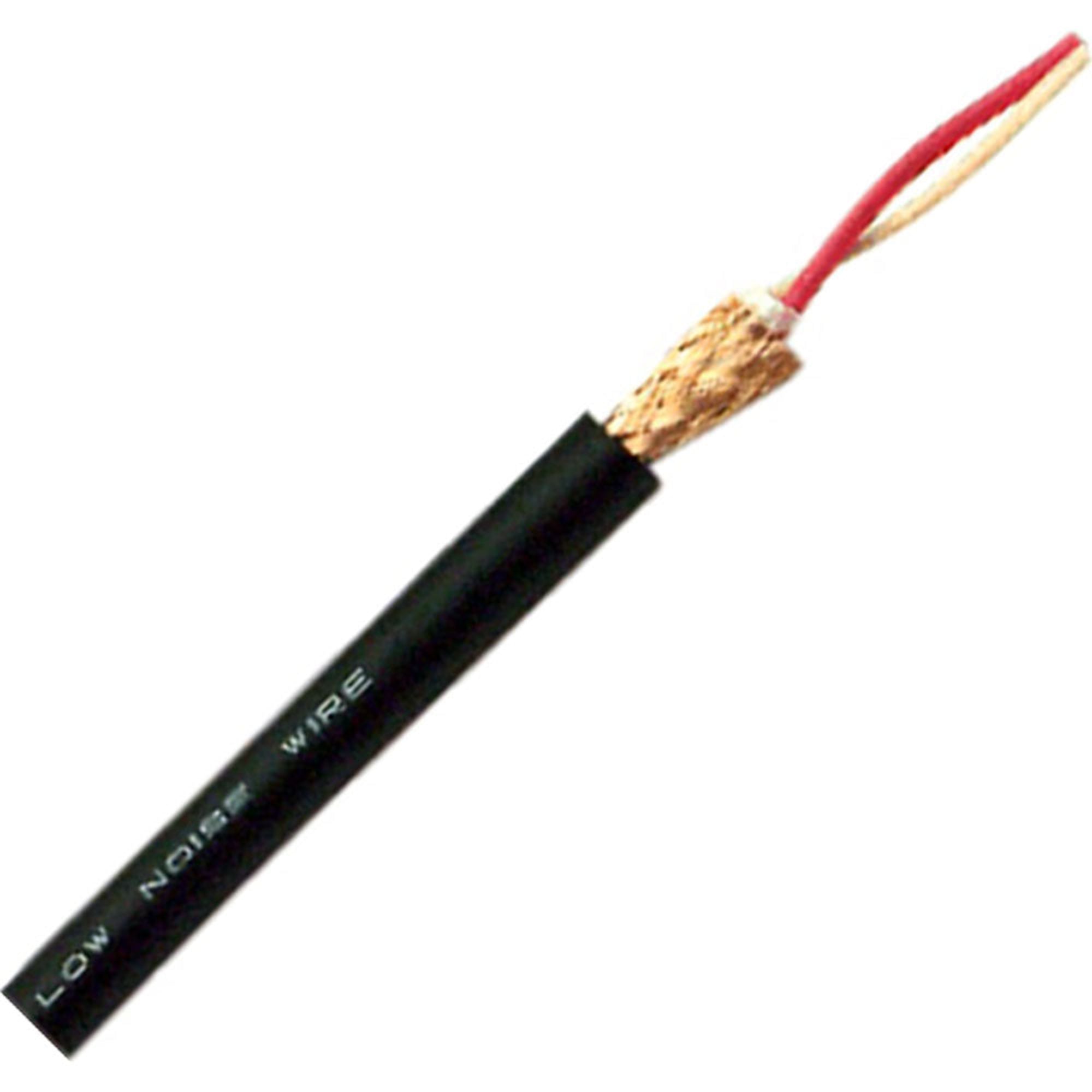

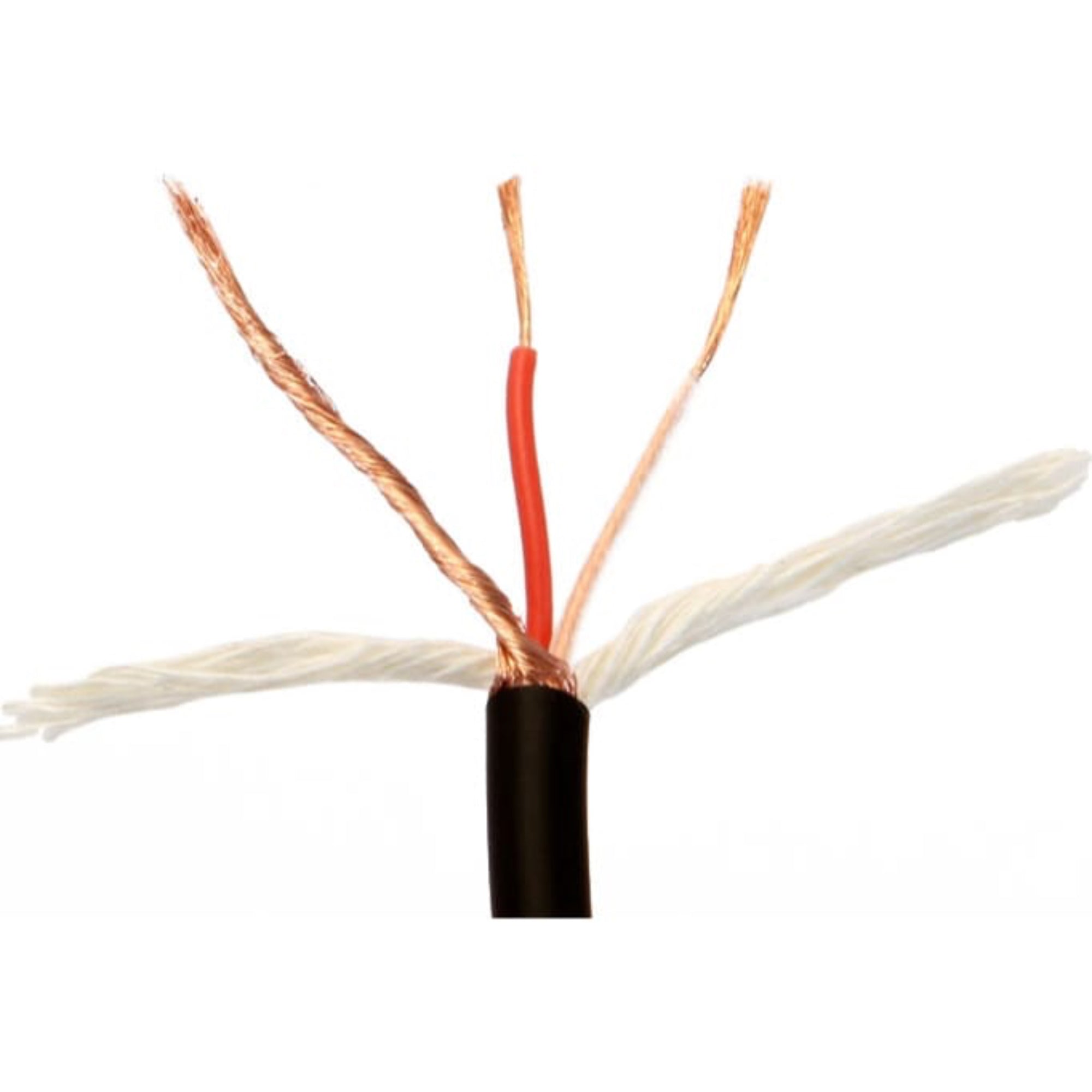

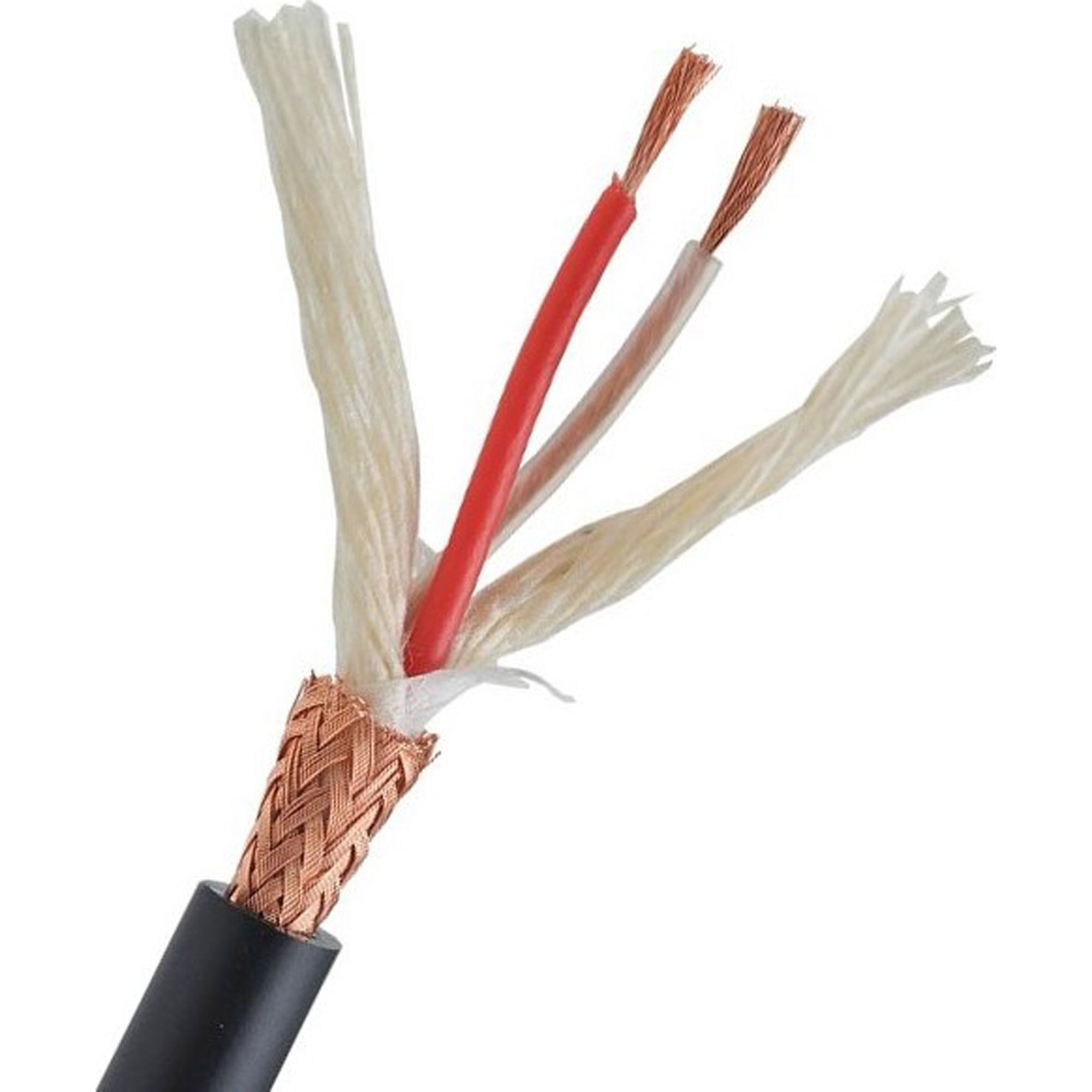

Mogami W2791 Ultraflex/Live Use Mic Cable (Black, By the Foot)

2 Conductor 24awg Ultraflex/Live Use Mic Cable - Sold by the Foot

105 Strand Broadcast Mic. Cable

Excellent for rugged remote and on stage use in Sound Reinforcement, TV, Radio broadcasting etc. Its compact size together with a heavy duty binder and filler system and a braided shield make it ideal for all continuous handling applications. Exhibits very low microphonic pick - up and can operate at very cold temperatures down to -20°C (-4°F) without losing its flexibility. 105 strands of 44AWG annealed bare copper features ultra flexibility with extraordinary flex life, while maintaining excellent strength characteristics.

Specifications:

• Part No.: W2791
• Conductor Size (mm²): 0.206mm² (#24AWG)
• O.D. (mm): 5.5ø (0.217")
• Flex Life: 131,000 cycles
• Tensile Strength: 578 N
• Colors: Black / Red / Yellow / Green / Blue

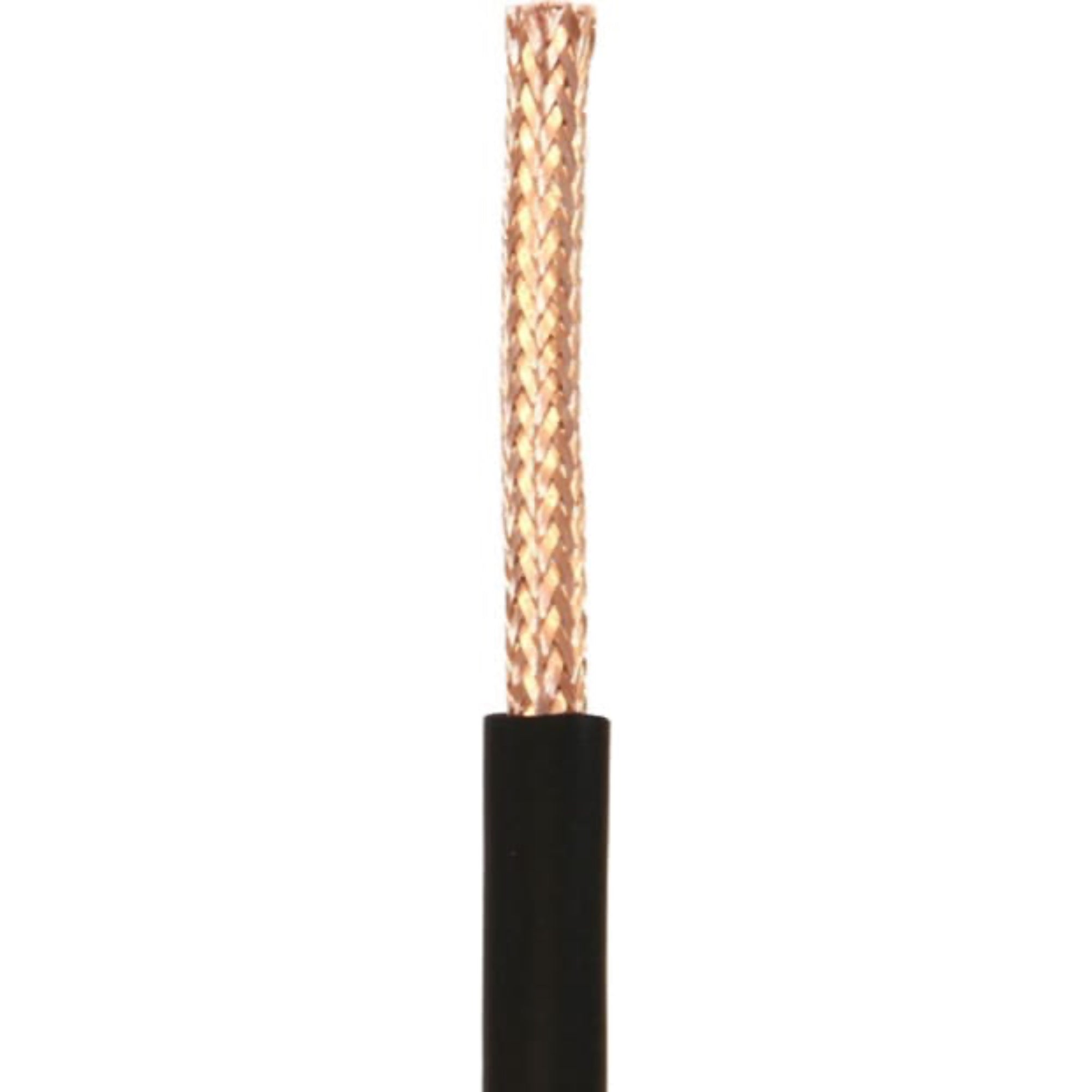

• Braided Shield: Coverage: over 95%
• No. of Conductor: 2
• Conductor Details: 105/0.05 A
• Conductor Size(mm²): 0.206mm² (#24 AWG)
• Insulation Ov. Dia.(mm): 1.5Ø (0.059")
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Insulation Colors: Red / Clear
• Shield: Braid 0.10A/9/16
• Jacket: Ov. Dia.(mm): 5.5Ø (0.217")
• Material: Flexible PVC
• Colors: Black / Red / Yellow / Green / Blue
• Roll Sizes:
  50m (164 Ft)
  100m (328Ft)
  200m (656Ft)
• Weight per 200m Roll: 9kg
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• DC Resistance at 20°C Inner Cond.: 0.09Ω/m(0.027Ω/Ft)
• DC Resistance at 20°C Shield: 0.002Ω/m(0.006Ω/Ft)
• Capacitance at 1kHz, 20°C:
  (Partial C. Value)
  See below figure*
  K0: 86pF/m(26pF/Ft)
  K1: 10pF/m(3.1pF/Ft)
• Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
• Electrostatic Noise**: 250mV Max.
• Electromagnetic Noise**: 0.15mV Max.
• Microphonics at 50KΩ Load**: 30m V Max.
• Voltage Breakdown: Must withstand at DC 125V/15sec.
• Insulation Resistance: 100000 M Ω x m Min. at DC 125V, 20°C
• Flex Life**: 164,000 cycles
• Tensile Strength: 578N
• Emigration: Non-emigrant to ABS
• Applicable Temperature: -20°C- +70°C(-4°F- +158°F)
• ** Using standard testing methods of Mogami Wire & Cable Corp.
• * Partial Capacitance
