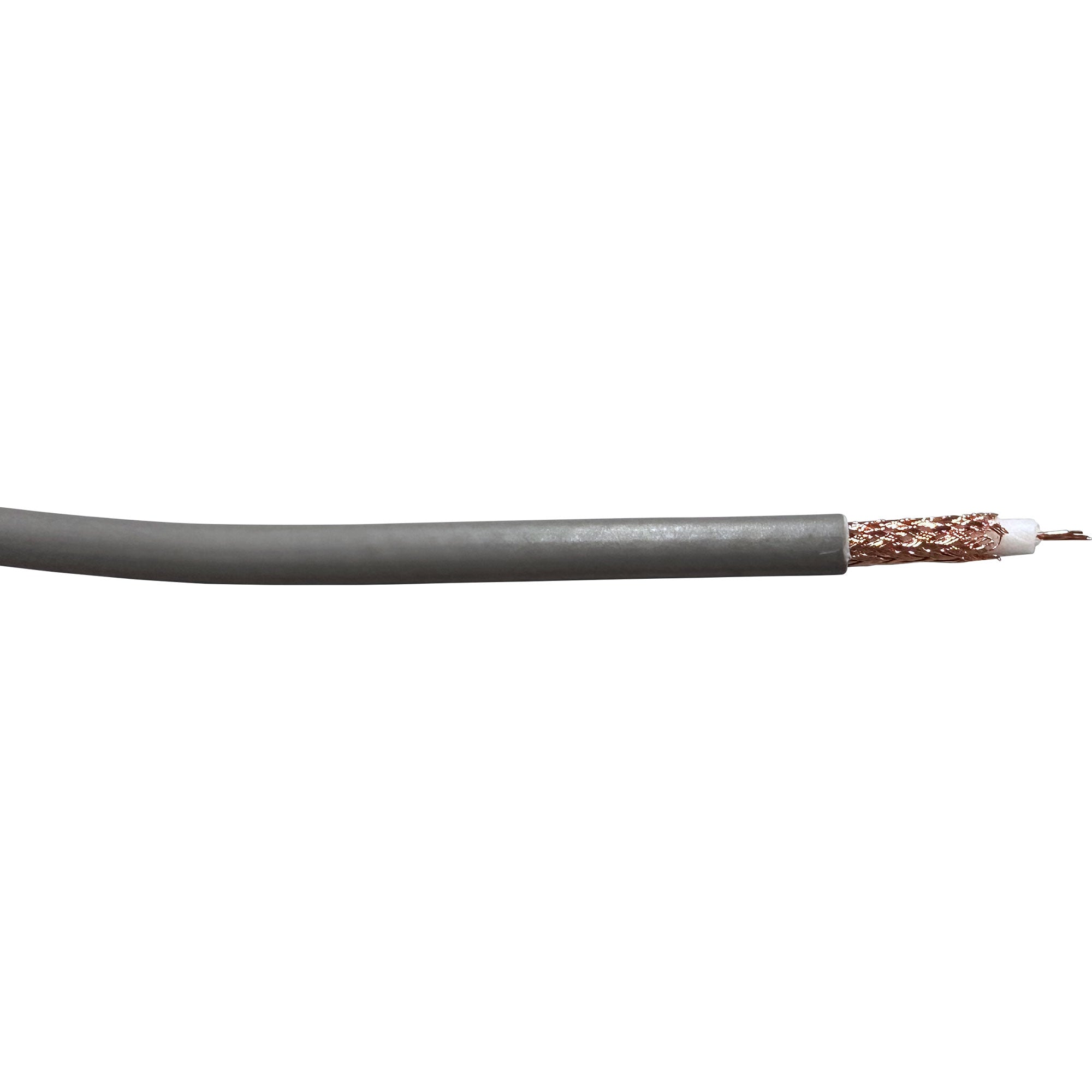

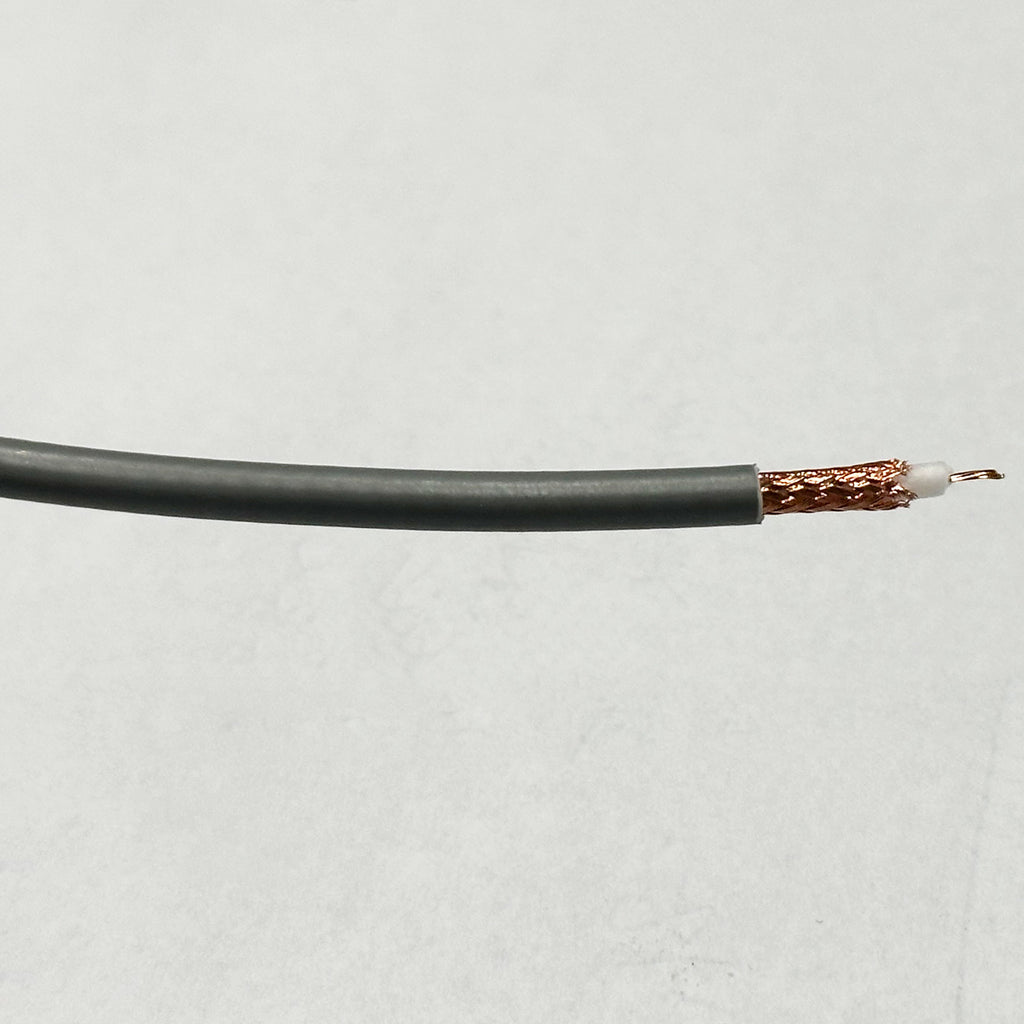

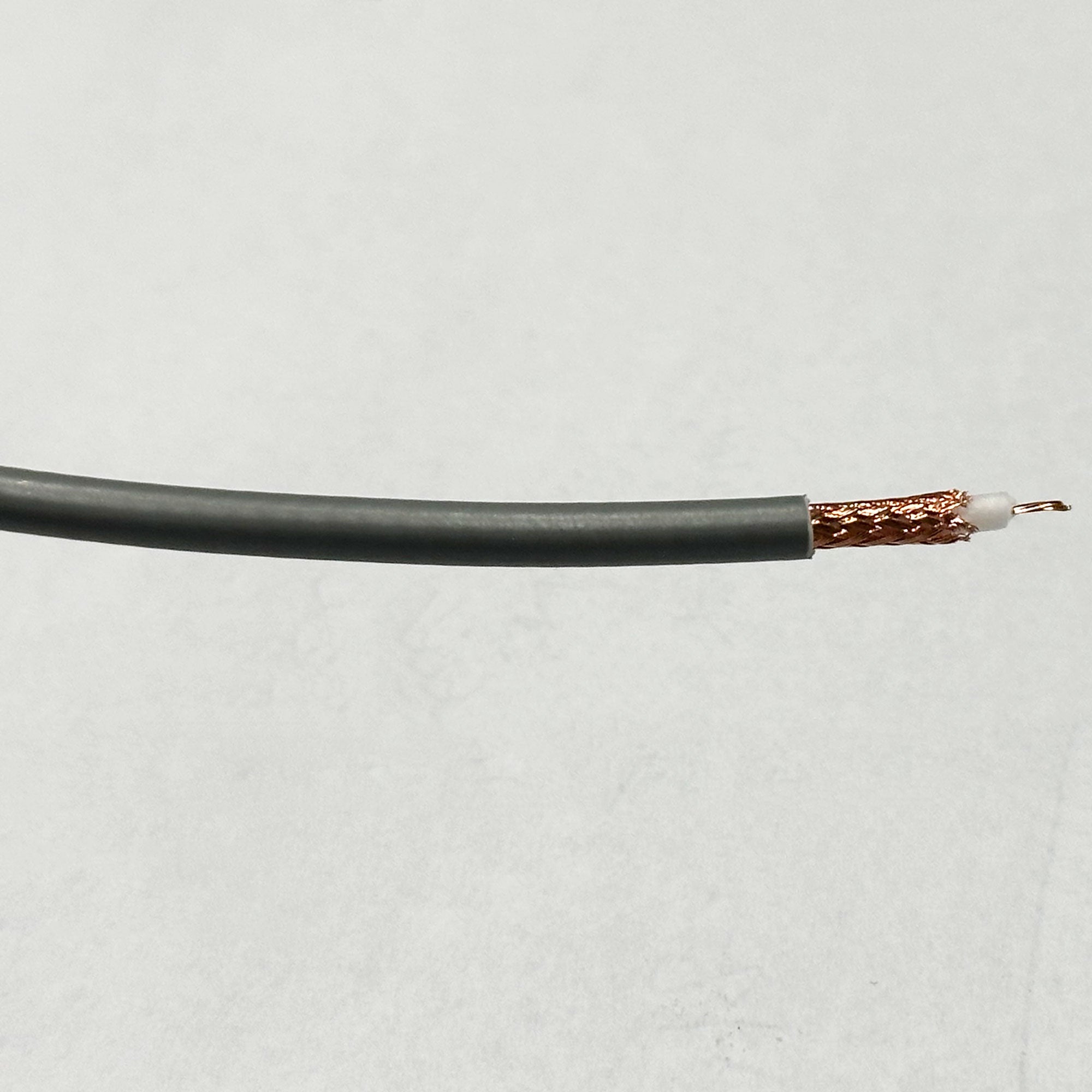

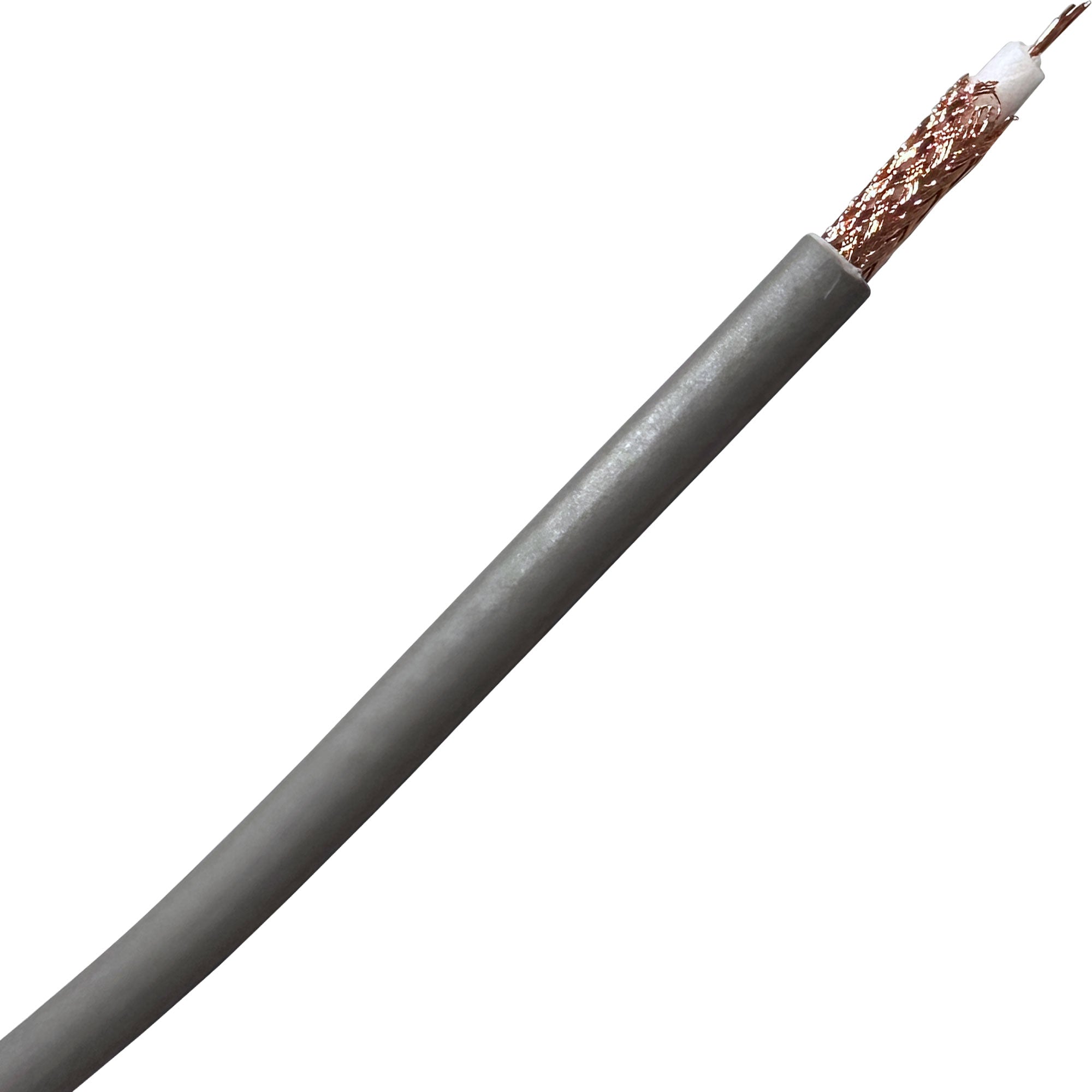

Mogami W2546 75ohm Coax Audio/Video Cable (Grey, By the Foot)

1 Conductor 75ohm Coaxial High Definition Audio/Video Cable - Sold by the Foot

Super flexible subminiature coaxial cables which cannot be found in MIL, JIS and other popular worldwide standards. There are lots of cases where those standard cables will not do the job. MOGAMI superflexible subminiature coaxial cables were originally made for custom applications, and remained in production thereafter, finding many applications all over the world.

Available Colors:
Gray

Standard Roll Lengths:
1000 feet

Specifications:

• Characteristic Impedance: 75W
• Conductor:Details: 7/0.14ASize: 0.107mm(2) (#27AWG)
• Insulation:Ov. Dia.(mm): 1.95 diameter (0.077")Material: CPE
• Overall Shield:Type: BraidedDetails: 16/4/0.12A
• Jacket:Ov. Dia.(mm): 3.3 diameter (0.130")Material: PVCColor: Gray
• Roll Sizes: 305m (1,000Ft)
• Weight per 305m (1,000Ft) Roll: 5.0kg
• Electrical & Mechanical Characteristics:
• DC Resistance at 20C:Inner Cond.: 0.18W/m(0.055W/Ft)Shield: 0.03W/m(0.009W/Ft)
• Capacitance at 1kHz, 20C: 62pF/m(18.9pF/Ft)
• Characteristic Imperdance at 10MHz: 75W+/-10%
• Attenuation (10MHz): 0.061dB/m (0.019db/Ft)
• Phase Constant (10MHz): 0.30rad/m
• Electromagnetic Noise*: 0.1mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 10000 MW m Min. at DC 250V, 20C
• Flex Life*: 8,600 cycles
• Tensile Strength: 205N
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20C~ +60C(-4F~ +158CEF)
• Standard: UL 1354 AWM VW-1 30V 60&C
• * Patial Capacitance** Using standard testing methods of Mogami Wire & Cable Corp.
