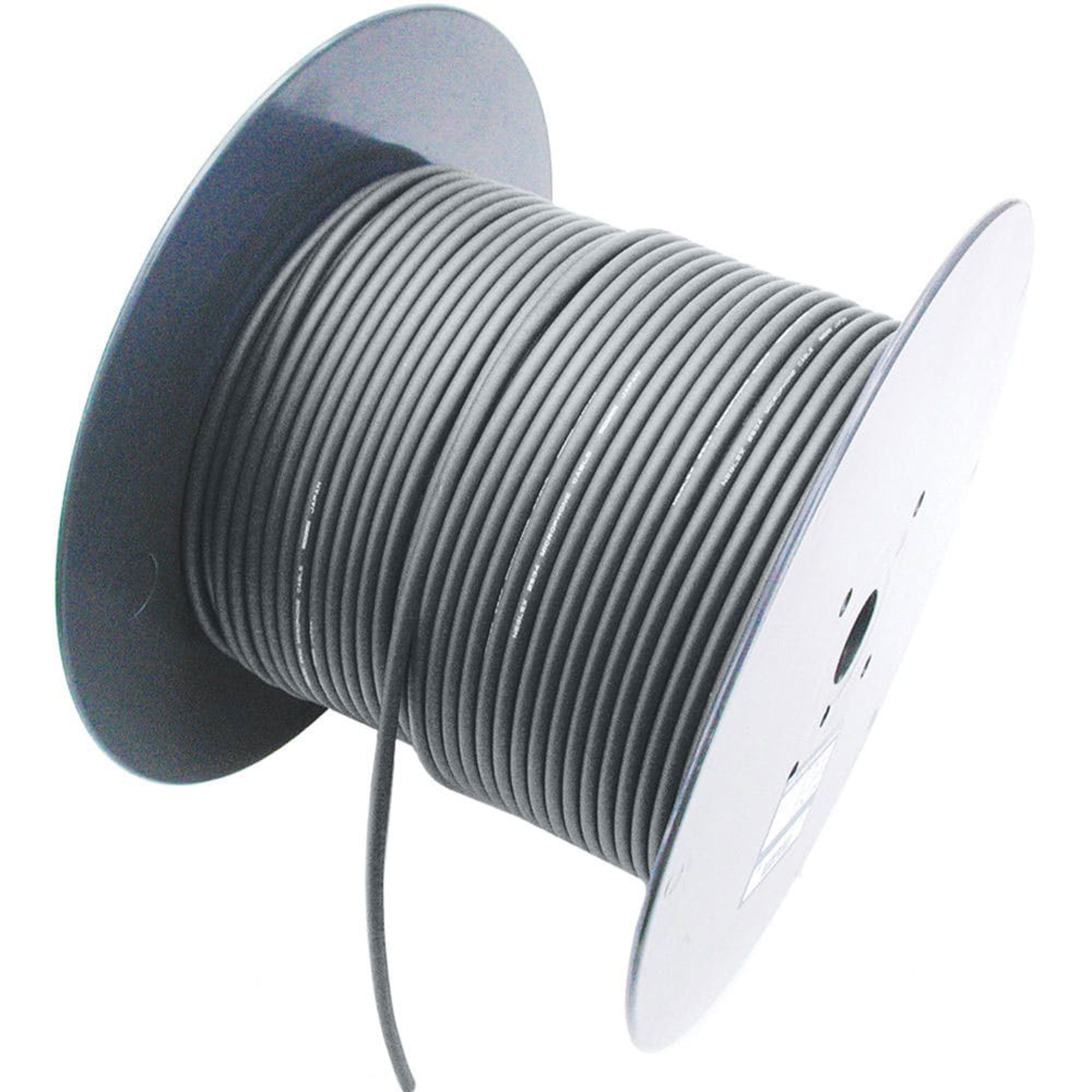

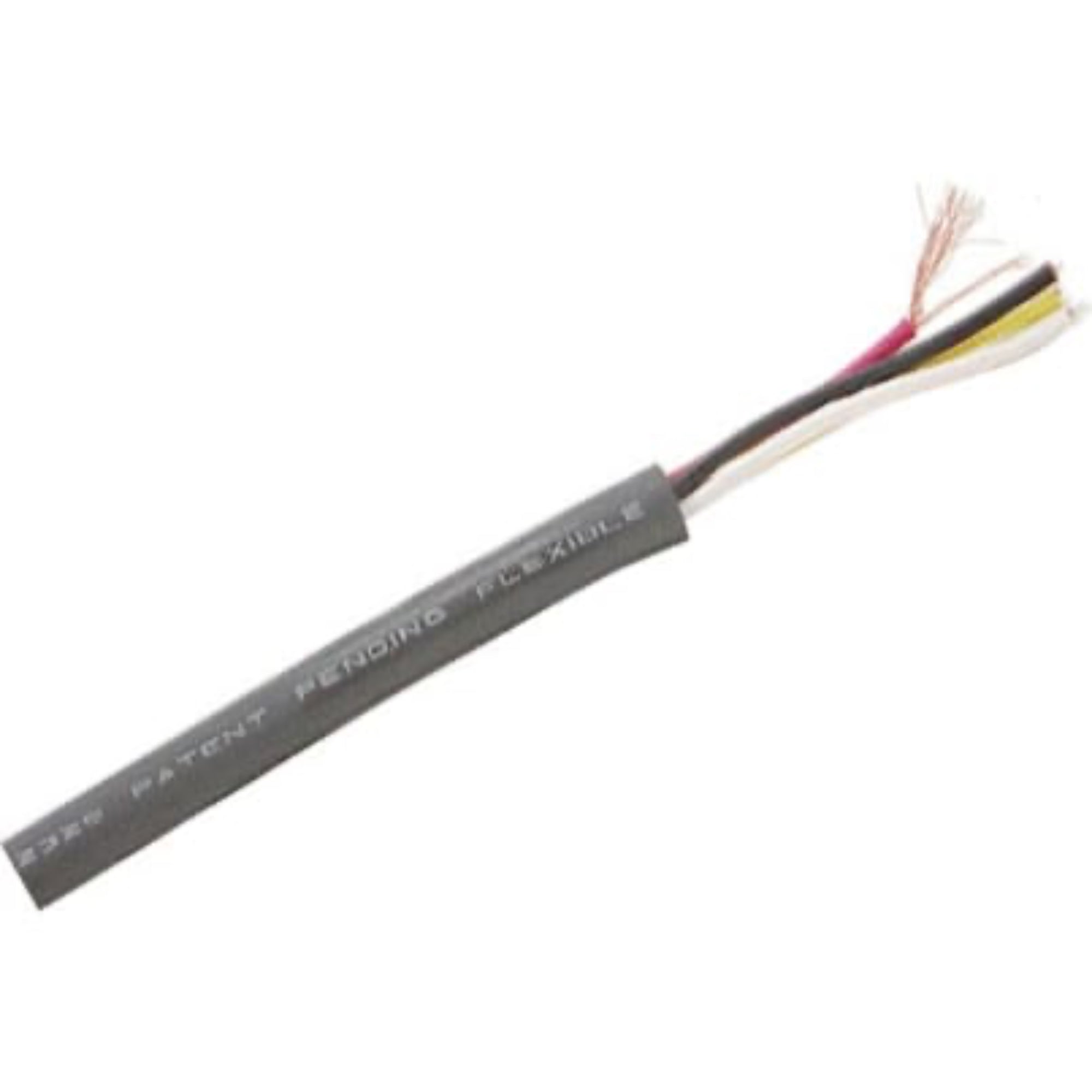

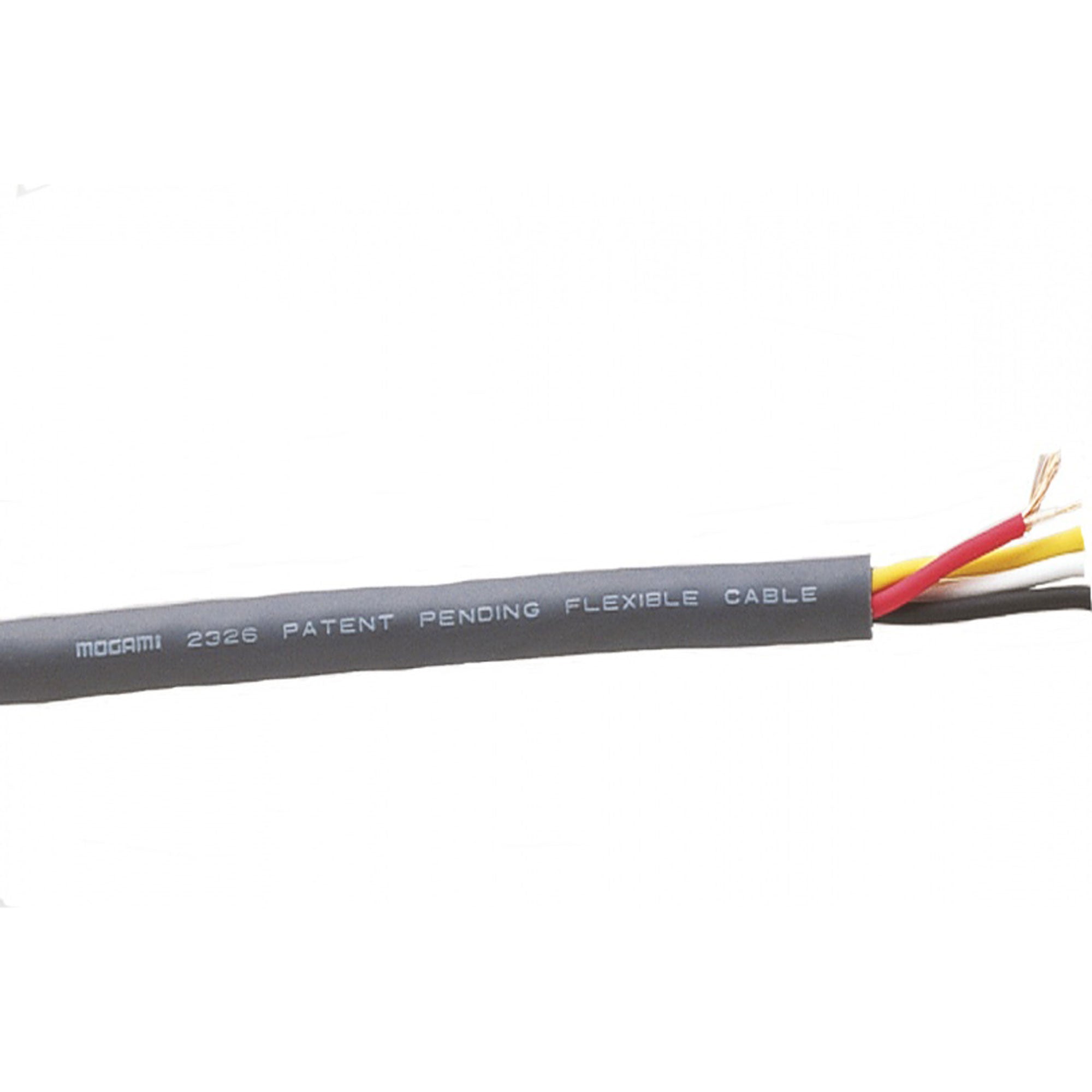

Mogami W2326 4 Conductor 50 Ohm Superflex Coaxial Monitor Cable (328'/100m Roll)

4 Conductor 50 Ohm Superflex Coaxial Cable - Full 328'/100m Roll

Specifically designed as a miniature video monitor cable, it easily connected to a rectangular 8 - pin connector.

Available Colors: Dark Gray

Standard Roll Lengths: 328 feet, 656 feet

Specifications:

• Core Configuration: 4 50W Coax.
• Conductor Size: 0.047mm(2) (#31AWG)
• Overall Shield: None
• Ov. Jacket:Ov. Dia.(mm): 6.0 diameter (0.236")Material: Flexible PVCColor: Dark Gray
• Roll Sizes: 200m (656Ft)
• Weight per 200m (656Ft) Roll: 8.3kg
• Electrical & Mechanical Characteristics:
• DC Resistance at 20C:Inner Cond.: 0.4W/m(0.122W/Ft)Shield: 0.078W/m(0.024W/Ft)
• Capacitance at 1kHz, 20C: 102pF/m(31.1pF/Ft)
• Characteristic Imperdance at 10MHz: 50W+/-5%
• Attenuation (10MHz): 0.2dB/m (0.061db/Ft)
• Velocity Ratio: 0.63
• Electromagnetic Noise*: 0.1mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 10000 MW m Min. at DC 500V, 20C
• Flex Life*: 6,500 cycles
• Tensile Strength: 294N
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20C~ +70C(-4F~ +158F)
