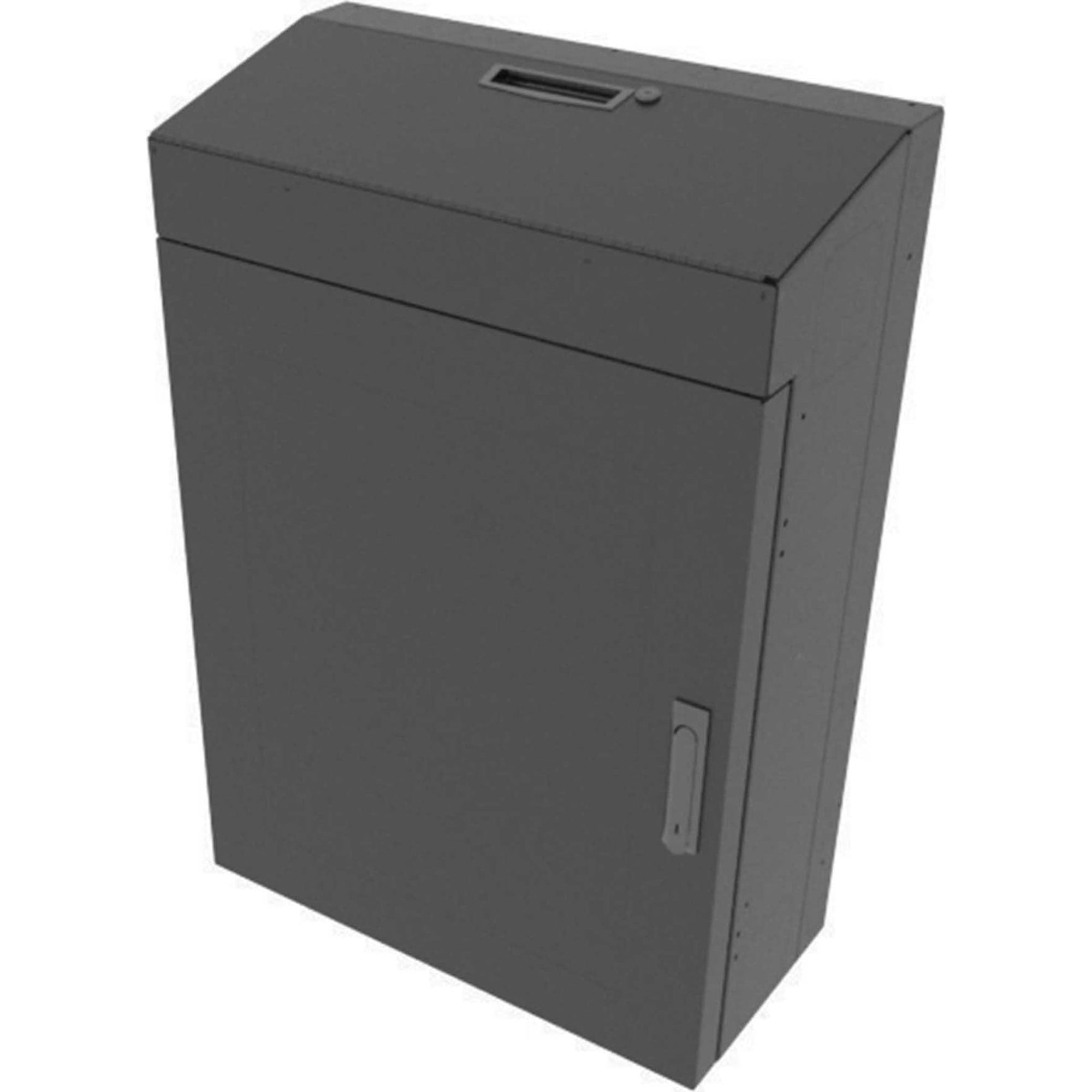

Middle Atlantic VWM-SD-6-36K-BW Low Profile Wall Rack 6U (Black)

6 Space Low Profile Wall Rack, 30" Usable Depth Solid Top, Black Finish

With a low-profile, patent-pending design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a "knobs-up" orientation within 6 spaces and 30" usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall.

Features:

• 6 spaces and 30" of usable depth for vertical "knobs up" equipment mounting

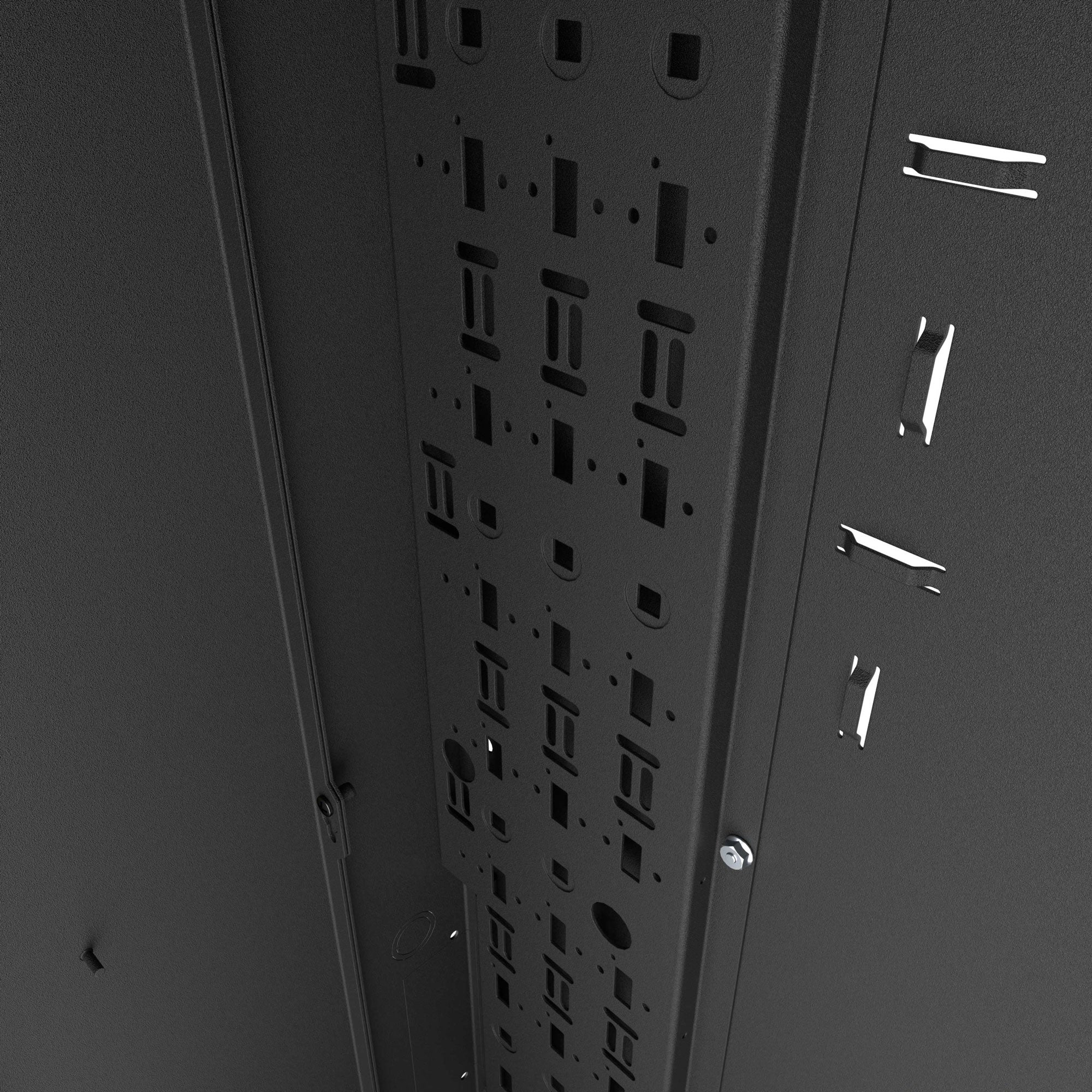

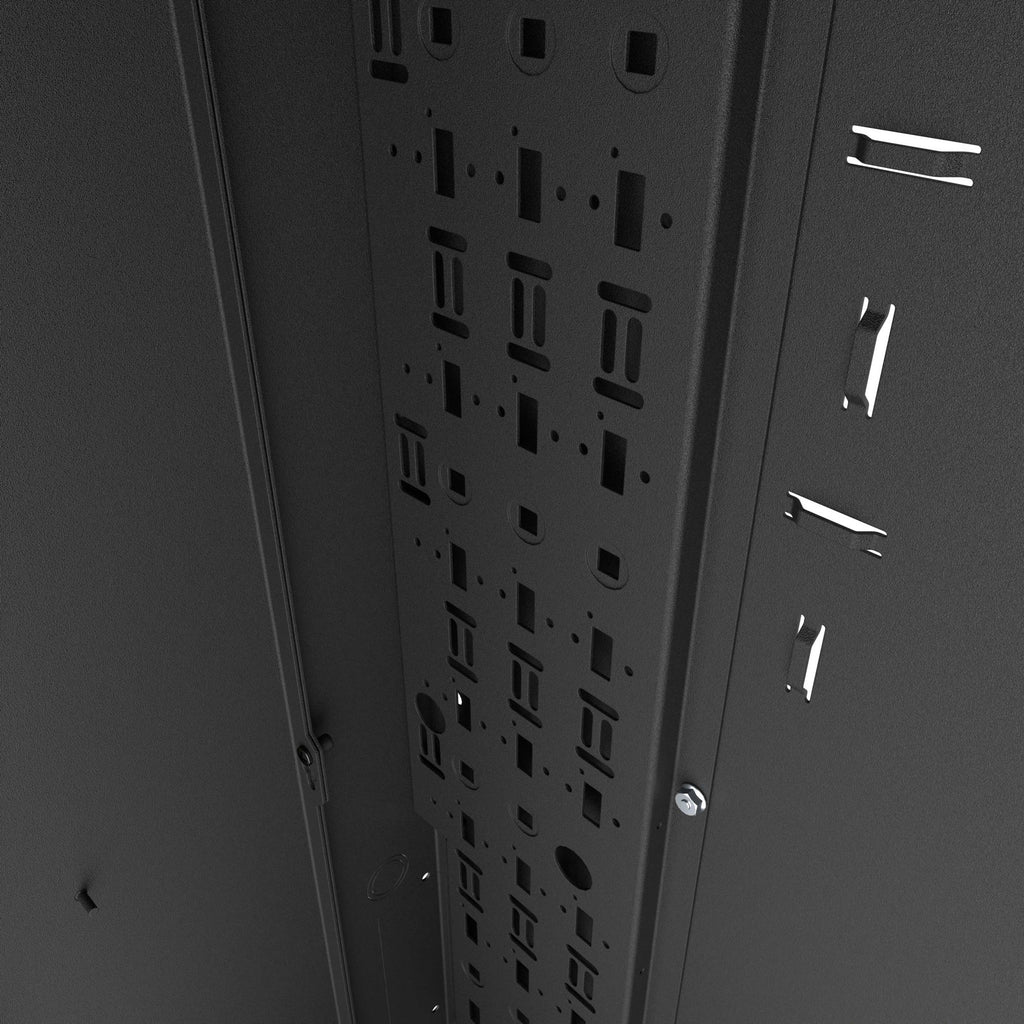

• Rackrail features both 10-32 thread and cage nut
• Flexible position spaces to mount the rackrail where it's needed
• Split door with hinged solid top that enables end-user access to controls but restricted visibility
• Both door and hinged top are lockable and keyed separately for security
• Laser knockouts on the top, bottom and sides for cable entry and thermal management
• Integral electrical box simplifies power distribution
• Finished in a black textured powder coat

Specifications:

• General Info
• Finish: Black Powder Coat
• UL Standards Tested: UL 2416
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• CSA Listing Info: 60950-1
• CSA Listed: Yes
• UL Listing No: E313734
• UL Listed: Yes
• Dimensions
• Usable Depth: 27.8 with J-Box
• Capacity Weight U S: 150
• Depth U S: 18
• Height U S: 36
• Width U S: 25
• Rack Units: 6
• Eco Information
• RoHS Compliant: Yes
• RoHS Conformant
• Technical Information
• Rackrail Type: 10-32 and cage nut
• U L Load Capacity: 150
• Material: Steel
• Mounting: Vertical
