Key Features
- 100 CFM at 27 dB
- 2U Racking Height
- LED Temperature Display
- Thermostatic Fan Control
- Local & Remote Notification
- Rugged Steel Construction
- Black Powder Coat Finish
Description

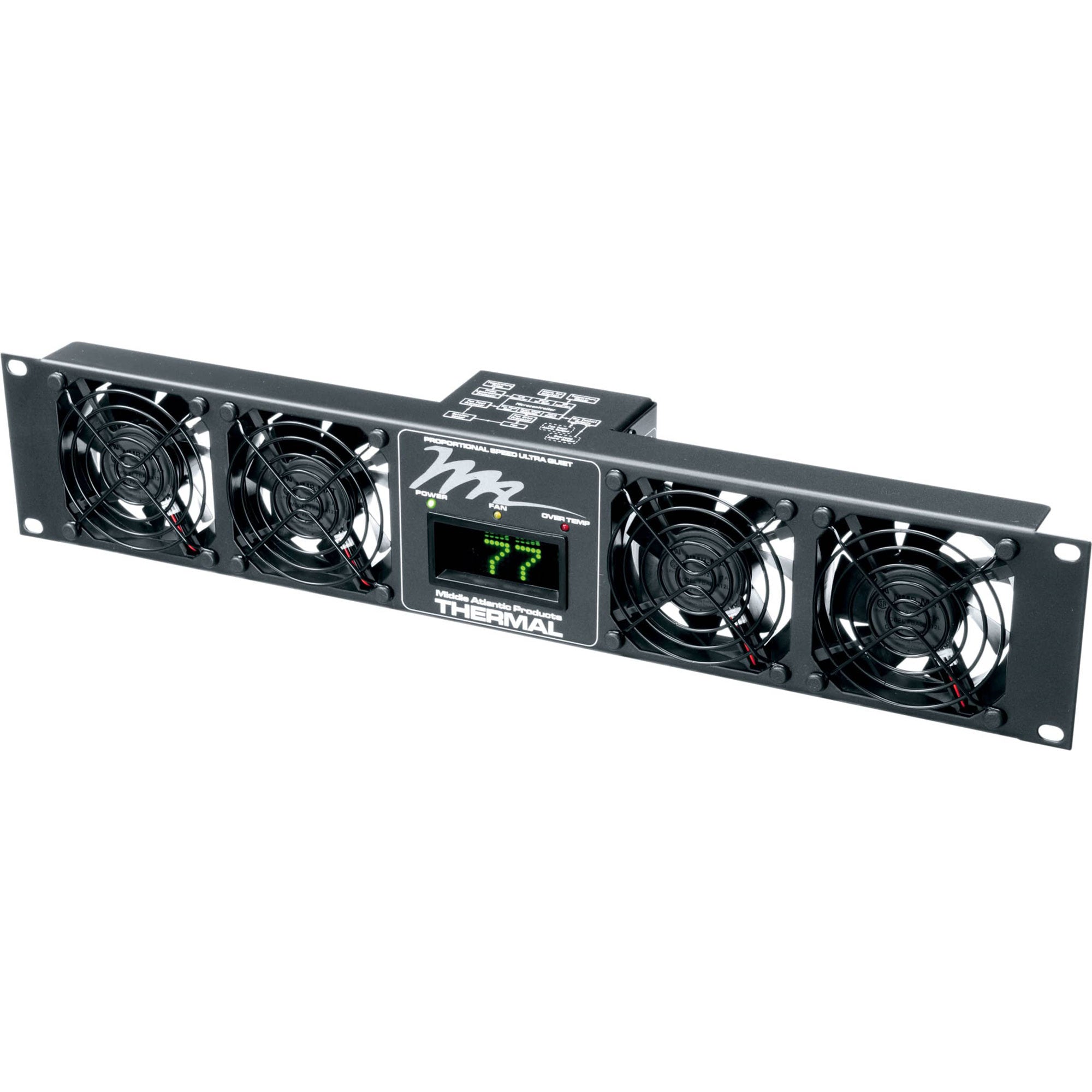

Ultra Quiet Fan Panel with 4 Fans (100 CFM) and Digital Temperature and Alert Display on Front
The two rackspace Ultra Quiet Fan Panel System provides smart cooling and monitoring to ensure a reliable installation in areas where fan noise is not an option, including boardrooms, classrooms, offices, houses of worship, etc. Thermostatic, proportional speed DC fan control ensures ultra quiet operation by varying fan speed based on enclosure temperature. Overtemp notification, local and remote, offers additional operation monitoring. A unique feature of the system provides notification in the event of fan failure via a local display or remote signal to an external alarm device. 100 CFM cooling capacity. Digital processor varies fan speed based on enclosure temperature for ultra quiet operation. On-board digital processor monitors rack temperature via external sensor. Local and remote notification of over temperature and fan fault can be sent to a control system
Features:
- Cooling panel rated 100 CFM at 27 dB
- Intelligent thermostatic proportional control
- Local and remote overtemp notification, with local display
- 110V input voltage
Specifications:
- General Info
- finish: Black Powder Coat
- Component Type: active
- Assembly/Installation Information
- Mounting Points: 2
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- Dimensions
- CF M: 100
- Depth U S: 3.4
- Height U S: 3.5
- Width U S: 19
- Primary Package Weight U S: 5
- Rack Units: 2
- Technical Information
- Material: Steel
- Volts: 120
- Manufacturer: Middle Atlantic
- MPN: UQFP-4D
- Model Number: UQFP-4D
- UPC: 656747070488
