Key Features
- Hinged Version of FK2
- 2U Racking Height
- Holds 5 UCP Modules
- Captive Thumbscrews
- Includes Module Mounting Hardware
Description

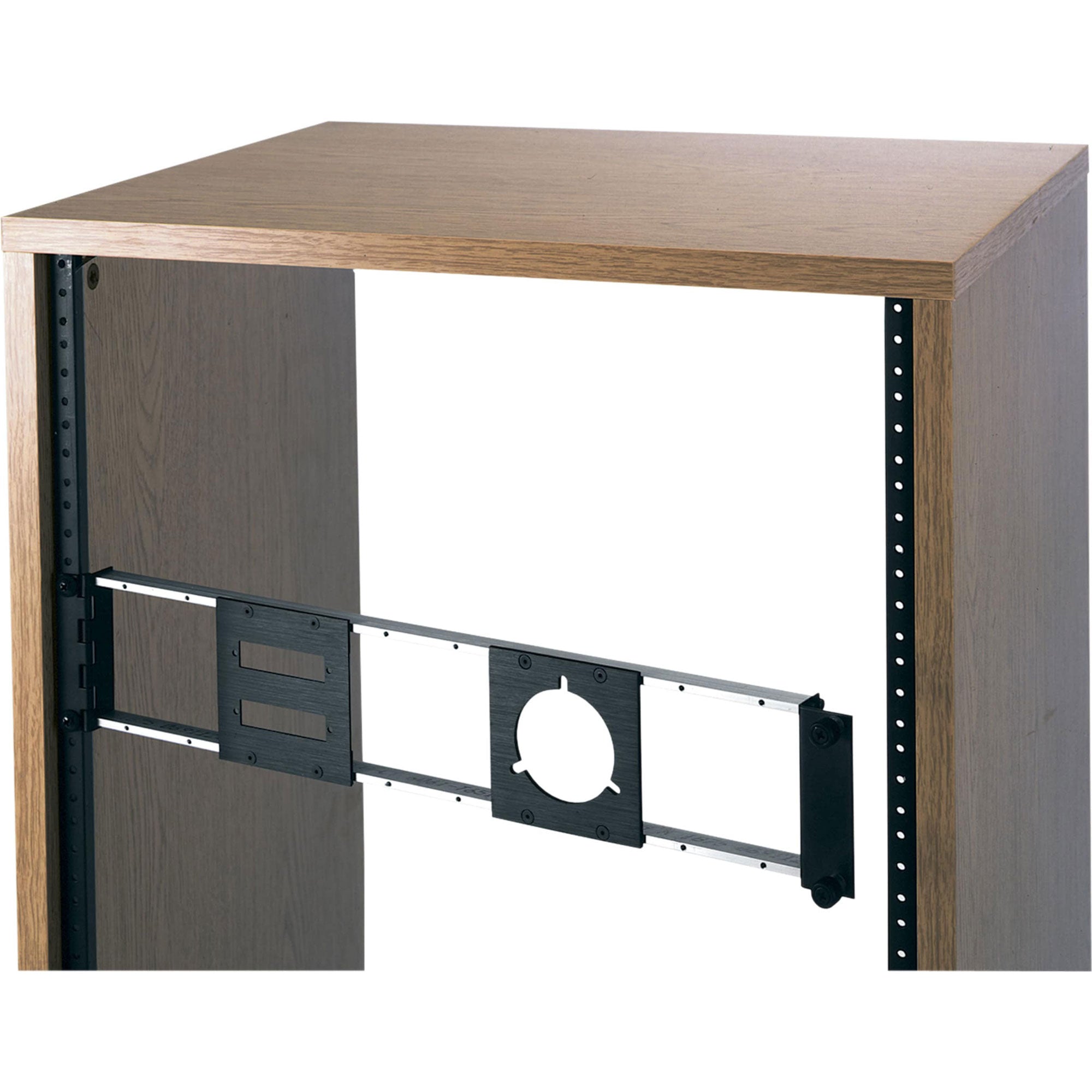

UCP Hinged Swinging FK2 Frame for Custom Panels, 2 Space (3-1/2")
Middle Atlantic Products' UCP-SF FK2 Swinging Frame for Custom Panels is a hinged version of the FK2 frame kit, which lets you build custom connection panels using off-the-shelf parts. (The UCP modular custom panel series provides prepunched panels that can hold XLR, Neutrik, Elco, Canare, and many other common and esoteric I/O connectors.) Custom panels made with the hinged FK2 are easy to modify and maintain: just swing it out to work on internal cabling, then lock it back in place using captive thumbscrews.
The FK2 is 2 rack units high. For 4-space installations, order the FK4 instead.
Build Custom Panels
Build rackmount electronics panels to your own specifications using the FK2 Frame. Choose from a wide selection of precut modules to put in your frame including BNC, XLR, Phono, BANA, Socapex, Multipin, DB, Combo, and DL Series punchouts, among others. You can also install blank and vented modules in the five module slots of the FK2.
Compatible with:
UCP Series Connector Punchout Modules
XLR Female: UCP-UNIV1, UCP-UNIV2, UCP-UNIV3, UCP-UNIV4, UCP-UNIV6
XLR Male: UCP-XLRM6
Combo Male/Female: UCP-COMBO2, UCP-COMBO4, UCP-COMBO6
Circular Flange, 4 Bolt: UCP-4SC1, UCP-4SC3
Multipin Elco: UCP-1ELCO38, UCP-1ELCO56, UCP-1ELCO90, UCP-1ELCO120, UCP-2ELCO38, UCP-2ELCO56, UCP-2ELCO90
Multipin Whirlwind: UCP-1W1, UCP-1W2
1/4", 3/8" and 7/16" Holes for Jacks, Switches, LEDs, etc.: UCP-3/8X1, UCP-1/4X2, UCP-3/8X2, UCP-1/4X4, UCP-3/8X4, UCP-7/16X4, UCP-3/8X6, UCP-3/8X8
Canare BNC: UCP-CANARE4
Cannon DL Series Multipins: UCP-2DL96
DB Multipin: UCP-1DB9, UCP-2DB9, UCP-3DB9, UCP-4DB9, UCP-2DB37, UCP-1DB15, UCP-2DB15, UCP-1DB25, UCP-2DB25, UCP-2DB50
BNC: UCP-1/2BNC1, UCP-1/2BNC2, UCP-1/2BNC3, UCP-3/8BNC4, UCP-1/2BNC4
Twistlock: UCP-TW2B, UCP-TW3B
DUP: UCP-DUP1, UCP-DUP2
Socapex 19-Pin: UCP-SPX-19
Universal Dual Banana: UCP-BANA2, UCP-BANA4, UCP-BANA6
Vent Module: UCP-VT
Blank Modules: UCPB1, UCPB2, UCPB3
Features:
- Hinged version of FK2 frame kit holds 5 UCP modules in front face
- Captive thumbscrews allow opening of the frame without tools
- Includes module mounting hardware
- Occupies two rackspaces
Specifications:
- General Info
- finish: Black
- Connection Type: Mounts all modules
- Assembly/Installation Information
- Mounting Points: 2
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- Dimensions
- Depth U S: 1.36
- Height U S: 3.5
- Width U S: 19
- Primary Package Weight U S: 0.65
- Rack Units: 2
- Technical Information
- Material: Steel
- Manufacturer: Middle Atlantic
- MPN: UCP-SF
- Model Number: UCP-SF
- UPC: 656747022876
