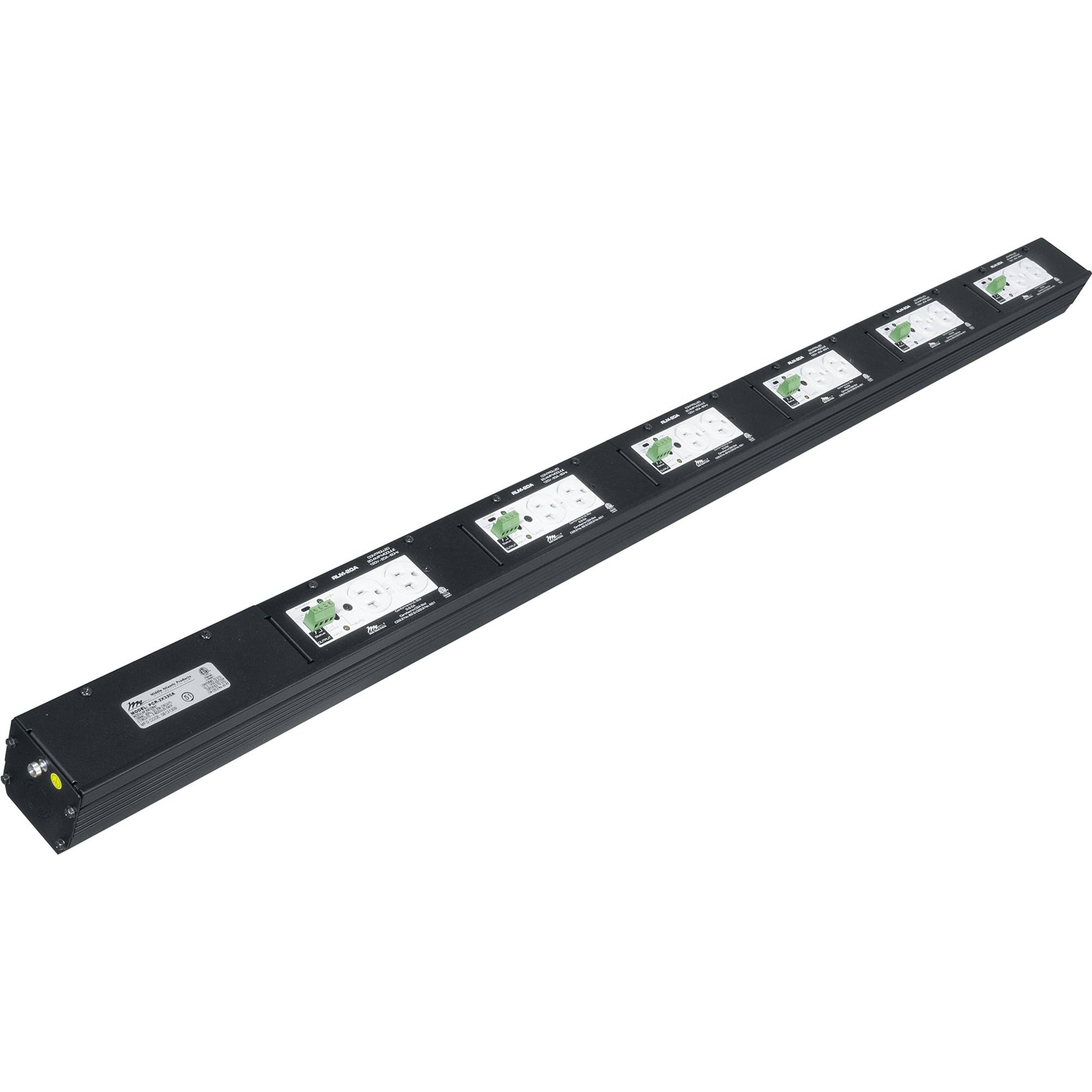

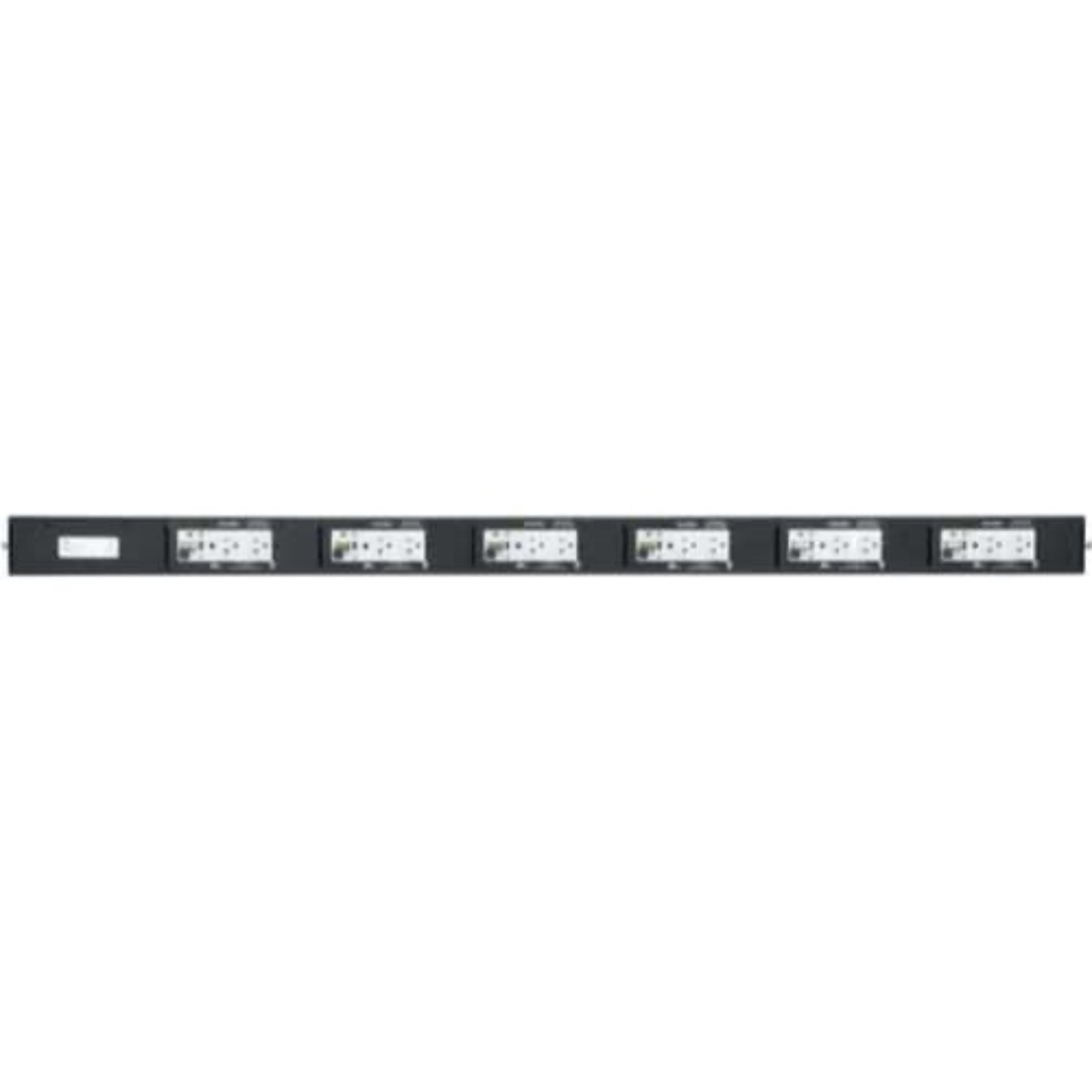

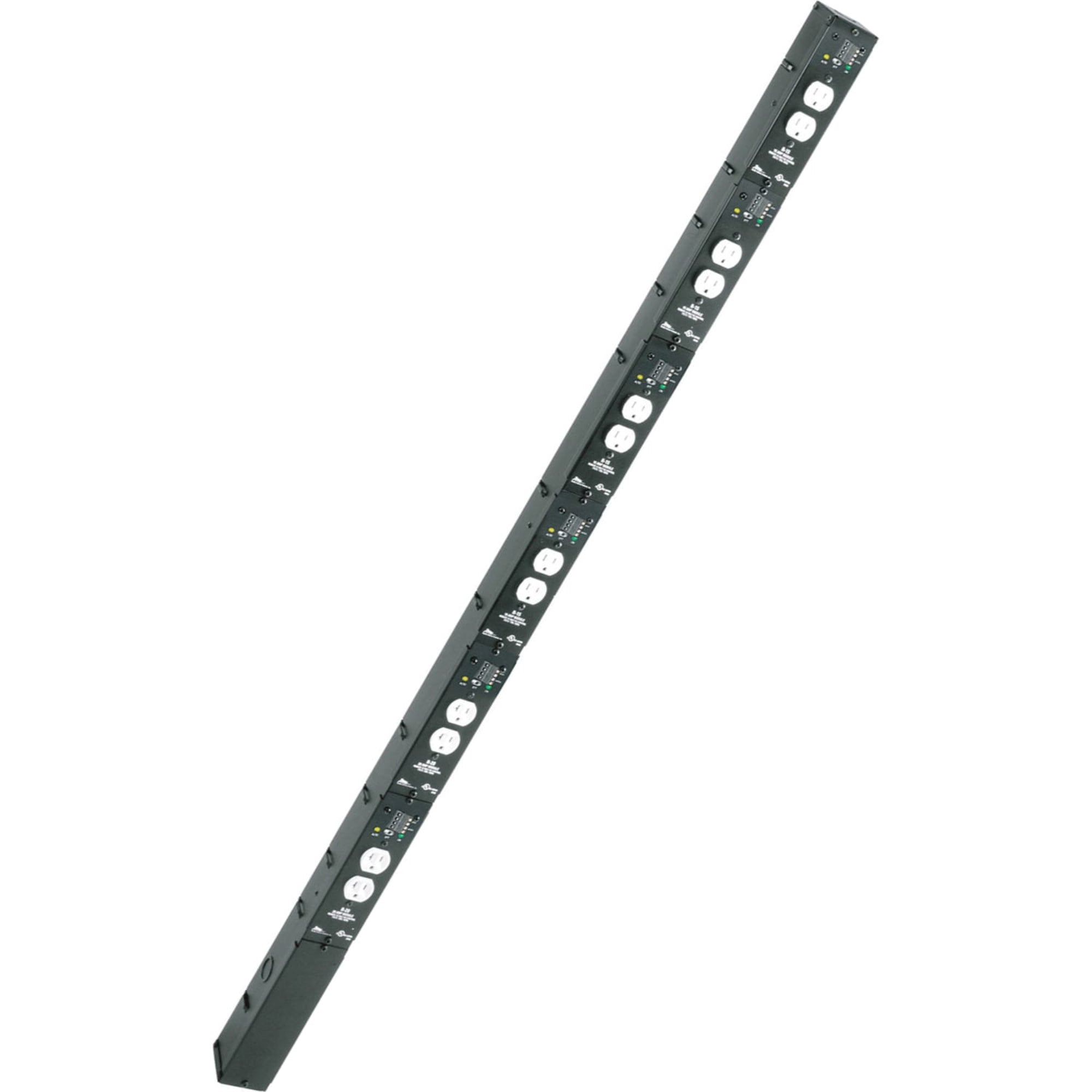

Middle Atlantic PCR6-A Pre-Configured Raceway (Single Circuit)

Preconfigured Raceway, 6 Outlet, (1) 20 Amp Circuit, Contains (2) R-20 & (4) R-15 Modules

Designed to save installation time, the factory-assembled MPR raceways utilize six power modules. These twelve outlet vertical strips connect to one or two 20 Amp circuits* and feed six 20 Amp duplexes (12 outlets). Each duplex can be independently controlled with the USC-6R Universal Sequencing Controller, or with any other sequencing controller that provides a maintained switch closure output. The PCR Series pre-configured raceways are 56" long, terminate in an integral junction box, are manufactured using 18-gauge steel and feature a durable black powder coat finish.

Features:

• Preconfigured to save time
• One circuit feeds six 20A RLM modules for 12 total outlets
• J-box termination
• Each duplex can be individually controlled
• Finished in durable flat black powder coat

Specifications:

• General Info
• finish: Black Powder Coat
• Termination: J-Box
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Depth U S: 3.75
• Height U S: 56.03
• Width U S: 3
• Primary Package Weight U S: 14.9
• Technical Information
• Amps: 20
• Mounting: Vertical
• Number Of Circuits: 1
• Number Of Outlets: 12
