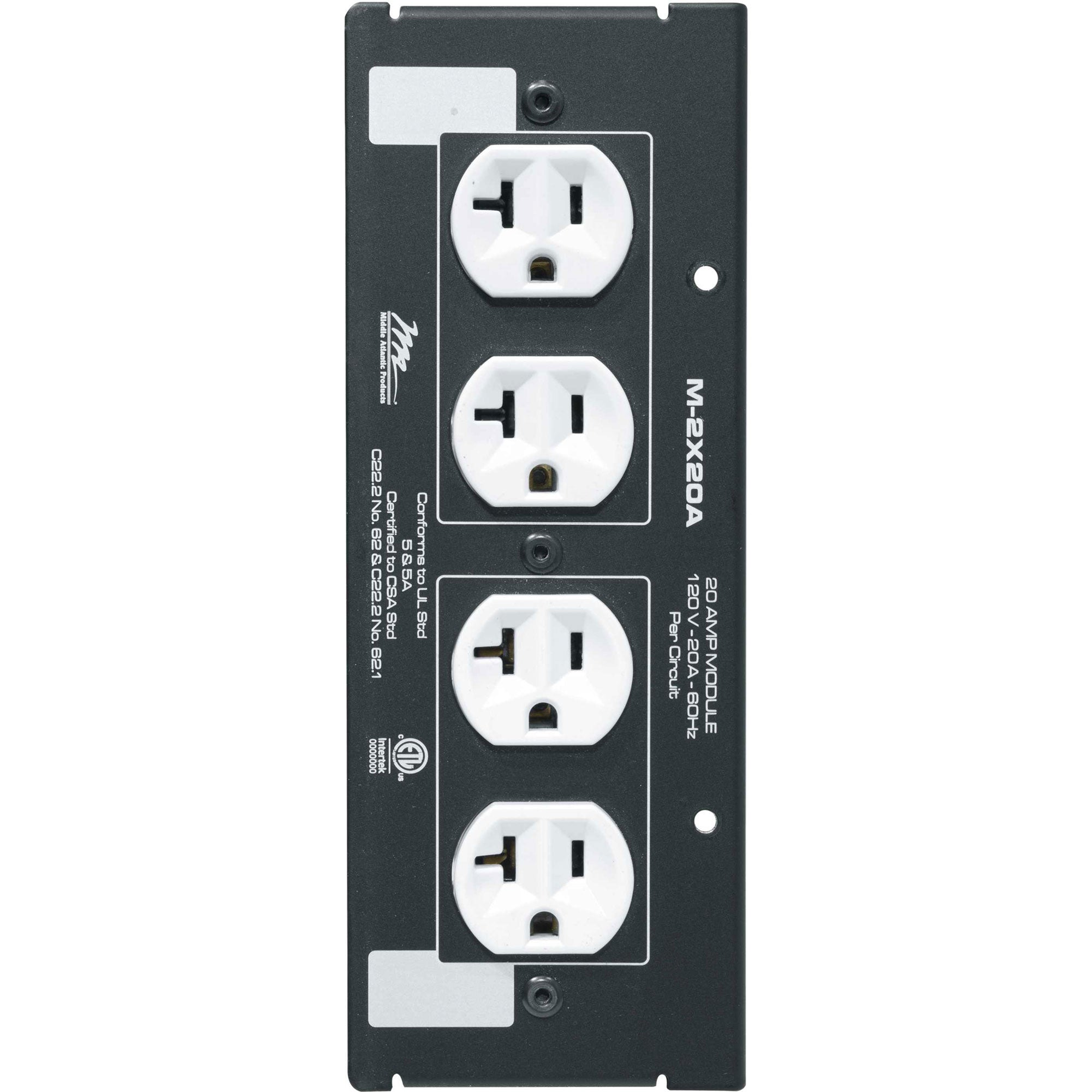

Middle Atlantic M-2X20A Switchable Power Module with 2 Circuits

20 Amp Switchable MPR Power Module, Always On, Single or Dual Circuit

Switchable power modules allow quick and easy shop or field wiring of vertical power raceways. A complete selection of 15 Amp, 20 Amp and NEW! 30 Amp modules allows the installer to configure each raceway to fit an application, with single or multiple circuits and a choice of control options. Powered through 115 VAC 60Hz input voltage, all modules utilize a unique, #12 (20 Amp) wire with genderless 30 Amp coupler to daisy-chain AC power to other modules on the same circuit. Modules fit MPR Series raceways, are manufactured from 18-gauge steel and feature a durable black powder coat finish.

Features:

• Modules allow the customization of a power strip to meet project needs
• Compatible with MPR Series raceways
• 115V input power, with unique genderless connector
• Steel construction, with black textured powder coat finish

Specifications:

• General Info
• finish: Black Powder Coat
• UL Standards Tested: 5
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Depth U S: 8
• Primary Package Weight U S: 0.8
• Technical Information
• Material: Steel
• Number Of Circuits: 2
