Key Features
- For Half Rack Equipment
- Low Profile Design
- Welded Steel Construction
- Internal Cable Lacing Points
- Standard Front & Rear Rackrail
- 10-32 Threaded Rackrail
Description

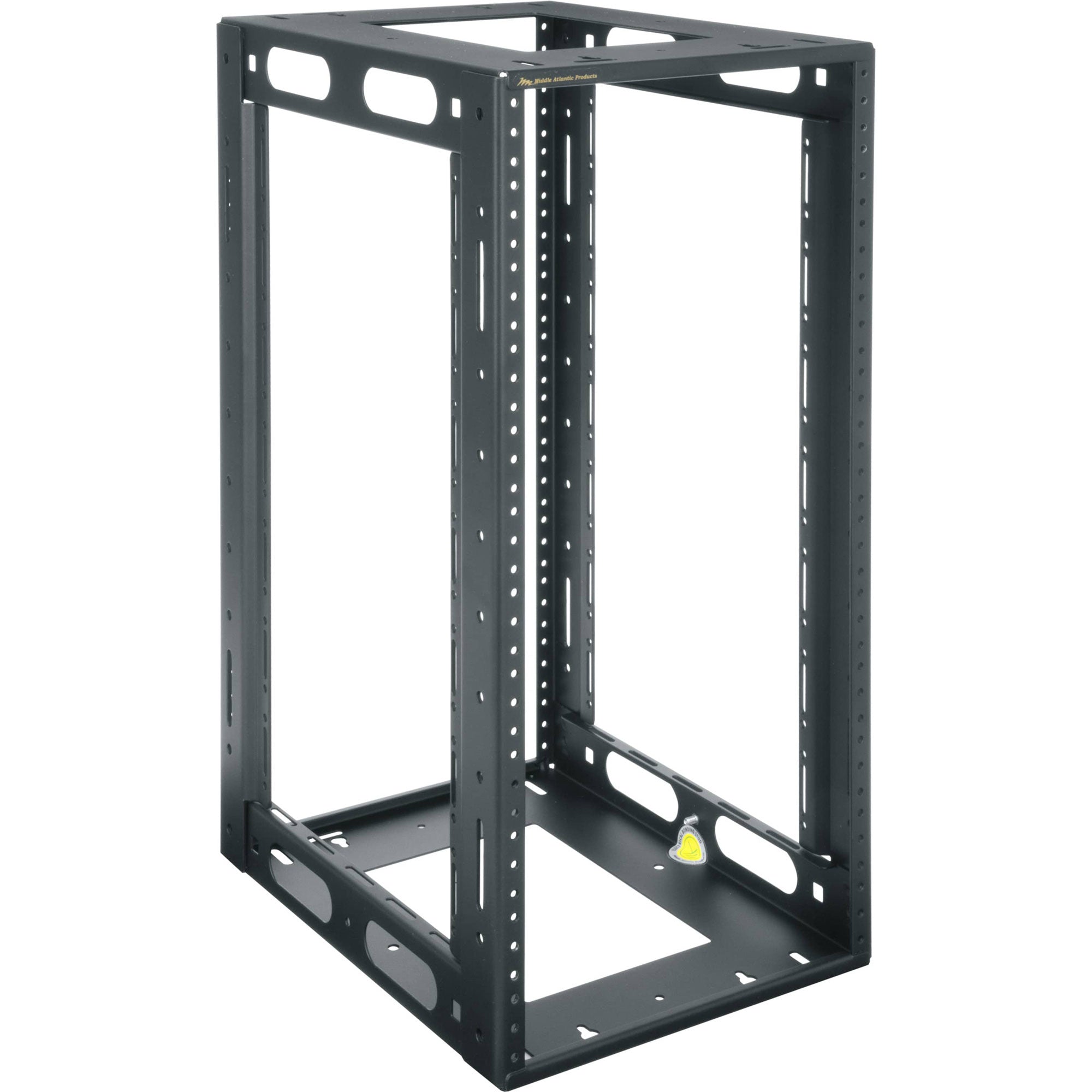

12 Space (21") HRF Half-Rack Frame Rack, 14" Deep
The Middle Atlantic HRF-1214 Half Rack Frame (12 Space) allows pre-loading and transportation of equipment to the installation site. Thanks to its half-width design, equipment from almost any vendor can be mounted on to this rack frame. The rackrail features an offset cable tie area that keeps the equipment firmly in place.
Features:
- Half width design allows mounting of equipment from almost any vendor
- Low-profile design maximizes the useable rackspace
- Strong welded frame allows pre-loading and transportation of equipment to the installation site
- 12 space useable racking height
- Rackrail features offset cable tie area to keep equipment firmly in place
Specifications:
- General Info
- finish: Black Powder Coat
- UL Standards Tested: UL1678
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Dimensions
- Usable Depth: 14
- Usable Height: 21
- Capacity Weight U S: 125
- Depth U S: 14
- Height U S: 21.94
- Width U S: 10.65
- Primary Package Weight U S: 16.24
- Rack Units: 12
- Technical Information
- Rackrail Type: 10-32
- Material: Steel
- Mounting: Horizontal
Details
- Manufacturer: Middle Atlantic
- MPN: HRF-1214
- Model Number: HRF-1214
- UPC: 656747185793
