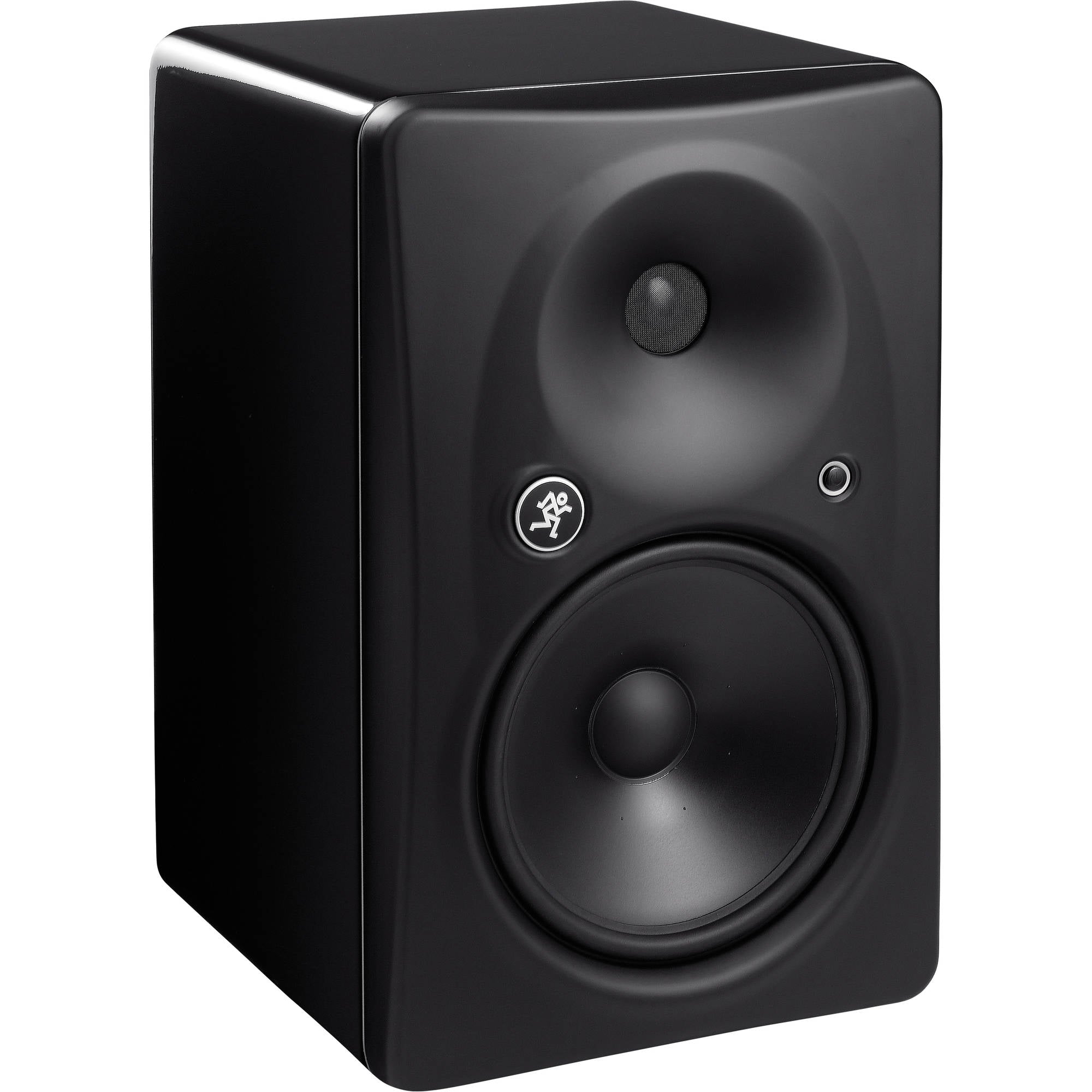

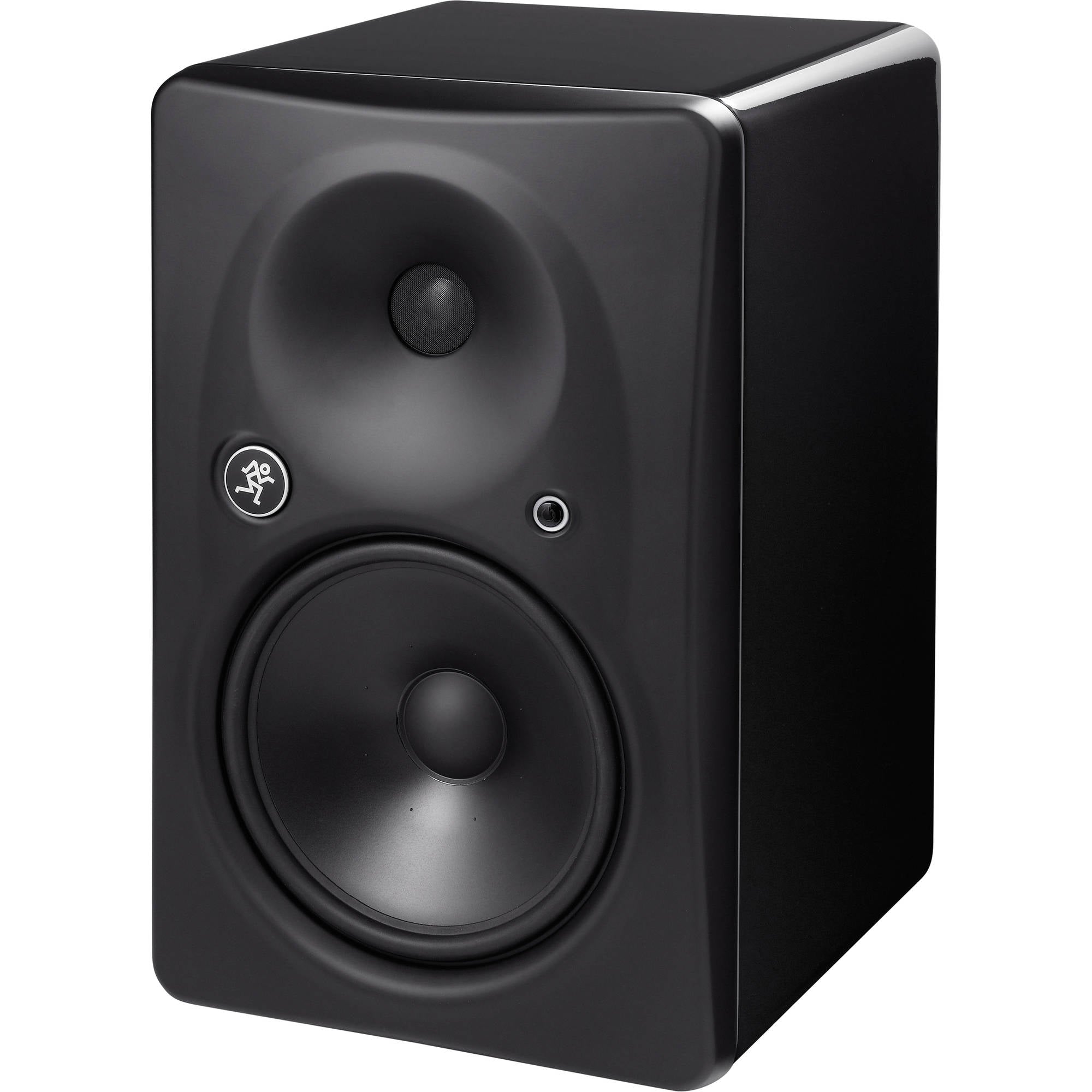

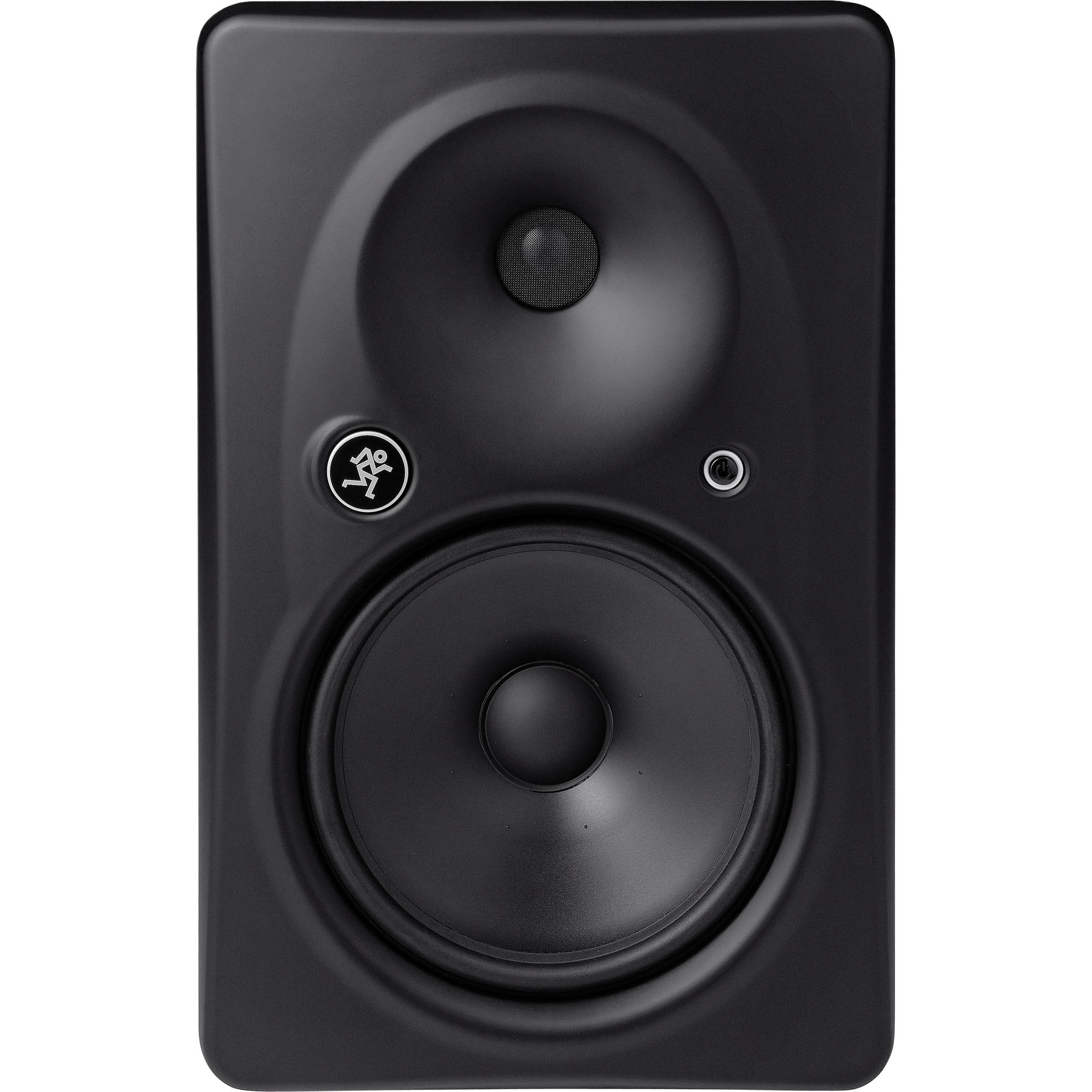

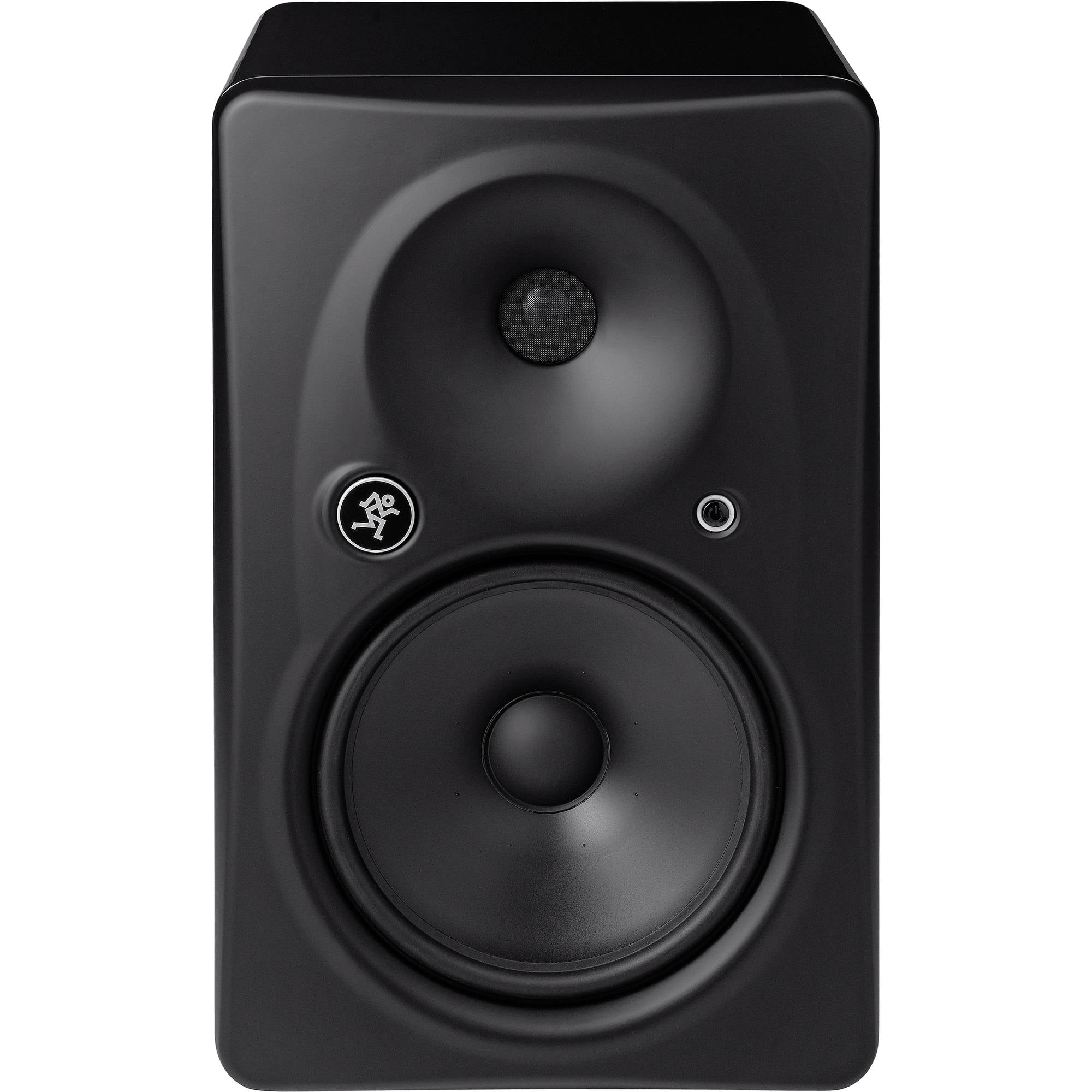

Mackie HR824mk2 8" High Resolution Studio Monitor

Powered Monitor with 8¾" LF Driver, 1" Dome Tweeter, Acoustic Space Control, LF Roll-off, HF Shelf (each)

The HR824mk2 from Mackie is a high-quality active two-way studio monitor, perfect for stereo or surround mixing applications. The monitor is THX pm3-certified, great for creating high-definition audio for video, film, and video game projects. The monitor has an 8.75" low-distortion woofer and a 1" titanium dome tweeter to provide clear, lifelike sound across a full frequency spectrum. Internal amplifiers provide 250W of total power for a strong performance

The cast-aluminum Zero Edge Baffle keeps diffraction to a minimum for excellent imaging, while the optimized waveguide provides a wide sweet spot, and the internal cabinet damping eliminates midrange artifacts. The cabinet is OmniMount ready, allowing it to be mounted easily on a wall or ceiling.

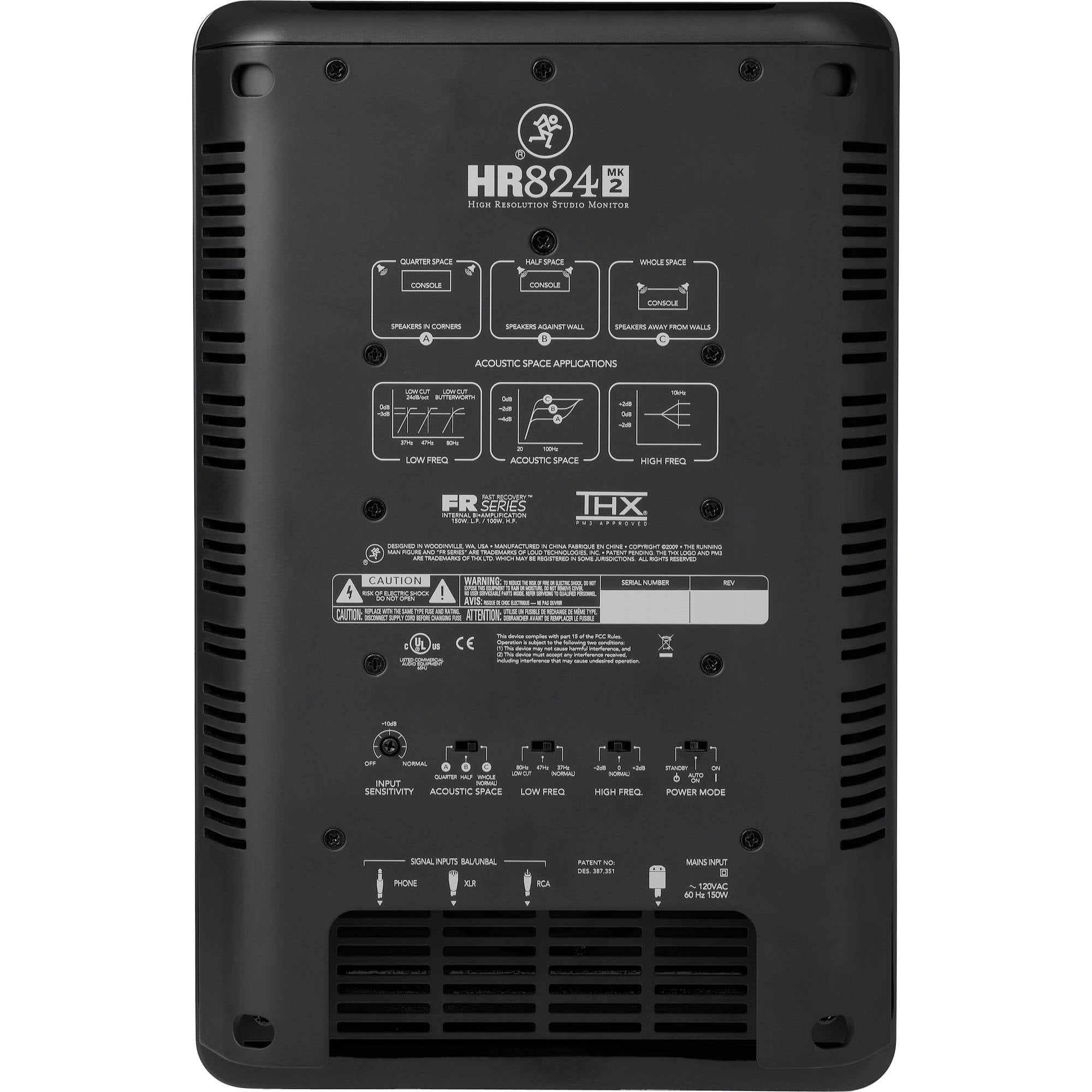

The rear panel of the cabinet has XLR, TRS, and RCA input connectors for compatibility with virtually any audio gear you can throw at it. Controls for LF and HF filters, along with acoustic space matching allow you to customize the monitor to your specific workspace for optimum performance.

Features:

• High resolution Active studio reference monitor
• Ultra-linear frequency response for accurate mix translation
• 8.75-inch high-precision, low-distortion LF transducer
• 1-inch titanium dome, ferrofluid cooled tweeter
• Optimized Waveguide for wide, even sweet zone
• Twin FR Series amps - 150W for LF / 100W for HF
• Cast aluminum Zero Edge Baffle minimizes diffraction
• Full internal damping eliminates midrange artifacts
• Passive radiator provides tight, articulate bass extension down to 35Hz
• Acoustic Space, LF roll-off, and HF controls
• Balanced XLR, TRS, and unbalanced RCA inputs
• OmniMount ready for easy wall/ceiling placement
• THX pm3 certified for surround sound applications
• Perfect for High-Definition audio, cinema and gaming systems

Specifications:

• Low Frequency Driver: 8.75" (222mm) Die-Cast Magnesium Woofer with 1.6" Voice Coil
• High Frequency Driver: 1" (25mm) Titanium Dome Tweeter with Polymer Suspension and Neodymium Magnet
• LF Amplifier: 150W
• HF Amplifier: 100W
• Crossover: Modified Linkwitz-Riley, 24dB/Octave @ 1.9kHz
• Frequency Range: 37Hz - 20kHz, ±1.5dB
• Maximum Sound Pressure Level (SPL): 91dB
• Connectors:
  1 x AC Power Input
  1 x XLR Input
  1 x 1/4" TRS Input 1 x RCA Phono Input
• Input Impedance:
  20 kOhms, Balanced
  10 kOhms, Unbalanced
• Controls and Indicators:
  1 x Input Sensitivity Control
  1 x 3-Way Acoustic Space Selector Switch
  1 x LF Filter Switch
  1 x HF Filter Switch
  1 x Power Switch
• Shielded: Yes
• Dimensions (HxWxD): 16.8 x 10.8 x 13.8" (427 x 274 x 351mm)
• Weight: 34.6 lbs (15.7kg)
