Key Features
- 12-Channel Mixer
- 4 Onyx Mic Preamps
- Ultra-Wide 60dB Gain Range
- Supplies Phantom Power
- 3-Band EQ
- 12-Segment Stereo Meters
- Sealed Rotary Controls
- Built-Like-A-Tank
Description

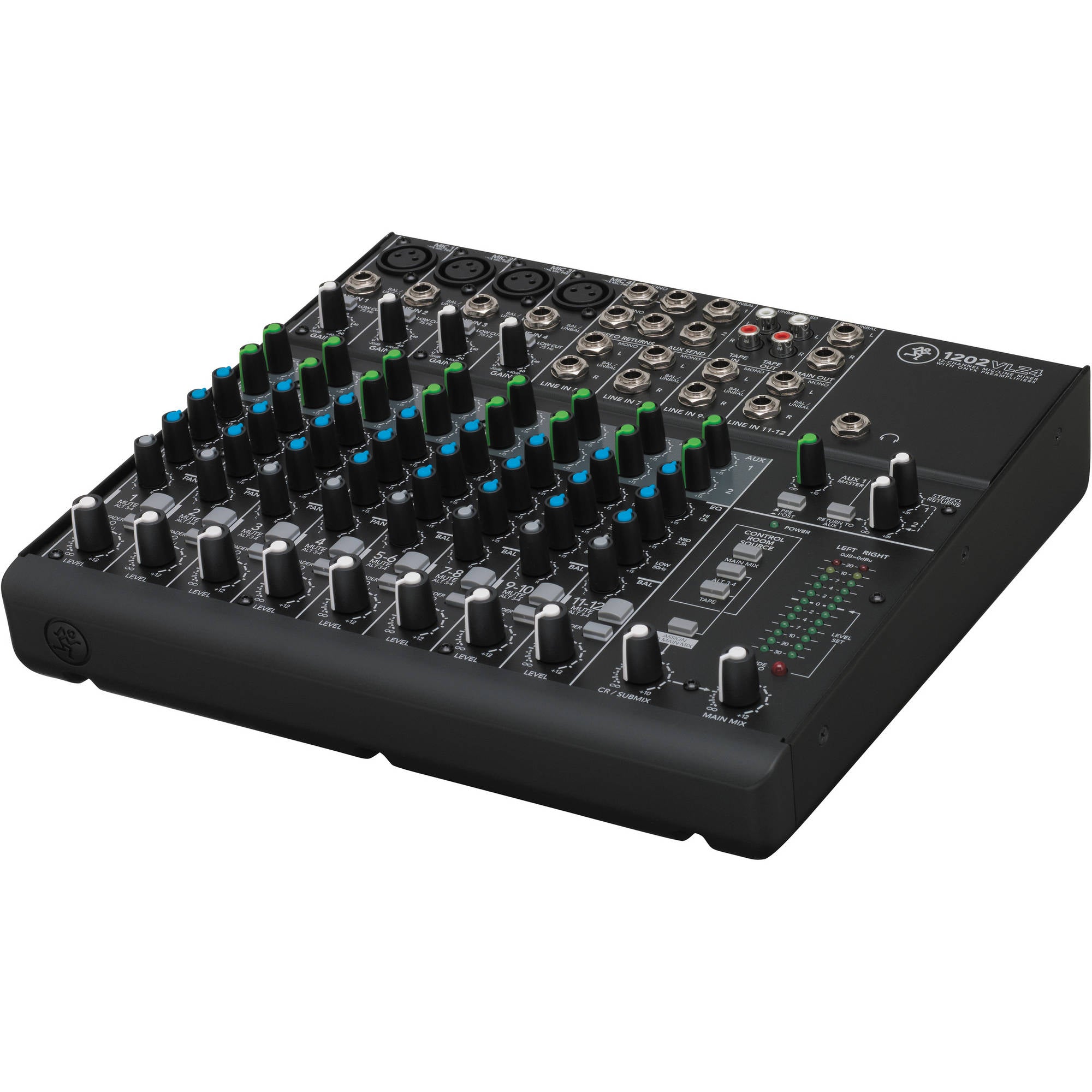

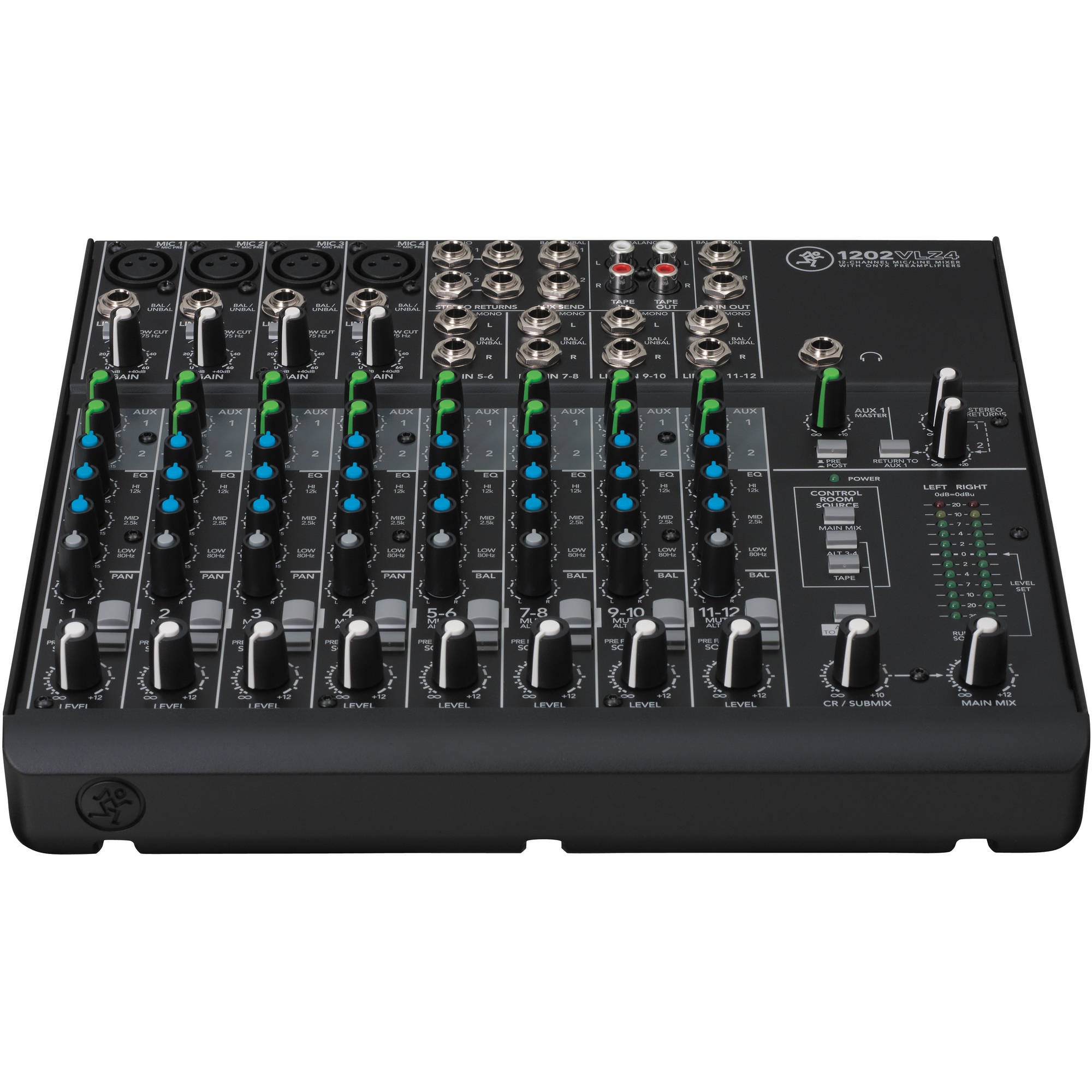

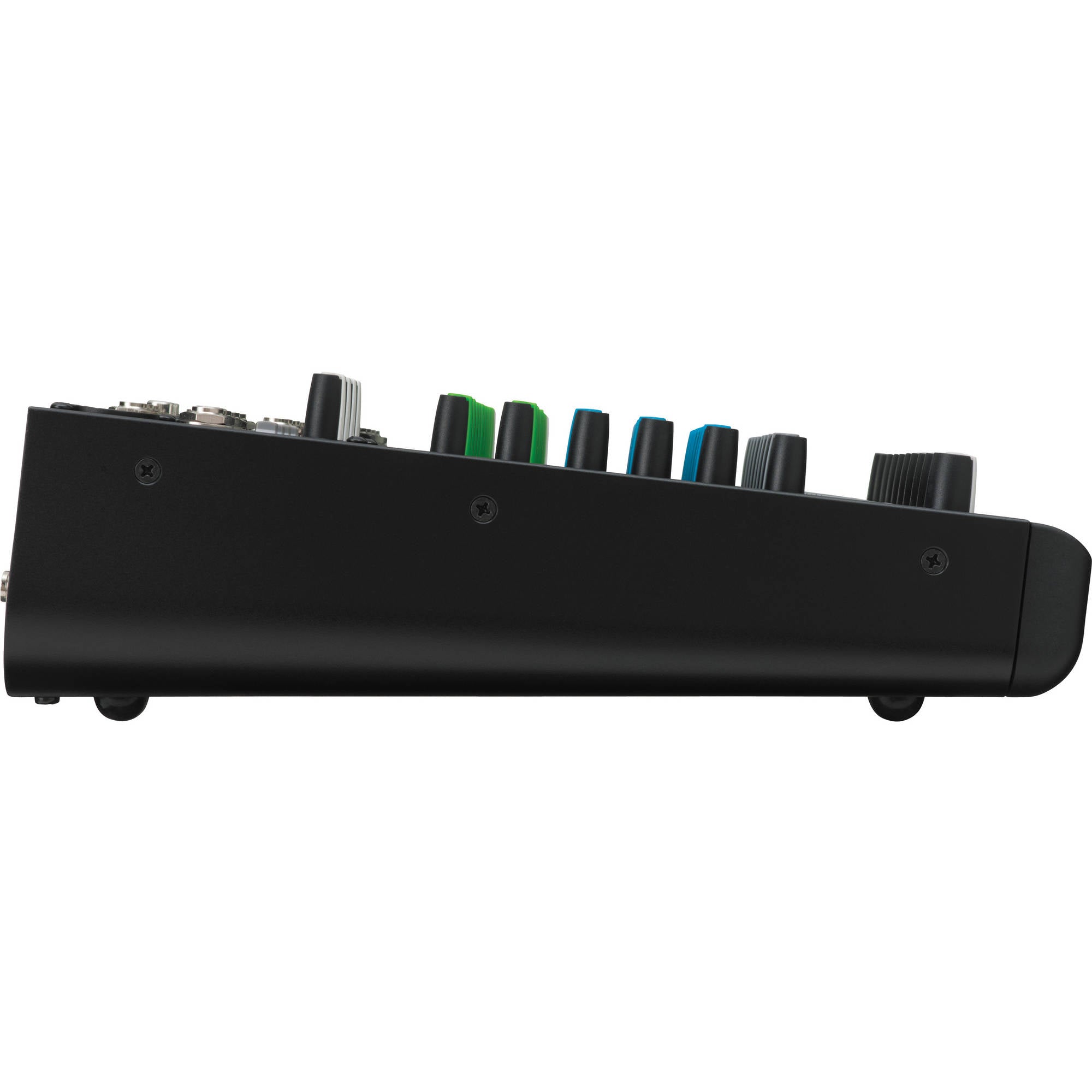

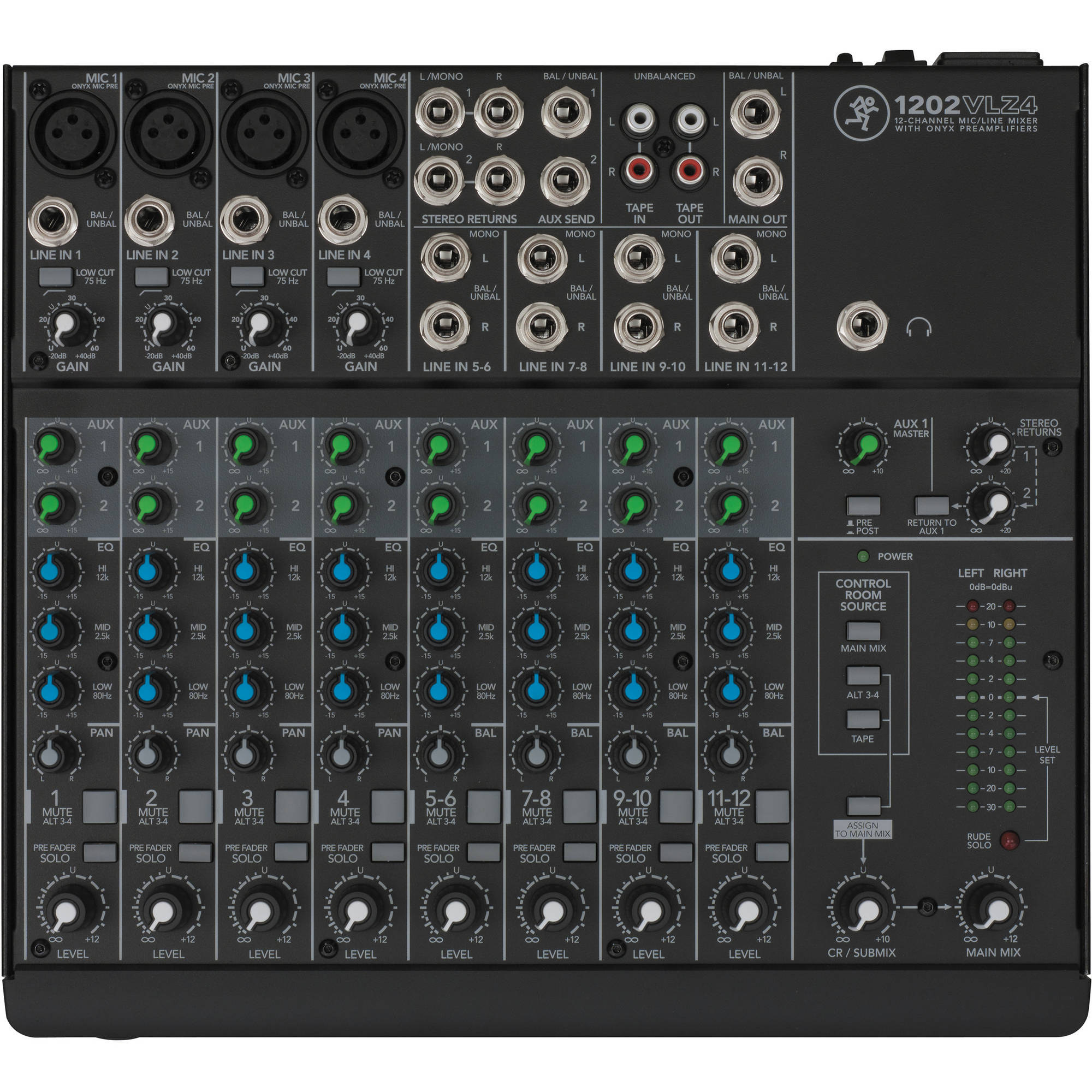

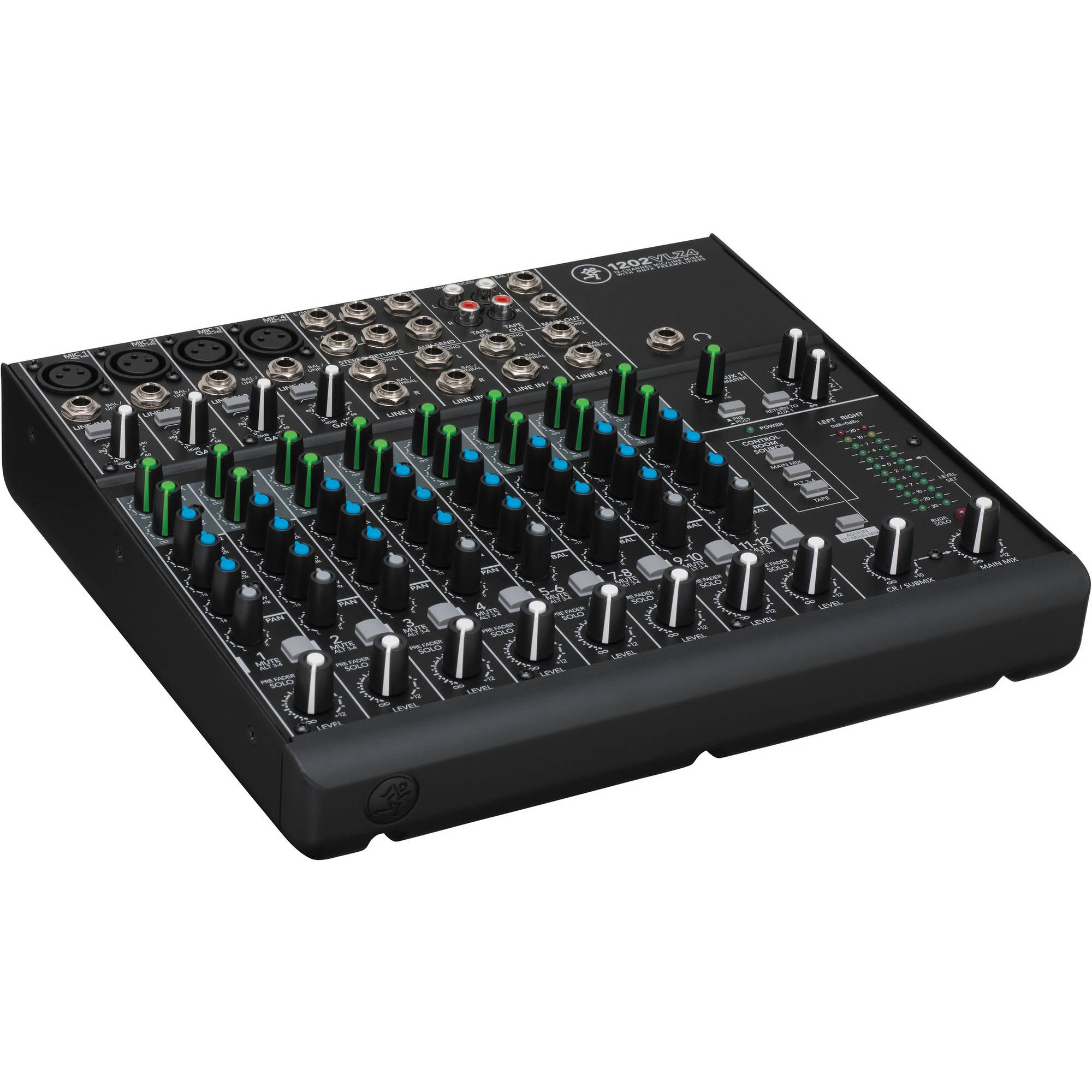

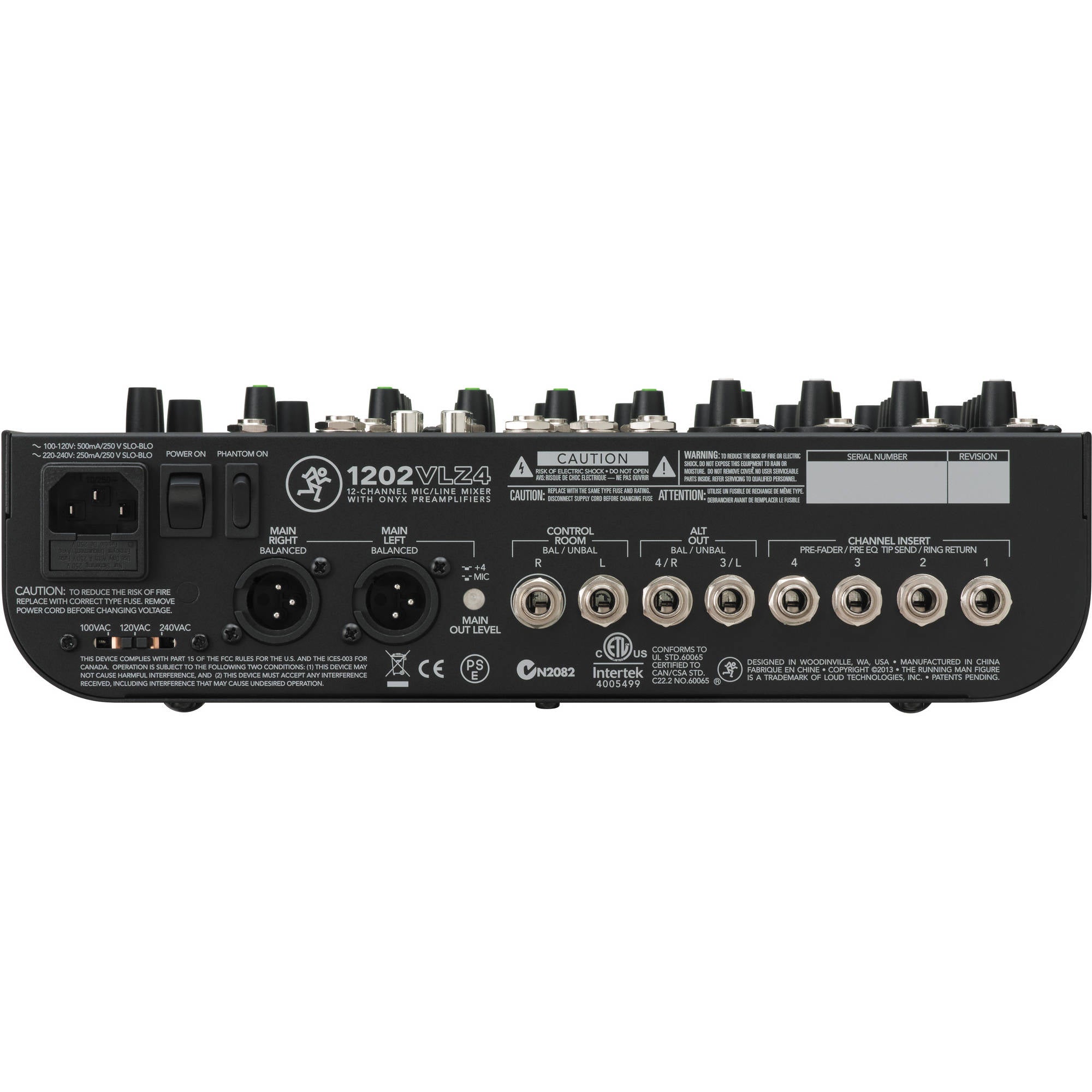

12-Channel Compact Analog Mixer with 4 Onyx Preamps
The Mackie 1202VLZ4 12-Channel Compact Mixer features high-quality Onyx preamps in a compact mixer design with the high-headroom / low-noise performance your professional applications demand.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like a dedicated control room section, it offers a step up in flexibility and performance that is suitable for your professional applications.
Features:
- 12-channel mixer featuring Mackie signature high-headroom/low-noise design
- 4 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz - 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 12 high-headroom line inputs
- 4 balanced inserts perfect for integrating outboard gear
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 2 aux sends, level, pan and PFL solo on each channel
- 2 stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
- Rack-mountable design using optional rack ear kit
- Multi-voltage power supply for worldwide use
Specifications:
- Noise:
Main Mix Noise:
Main Mix Knob Down, Channel Gain Knobs Down: -100 dBu
Main Mix Knob @ Unity, Channel Gain Knobs Down: -86.5 dBu (90 dB signal to noise ratio, ref +4 dBu)
Main Mix Knob @ Unity, Channel Gain Knobs @ Unity: -84.5 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1 to 4, gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4 panned right) - Total Harmonic Distortion (THD): Microphone Pre @ Insert: <0.0007% (1 kHz @ 30 dB gain, 20 Hz to 20 kHz bandwidth)
- Crosstalk / Attenuation:
Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -85 dBu
Channel Gain Knob Down: -87 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) - Frequency Response:
Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz - Equivalent Input Noise:
150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain - Common Mode Rejection Ratio: Better than -70 dB @ 1 kHz
- Maximum Level:
Microphone In: +22 dBu
Tape In: +16 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu - Impedance:
Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω - Equalizer:
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz - Power Consumption: 25 W, 100 to 120 VAC, 50 to 60 Hz
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Fuse Rating:
100 to 120 V: 500 mA slo blo, 5 x 20 mm
220 to 240 V: 250 mA slo blo, 5 x 20 mm - Dimensions (H x W x D): 10.7 x 11.9 x 3.0" (273.0 x 303.0 x 75.0 mm)
- Weight: 6.5 lb (3.0 kg)
- Manufacturer: Mackie
- MPN: 1202VLZ4
- Model Number: 1202VLZ4
- UPC: 663961039771
