Lowell LCR-816 Credenza Rack (8U x 16" Deep)

8U Open Frame Credenza Rack, 16" Deep

Rugged welded rack for credenzas or cabinets is 16-gauge steel with 11-gauge corner post rails. Ships ready to install.

The welded credenza rack is a versatile, low-height and shallow-depth rack that's engineered specifically for mounting electronics into credenza style cabinetry, under counters and other built-in or freestanding rackmount applications. The 19"W EIA rack is precision formed and fully welded to provide rugged support, torsional rigidity and labor saving field installation. The rack is symmetrically engineered with a universal top and bottom that is fabricated from 14-gauge certified US steel. Top and bottom have a 12"W x 9"D opening, 1/4" diameter hole in each corner and slots left and right for anchoring/positioning. Front and rear corner post rails are 11-gauge steel tapped 10-32 on EIA spacing. Rack also has side openings that can be used as hand-grips for lifting rack into position. Following installation, side openings can be used for cable and wire management. Corner post rails are punched on sides to facilitate clean wire tie-off and bundling. Durable, semi-gloss black powder epoxy finish.

Features:

• Open frame (top/bottom/sides/front/back)

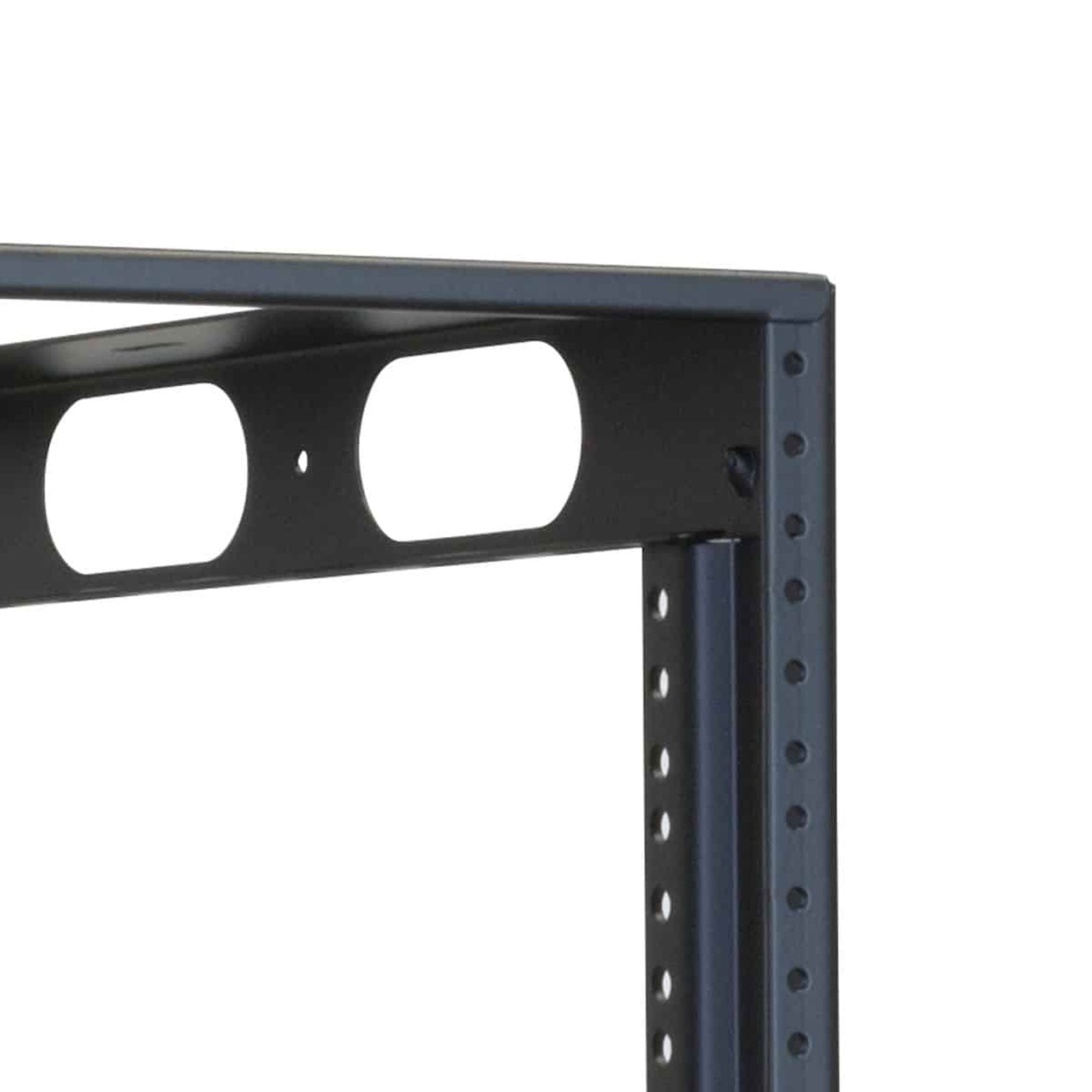

• Corner post mounting rails tapped 10-32, punched for clean wire tie-off
• Side obrounds for cable management

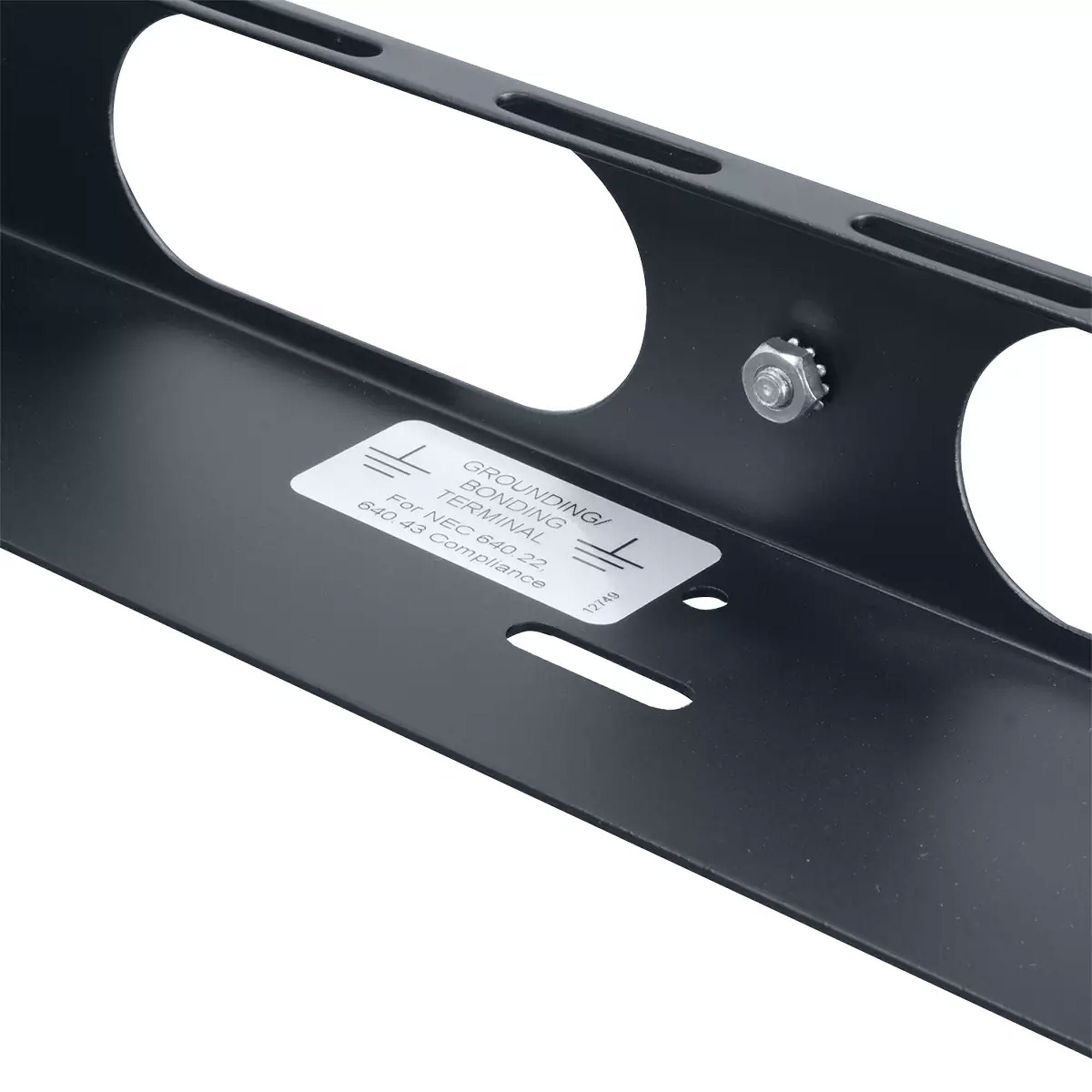

• Base/top with grounding studs and provisions to accept anchor bolts (not included)

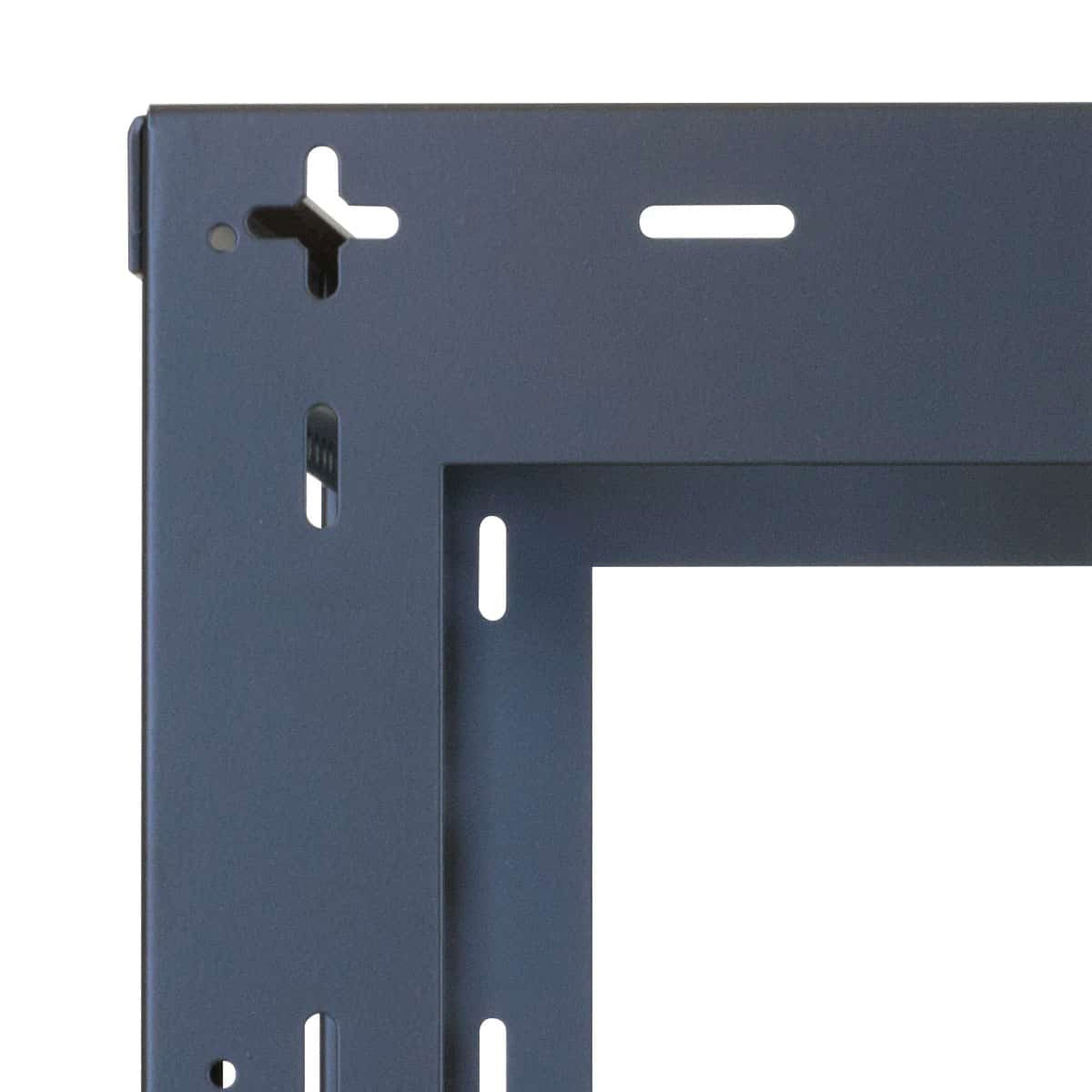

• Corner holes/slots for anchoring and positioning
• Load capacity 250 lbs.
• Smooth black powder epoxy finish
• Panel mounting hardware

Specifications:

• Rack Space: 8U
• Rack Height: 14.94 in.
• Rack Width: 19.25 in.
• Rack Depth: 16.00 in.
• COMPLIANCE & CERTIFICATION
• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.
