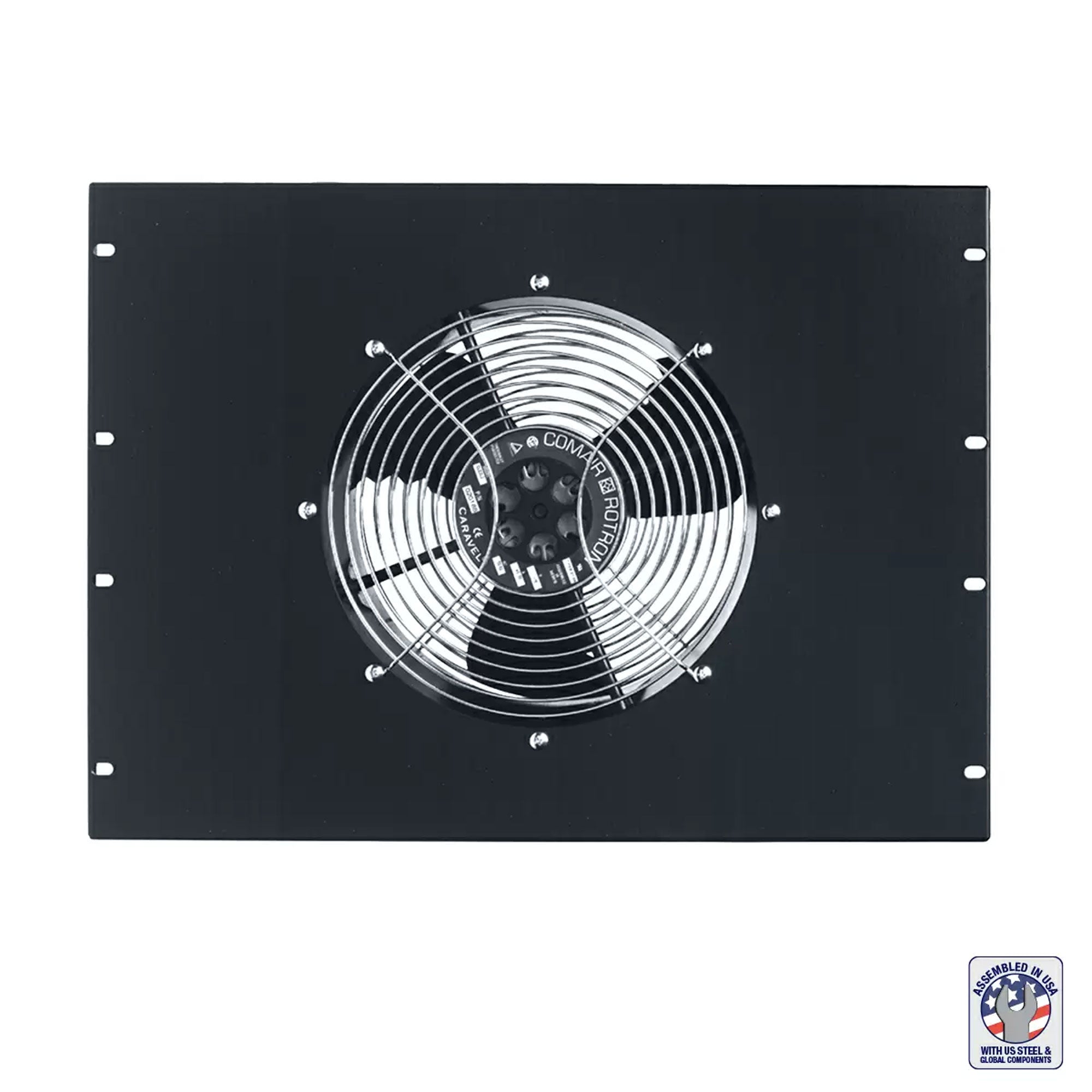

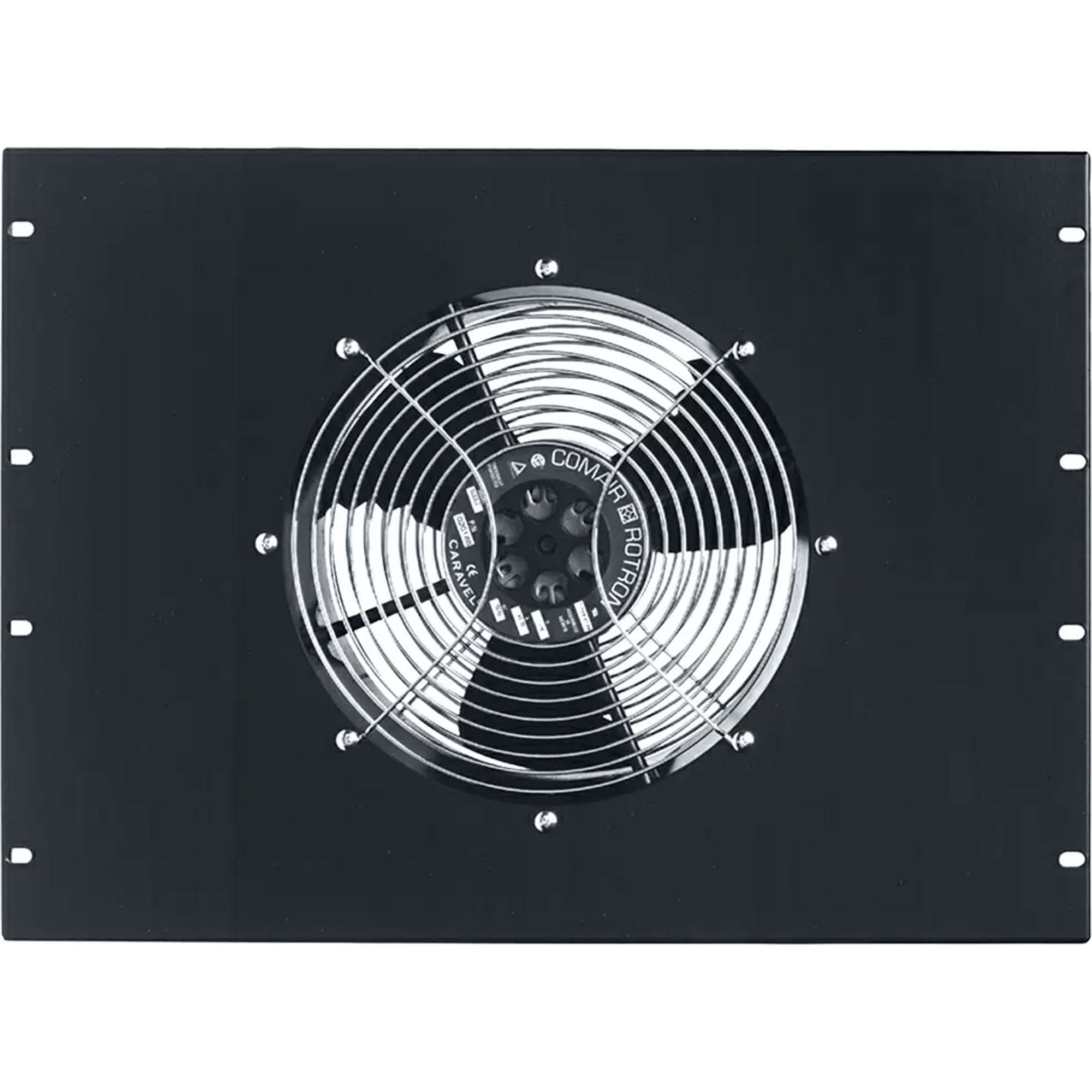

Lowell FT1-7T Turbo Fan Panel (US Thermo-Cord)

7U Fan Panel with 10" Turbo Fan, Thermostat Cord

The FT1 Series of panels features a large 10 in. diameter x 3.5 in. tubeaxial fan in 7U rackmount panel. Optional green cord with built-in thermostat to control fan operation.

Ready-to-install (19"W x 7U) 16-ga. steel panel with one mounted 10" dia. x 3.5"D tubeaxial fan and front/rear guards. Powerful turbo-style fan with feathered edges for lower noise features 550 cfm airflow rating and low 50.8 dBA noise rating. Operates on 115 VAC 50/60 Hz (operating temperature range: -30 C to +60 C).

Assembly includes either a standard 6' cord (black) or "thermocord" (green) which has an integral thermostat to control fan operation. The thermostat automatically turns fans on when the ambient temperature hits 86F (30C), and off when the temperature is 72F (22C). This power-saving feature ensures efficient operation, while saving wear and tear on fan.

Specifications:

• 16-gauge U.S. steel panel (19 in. x 7U)
• One (10 in. dia.) tubeaxial fan
• Operates on 115 VAC 50/60 Hz
• Operating Temperature Range: -22 to 140 degrees F
• Airflow Rating: 550 cfm
• Noise Rating: 50.8 dBA
• Power Required: 61 watts
• Variations: Standard 6 ft. cord (for U.S. use); green "thermo-cord" with integral thermostat probe to control fan operation (for U.S. use); 6 ft. cord without plug (for use in Europe)
• COMPLIANCE & CERTIFICATION
• Made in the U.S.A. with domestic and foreign parts
