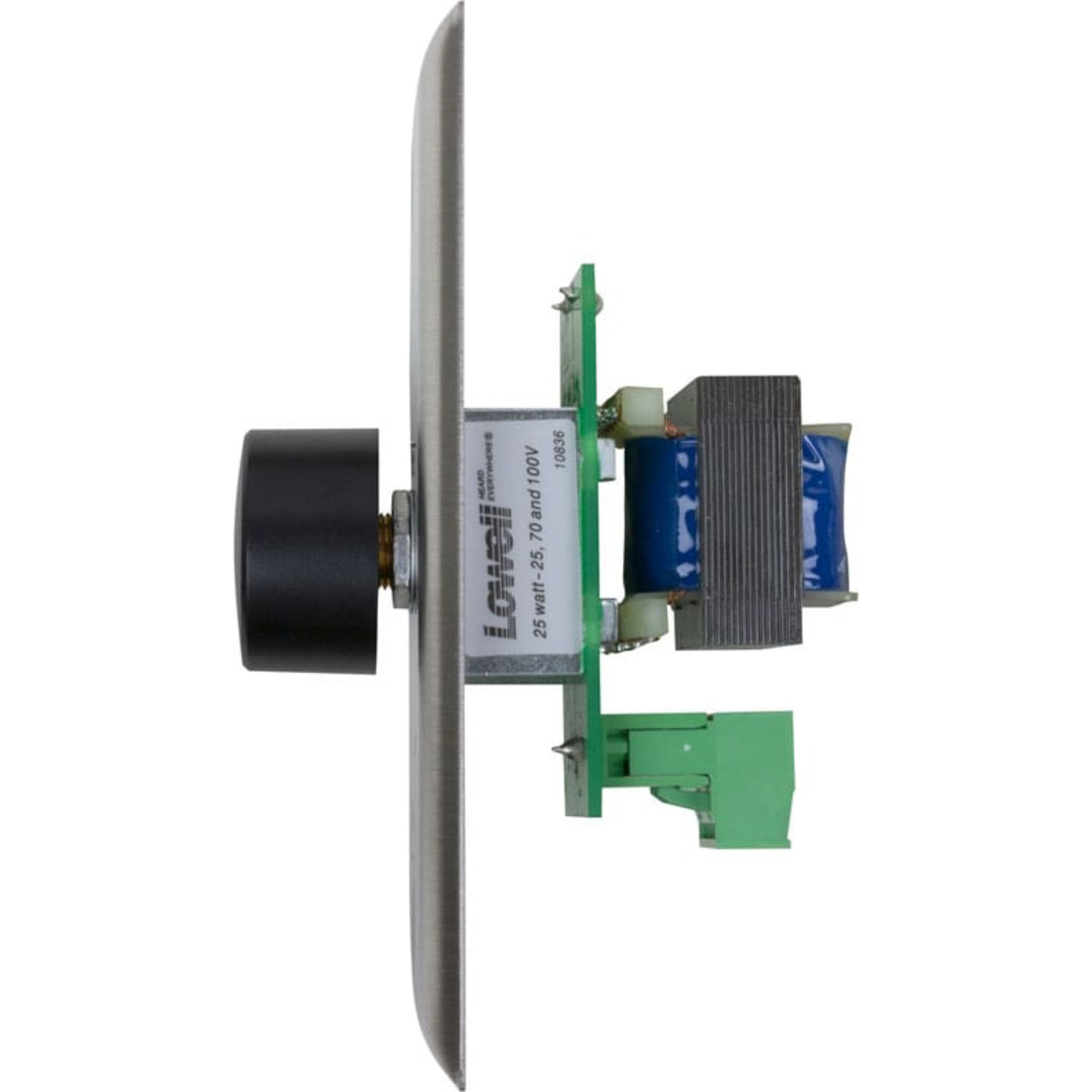

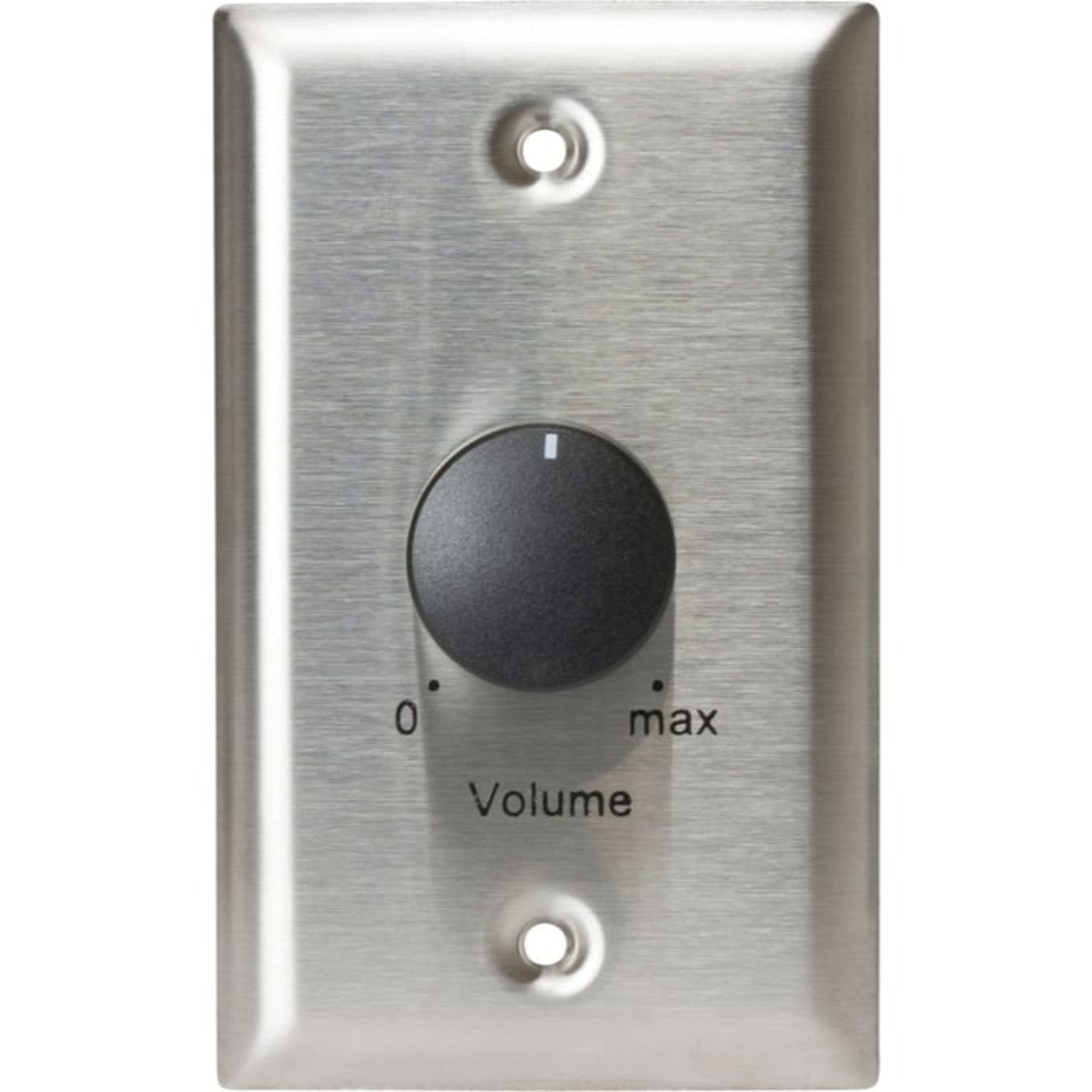

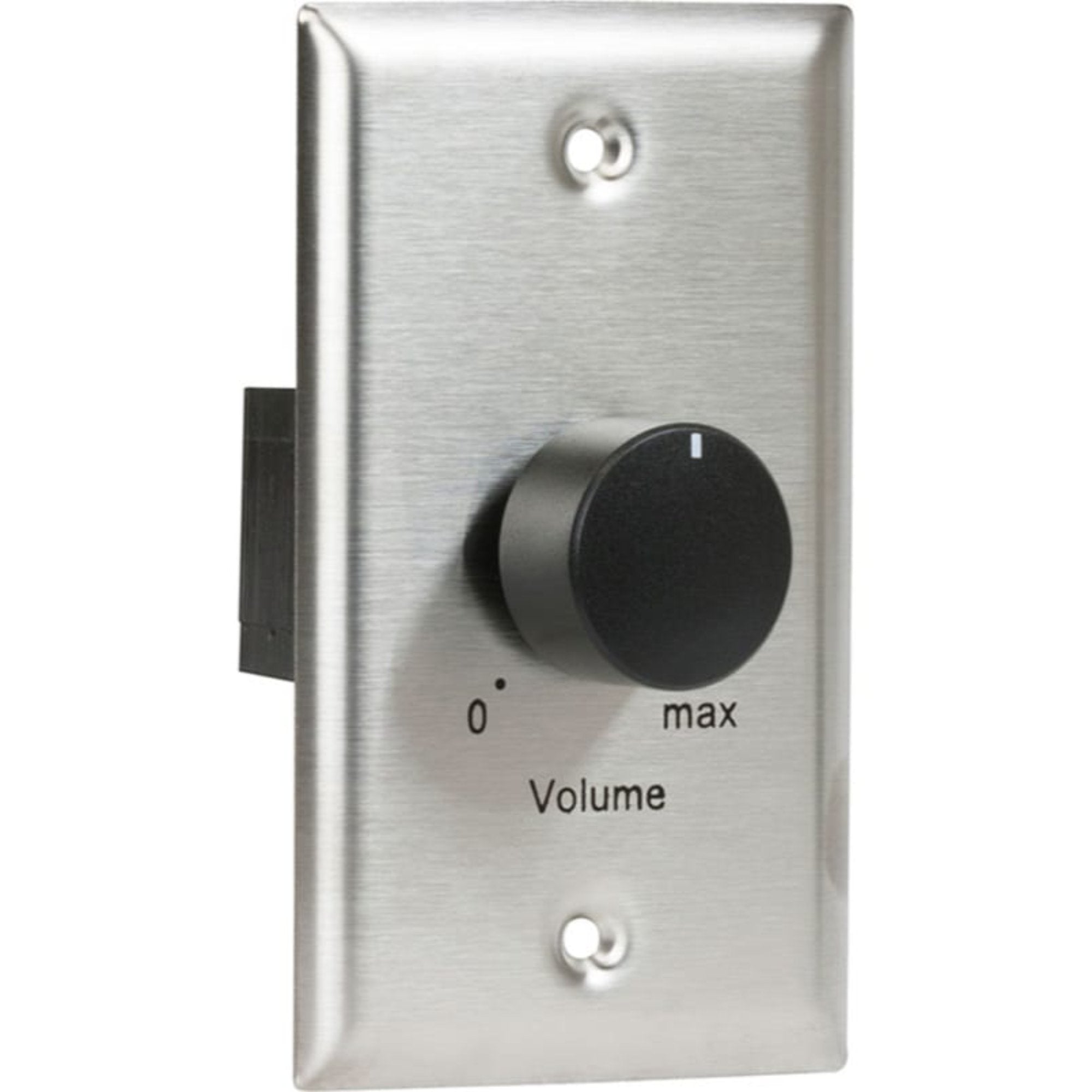

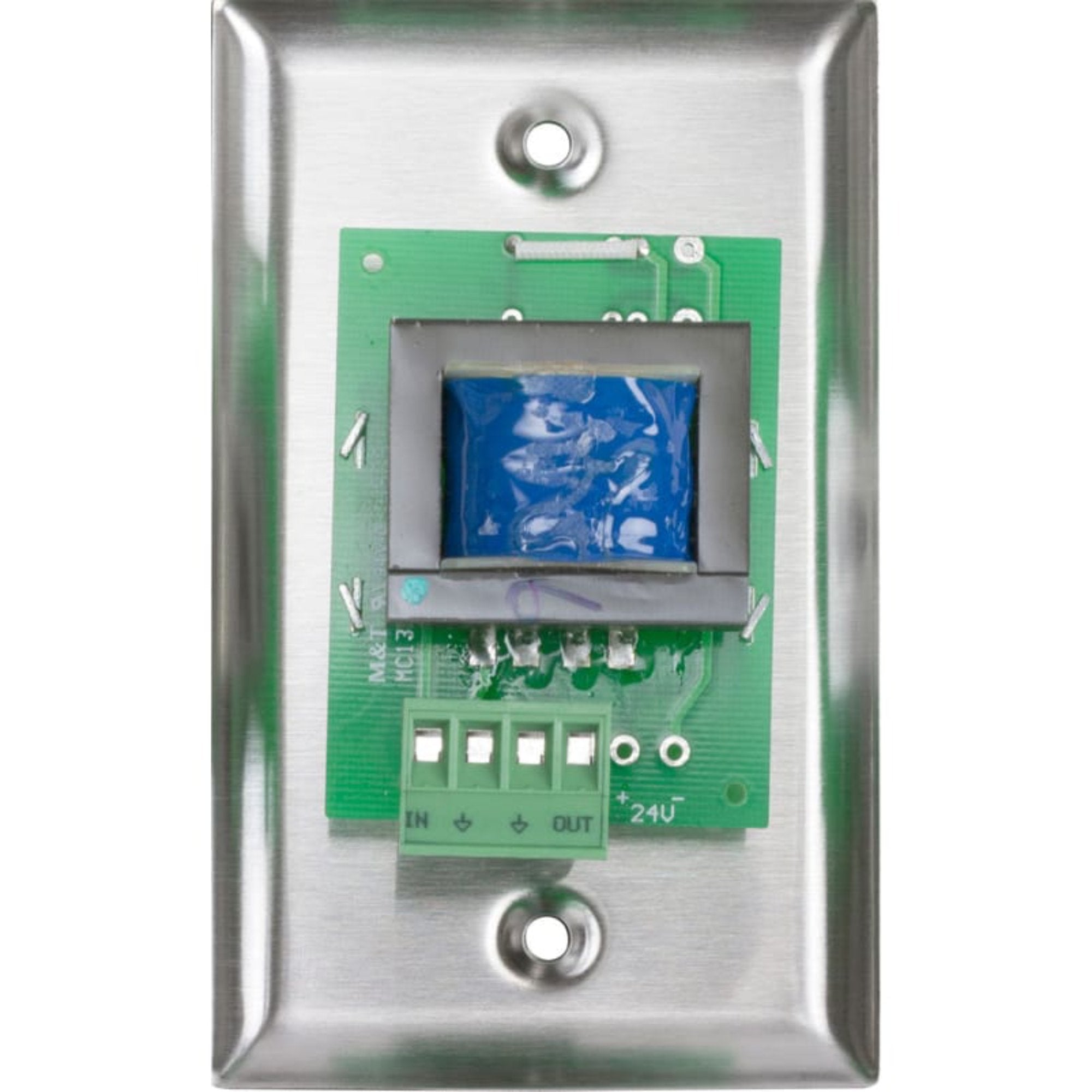

Lowell 25LVC Single Gang 25W Volume Attenuator (Stainless Steel)

25 Watt Volume Control with Rotary Switch and One-Gang Wall Plate - Stainless Steel

Lowell's LVC Series volume controls are ETL Listed, compact easy-to-install controls that provide precise level adjustment of single or multiple speaker lines. Choose 25W, 50W or 100W mod- els with standard, Decora-style, or adhesive rackmount plate. All models (including 100W versions) mount within a single gang E.O. Box with a minimum depth requirement of 2.125".

Standard, one-piece plates are offered in brushed stainless steel or plastic (white or ivory) versions. Decora-style two- piece plates are available in plastic (white, ivory or black) or with a stainless steel coverplate and a white or black plastic subplate. Rackmount models feature an adhesive dial scale with clear label area instead of a plate. All LVC Series volume controls have easy to connect, phoenix-style plug-in screw termination strips for pre-wire convenience with wire capacity up to 14gauge. Attenuation is 3dB per step or 1.5dB per step as noted.

For applications that require emergency and paging signals to bypass/override the attenuator, choose Series 100LVC-PA equipped with a 24VDC@15mA relay

Features:

• 100W, 50W, or 25W power rating.
• ETL Listed
• Standard or Decora-style plate.
• Choice of plate material includes stainless steel or
• plastic in white, ivory or black as noted.
• Compact single gang size blends with other wall devices. l 2.125" depth fits standard E.O. boxes
• May be used with RMP Series rack panels (order separately).

Specifications:

• Power Rating: 25W
• Attenuation: 3dB per step (33dB total)
• Use With: 25/70/100V speaker line
• Activation: Rotary dial
• Volume Positions: 0-10
• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Wall Plate: 1-gang standard
• Finish: Stainless Steel
• Fits standard E.O. box (2.125 in. min. depth)
• COMPLIANCE & CERTIFICATION
• Made in the U.S.A. with global components
• ETL Listed
