Key Features
- 10 Watt Power Rating
- 3dB per Step Attenuation
- For 25/70/100V Speaker Lines
- Rotary Dial Switch
- Single Gang Size
- Fits Standard Electrical Boxes
- UL Listed
Description

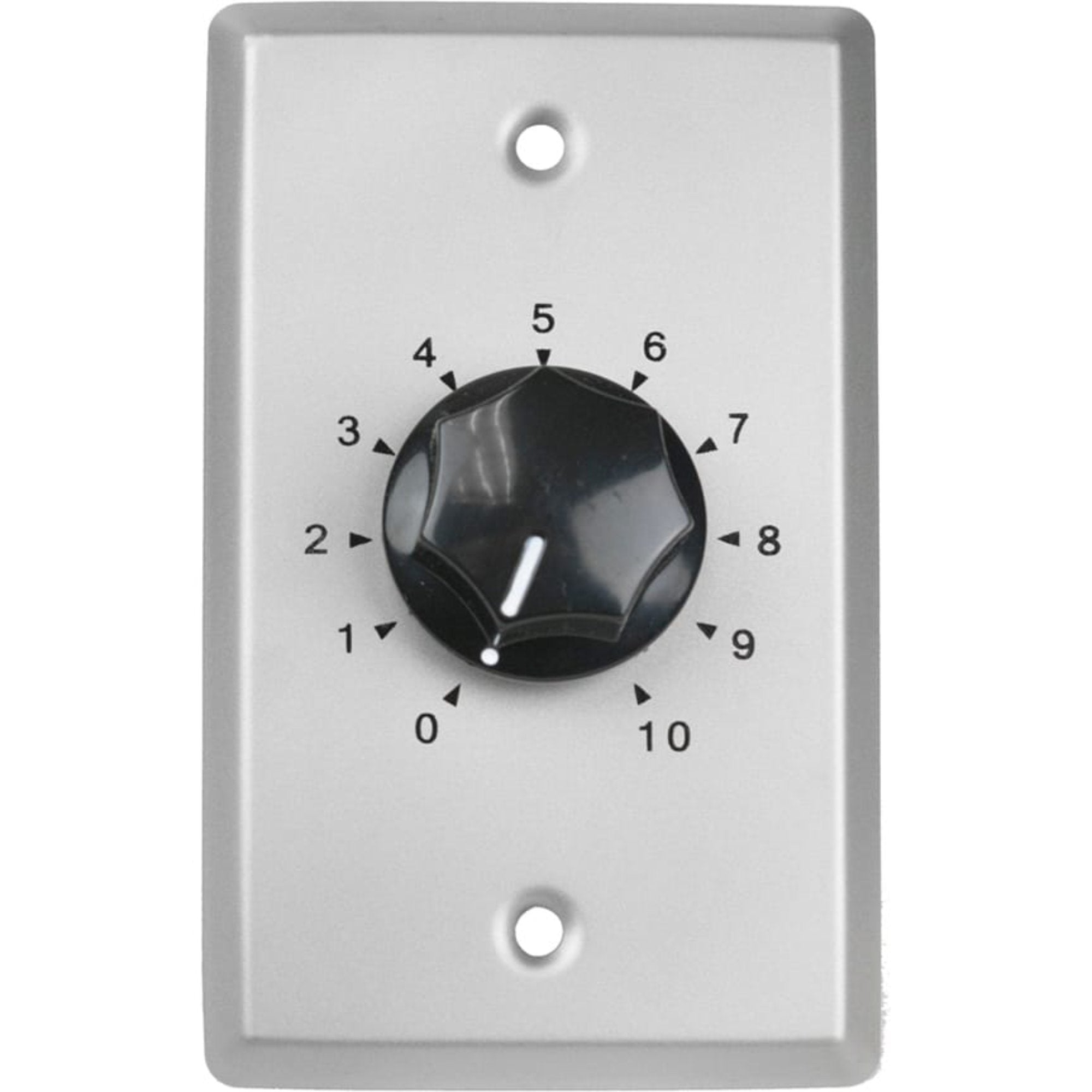

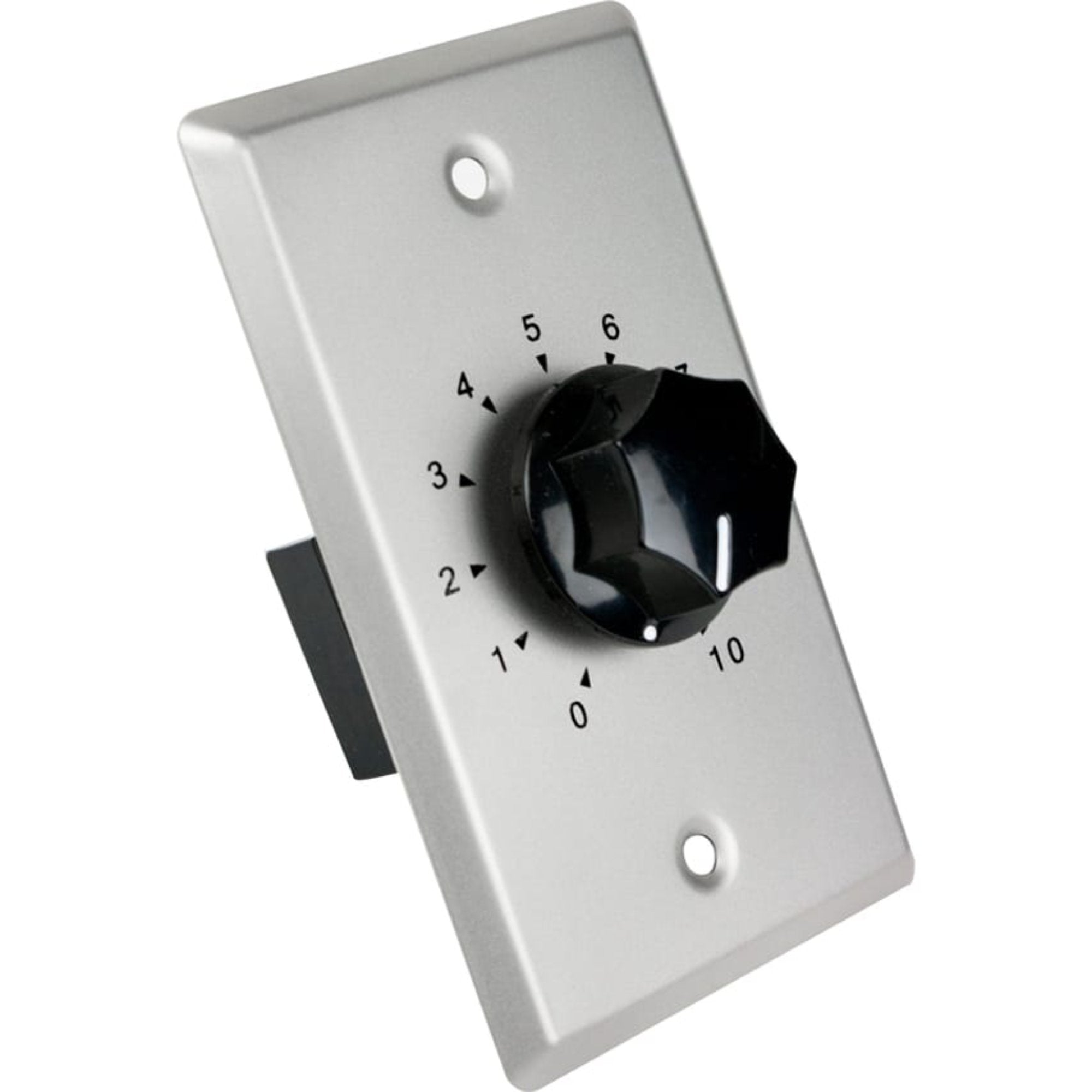

10 Watt Volume Control with Rotary Switch and One-Gang Wall Plate - Stainless Steel
10W autoformer attenuator (volume control) with 3dB steps for use with 100/70/25V speaker line. Includes 1-gang stainless steel wall plate with rotary knob.
Features:
- Rotary dial features 10 volume positions plus OFF ("0")

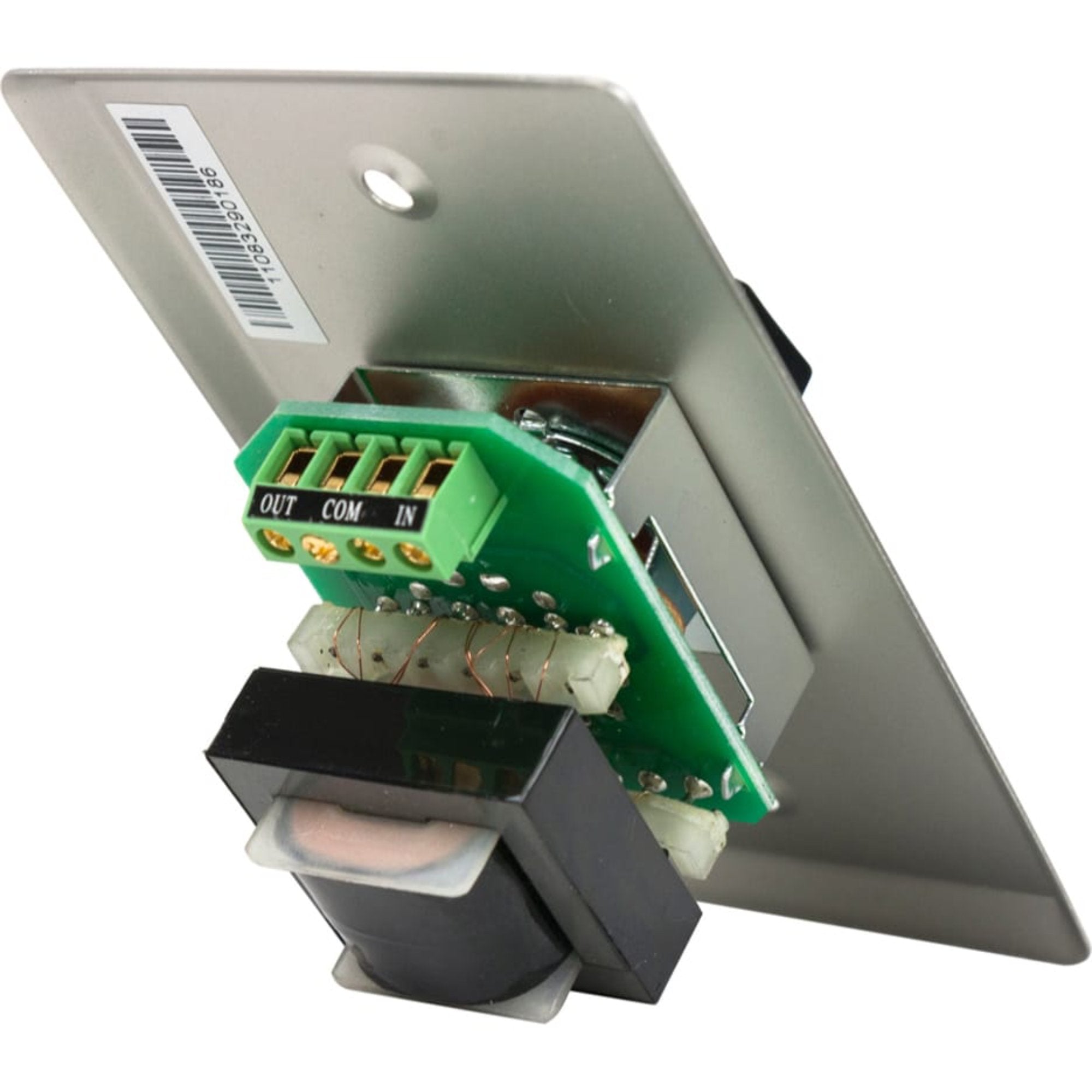

- Phoenix-style, plug-in screw termination strips for prewire convenience
- Wire capacity to 14-gauge
- 10W power rating
- One piece stainless steel wall plate with printed scale
- Attenuation is 3dB per step(33 dB total)*
- Mounts in a single gang E.O. box with minimum depth of 2.125"
Specifications:
- Power Rating: 10W
- Attenuation: 3dB per step (33dB total)
- Use With: 25/70/100V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Wall Plate: 1-gang standard
- Finish: Stainless steel
- COMPLIANCE & CERTIFICATION
- Imported
- UL Listed
Details
- Manufacturer: Lowell
- MPN: 10LVC
- Model Number: 10LVC
- UPC: 811859030267
