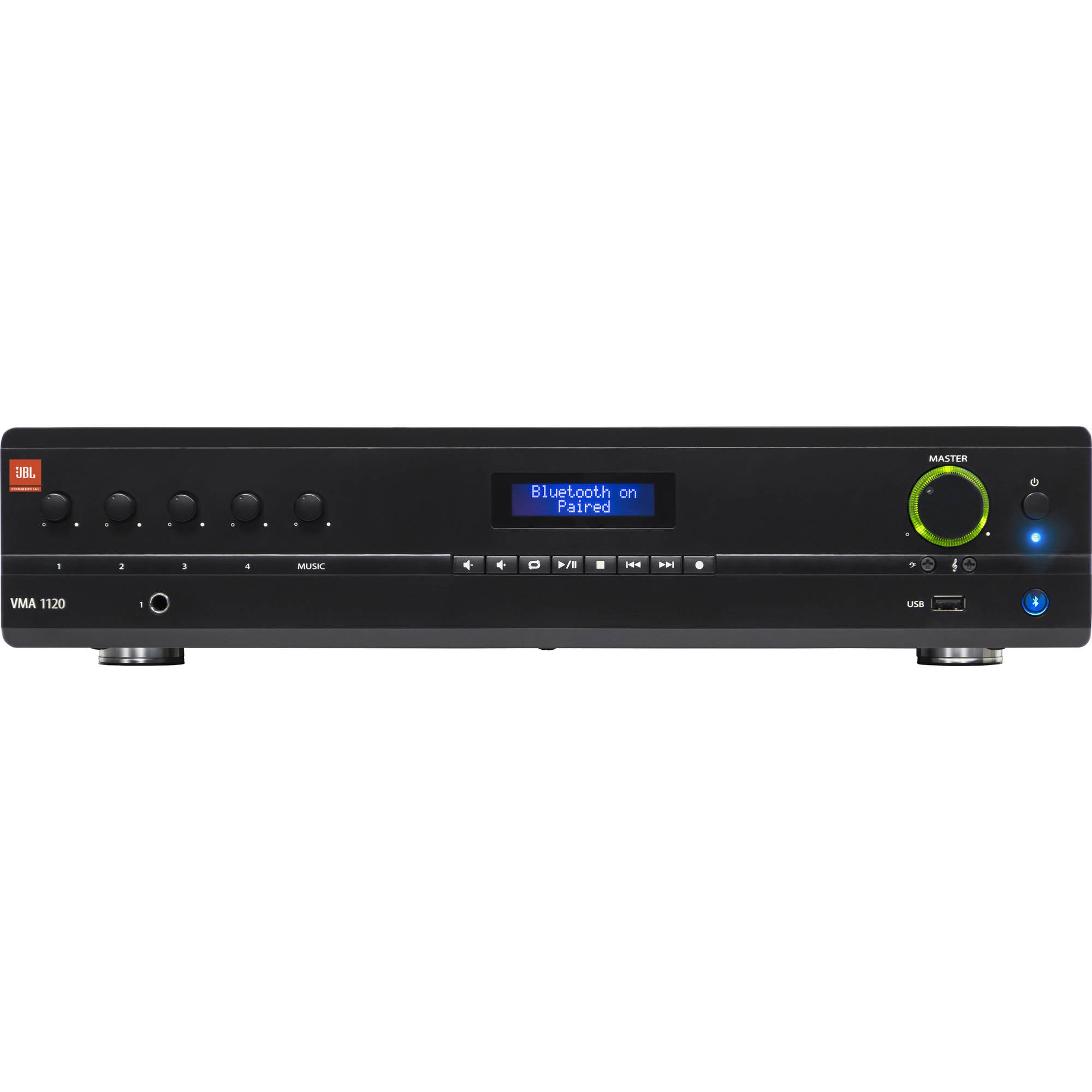

JBL VMA1120 Commercial Series 120W Bluetooth-Enabled Mixer/Amplifier (5-In/1-Out)

120W Bluetooth-Enabled 5x1 Commercial Mixer/Amplifier for 100V/70V or 4Ω/8Ω Systems

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features

• 5 inputs with 1 output of 60, 120, or 240-watts of power
• Independent bass and treble controls for each output channel
• 100V and 70V output, or 4Ω/8Ω
• Paging Chime, and Priority muting
• Works with JBL CSR-V wall controllers
• Balanced mic/line inputs; RCA (.775V) inputs
• Rack mounting hardware included

Specifications

• Max Output Power per Channel:
  into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD:
  VMA160: 60W
  VMA1120: 120W
  VMA1240: 240W
• Insertion Loss: (70V & 100V outputs) 1dB maximum
• Number of Inputs: 5
• Number of Outputs: 1
• Tone Controls:
  (Bass and Treble non-detented potentiometers on each channel)
  Bass +/-14dB @ 50Hz;
  Treble +/-14dB @10kHz
• Input Sensitivity:
  (to obtain full rated power into 8 Ω load)
  Mic Input: 5.5mVRMS
  Line Input: 1.3VRMS
  RCA Input (stereo in): 130mVRMS
• Frequency Response:
  (measured at 2.83VRMS into rated load impedance at any output)
  4/8 Ω Output: 20Hz - 20kHz, +/-2dB;
  70V/100V Outputs: 80Hz - 15kHz +/-3dB
• Total Harmonic Distortion (THD):
  (measured at 2.83VRMS into rated load impedance at any output)
  Power Amp Output: <0.5%, 20Hz - 20kHz
• Signal to Noise Ratio:
  (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted)
  >76dB
• Input Impedance:
  (nominal) Mic: 400 Ω Line: 20 kΩ
  (balanced) RCA: 50 kΩ
• Phantom Power: 27VDC
• Crosstalk:
  (reference rated power, volume at mid position, 1kHz)
  -70 dB
• Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
• Minimum Load Impedance:
  (Low Impedance Output, 70V Output, 100V Output)
  VMA160: 4 Ω, 80 Ω,160 Ω
  VMA1120: 4 Ω, 40 Ω, 80 Ω
  VMA1240: 4 Ω, 20 Ω, 40 Ω
• Operating Temperature/Humidity: 0°C to 35°C @ 95% R.H. (non-condensing)
• Storage Temperature: -20°C to 85°C
• Net Weight:
  VMA160: 19.4 lb (8.8 kg)
  VMA1120: 20.2 lb (9.2 kg)
  VMA1240: 25.5 lb (11.6 kg)
• Dimensions:
  Width: 17.0 in. (432 mm)
  Depth: 16.3 in. (415 mm)
  Height: 3.5 in. (88 mm)
• Shipping Weight:
  VMA160: 24.6 lb (11.2 kg)
  VMA1120: 25.5 lb (11.6 kg)
  VMA1240: 30.8 lb (14 kg)
