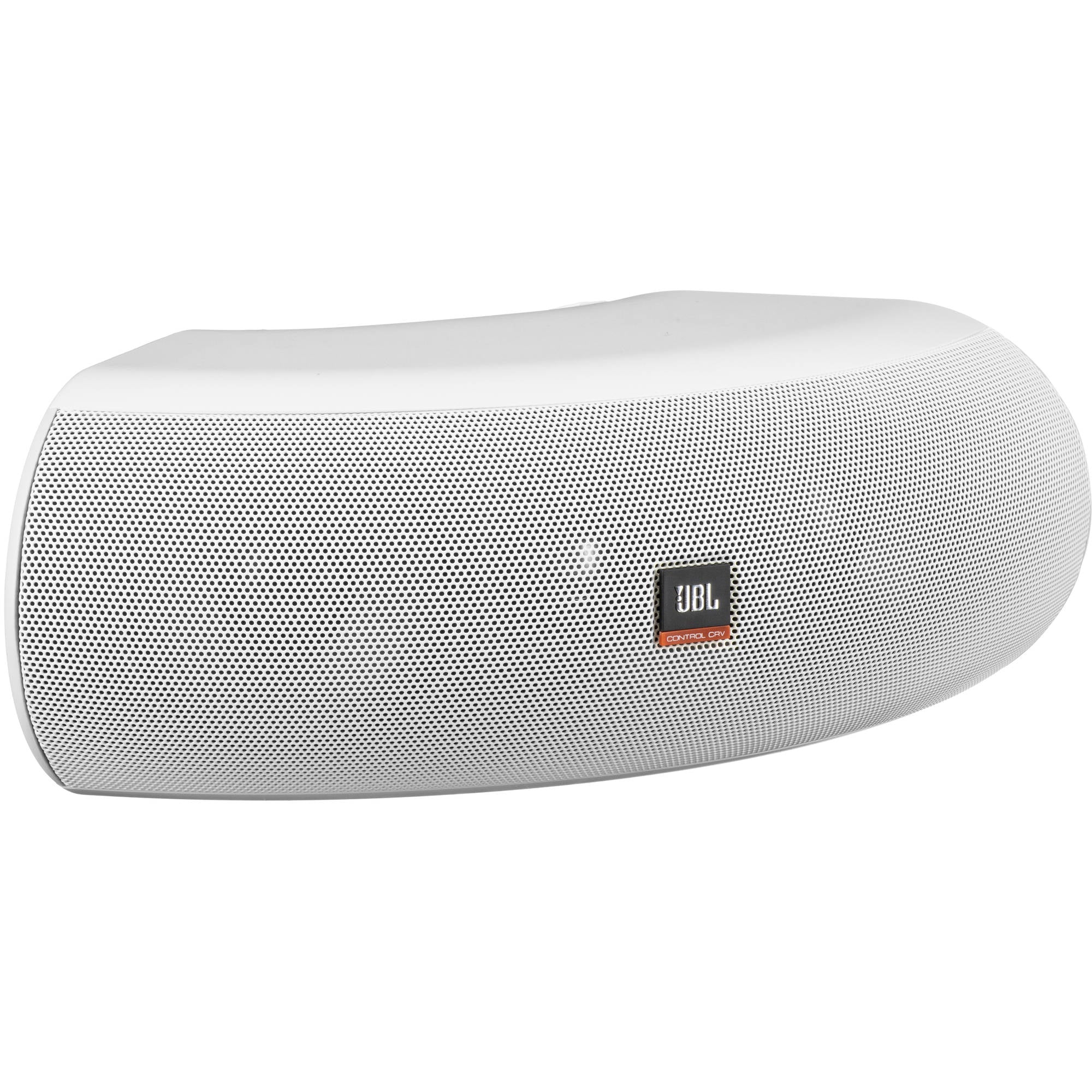

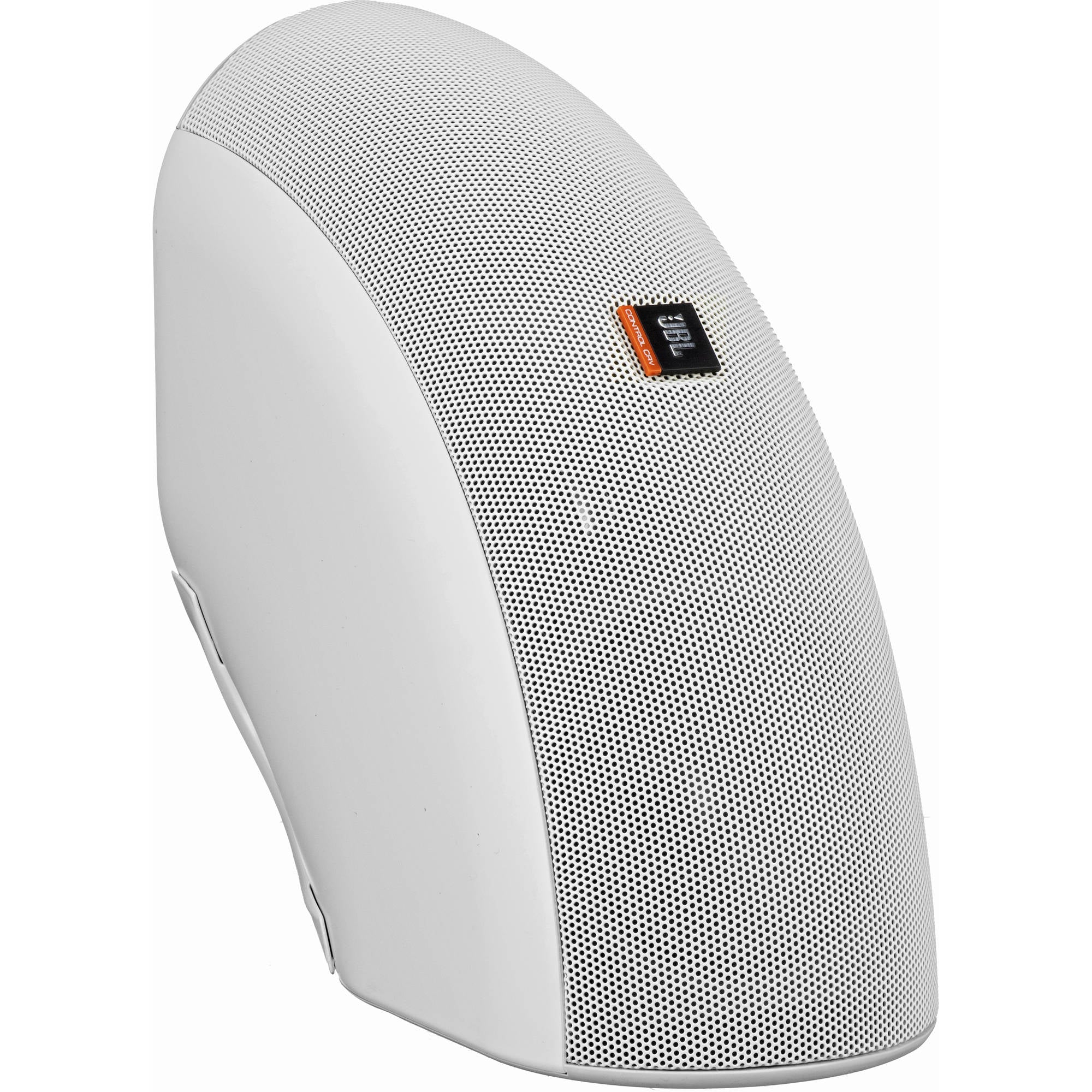

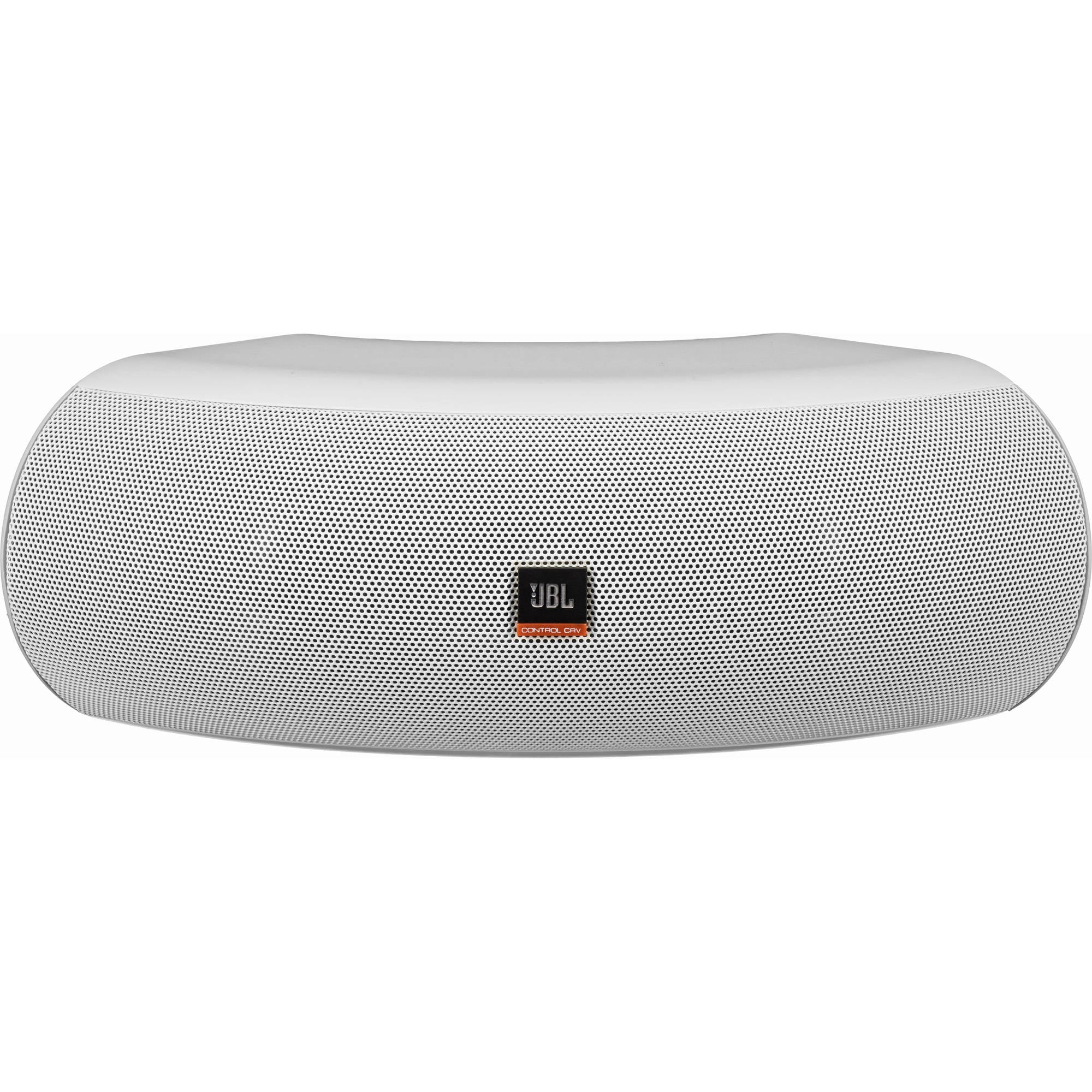

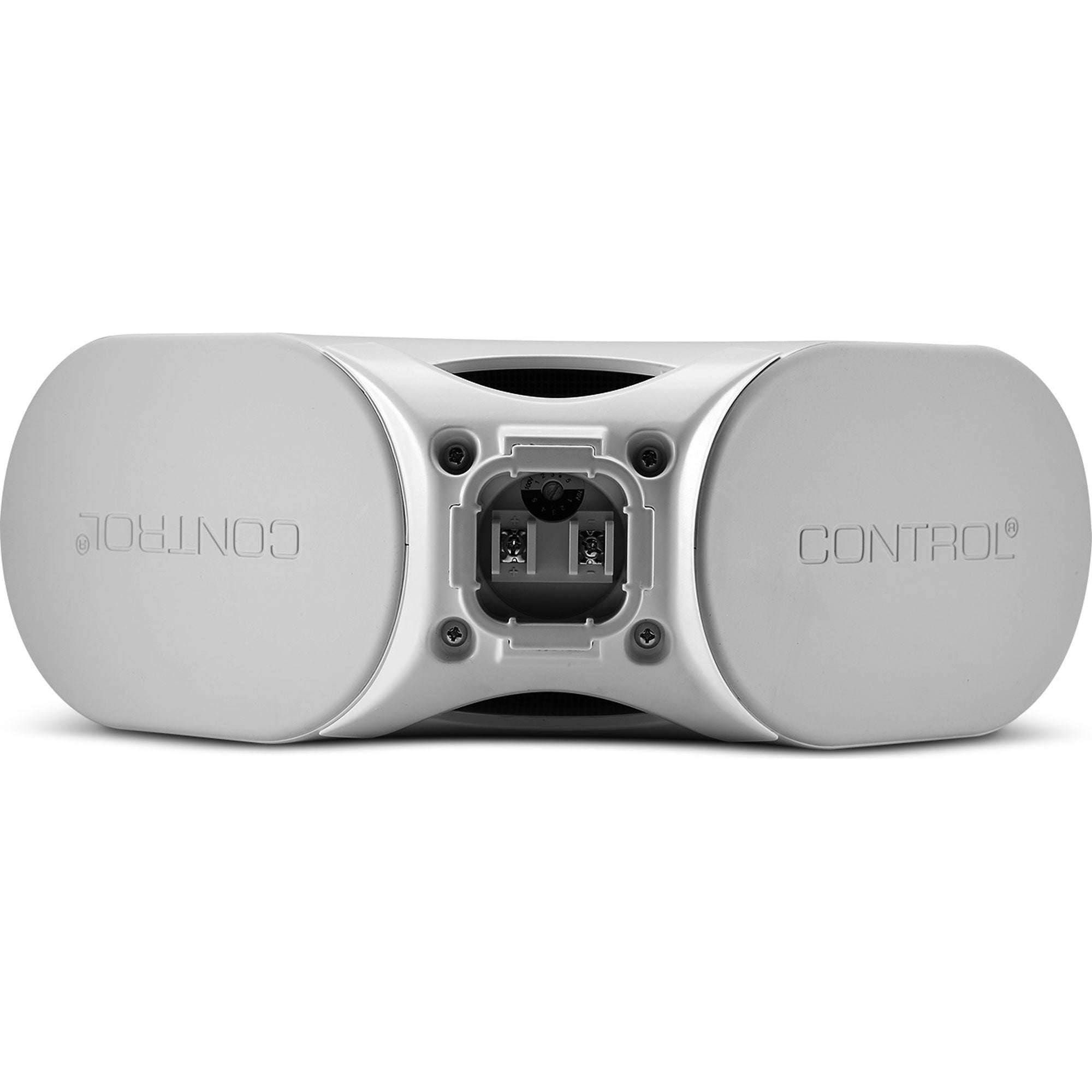

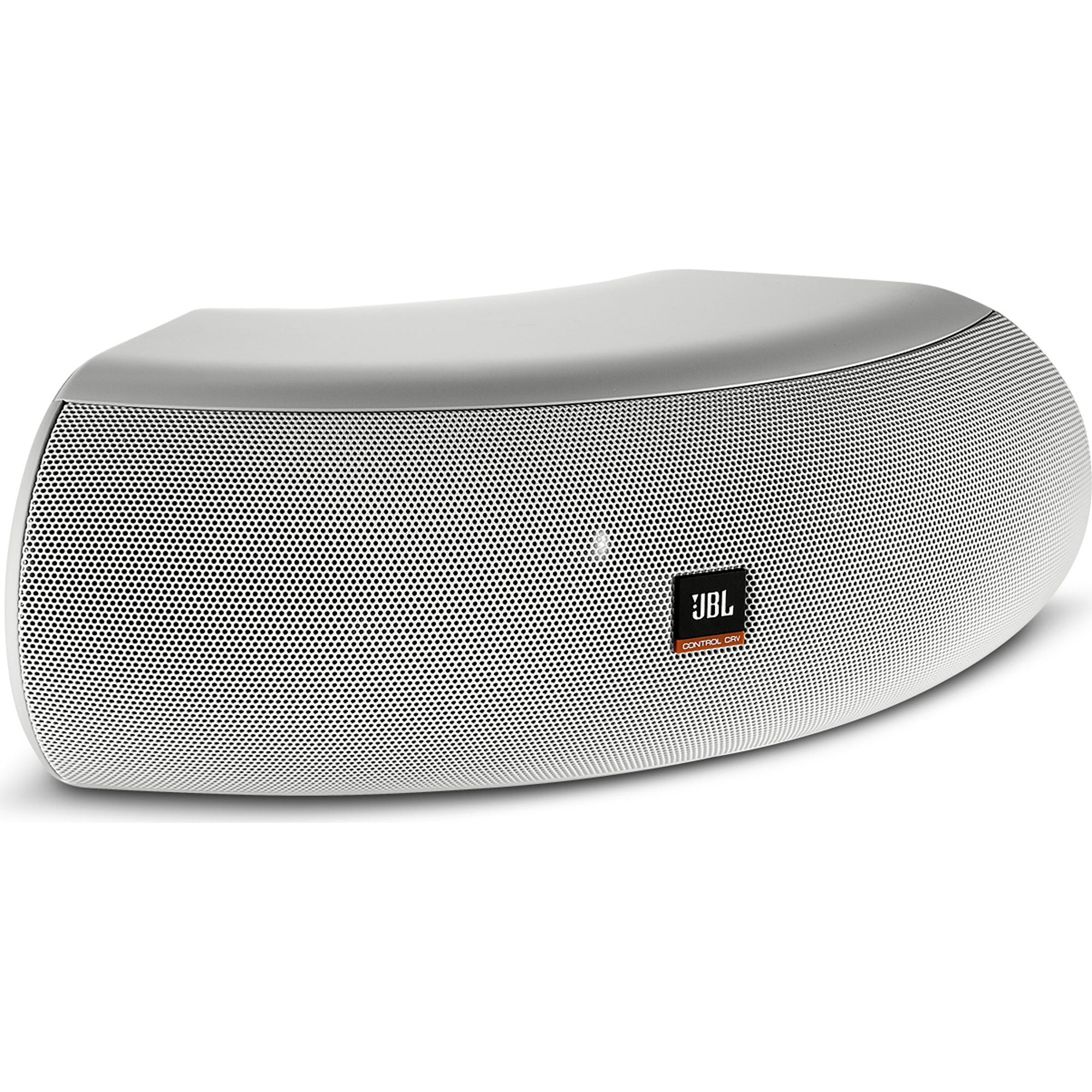

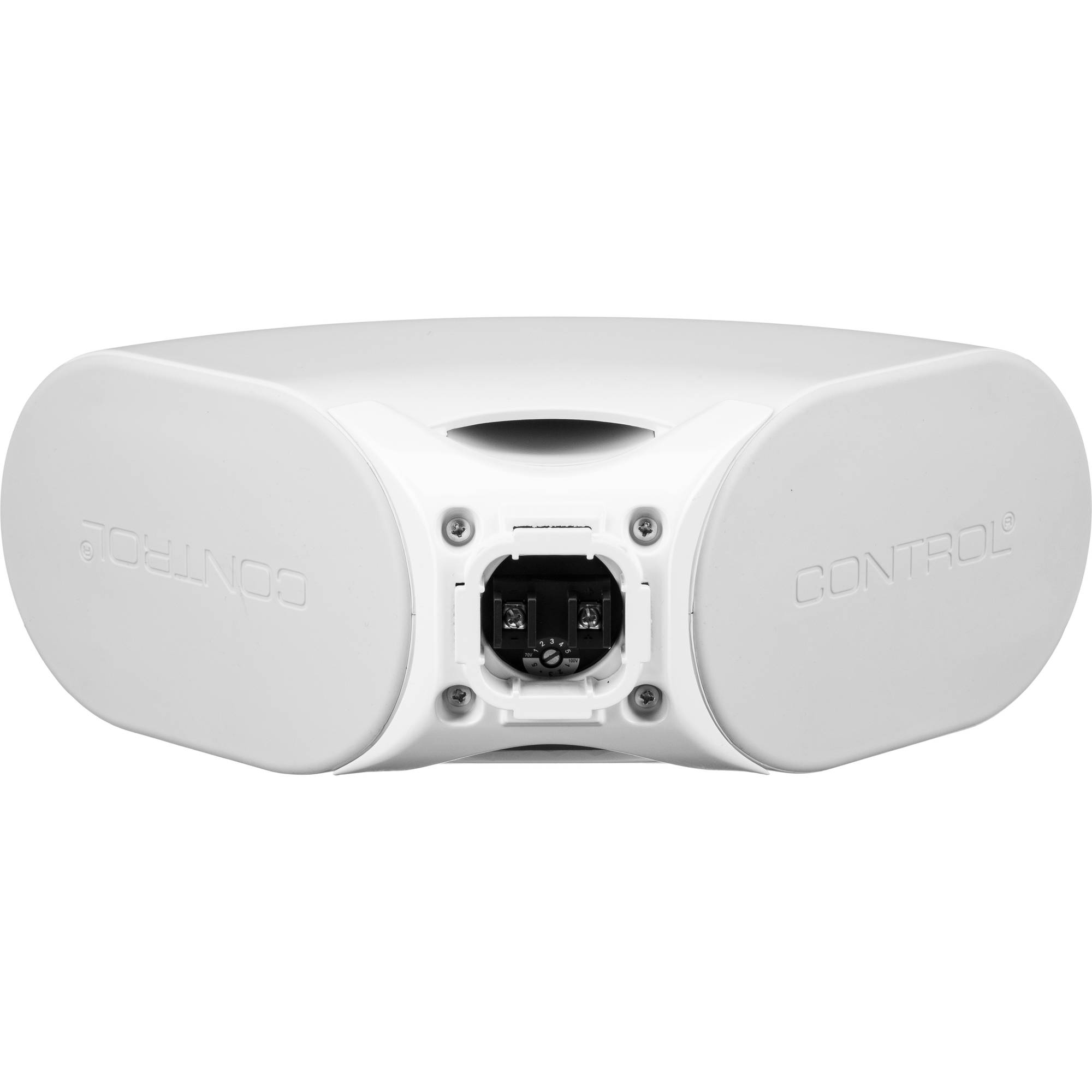

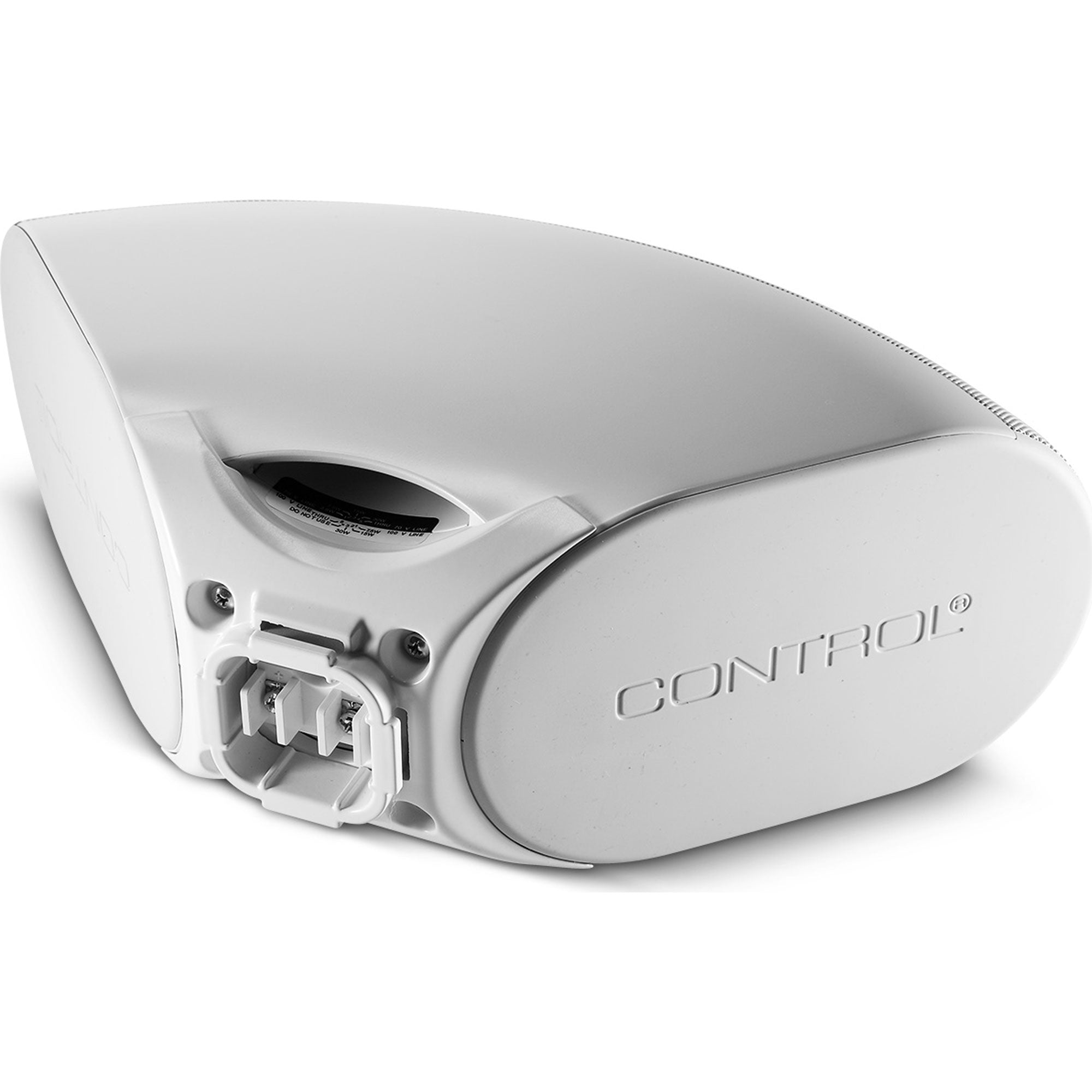

JBL Control CRV Loudspeaker (White)

High Design Loudspeaker with 70V/100V Transformer (White, Each)

Control CRV
High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.

High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360 round arc clusters.

The Control CRV brings high design and versatility to commercial applications such as restaurants, retail stores, lounges, theme bars, music cafes, hotels, boardrooms, boutiques, museums, leisure venues, outdoors, upscale lobbies, and other foreground and background music and paging applications that require a fashionable look with superb sound quality.

Dual 100 mm (4 in) woofers feature Polyplas cones for durability, large 32 mm (1-1/2 in) voice coils wound on vented aluminum formers for high power handling, and dual neodymium magnets for high output with low harmonic distortion. The 19 mm (3/4 in) tweeter features a titanium laminate dome tweeter, a shielded neodymium magnet, and Ferrofluid cooling for maximum power handling and reduced thermal compression. A bi-radial waveguide reduces high frequency variations in the frequency response across the listening area. The advanced high-slope crossover network (36 dB per octave high-pass to the tweeter and 18 dB per octave low-pass to the woofers) provides natural midrange sound quality along with smooth pattern coverage in the crossover region.

JBL Control CRV speakers are exceedingly versatile, with multiple installation possibilities. The JBL Control CRV speaker can be wall-mounted aimed straight out from the wall, angled down at a 45 aiming axis, mounted spanning the junction of a wall and ceiling, or spanning the junction of a wall and another wall. At a junction, the unique curved shape of the speaker couples well with both boundary surfaces, forming a dual ground plane configuration which increases the acoustic length of the speaker, providing additional spaciousness to the sound character and increased bass output. In addition, two or three Control CRV speakers can be joined together to create loudspeaker solutions for a wide variety of coverage, appearance and mounting requirements. Using the optional PMB polemount bracket, four speakers can be joined together and suspended by a ceiling fan pole to form a cluster module with 360 horizontal coverage.

Specifications:

• Frequency Range: 80 Hz - 20 kHz
• Power Capacity: 75 W continuous pink noise (300 W peak)
• Transformer: Selectable 70V/100V or low impedance
• Usability: Indoor/outdoor capable
• Colors: Black, or White (-WH)
• Accesssories: Wall-mount bracket included (pole-mount bracket optional)
