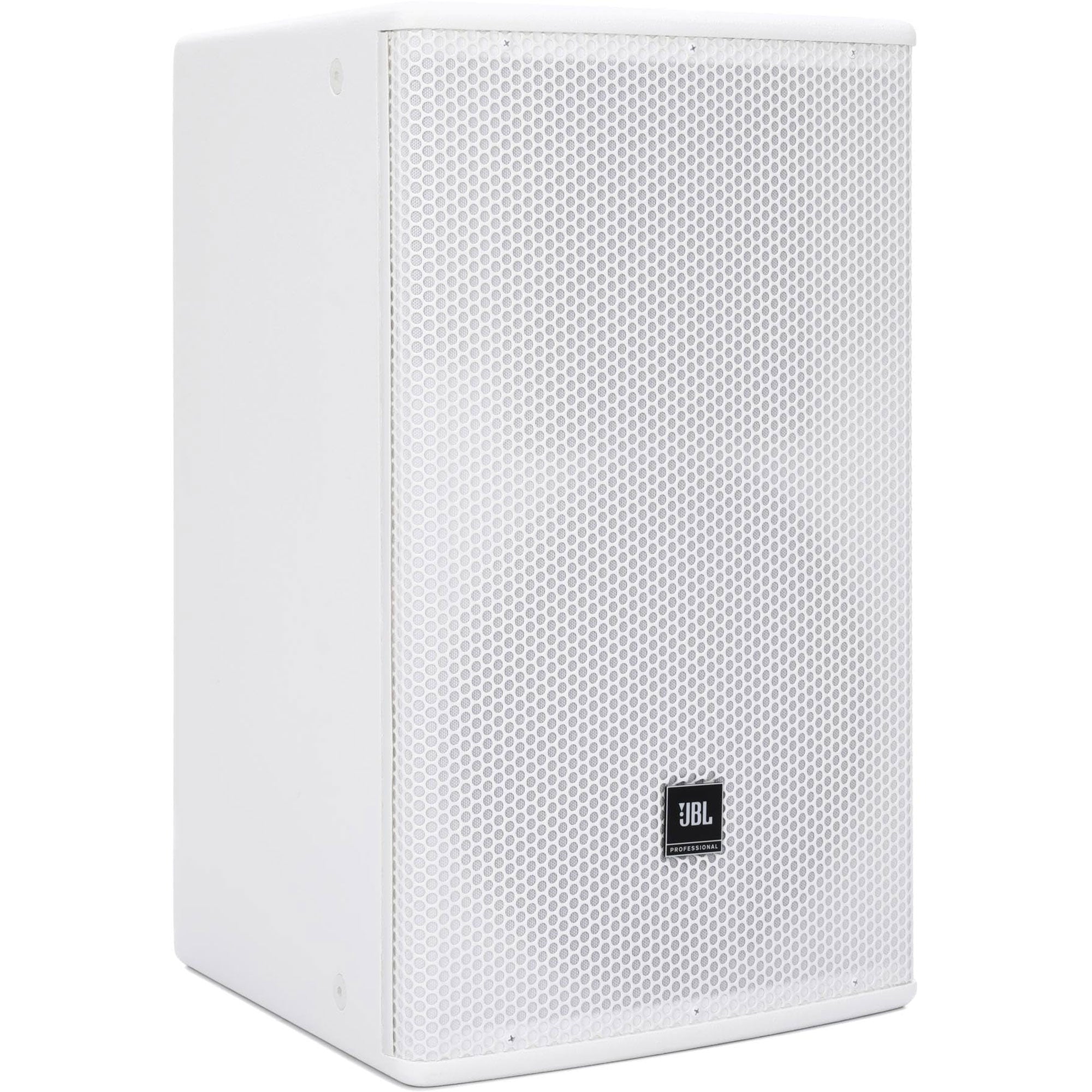

JBL AC599-WH 15" Two-Way Loudspeaker (White)

15" 2-Way Full-Range Loudspeaker System, 90º x 90º Waveguide Coverage Pattern with 2408H-2 - White

Two-Way Full-Range Loudspeaker System with 1 x 15" LF
AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features:

• Robust 15mm enclosure with black textured finish
• 384 mm (15 in) LF transducer
• 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Specifications:

• Frequency Range (-10 dB): 60 Hz - 20 kHz
• Frequency Response (±3 dB): 75 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 98 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 122 dB (128 dB peak)
• Power Rating (Continuous/Program/Peak): 250 W/500 W/1000 W
• Coverage Pattern: 90° x 90° (H x V)
• Crossover: 1.5 kHz
• Low Frequency Driver: 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver
• with 38 mm (1.5 in) voice-coil
• High Frequency Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket
• Dimensions (H x W x D): 680 mm x 420 mm x 445 mm (26.7 in x 16.5 in x 17.5 in)
• Net Weight: 19.8 kg (43.6lbs)
