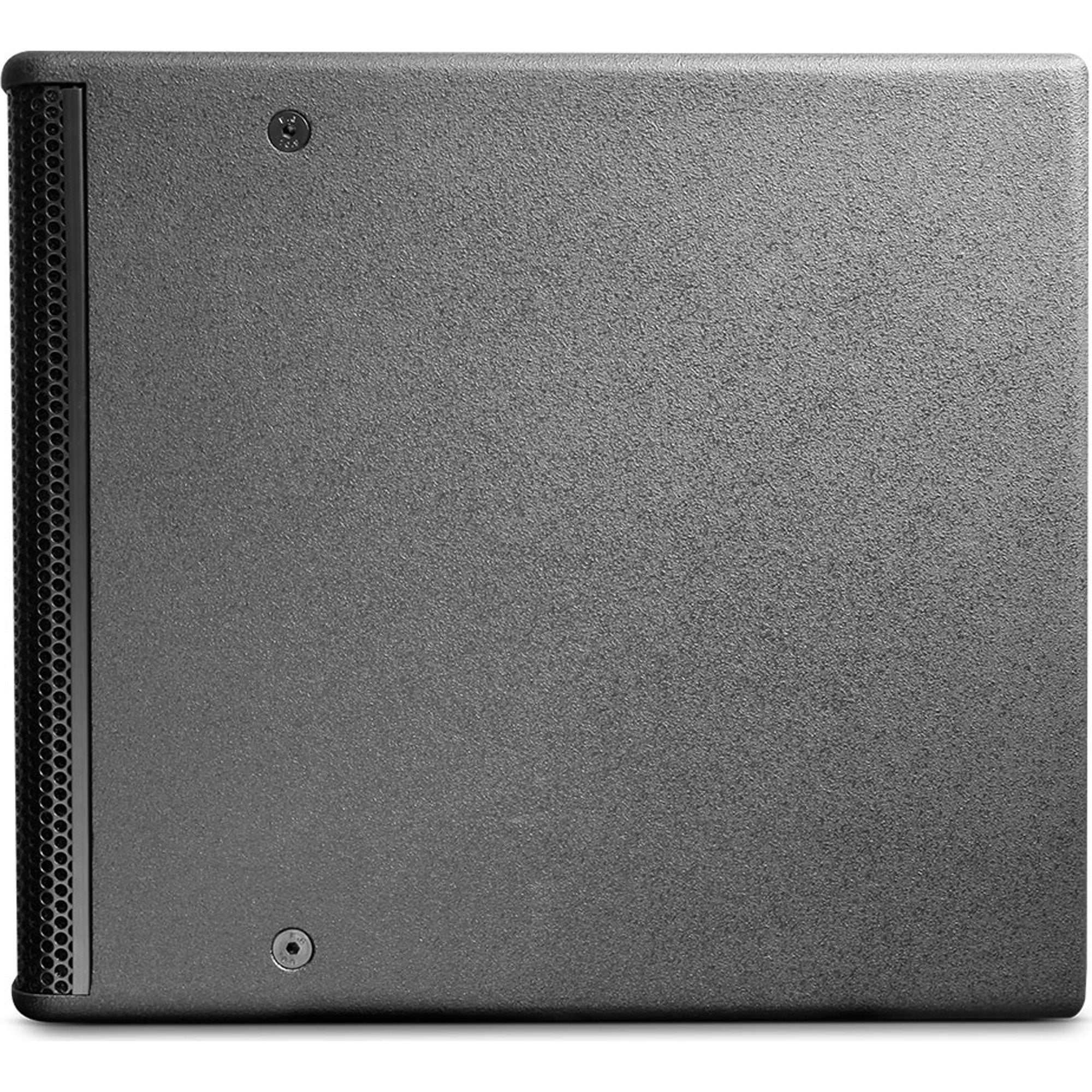

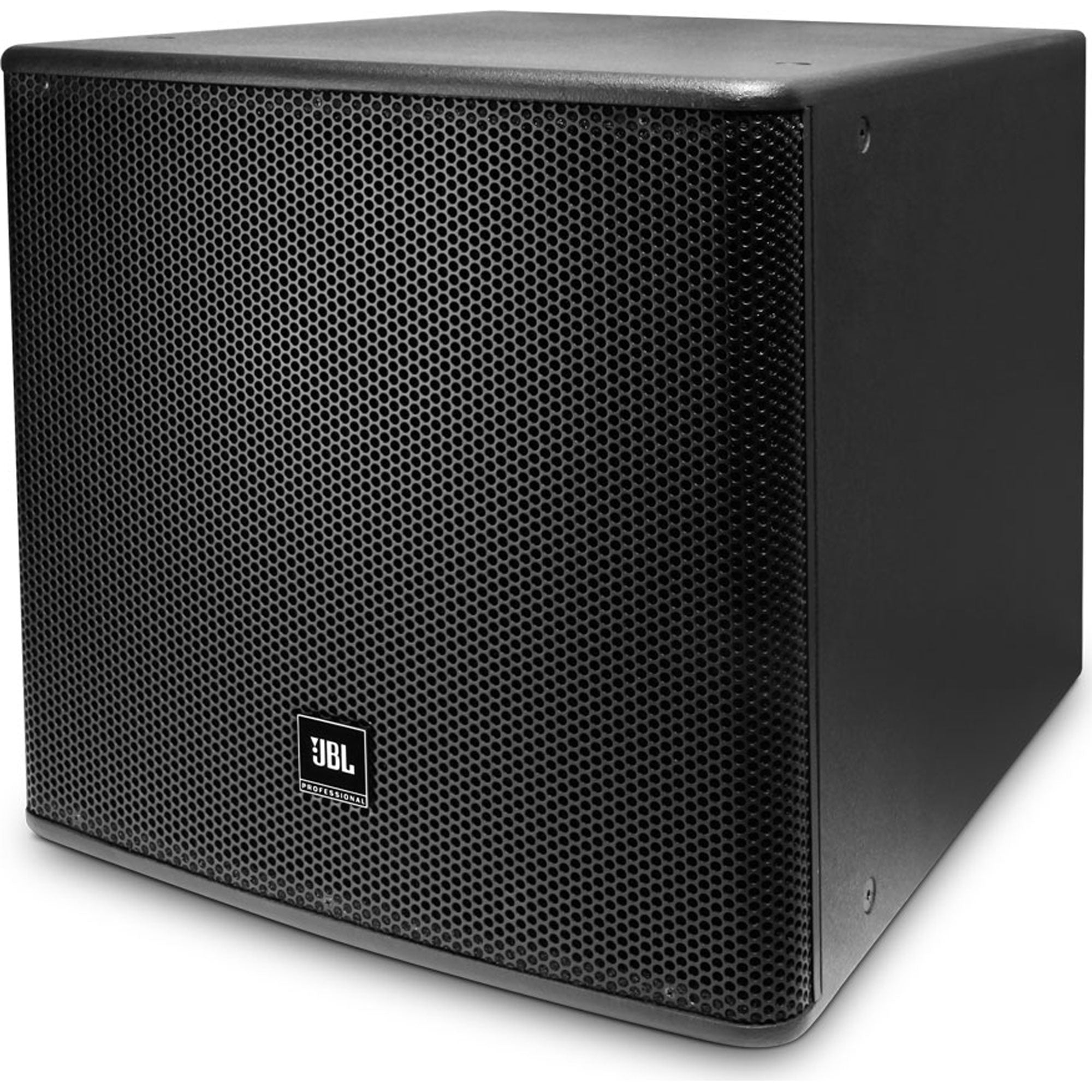

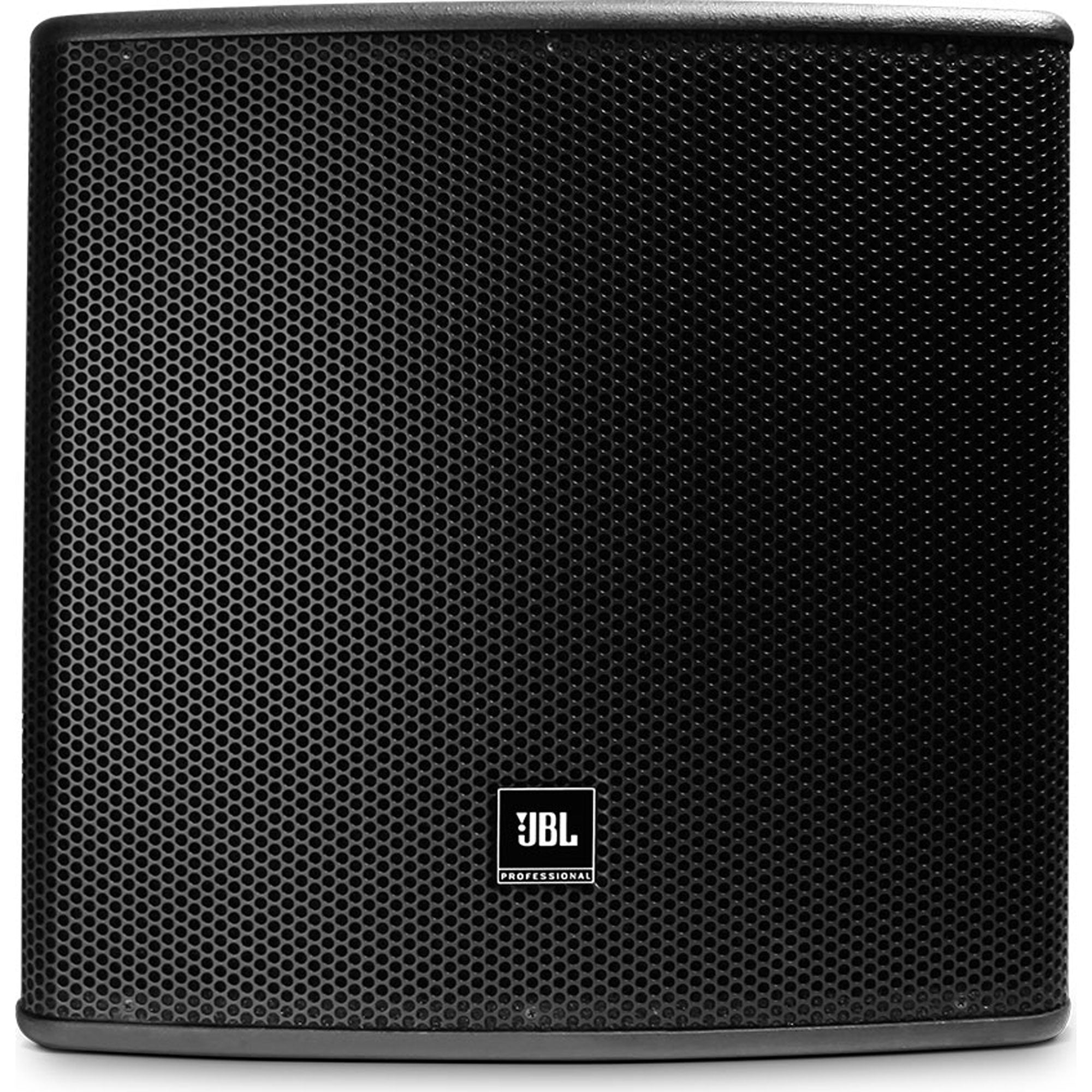

JBL AC118S 18" High Power Subwoofer (Black)

18" High Power Subwoofer System with 75mm (3 in) Voice Coil - Black

18" High Power Subwoofer System

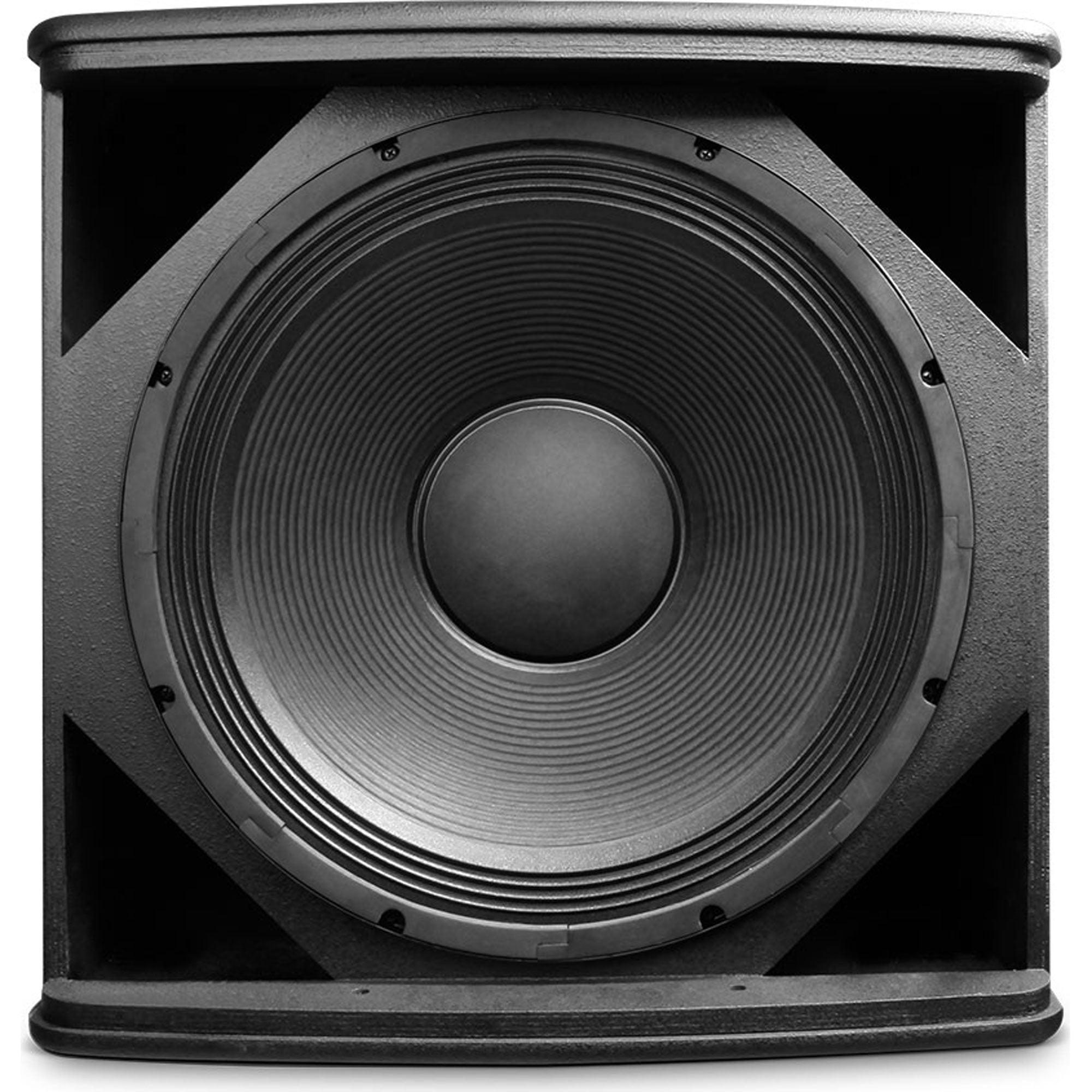

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

Features:

• High power and long excursion driver for lower frequency reproduction.
• High sensitivity with lower power compression
• Large port for high output and low-frequency reinforcement
• Multiple Attachment Points for Ultimate Flexibility
• Robust 18 mm multiply hardwood with textured black finish

Specifications:

• Frequency Range (-10 dB): 32 Hz - 250 Hz
• Frequency Response (±3 dB): 40 Hz - 250 Hz
• System Sensitivity (1w @ 1m): 95 dB
• Nominal Impedance: 8 ohms
• Maximum SPL(1m): 122 dB (128 dB peak)
• Power Rating (Continuous/Program/Peak): 450 W/900 W/1800 W
• Low frequency driver: 1x 18" woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure Material: 18 mm multi-ply hardwood plywood
• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 12 x M10 threaded suspension points
• Dimensions (H x W x D): 548 mm x 561 mm x 720 mm (21.5 in x 22.0 in x 28.3 in)
• Net Weight: 32.3 kg (71.2 lbs)
