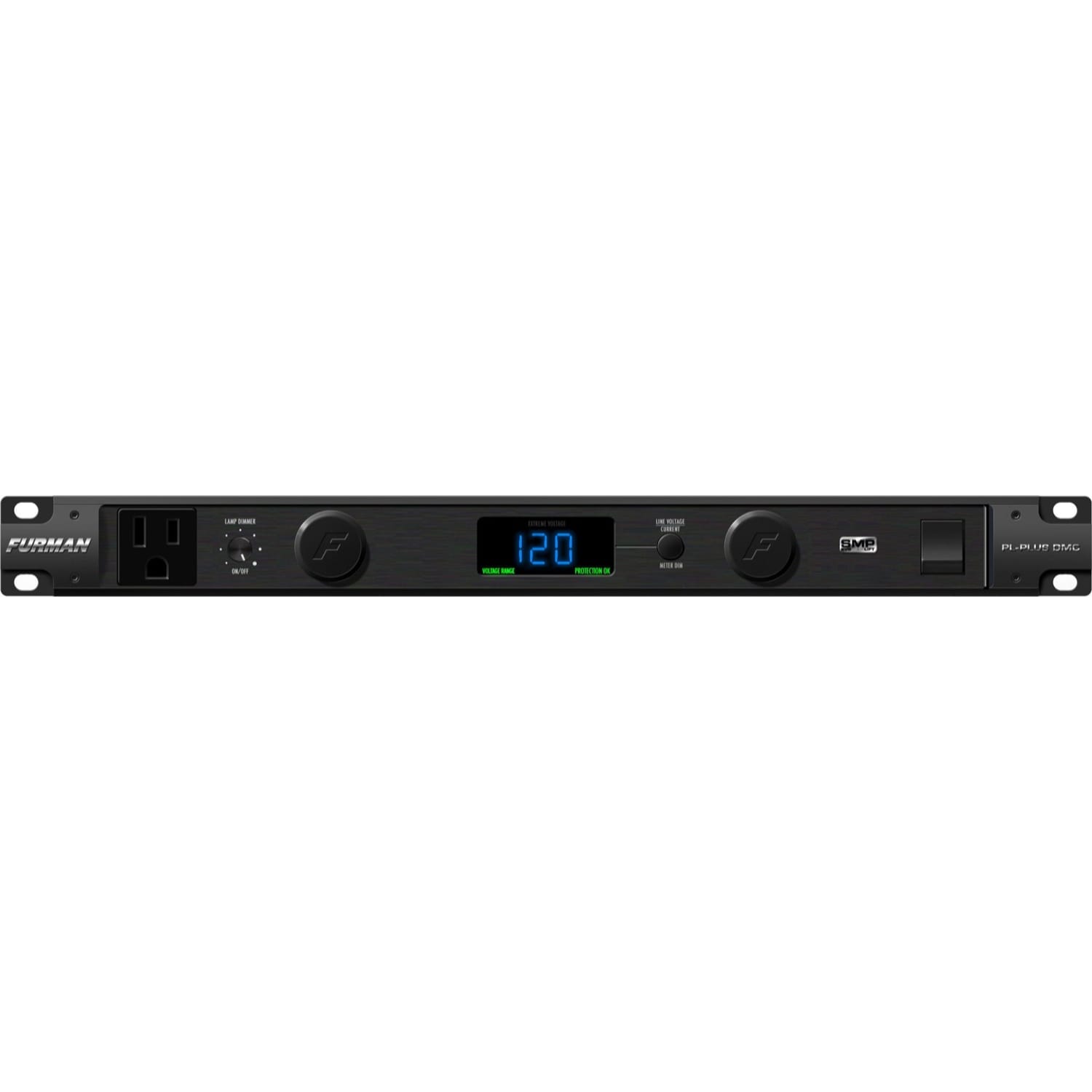

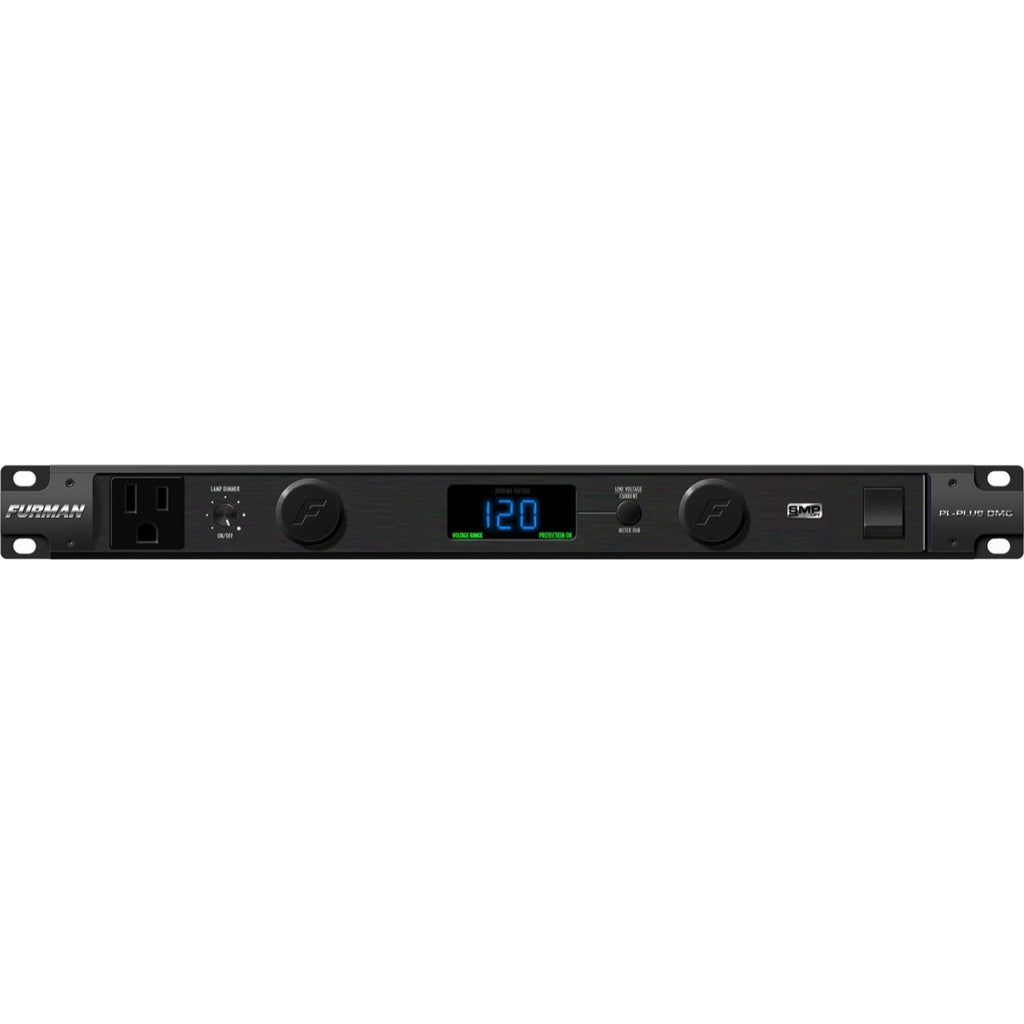

Furman PL-PLUS DMC Classic Series 9-Outlet 15A Power Conditioner with SMP, Lights & Volt/Ammeter

FurmanSKU: FUR PLPLUSDMC
MPN: PL-PLUS DMC UPC: 654061027980

Price:
Sale price$749.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Nine Total Outlets
  • LED Voltmeter / Ammeter
  • 15A Rating
  • Pull-Out Lights
  • Series Multi-Stage Protection
  • Linear Filtering Technology
  • Extreme Voltage Shutdown

Description

15 Amp Power Conditioner with 8 Rear Outlets, Digital Voltmeter/Ammeter and LED Rack Lights, 1 Rack Space

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

Features:

  • Surge Protection
    Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
  • Noise Filtration
    LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
  • Voltage Protection
    Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
  • Pull-out Lights
    Dual smooth track retractable LED lights illuminate equipment in your rack.
  • Diagnostic Lights
    LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
  • Voltmeter / Ammeter
    Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.
  • Isolated Banks
    Isolated outlet banks minimize inter-component interference and noise contamination.
  • Wall Wart Spacing
    Three widely spaced outlets accommodate bulky AC power transformers.
  • 15 AMP Rating
    15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
  • Nine Total Outlets
    Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
  • BNC Lamp Connector
    Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications:

  • Maximum Output Current: 15 amps
  • Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug
  • Pull-out Lights: Two multi-LED, dimmable lamps
  • BNC Socket w/Switch: Rear rack lamp, 12VAC 500MA maxx (lamp not included)
  • Operating Voltage: 90 to 139 VAC
  • Spike Protection Mode: Line to neutral, zero ground leakage
  • Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
  • Response Time: 1 nanosecond
  • Maximum Surge Current: 6,500 Amps
  • Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
  • Dimensions: 19" W x 10.5" D x 1.75" H
  • Weight: 12 lbs.
  • Power Consumption: 12 watts
  • Safety Listing: cTUVus
Details
  • Manufacturer:  Furman
  • MPN: PL-PLUS DMC
  • Model Number: PL-PLUS DMC
  • UPC: 654061027980
