Key Features
- 33 to 150Hz Frequency Response
- 1800W Class-D Power Amplifier
- 135dB peak SPL
- Integrated FIR-Drive DSP
- Combo Pole Cup Mount for Other Speakers
- Removable Casters
Description

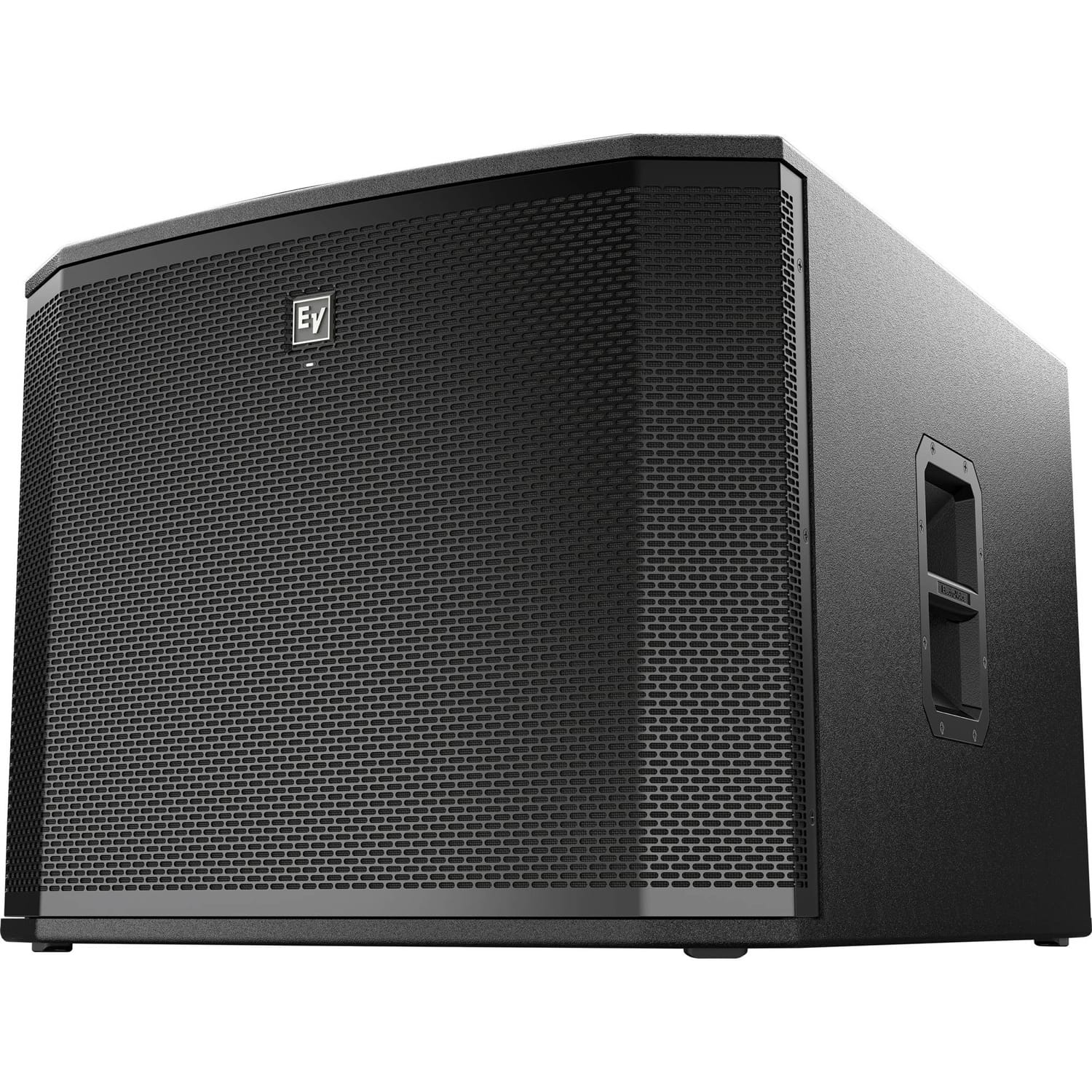

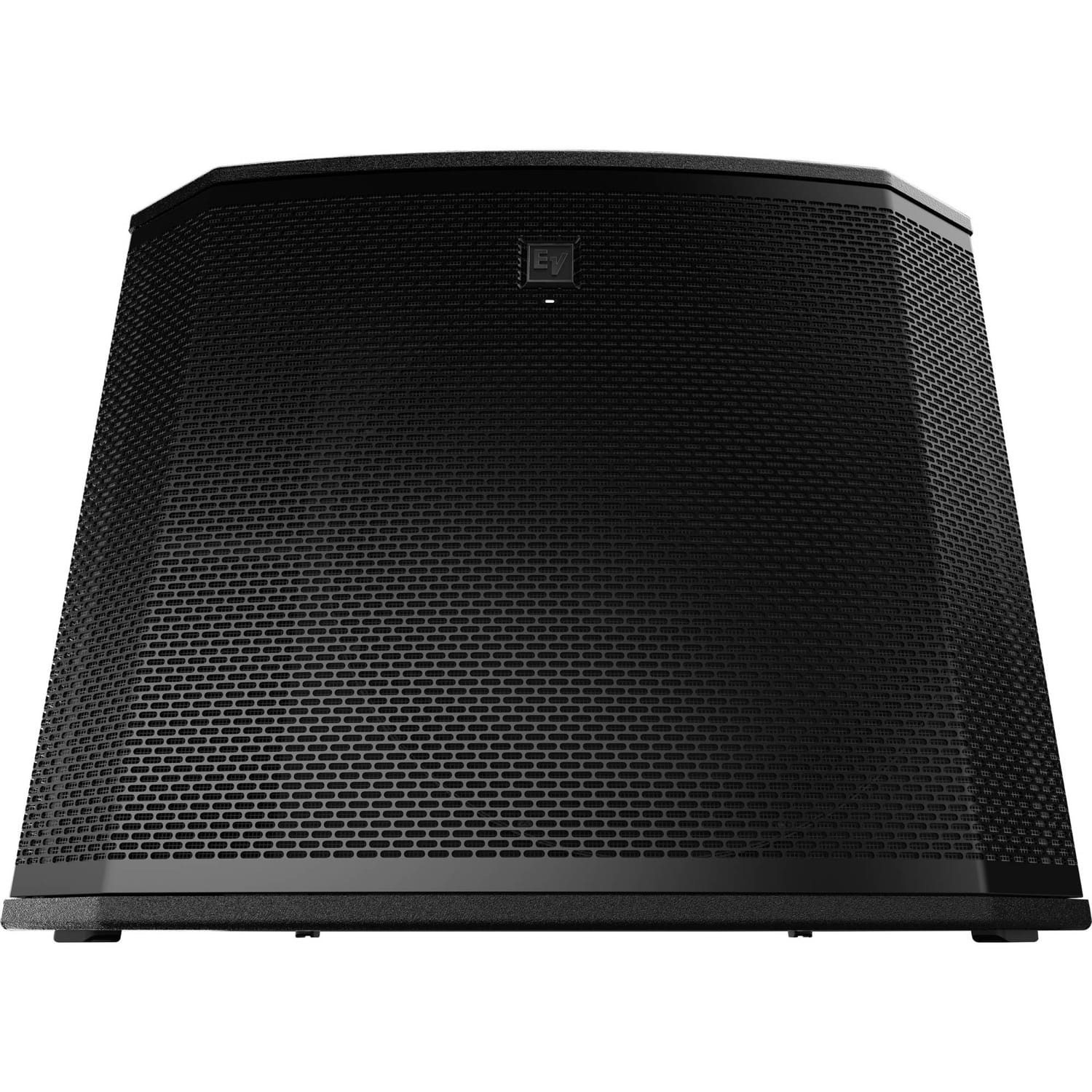

1800W 18" Portable Powered Subwoofer
The ETX-18SP from Electro-Voice is a powered 18" subwoofer for the company's ETX range of PA speakers, a versatile choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound.
The low-profile, tour-grade wood enclosure hosts a high-efficiency transducer and a Class-D amplifier. Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP work together to provide precise coverage at the highest SPLs.
Features:

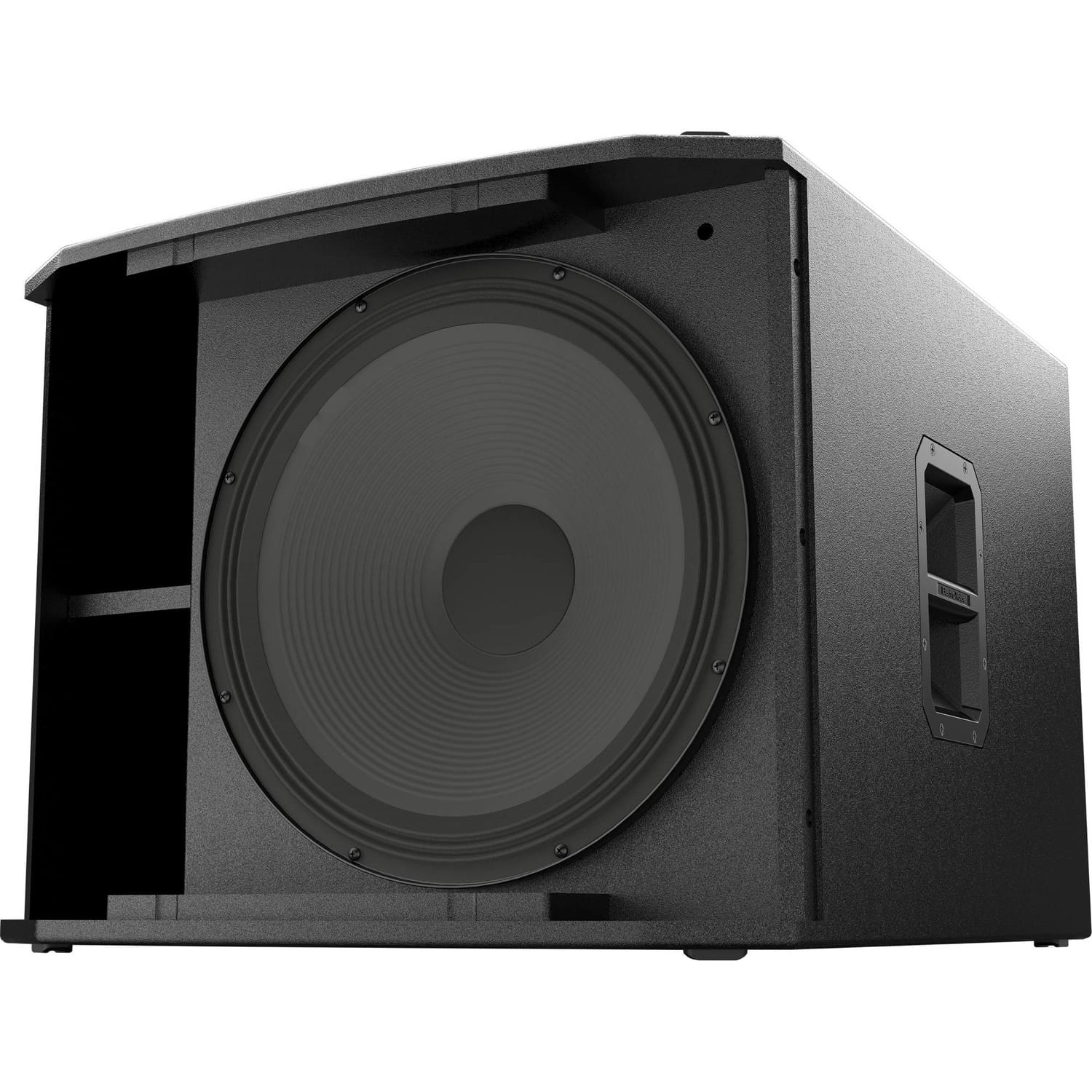

- 18" DVX woofer for extended low-frequency response
- 1800 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
- Special DSP preset for true cardioid performance across the full operating bandwidth
- Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models

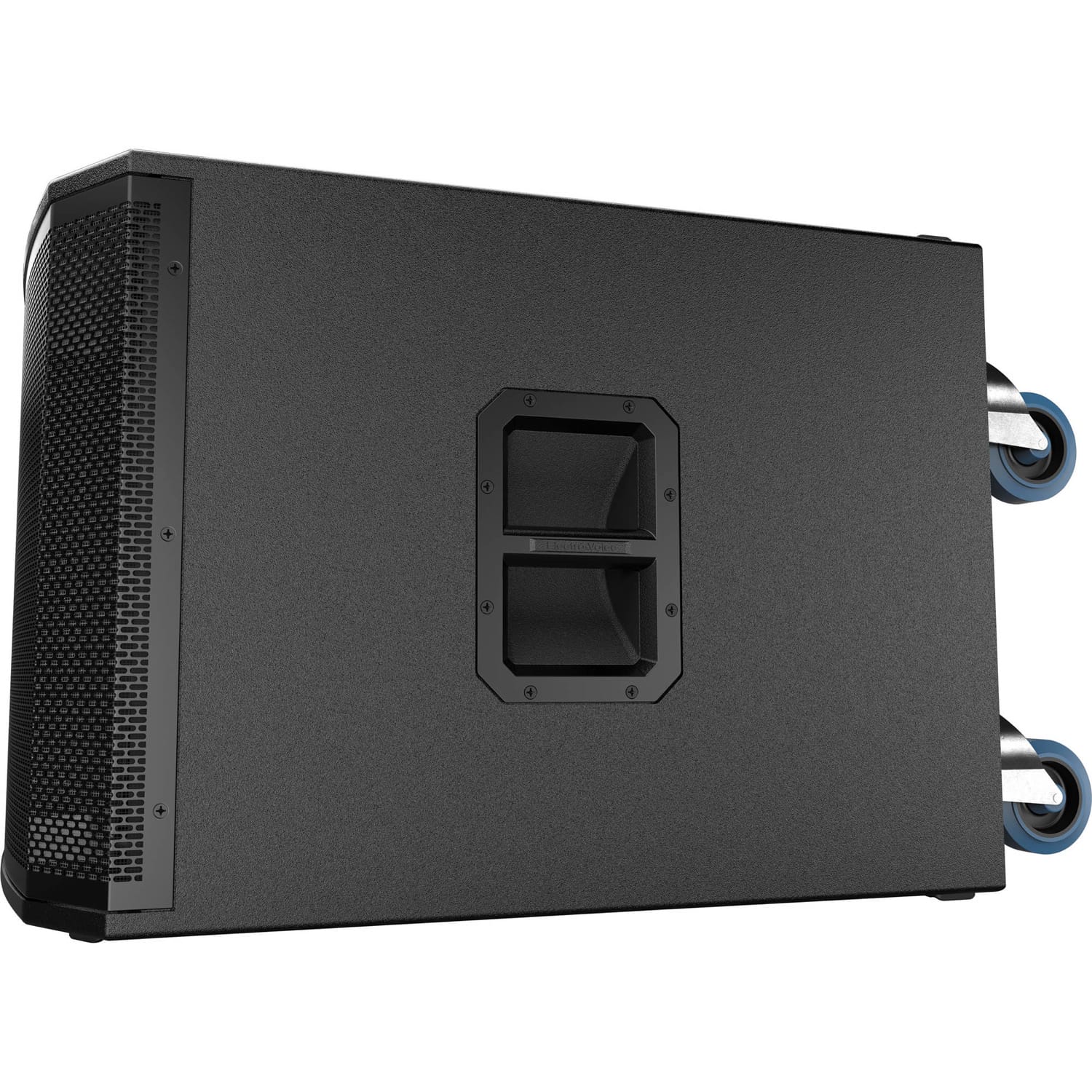

- Removable casters
Specifications:
- Active or Passive: Active
- Transducer: 18" (457 mm) DVX3180A
- Frequency Response: 33 to 150 Hz
- Frequency Range: 28 to 180 Hz
- Power Capacity: 1800 W
- Maximum Sound Pressure Level (SPL): 135 dB peak dB
- Low Pass Filter: 80, 100, 120 and 150 Hz, adjustable

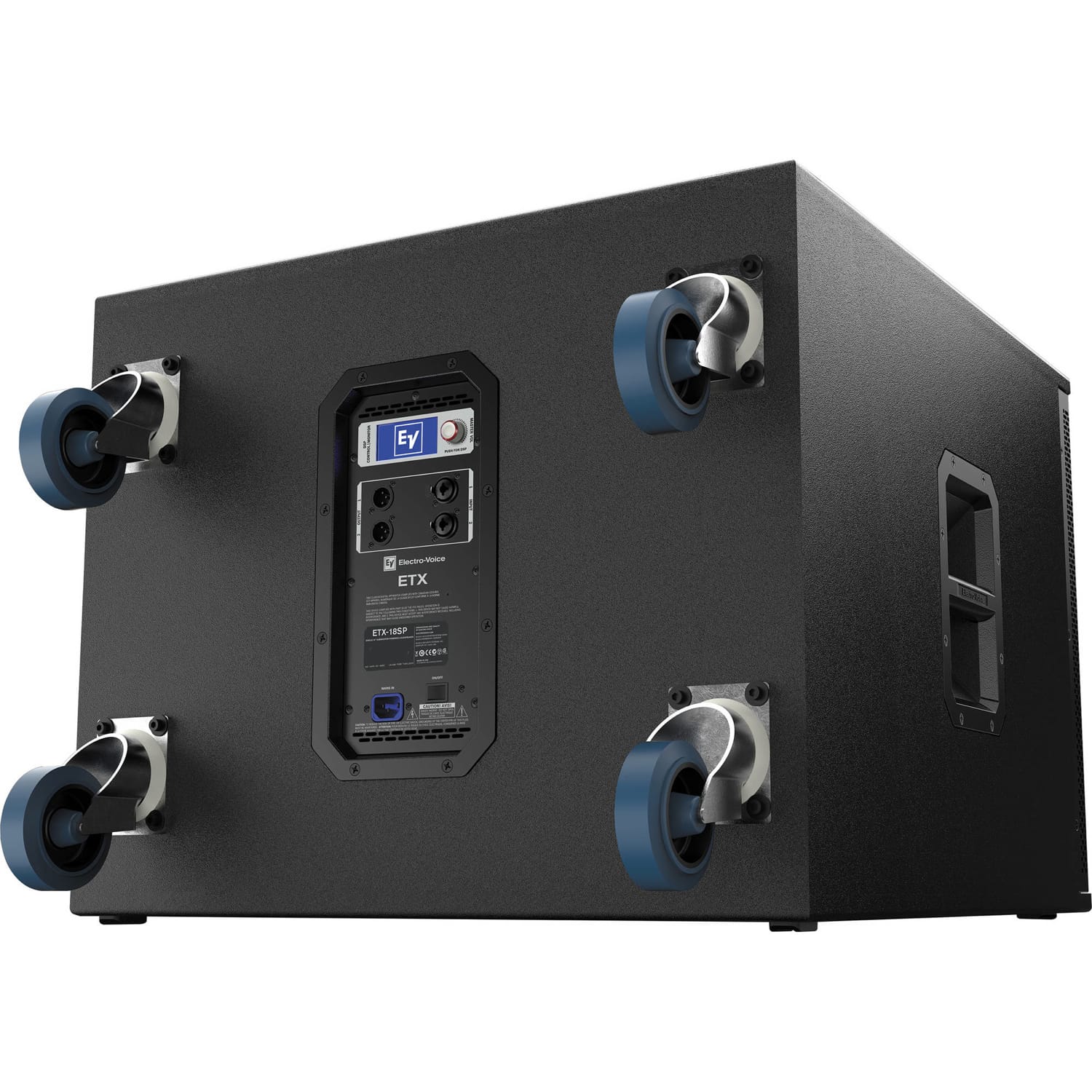

- Connectors:
2 x XLR/TRS combo input
2 x XLR link output - Power Requirements: 100~240V AC, 50/60 Hz, 1.6/0.8 A
- Dimensions (WxDxH): 26.6 x 35.8 x 21.7" (675 x 910 x 550 mm)
- Weight: 114.2 lb (51.8 kg)
Details
- Manufacturer: Electro-Voice
- MPN: F.01U.302.285
- Model Number: ETX-18SP
- UPC: 800549769341
