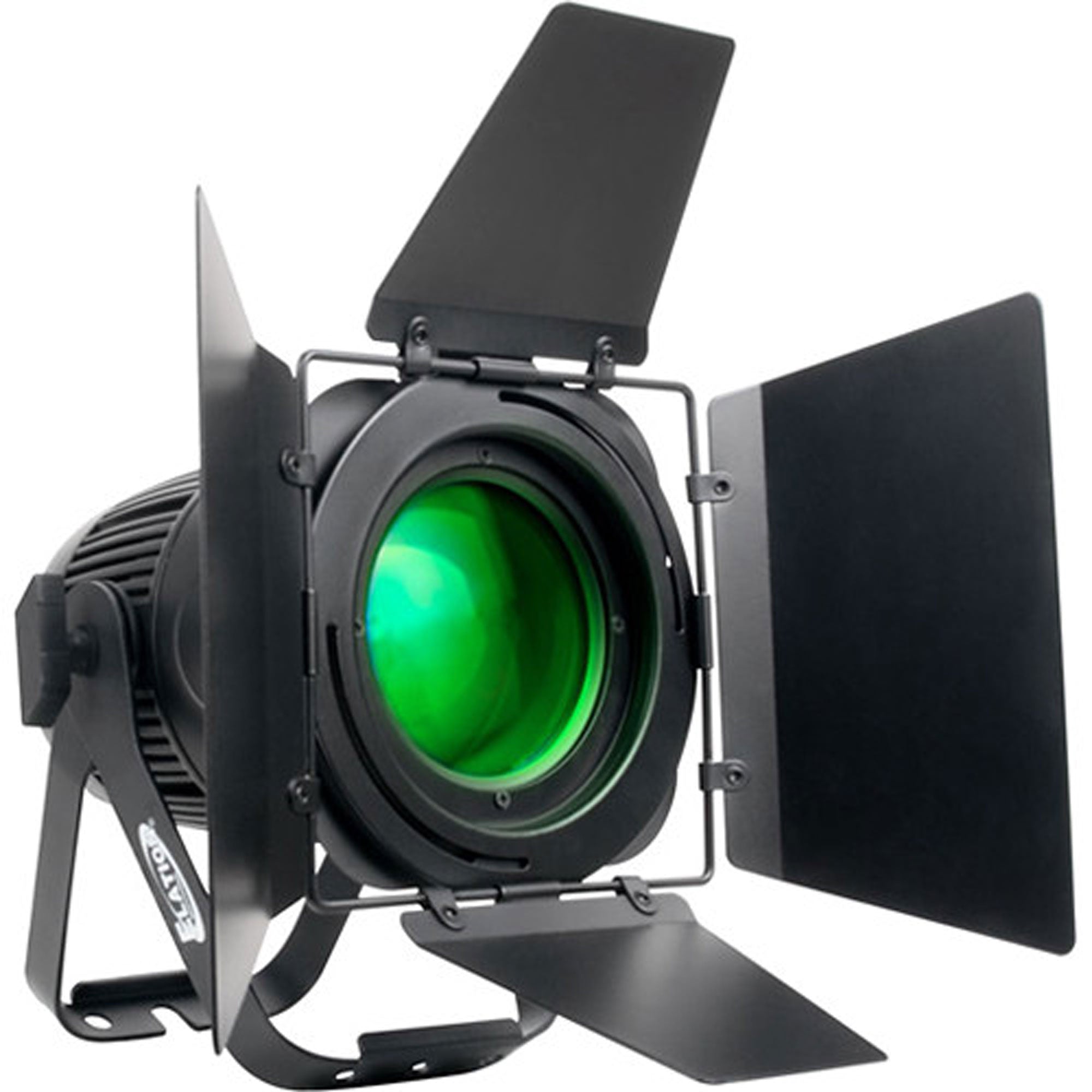

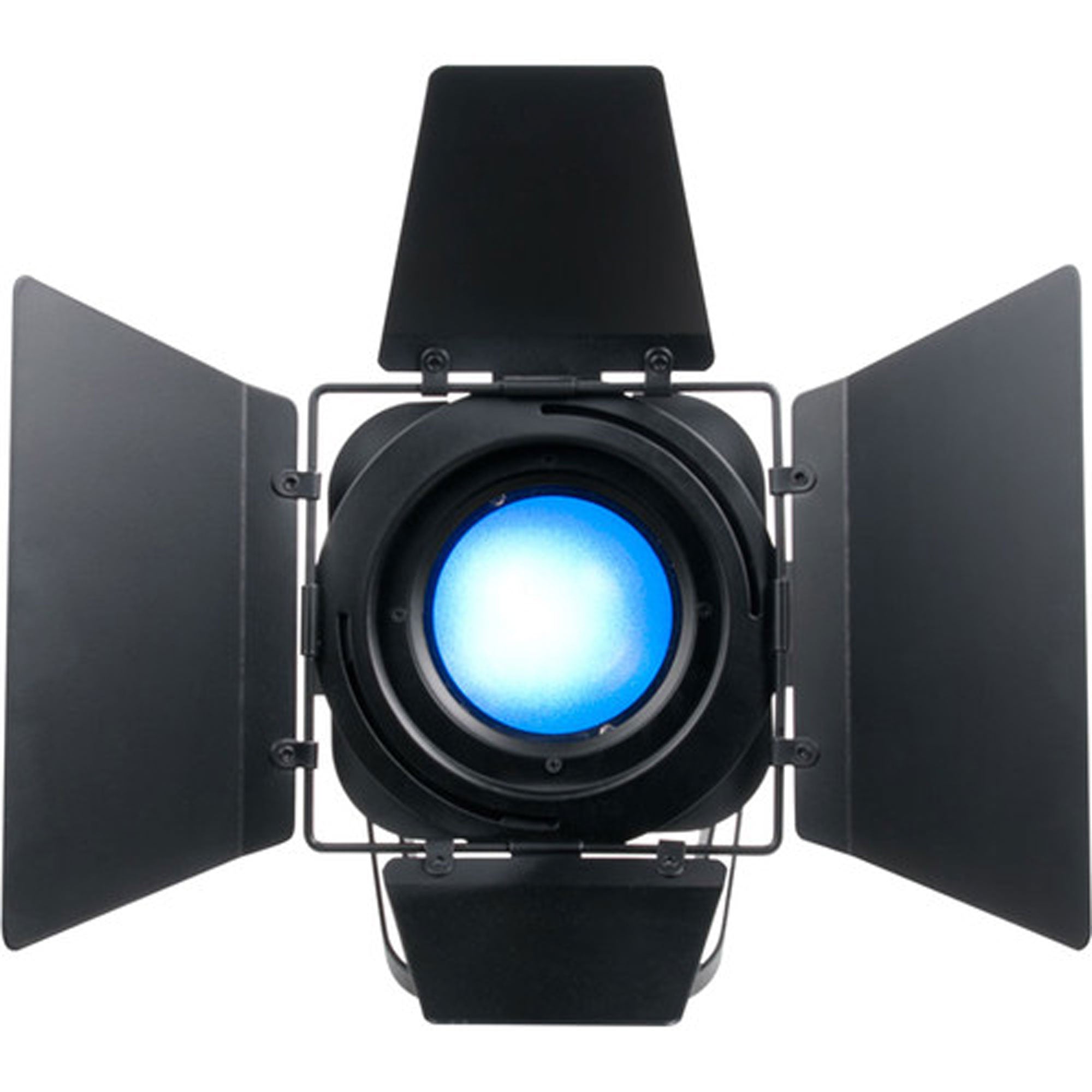

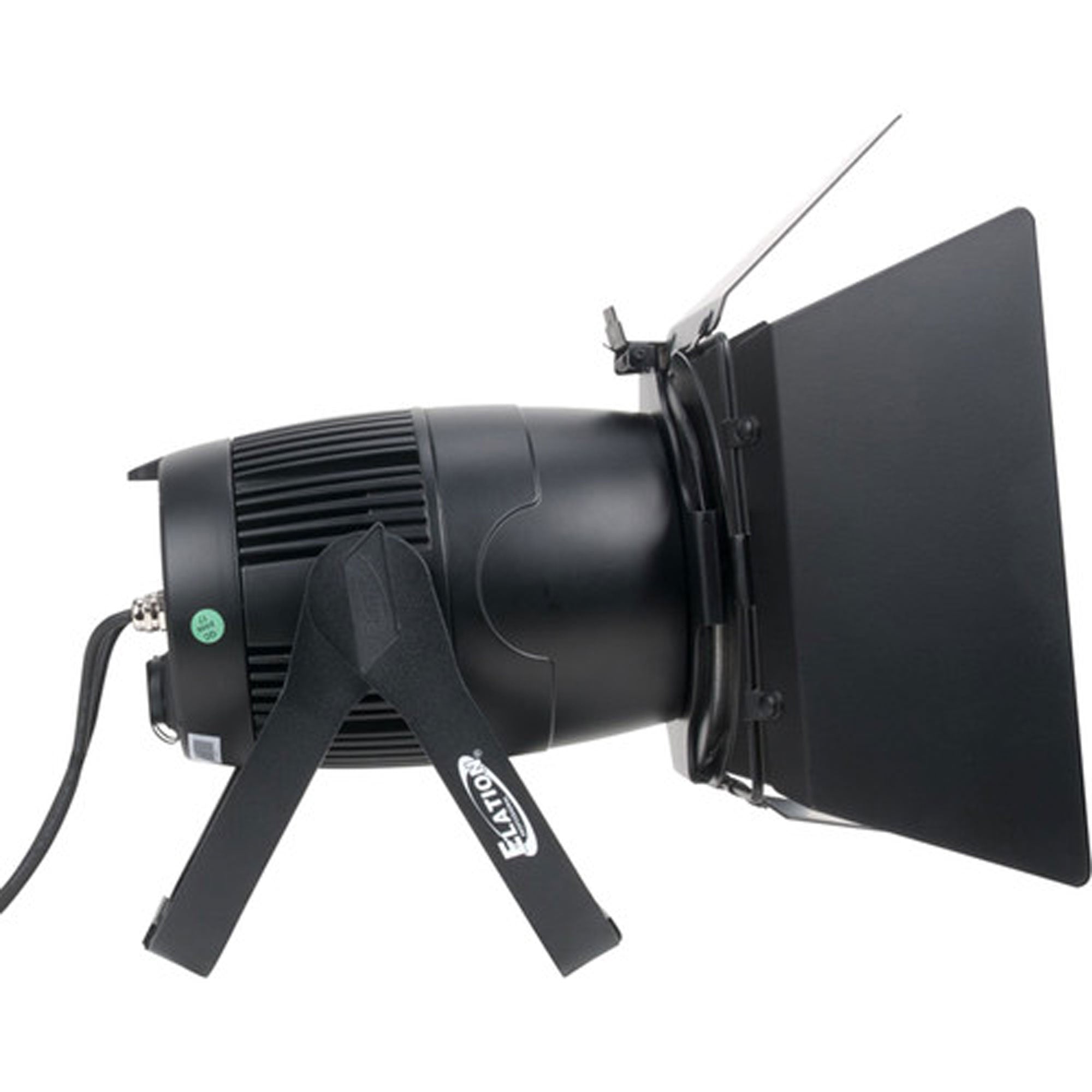

Elation FUZE PAR Z60 IP RGBW COB LED Wash Light Fixture

IP65 Rated 60 Watt Quad Color RGBW COB Par with Motorized Zoom

The IP65 rated FUZE PAR Z60 IP is a single source par luminaire with a 60W Quad Color RGBW COB LED. Features 7° to 39° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and IP65 Locking Power Cable in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Specifications:

• SOURCE
• 60W RGBW COB LED
• 100,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• PHOTOMETRIC DATA
• 3,813 LUX 354 FC @9.8' (3m) (7° Full ON)
• 228 LUX 21 FC @9.8' (3m) (39° Full ON)
• COLOR
• RGBW
• EFFECTS
• RGBW Color Mixing
• 7° - 39° Beam Zoom Range
• Electronic Strobe, Dimming and Variable Dimming Curves
• 64 Color Presets and 14 Unique Color Macros
• CONTROL / CONNECTIONS
• 12 DMX Channel Modes (13 Total Channels)

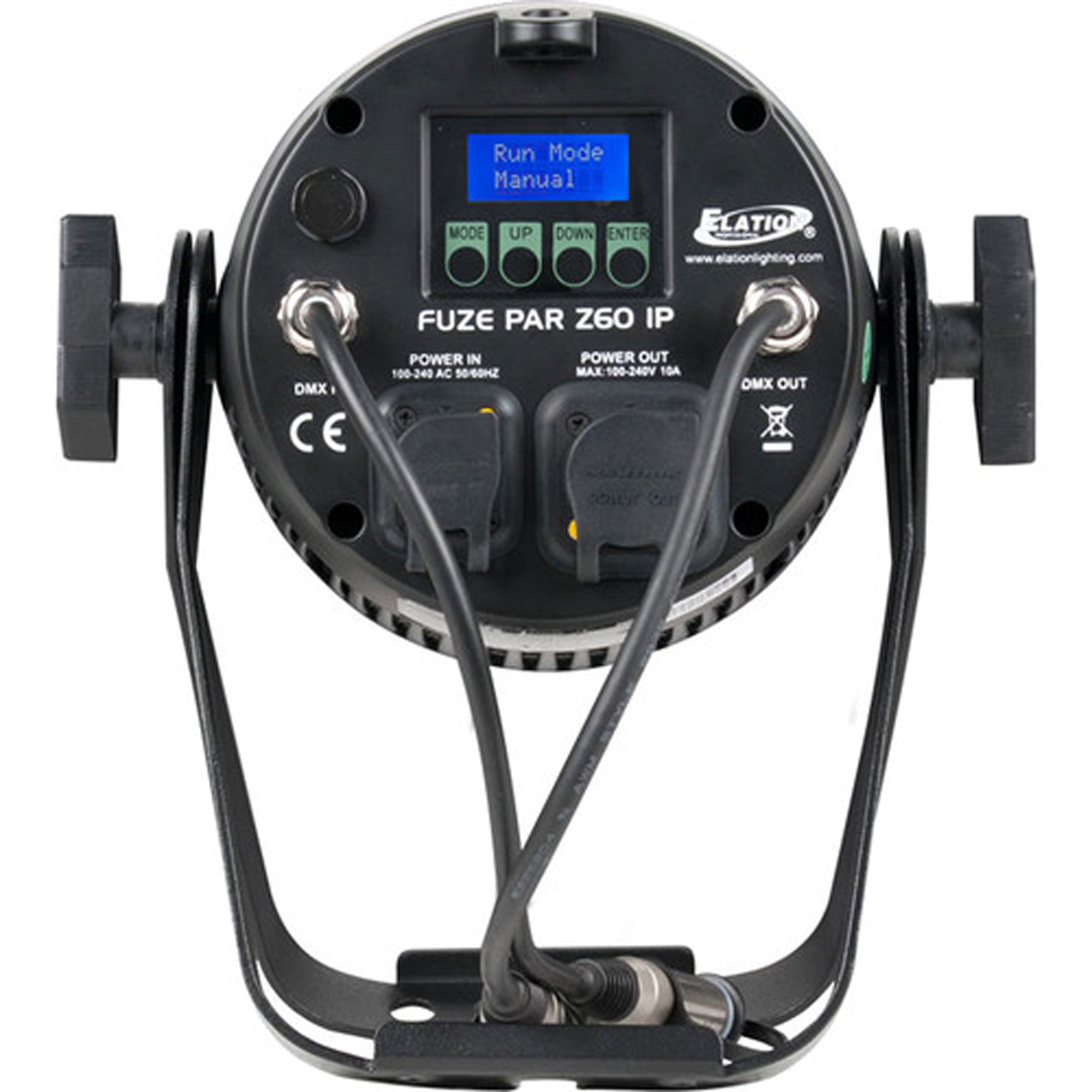

• 4 Button Touch Control Panel and LCD Menu Display
• RDM (Remote Device Management)
• IP Rated 5pin DMX and IP65 Locking Power Cable In/Out
• With Wired Digital Communication Network
• SIZE / WEIGHT
• Length: 10.0" (253mm)
• Width: 9.9" (252mm)
• Vertical Height: 11.1" (282mm)
• Weight: 10 lbs. (4.5 kg)
• ELECTRICAL / THERMAL
• AC 110-240V - 50/60Hz
• 78W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
• APPROVALS / RATINGS
• CE | cETLus | IP65
• FIRMWARE UPDATES
• Current Version: V1.07
• Specifications and documentation subject to change without notice.
