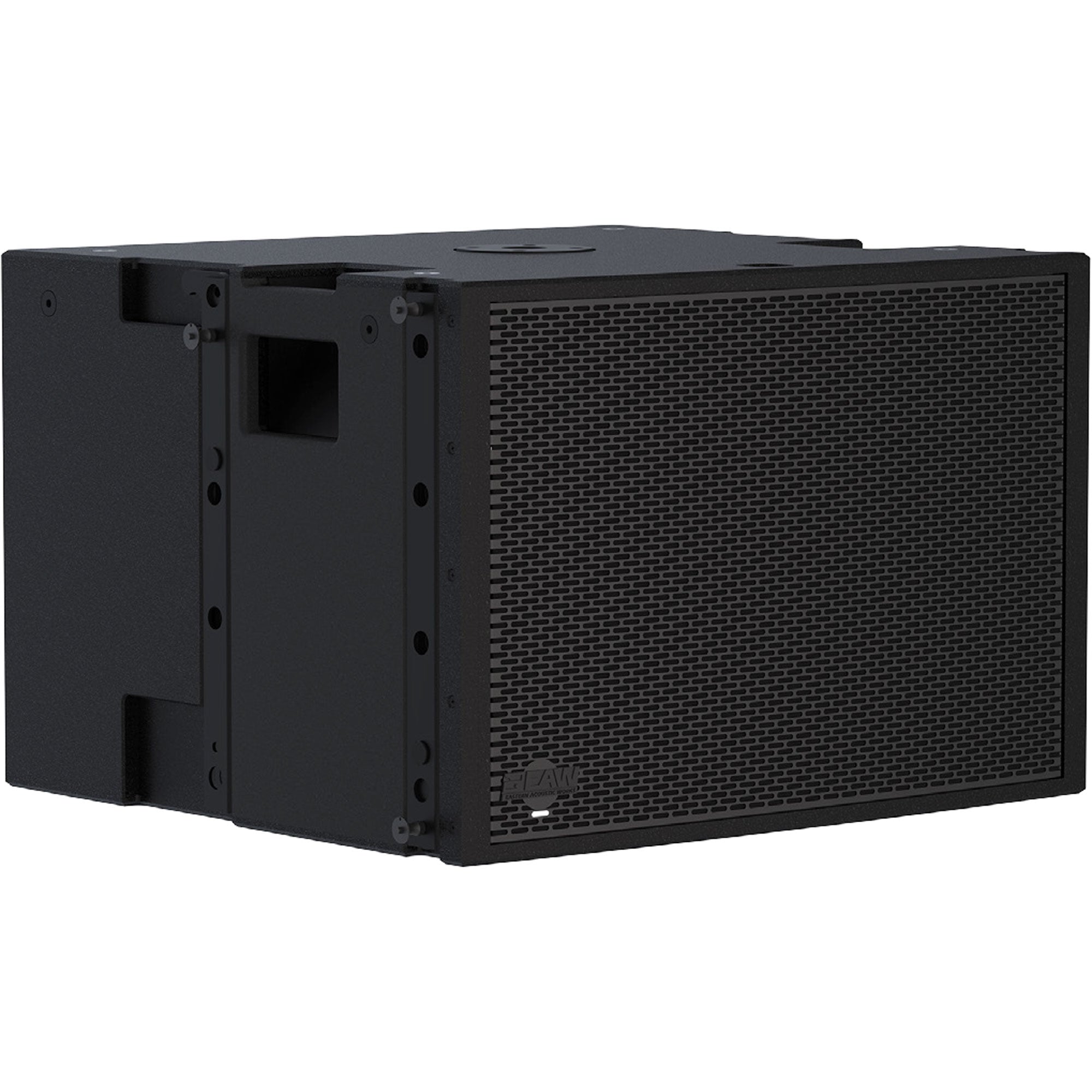

EAW Radius RSX12 12" Self-Powered Subwoofer

12 Inch Self-Powered Subwoofer

The RSX12 12" subwoofer is flyable and ultra-compact, ideal for installs or other applications with minimal floor space for subwoofers. The RSX12 features onboard electronics (1000W per channel) and ultra-wide ports that drastically reduce low-frequency turbulence.

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. EAWmosaic app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Features

• Compact, flyable design ideal for installs with floor space constraints or specific aesthetic demands.

• Extremely approachable EAWmosaic iOS app delivers system prediction, control and monitoring from any location in the venue.

• Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.

• Integrated Dante networking (with loop-thru) on all models including Analog redundancy capability.


Applications

• House of Worship

• Theatres, Auditoria and Performing Arts Centers

• Live Music Clubs

• Corporate AV Houses

• Live Production/Regional Rental Houses

• Dry Hire


Specifications

• Frequency Response: 40 Hz -300 Hz

• Max SPL: 130 dB (Half Space)

• Operating Mode:

• Amplifier Channels: Single-amp LF

• Signal Processing: DSP w/ Dyn0

• Subsystem: Transducer: 1 x 12 in cone, 3 in voice coil.

• Nominal Beamwidth:

• Horizontal 360°

• Vertical 360°

• Power Handling: 1000W

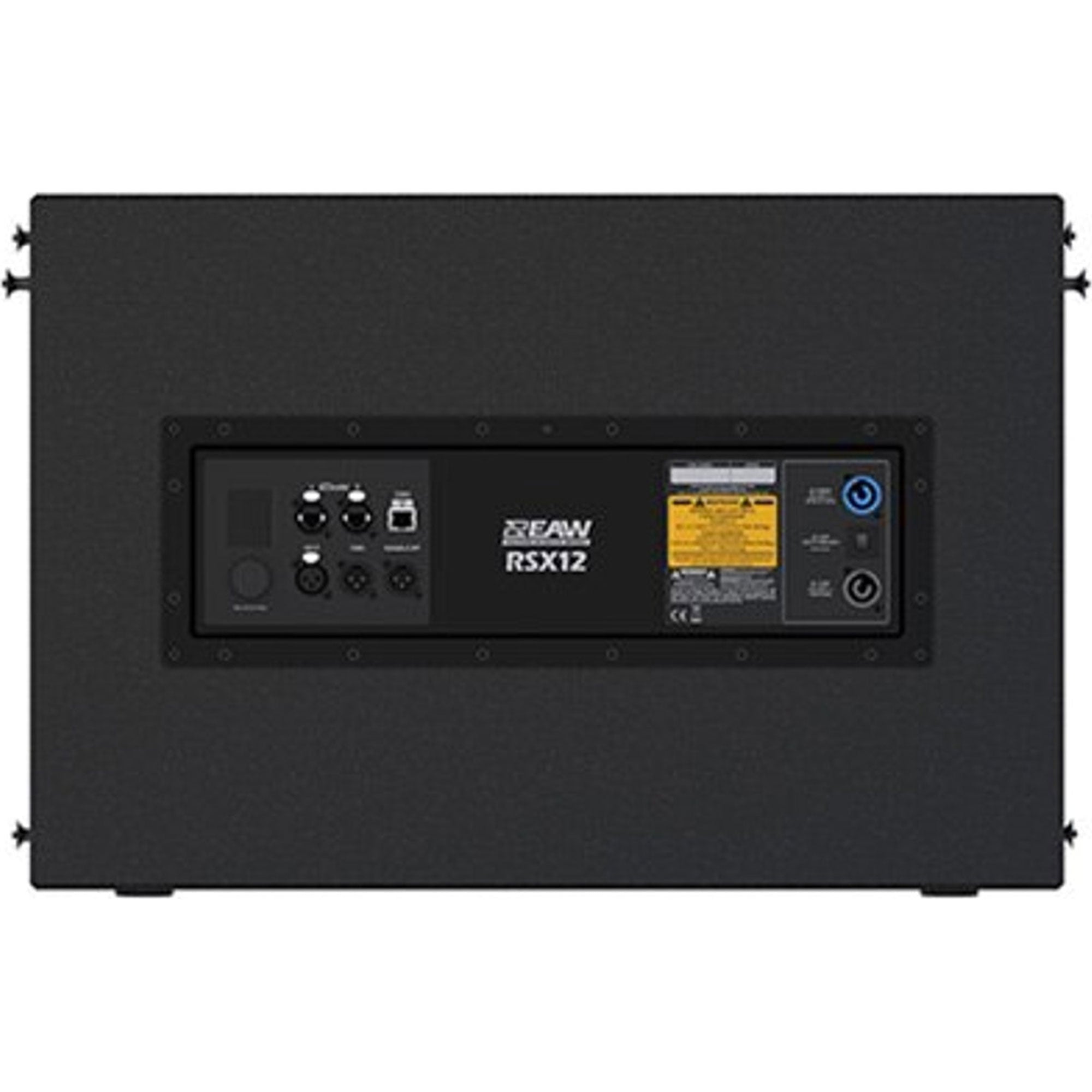

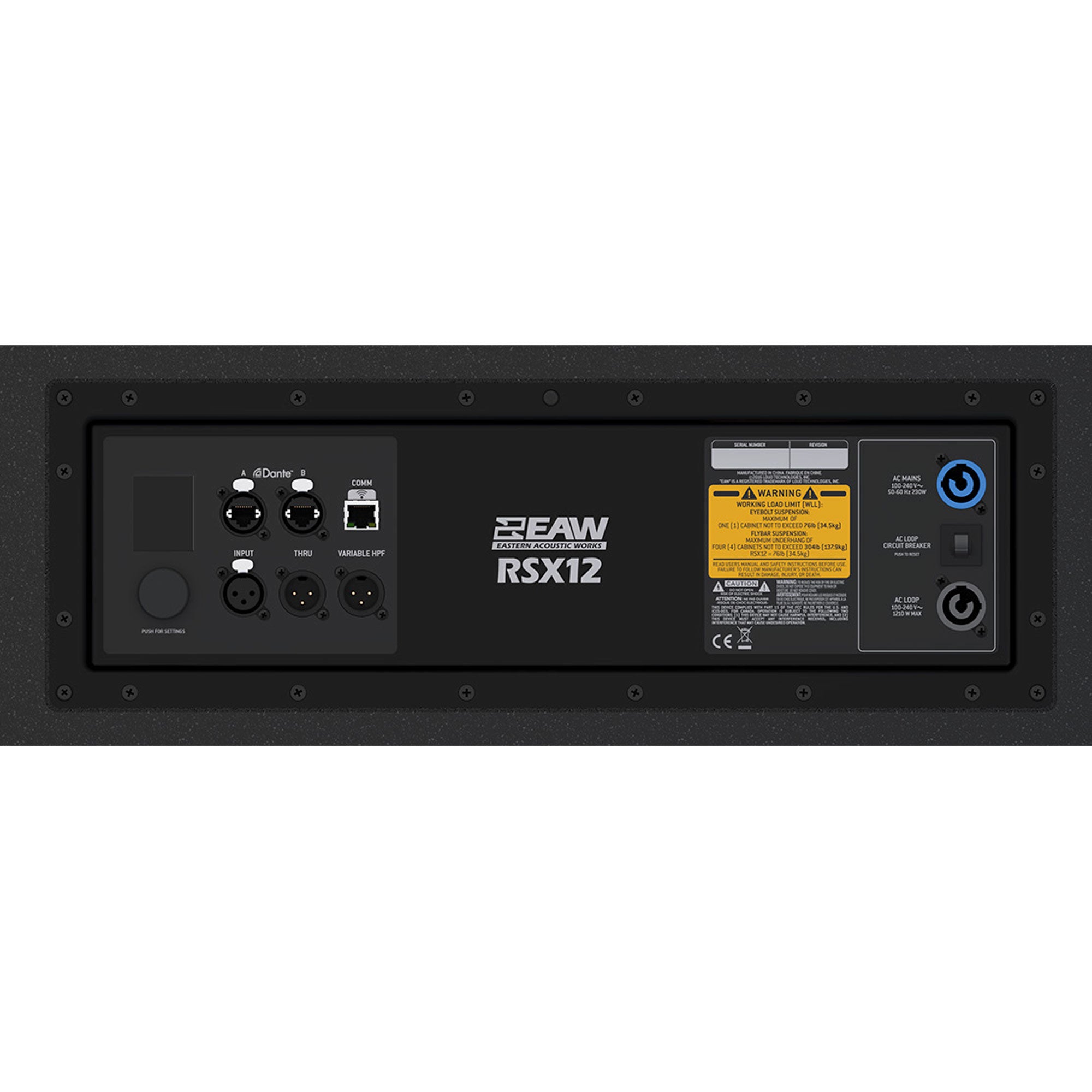

• Connections:

• Powercon AC Mains/Loop

• 2x Neutrik etherCON

• RJ-45

• XLR Input/Loop

• Dimensions:

• Height: 17.2 in (436.8 mm)

• Width: 25.2 in (640 mm)

• Depth: 23.43 in (595 mm)

• Weight: 89 lb (40 kg)
