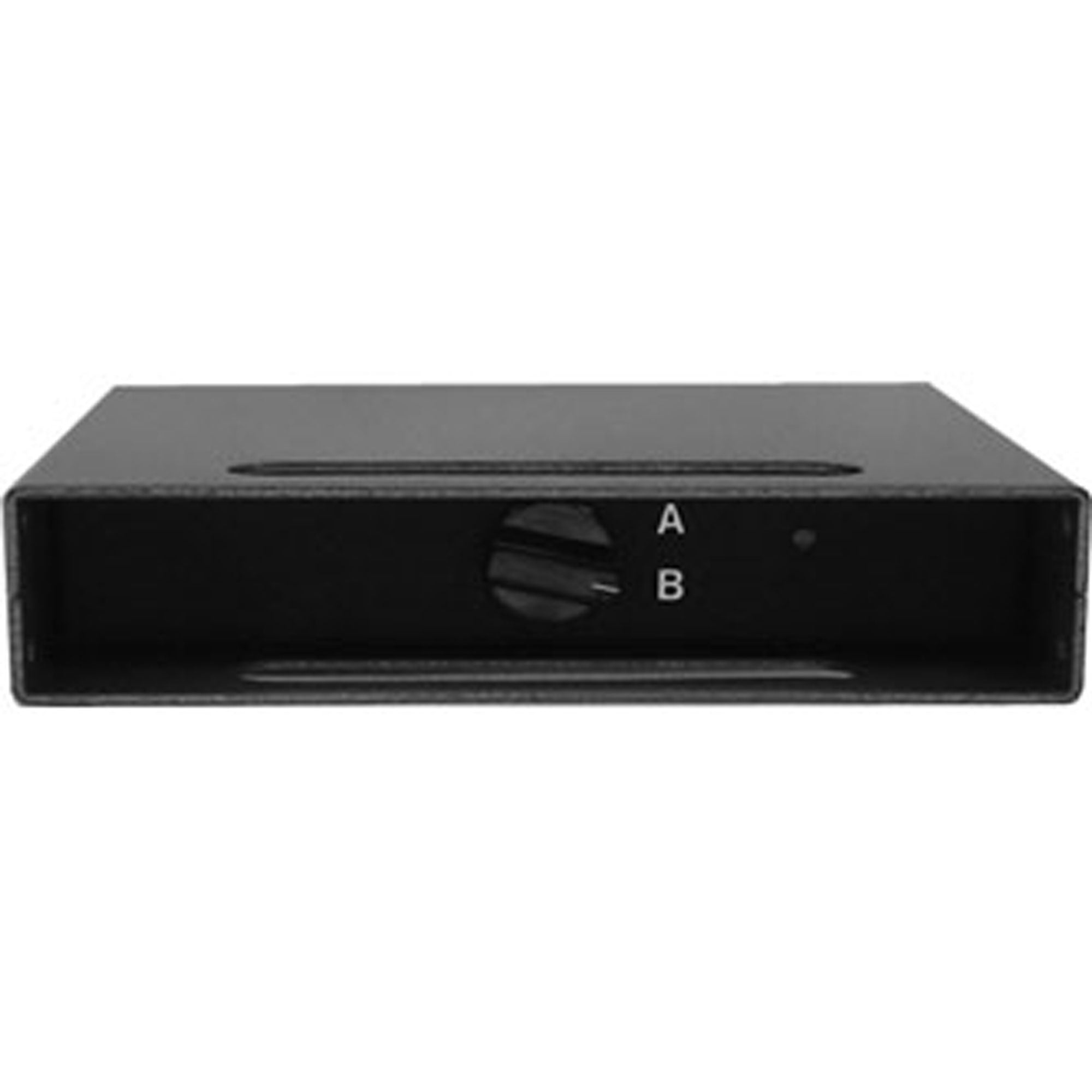

Doug Fleenor SW2-TB Two Universe DMX512 Switch (Terminal Blocks)

Two Universe A/B DMX512 Console Switch, Terminal Blocks

This series of selector switches was specifically designed to switch DMX512 signals. Originally designed to switch between primary and backup consoles, these switches are often used to select from two (or more) input locations. The SW1 switches a single DMX512 universe (one A input, one B input, one output). The SW4 switches four DMX512 universes (four A inputs, four B inputs, four outputs).

Custom units for switching any number of universes are available. Custom units for switching between more than two input sources are available (A/B/C switches, for example). Custom remote switch units using relays or solid state control in place of the manual switch are also available. Please call for pricing and availability.

Specifications:

• Common Specifications
• Input connectors: Gold plated 5 pin male (Neutrik D-1 series). 3 pin or terminal block optional.
• Output connectors: Gold plated 5 pin female (Neutrik D-1 series). 3 pin or terminal block optional.
• Switched contacts: Pins 2 and 3 (Data- and Data+). Other contacts switched optional.
• Power input: None required on manual switch boxes. User specified on "remote switch" units.
• Warranty: Five years on defects in manufacturing.
• SW1: Single Universe A/B Switch Box
• Switch: Two position rocker switch.
• Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
• Size and weight:
  6.5" deep, 1.7" high, 6.5" wide, 1.4 pounds
  (19" rack adapter available).
• SW2: Two Universe A/B Switch Box
• Switch: Two position rotary switch.
• Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
• Size and weight:
  6.5" deep, 1.7" high, 8.25" wide, 1.4 pounds
  (19" rack adapter available).
• SW3: Three Universe A/B Switch Box
• Switch: Two position rotary switch.
• Color: Brushed aluminum.
• Size and weight:
  8.0" deep, 1.73"" high, 16.7" wide, 3.0 pounds
  (19" rack adapter available).
• SW4: Four Universe A/B Switch Box
• Switch: Two position rotary switch.
• Color: Brushed aluminum.
• Size and weight:
  8.0" deep, 1.73" high, 16.7" wide, 3.0 pounds
  (19" rack adapter available).
