Doug Fleenor DMX Tester (5-Pin XLR)

DMX512 Line Tester, 5-Pin XLR

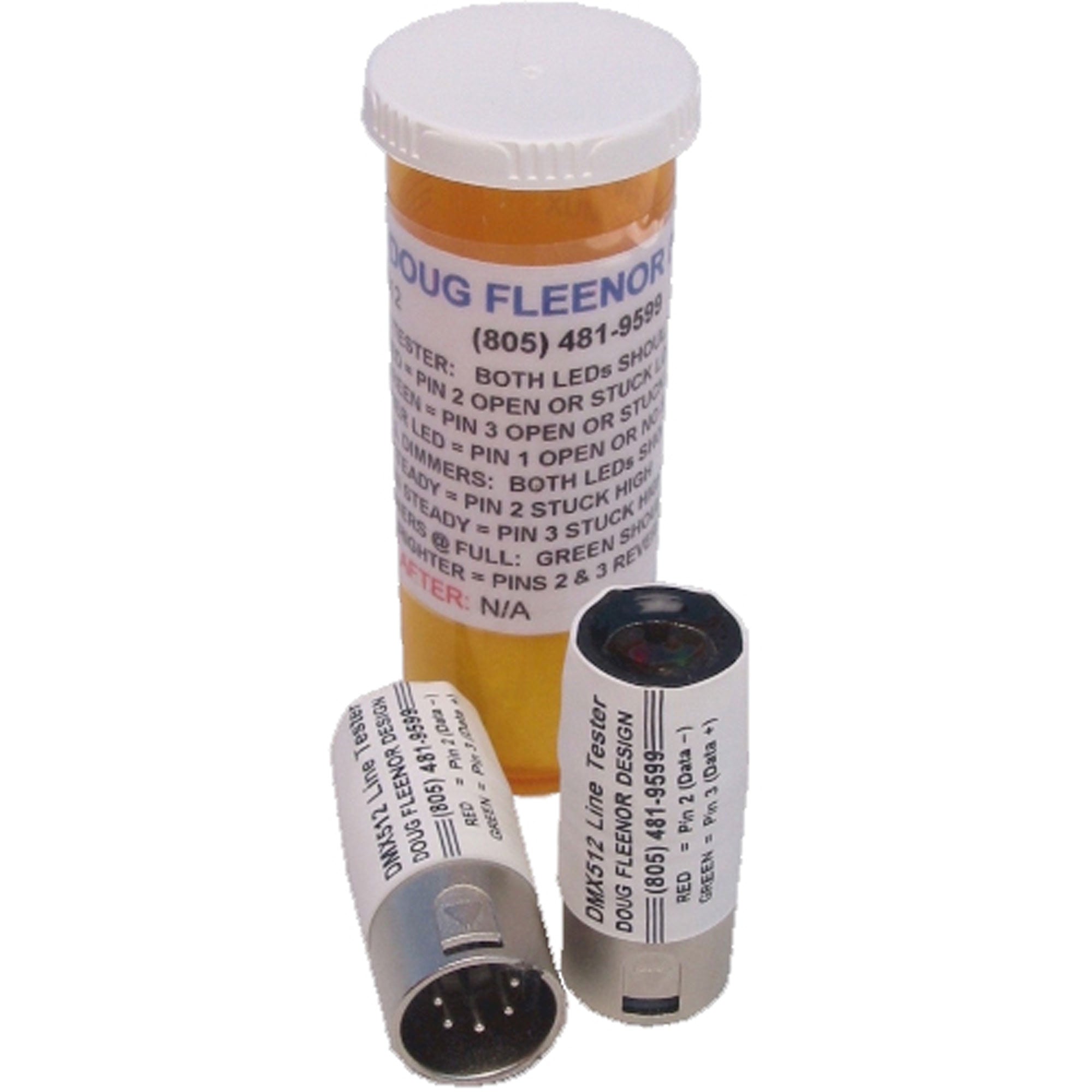

The DMX512 Line Tester instantly displays the presence of +/- data on DMX lines and feed-through connectors. It serves as a perfect pocket sized tool for troubleshooting DMX512 cabling.

Specifications:

• Connector: 5 pin male or 3 pin male
• Indicators:
  Data + Green T1 light emitting diode (LED)
  Data - Red T1 light emitting diode (LED)
• Effective input impedance: 220 Ohms (each line)
• Power input: None, draws power from DMX line
• Color: Silver connector body with white label
• Size and weight: 1.9" long, 0.8" maximum diameter, 1.5 ounces
