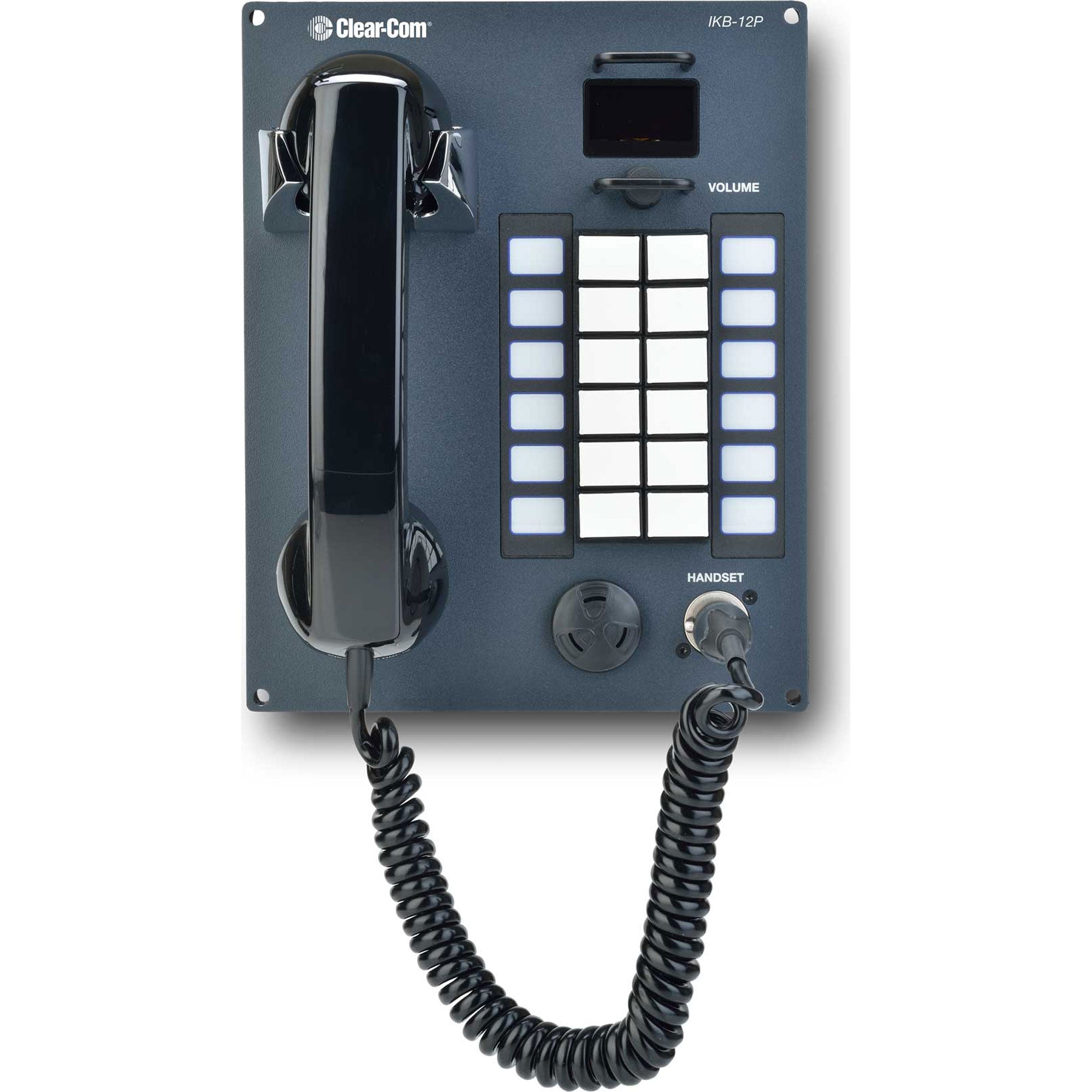

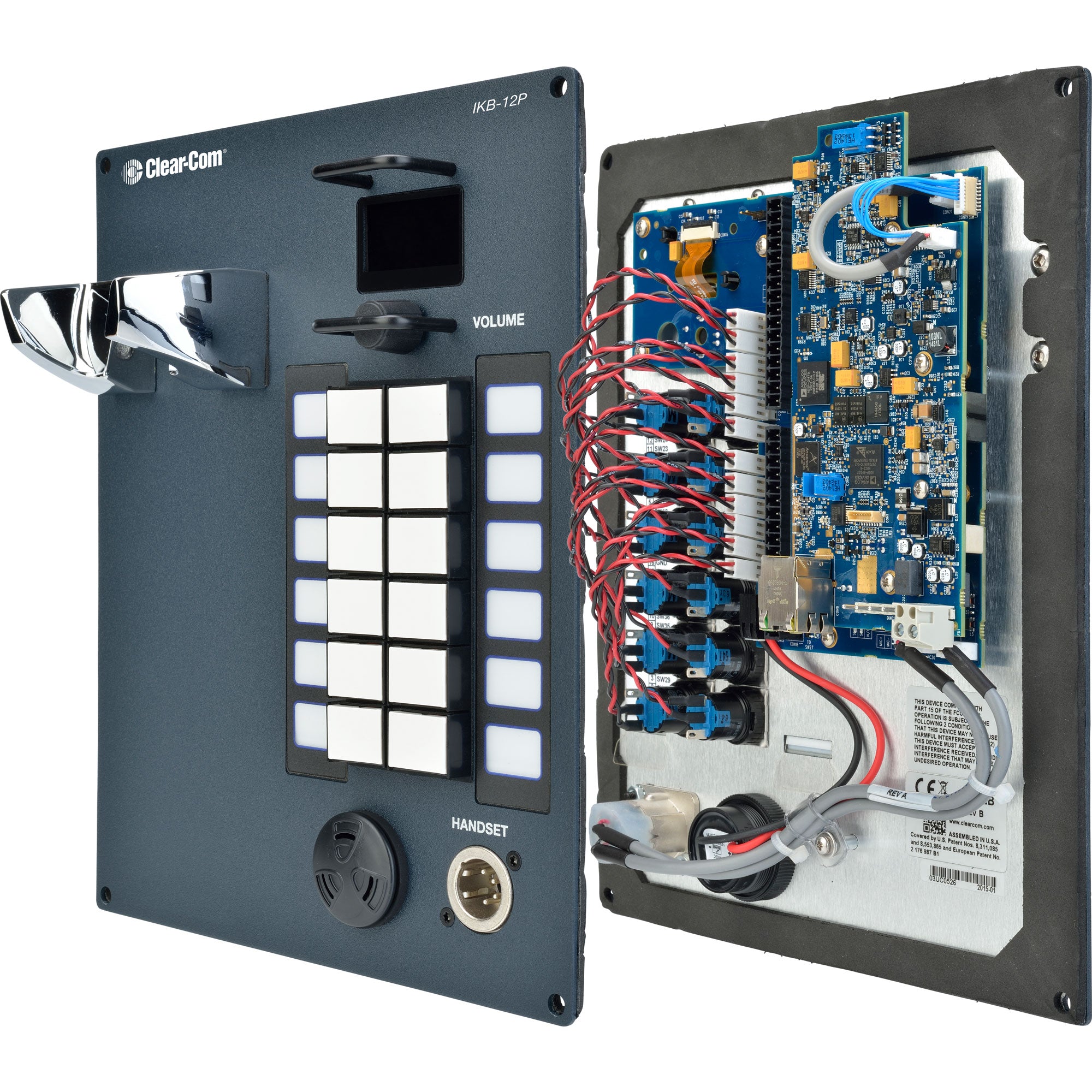

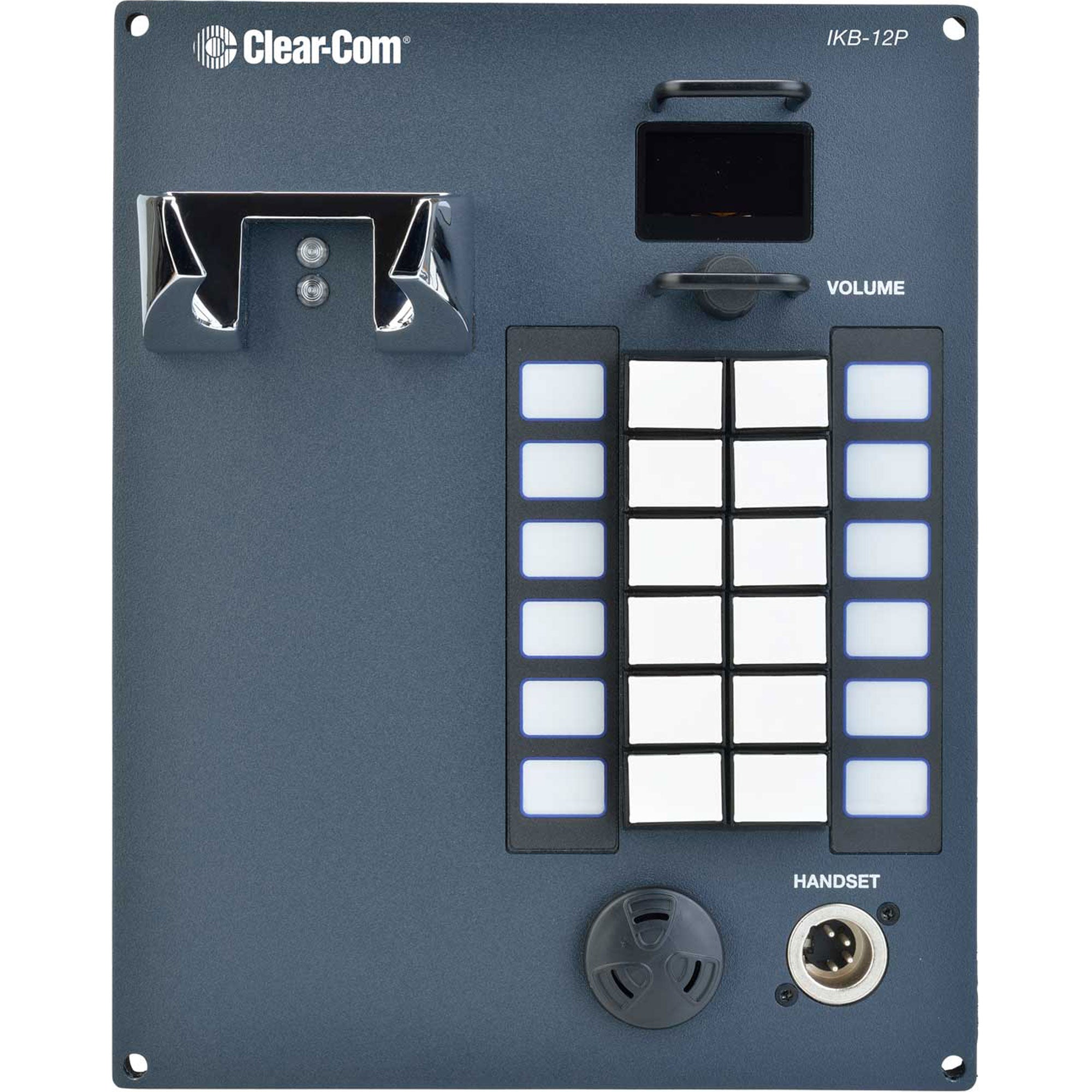

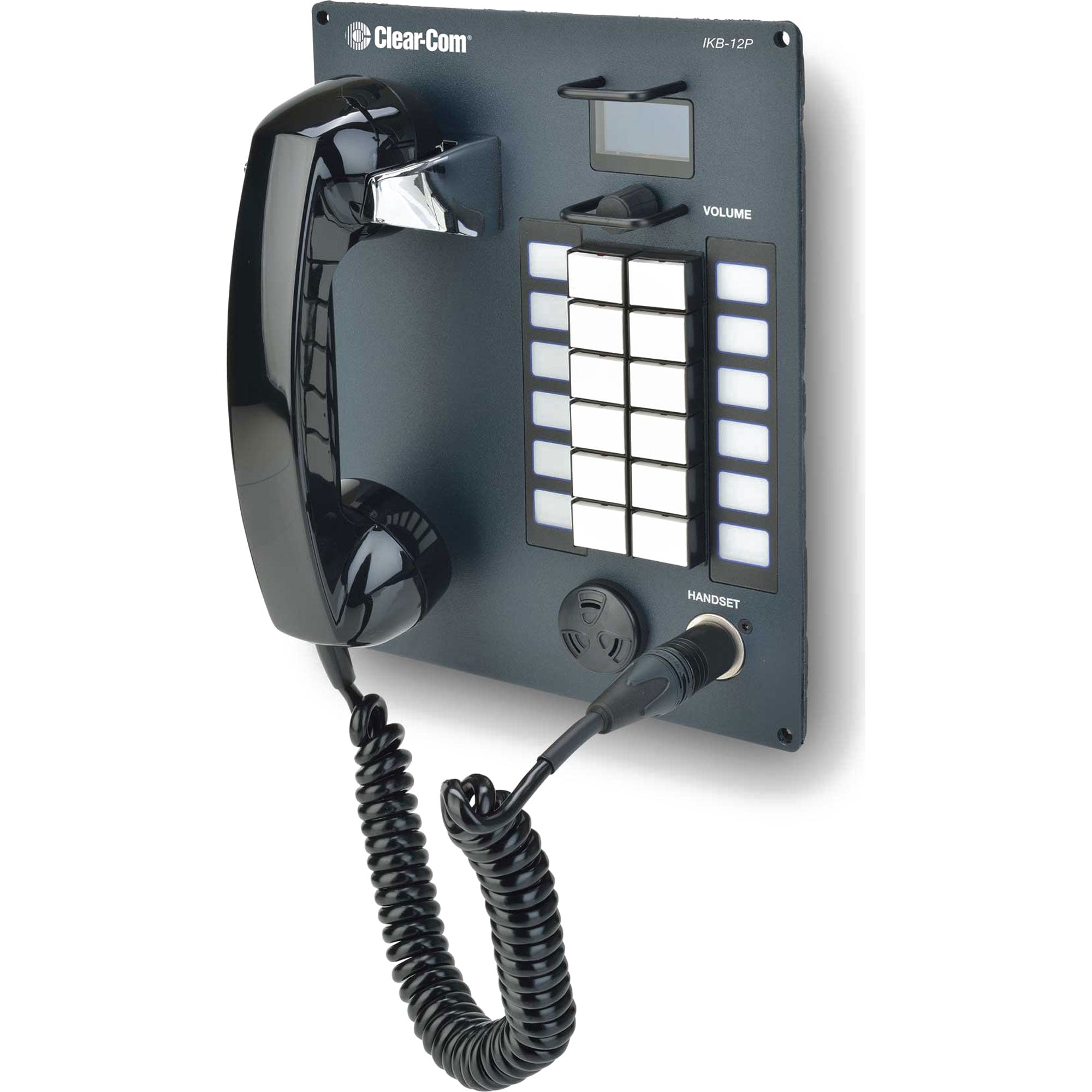

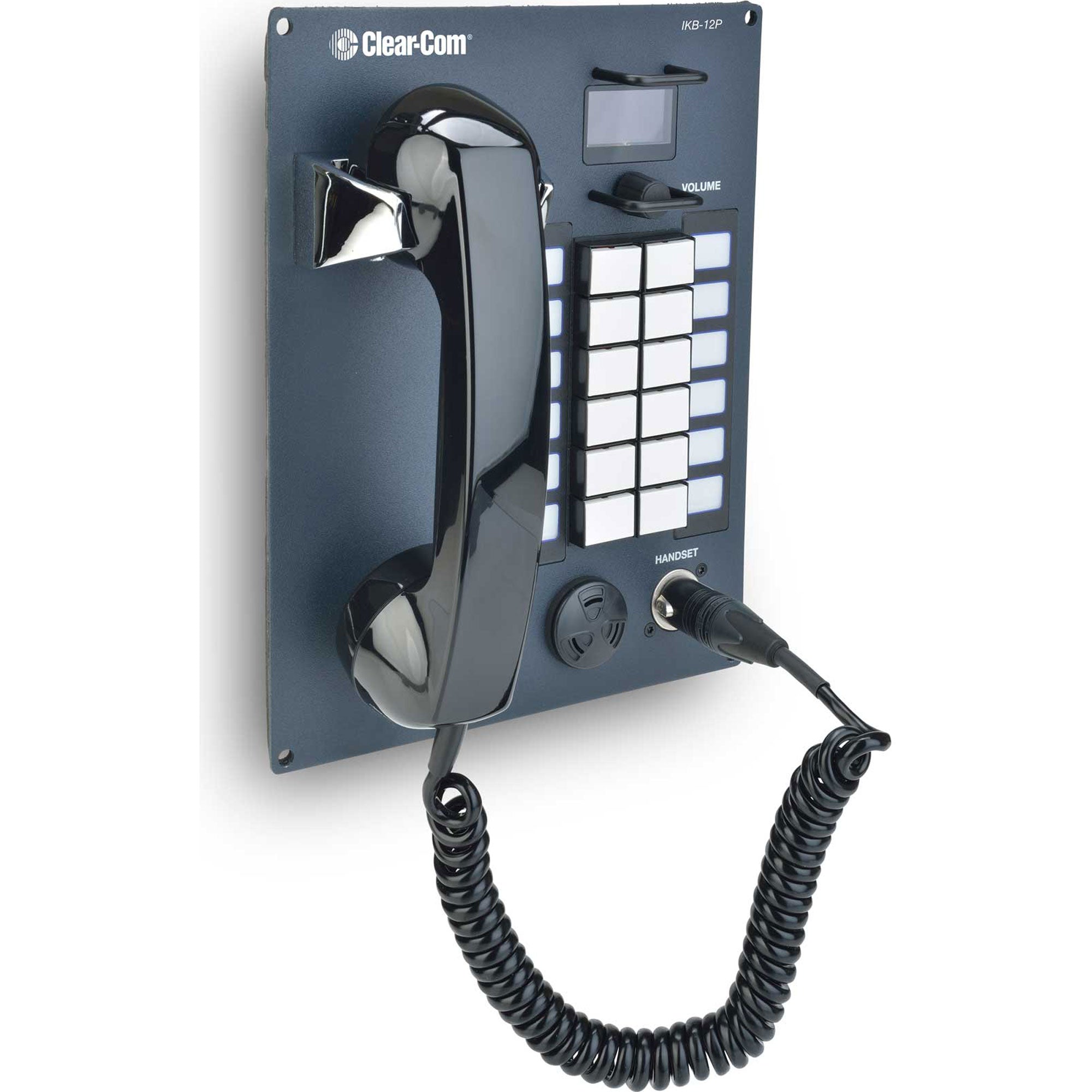

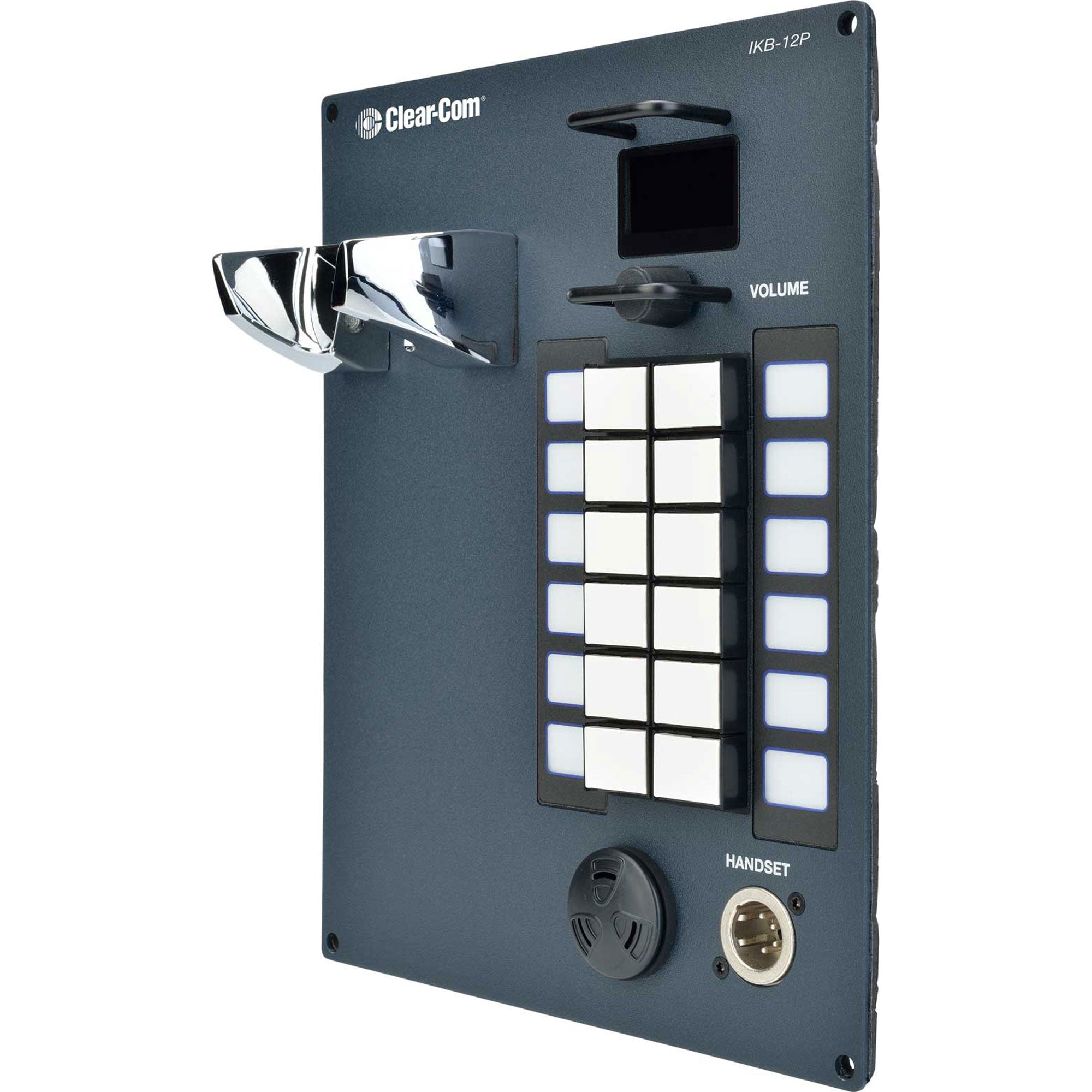

Clear-Com IKB-12P Industrial KB Station

Industrial 12 Button KB Intercom Station

The IKB-12P is a single-channel digital partyline intercom station with 12 assignable call buttons, a loud alert buzzer and a rotary knob for controlling volume and menu navigation. Used in conjunction with an HMS-4X main station installed with v2.1 software, the IKB-12P can connect up to 64 IKB-12P stations and display the profile assigned to each station.

Features:

• Clear, intelligible digital audio
• Up to 64 Intercom Stations per system
• Configure up to 40 call buttons per station with custom expansion panel
• Plug-and-go installation with hardware discovery
• Audible and visual call signaling
• Browser-based configuration editor

Specifications:

• Connectors
• Handset: 4-pin male XLR
• Ethernet/PoE: RJ-45
• Microphone Pre-Amplifier
• Handset Mic Impedance: 200 Ohms, Dynamic
• Mic Limiter Range: >35dB
• Mic Gain: 60dB, Dynamic
• Frequency Response: 400Hz - 8kHz, + 3dB (contoured for intelligibility)
• Distortion: <0.5% THD @ 1kHz
• Noise: < -55dBu, Dynamic
• Earphone Amplifier
• Load Impedance: >32 Ohms Output
• Level: +1 dBu before clipping
• Sidetone: -6dB (selectable)
• Specified for a route from a 4-wire input @0dBu in:
• Max Gain: 12dB Noise: <-65dBu (@ max gain)
• Headphone Limiter: -0dBu, Selectable
• Power
• Power Requirements: 5W DC
• Voltage Range: 30 - 60V
• Ethernet
• Fast Ethernet Standard: 100 BaseT only, Auto MDIX
• Environmental
• Humidity: 0 - 95%, relative
• Temperature: -14°F to +131°F (-10°C to +55°C)
• Dimensions
• 8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm)
• Weight
• 27.9 oz (0.79 KG)
