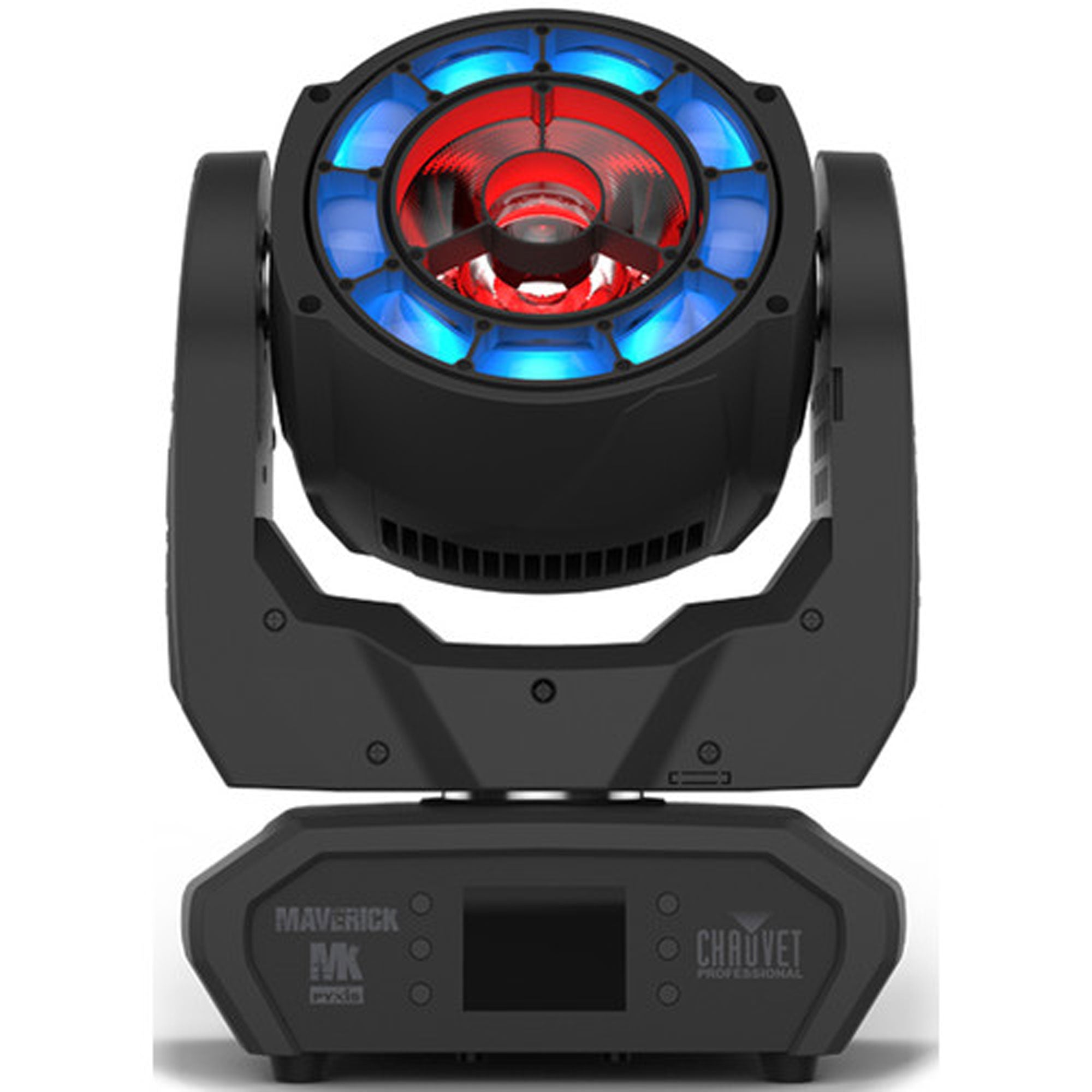

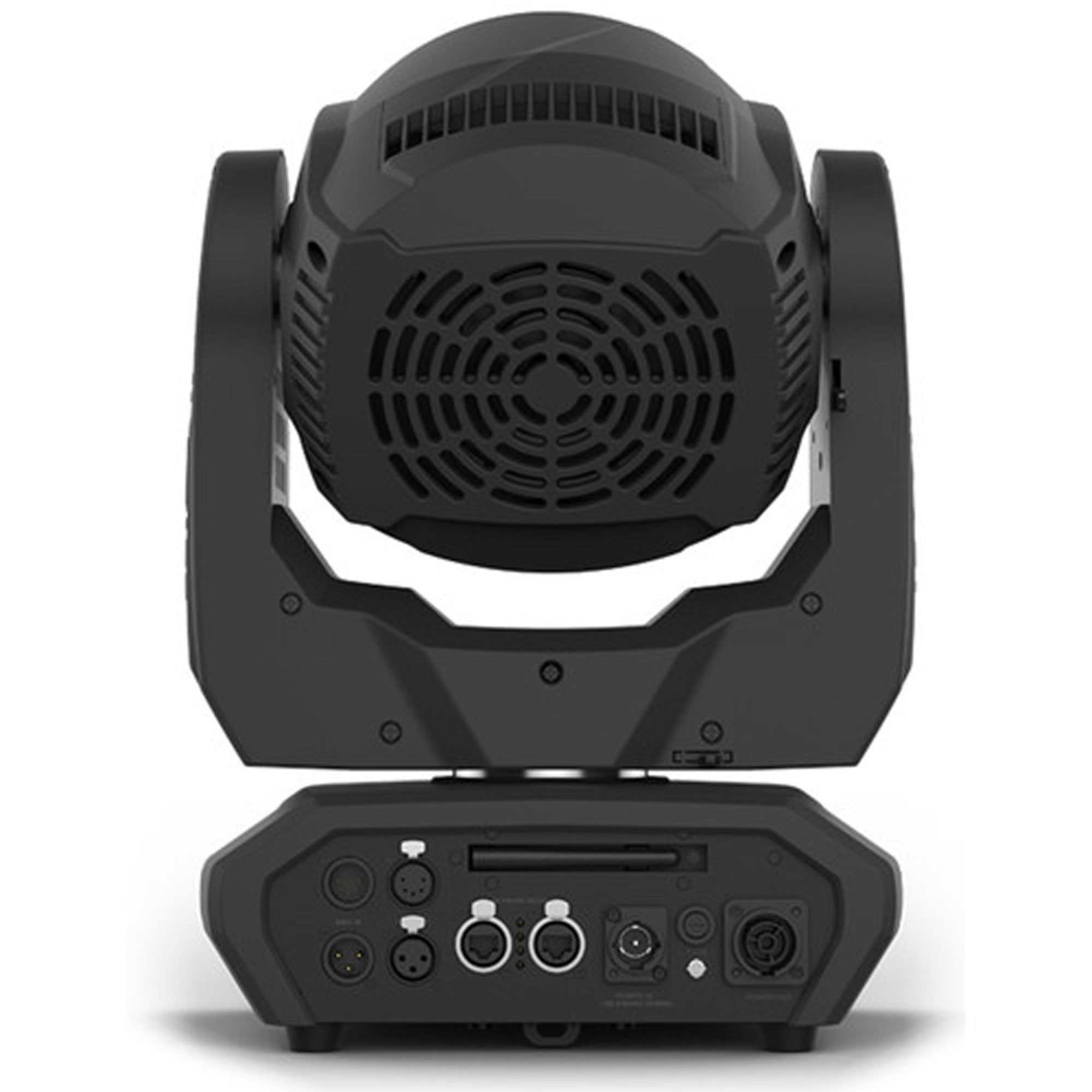

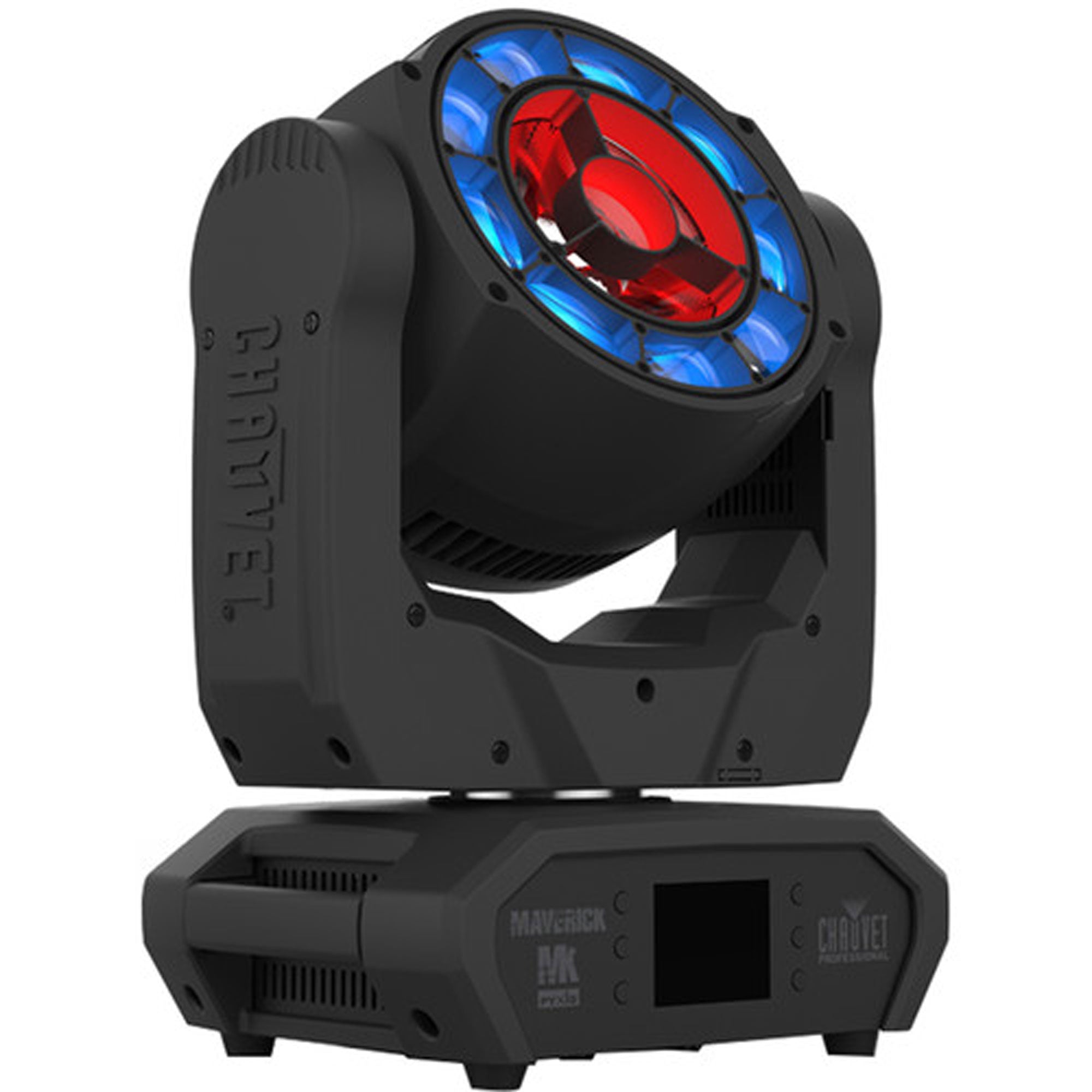

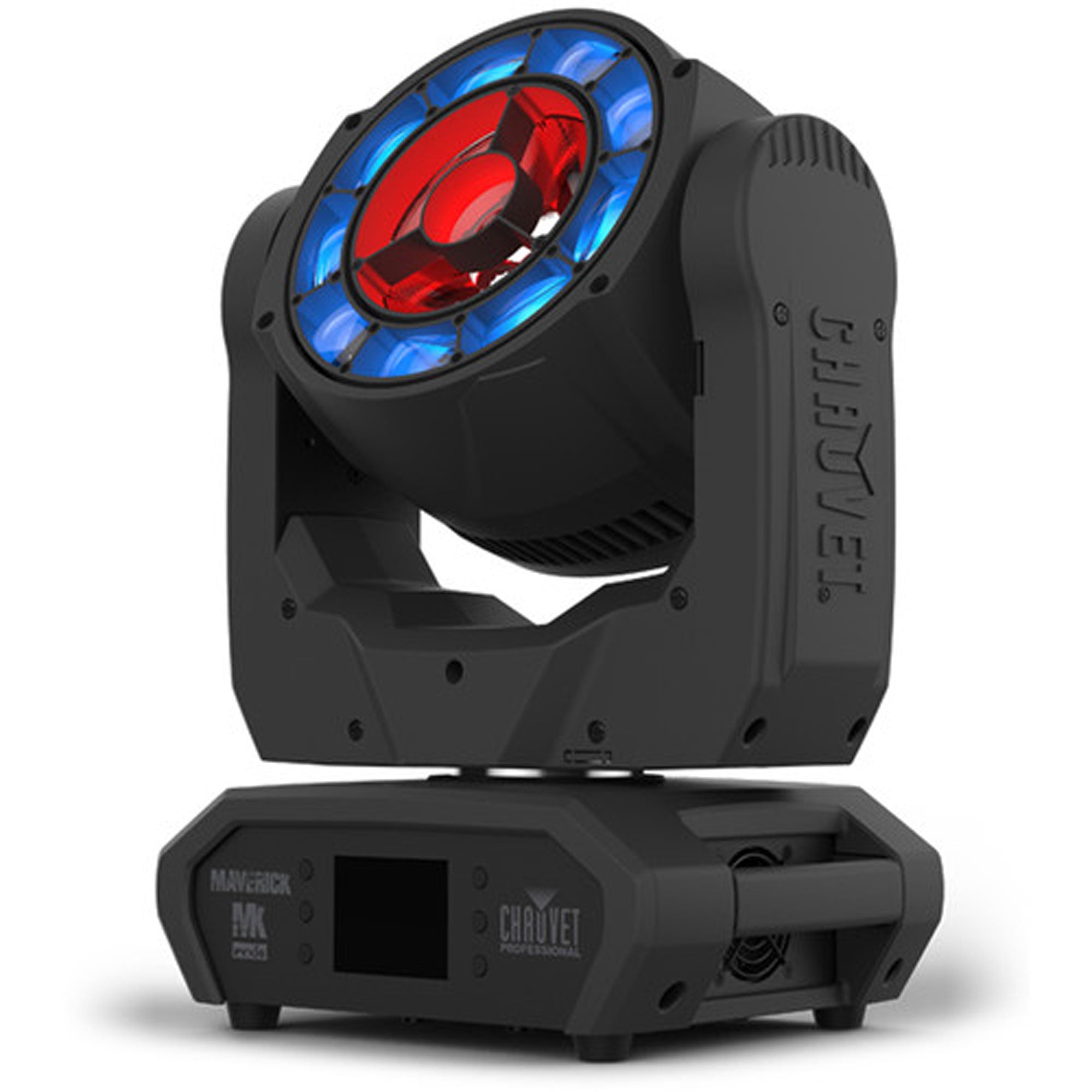

Chauvet Professional Maverick MK Pyxis RGBW LED Moving Head Wash and Beam Fixture

Rotating LED Wash Light with (1) 60W RGBW Center LED, (9) 15W RGBW Outer LEDs, and Built-in Color Macros and Gobos

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

AT A GLANCE

• A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement

• A (9) 15 W RGBW LED outer ring of LEDs with a 4.9°- 58.4° zoom range and pixel control for wash and narrow effects

• A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects

• Virtual Color wheel with instantaneous access to 21 colors

• Built in color effects for quick design possibilities

• Built in virtual gobo wheel with background colors for impressive atmospheric effects

• Quiet operation for a wide range of installation situations

• DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility

• RDM enabled for remote addressing and trouble shooting

• Converts TCP/IP to DMX for shorter data cable runs

• 2.8°- 58.4° zoom range for variable beam sizes

• True 1 compatible power input

• Battery backup touchscreen display with auto rotate depending on fixture orientation

• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup


SPECIFICATIONS

• Optical

• Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy

• Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy

• Color Temperature (range): 2,800 to 10,000 K

• Beam Angle (center pixel and outer ring): 2.8°

• Beam Angle (center pixel): 2.7°

• Beam Angle (outer ring): 4.9° to 32°

• Field Angle (center pixel and outer ring): 6.7°

• Field Angle (center pixel): 4.5°

• Field Angle (outer ring): 7.9° to 47.8°

• Cutoff Angle: 8.3° to 58.4°

• Zoom Range: 4.9° to 58.4°

• Lumens - Source: (center pixel) 1,700 (outer ring) 4,300

• Lumens - Output: (center pixel) 1,100 (outer ring) 2,400

• Illuminance (center pixel / outer ring): 11,267 lux @ 5 m

• Illuminance (center pixel): 19,306 lux @ 5 m

• Illuminance (outer ring): (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

• Dynamic Effects

• Pan and Tilt: 540°/270°

• Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Zoom: Motorized

• Strobe Rate: 0 to 20 Hz

• Color Temperature Presets: Yes

• Move-in-Black: Yes

• Dim Modes: 2

• Dim Curves: 4

• Construction / Physical

• Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)

• Weight: 31.96 lb (14.5 kg)

• Exterior Color: Black

• Housing Material: High-impact flame-retardant polymer

• Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65

• Power Input/Output: Seetronic Powerkon IP65

• Data Connectors: 3- and 5-pin XLR,, Amphenol XLR Net RJ45 Connectors in/out

• Cable Length (power): 5 ft (1.5 m)

• Control

• Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM

• DMX Channels Single Mode: 26,66,113,131

• DMX Channels Dual Mode - Function: 13,26,33

• DMX Channels Dual Mode - Pixel: 30,40,80

• Art-Net Channels Single Mode: 26,66,113,131

• Art-Net Channels Dual Mode - Function: 13,26,33

• Art-Net Channels Dual Mode - Pixel: 30,40,80

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 4 units @ 120 V;7 units @ 208 V; 8 units @ 230 V

• Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz

• Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz

• Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz

• Certifications / Qualifications

• CE

• IP Rating: IP20, dry location

• What's Included

• Maverick PYXIS

• Seetronic Powerkon IP65 power cord

• Omega bracket with mounting hardware

• Optional Accessories

• Professional Clamp: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• DMX Cables

• IP Rated Seetronic Powerkon Extensions

• Ethercon extension cables

• UPLOAD 08 software uploader
