Key Features
- Clubs, Mobile DJs, Small/Medium Venues
- Compact/Lightweight 350W LED Moving Spot
- CMY Color Mixing, CTB Filter, 16-Bit Dim
- 8-Slot Color Wheel, Split/Scroll
- 2 Gobo Wheels (Static/Rotating)
- 4.1 to 43.4° Motorized Zoom
- Iris, 5-Facet Prism, Frost
- DMX, W-DMX, sACN, & Art-Net Control
- 3-Pin & 5-Pin DMX I/O, RJ45 Connectors
Description

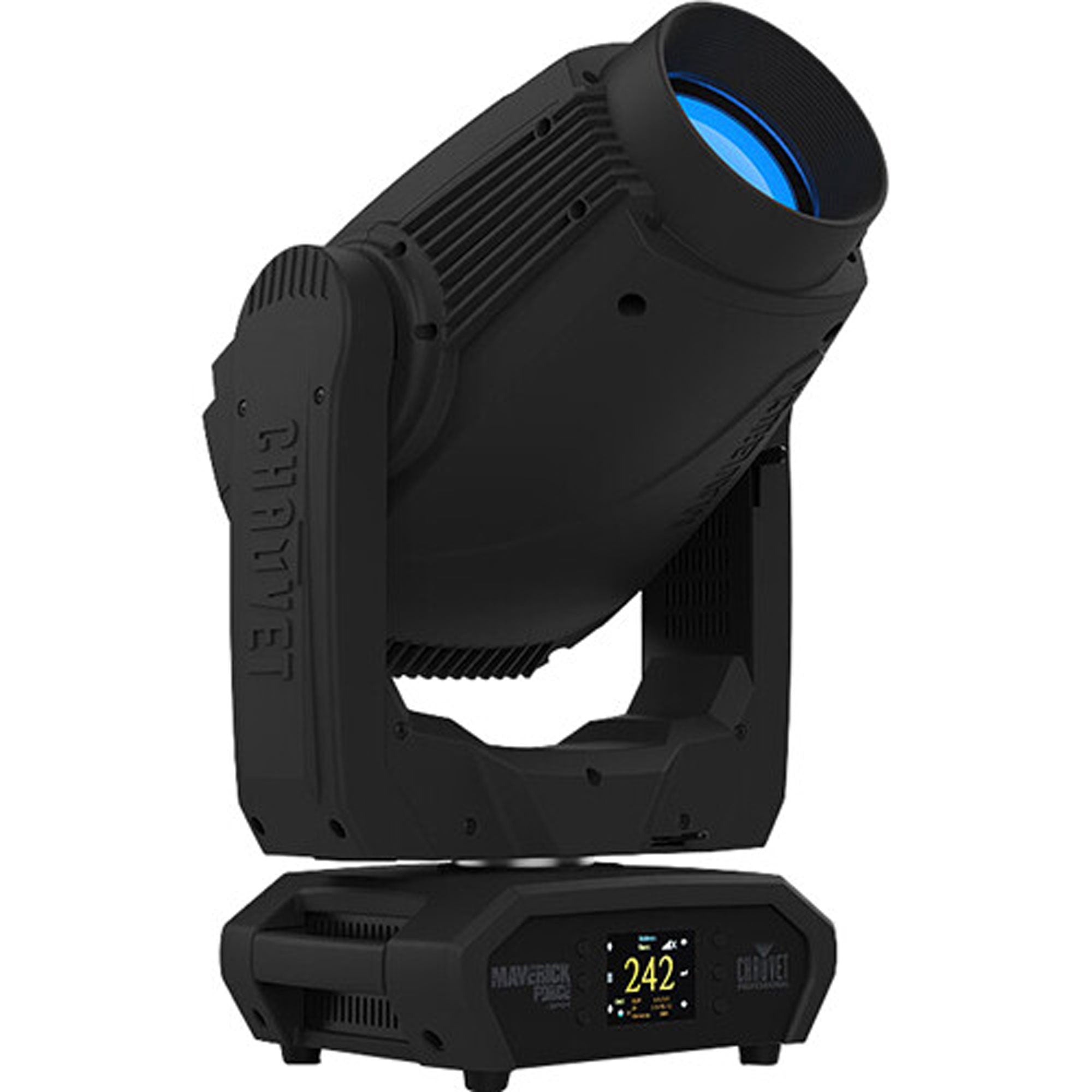

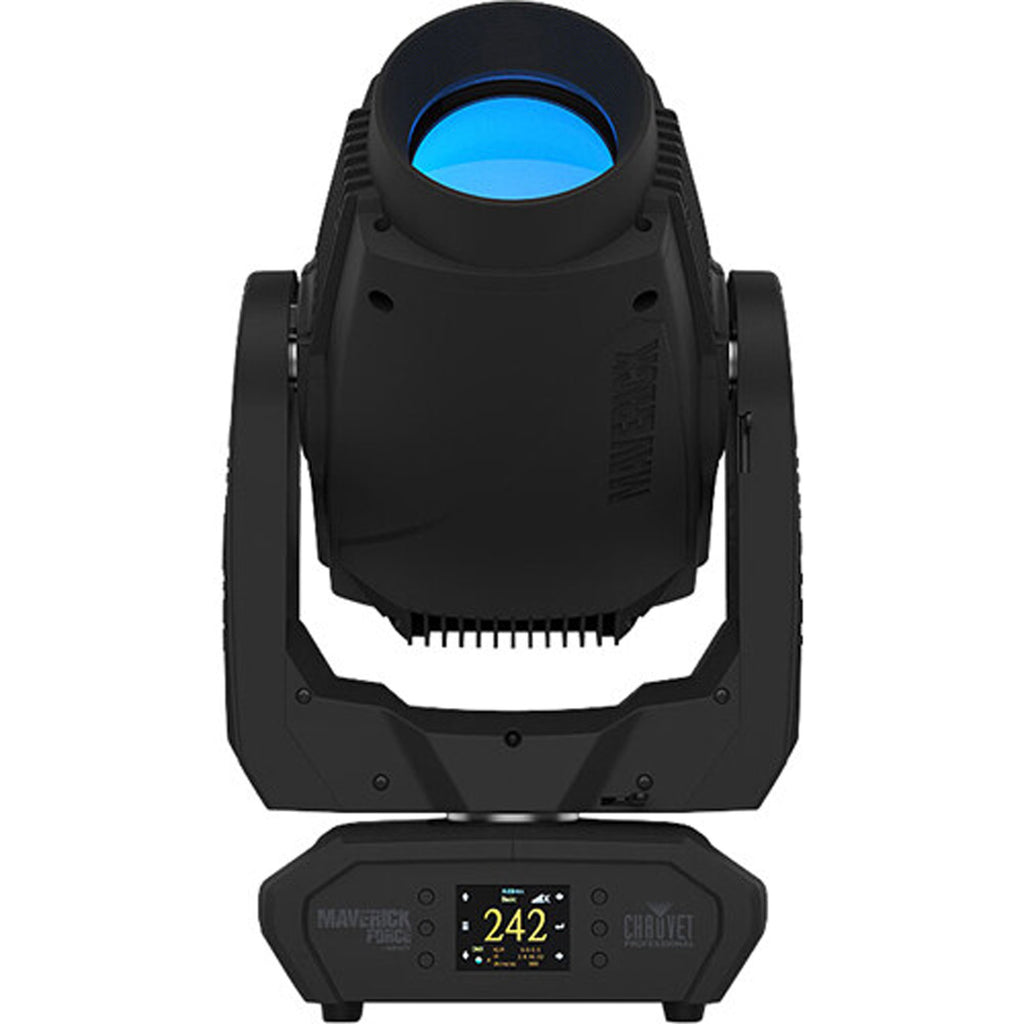

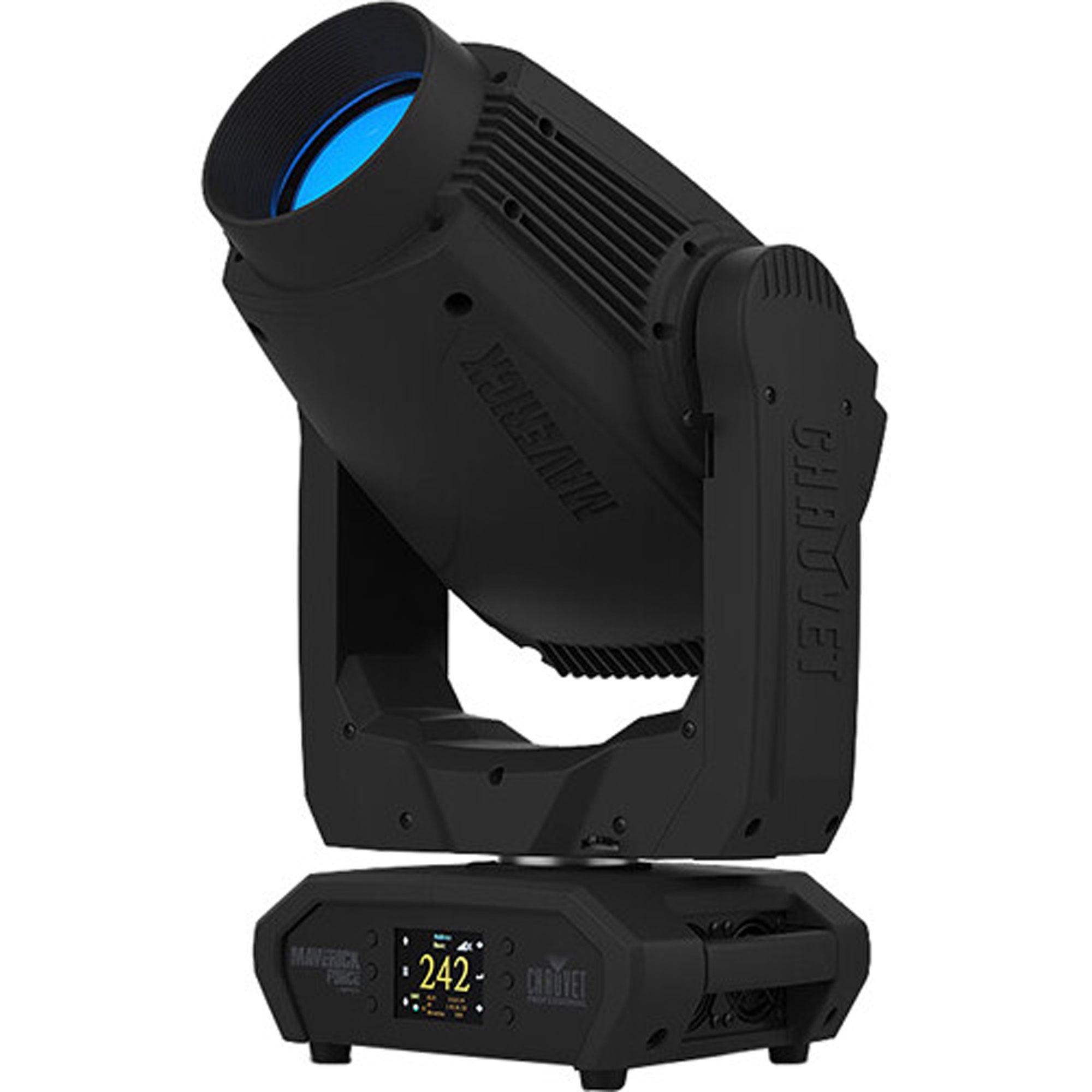

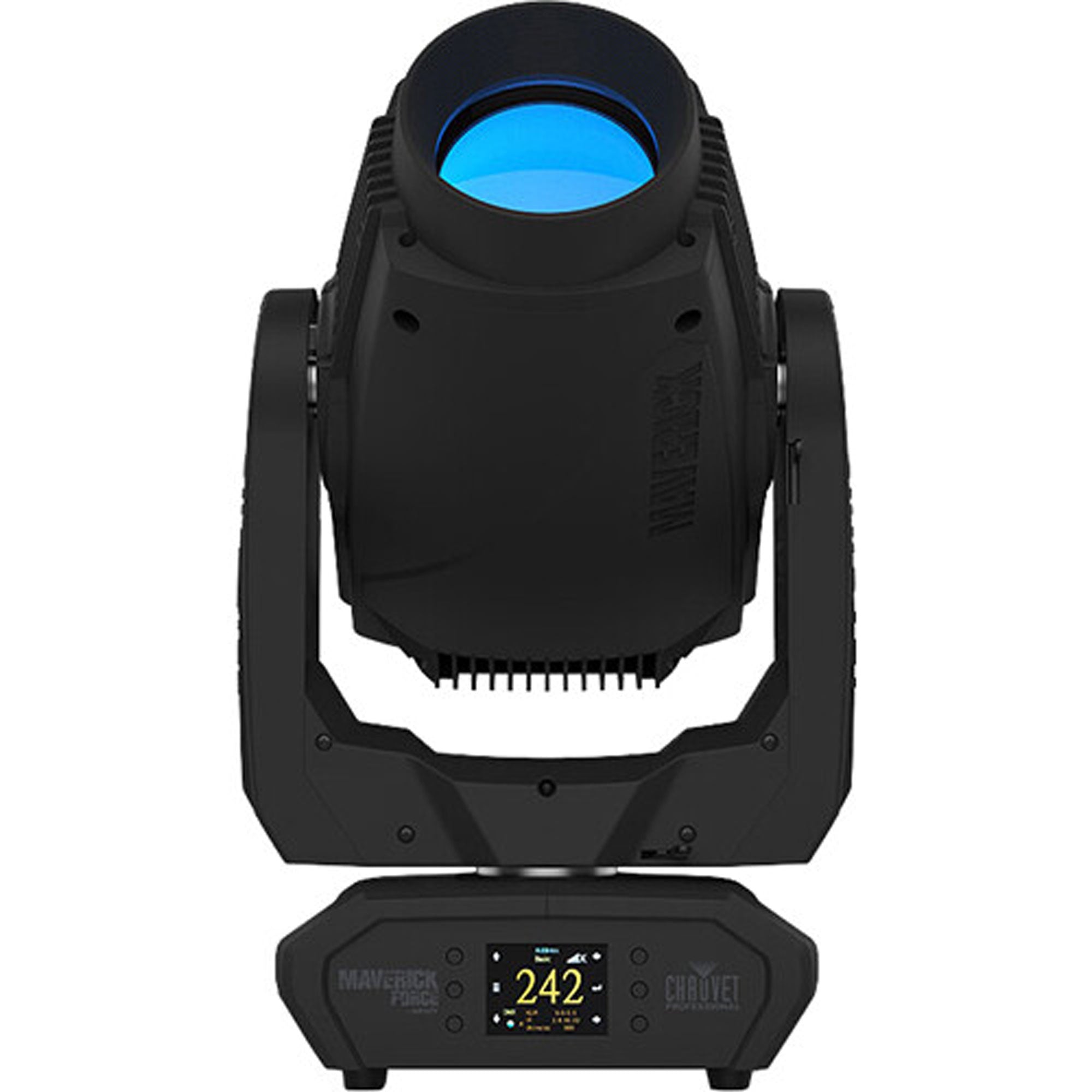

350W LED Moving-head Spot Fixture with 5-facet Prism, CMY Color Mixing, 8-slot Color Wheel, 4-43-degree Zoom, and 2 Gobo Wheels
Maverick Force S Spot is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, and control options in a lightweight frame, well under 50 lbs. The compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color-mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S features a speedy effects engine that includes motorized iris, frost, focus, a 5-facet prism, and wide zoom ranging from 4° to 43°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
AT A GLANCE
-
Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
-
16-bit dimming of master dimmer for smooth control of fades
-
Variable CMY color mixing system to create a wide pallet of colors
-
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
-
RDM Enabled for remote addressing and trouble shooting
-
3.8° to 43.4° zoom range for variable beam sizes
-
Iris, 5-facet prism, and frost for beam control
-
True 1 compatible power input
-
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
-
USB slot for software uploads
-
Battery backup display with auto-rotate depending on fixture orientation
SPECIFICATIONS
-
Optical
-
Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
-
Color Temperature (at full): 6858 K
-
CRI: 68.6
-
CRI with CRI filter: 89.6
-
Front Lens Diameter: 119 mm
-
Beam Angle: 3.8° to 36.5°
-
Field Angle: 4.8° to 40.4°
-
Cutoff Angle: 5.1° to 43.4°
-
Zoom Range: 3.8° to 43.4°
-
Lumens - Source: 20,000
-
Lumens - Output: 14,407
-
Illuminance (3.8°): 62,004 lux @ 5 m
-
Illuminance (43.1°): 1,745 lux @ 5 m
-
Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
-
Dynamic Effects
-
Pan and Tilt: 540°/270°
-
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
-
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
-
Colors: CMY Wheels
-
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
-
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
-
Dimmer: Electronic
-
Shutter/Strobe: Electronic
-
Zoom: Motorized
-
Focus: Motorized
-
Frost: Motorized
-
Iris: Motorized
-
Prism: 5 Facets, motorized, rotating
-
Strobe Rate: 0 to 20 Hz
-
Move-in-Black: Yes
-
Dim Curves: 4
-
Construction / Physical
-
Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
-
Weight: 47.4 lb (21.5 kg)
-
Exterior Color: Black
-
Housing Material: High-impact flame-retardant polymer
-
Connections
-
Power Connection: Edison plug to Seetronic Powerkon IP65
-
Power Input: Seetronic Powerkon IP65
-

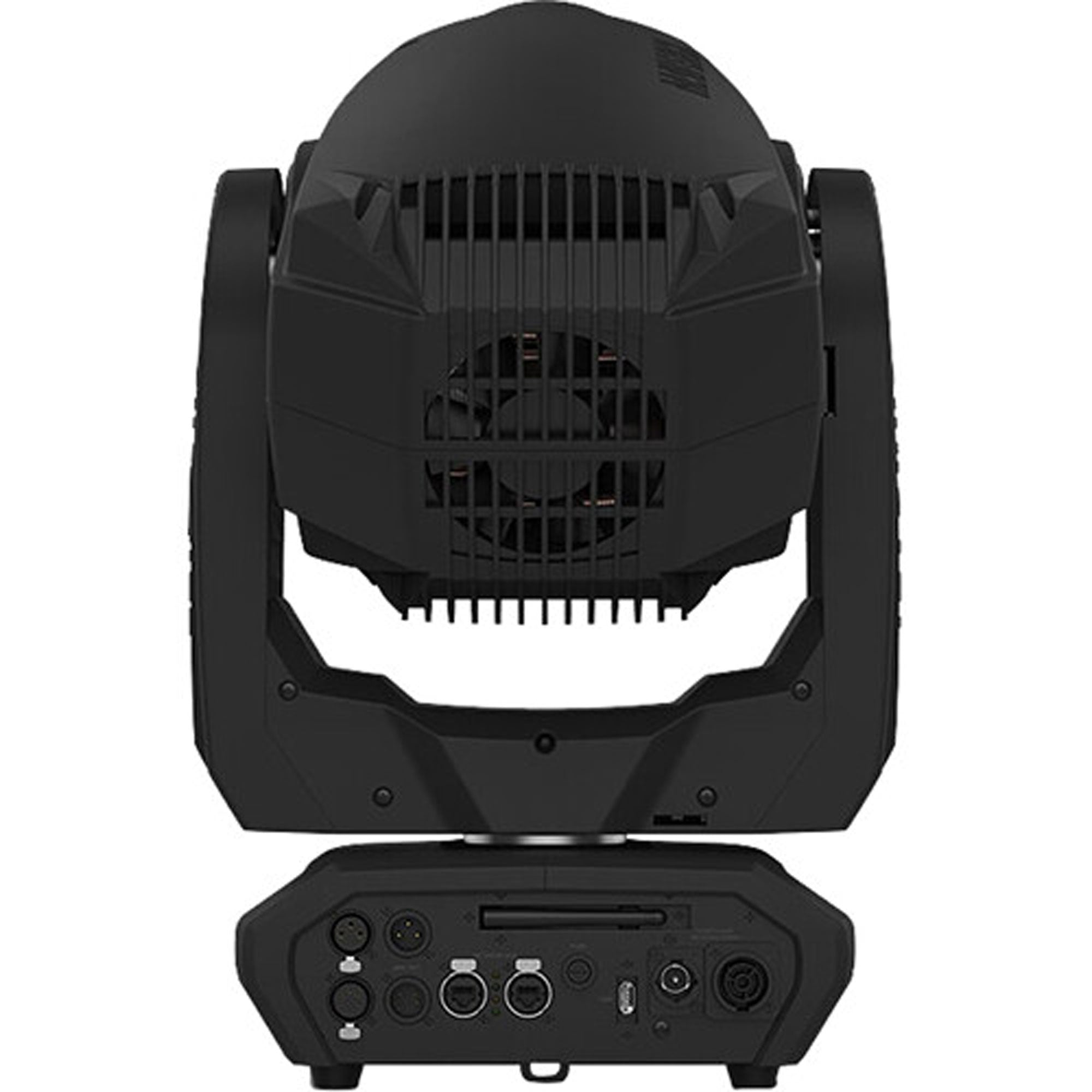

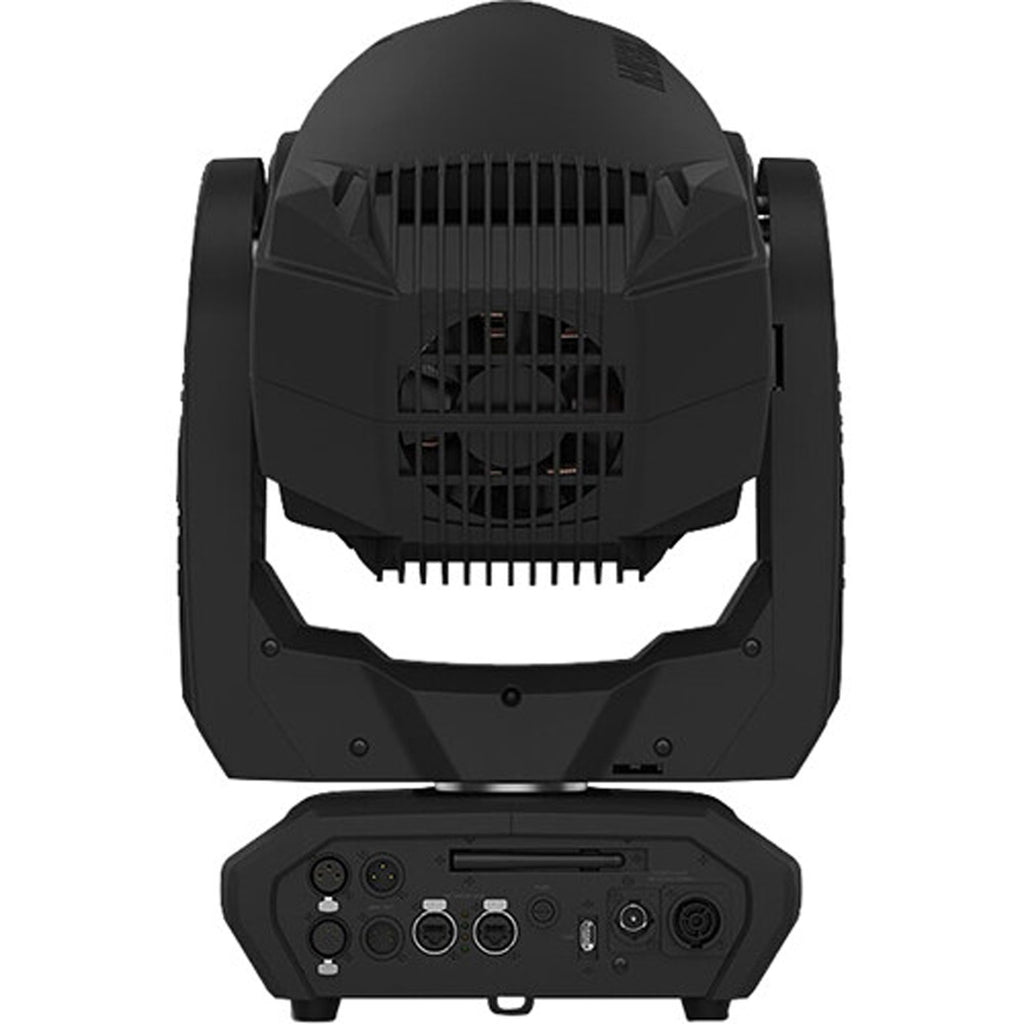

Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
-
Cable Length (power): 5 ft (1.5 m)
-
Control
-
Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
-
DMX Channels: 22 or 29
-
Art-Net Channels: 22 or 29
-
Modes/Personalities: 2 personalities (22, 29)
-
Electrical
-
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
-
Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
-
Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
-
Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
-
Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
-
Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
-
Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
-
Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
-
Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
-
Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
-
Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz
-
Certifications / Qualifications
-
CE, MET, FCC
-
IP Rating: IP20, dry location
-
Noise Level (ambient): 37.5 dB level @ 1 m
-
Noise Level (Static - Full): 40.9 dB level @ 1 m
-
Noise Level (Static - Eco): 37.9 dB level @ 1 m
-
Noise Level (Static - Auto): 38.4 dB level @ 1 m
-
Noise Level (Max): 45.5 dB level @ 1 m
-
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
-
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
-
What's Included
-
Maverick Force S Spot
-
Seetronic Powerkon IP65 power cord
-
2 Omega brackets with mounting hardware
-
Quick Reference Guide
-
Optional Accessories
-
Professional Clamps: CTC-50HC, CTC-50HCN
-
Safety Cable: SC-07
-
DMX cables
-
Ethercon extension cables
-
IP Rated Seetronic Powerkon Extensions
-
Flight Case:
-
UPLOAD_08 software uploader
- Manufacturer: Chauvet
- MPN: MAVERICKFORCESSPOT
- Model Number: Maverick Force S Spot
- UPC: 781462221614
