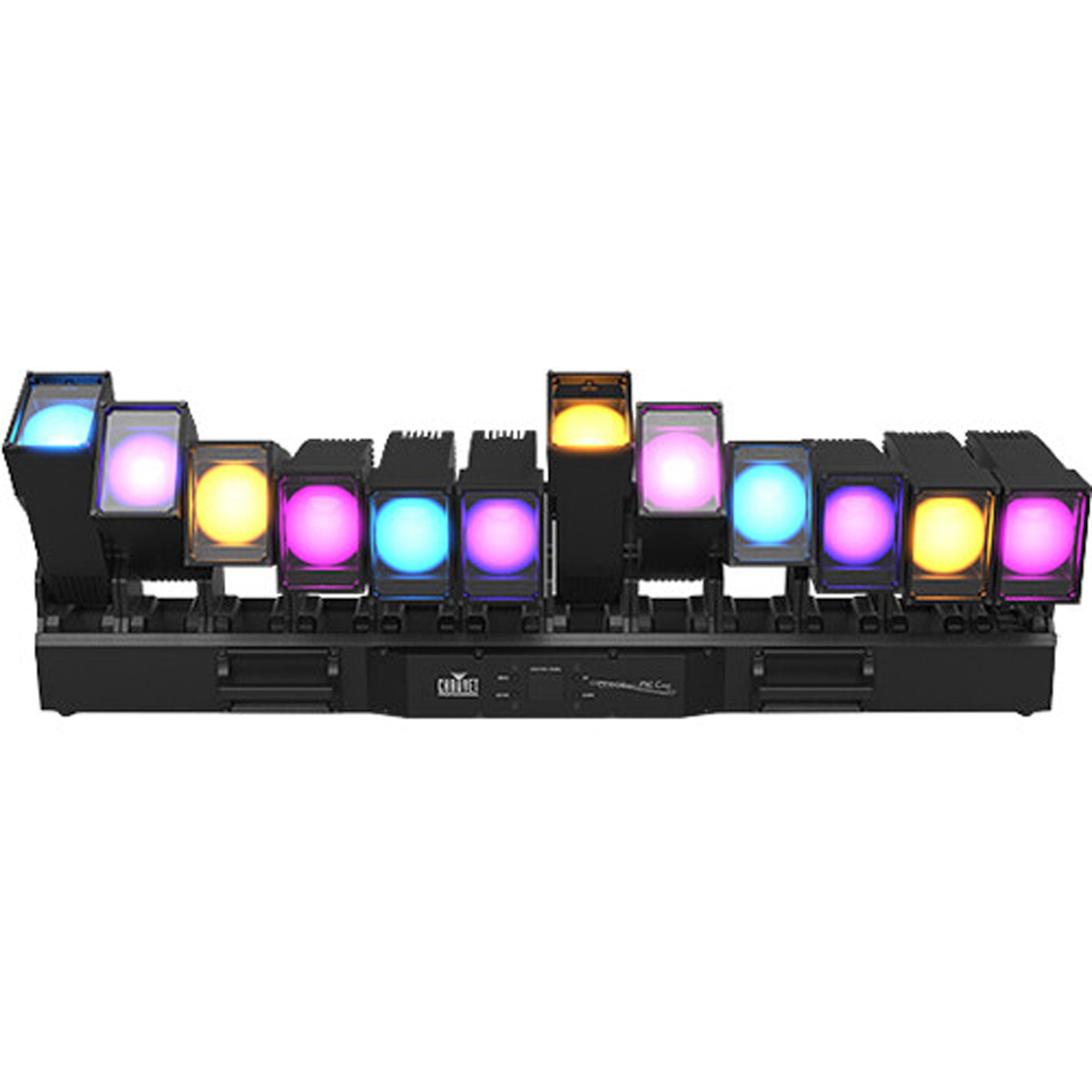

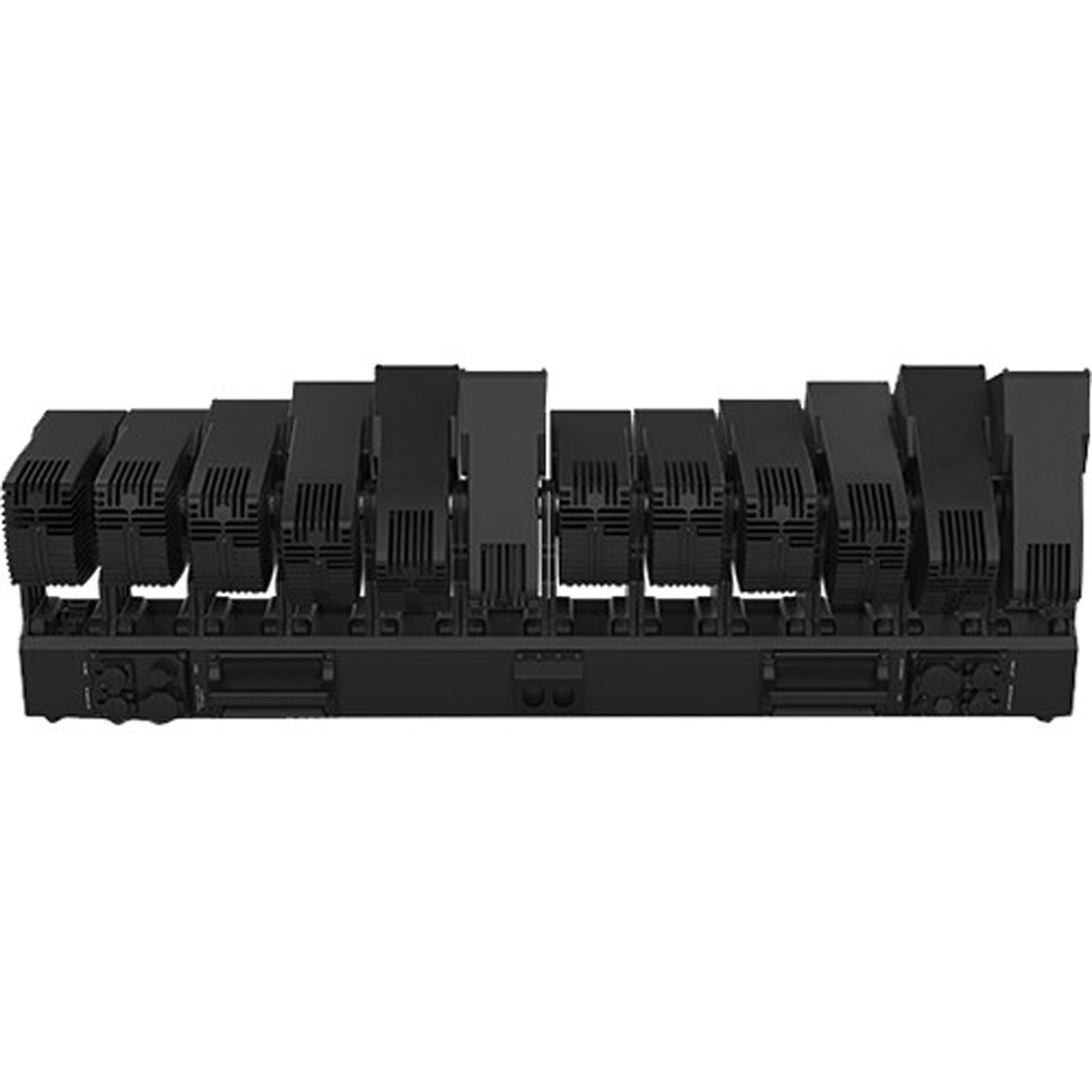

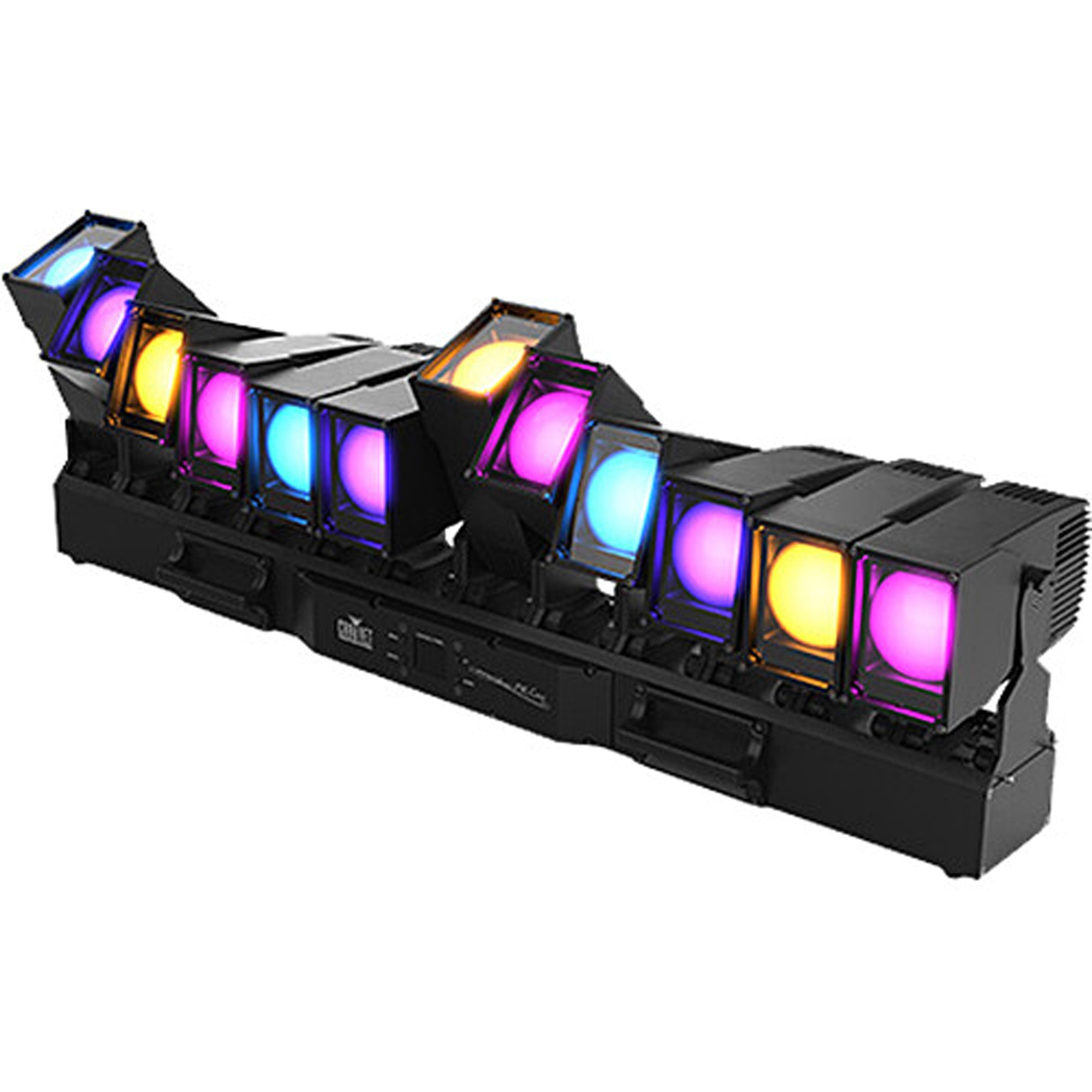

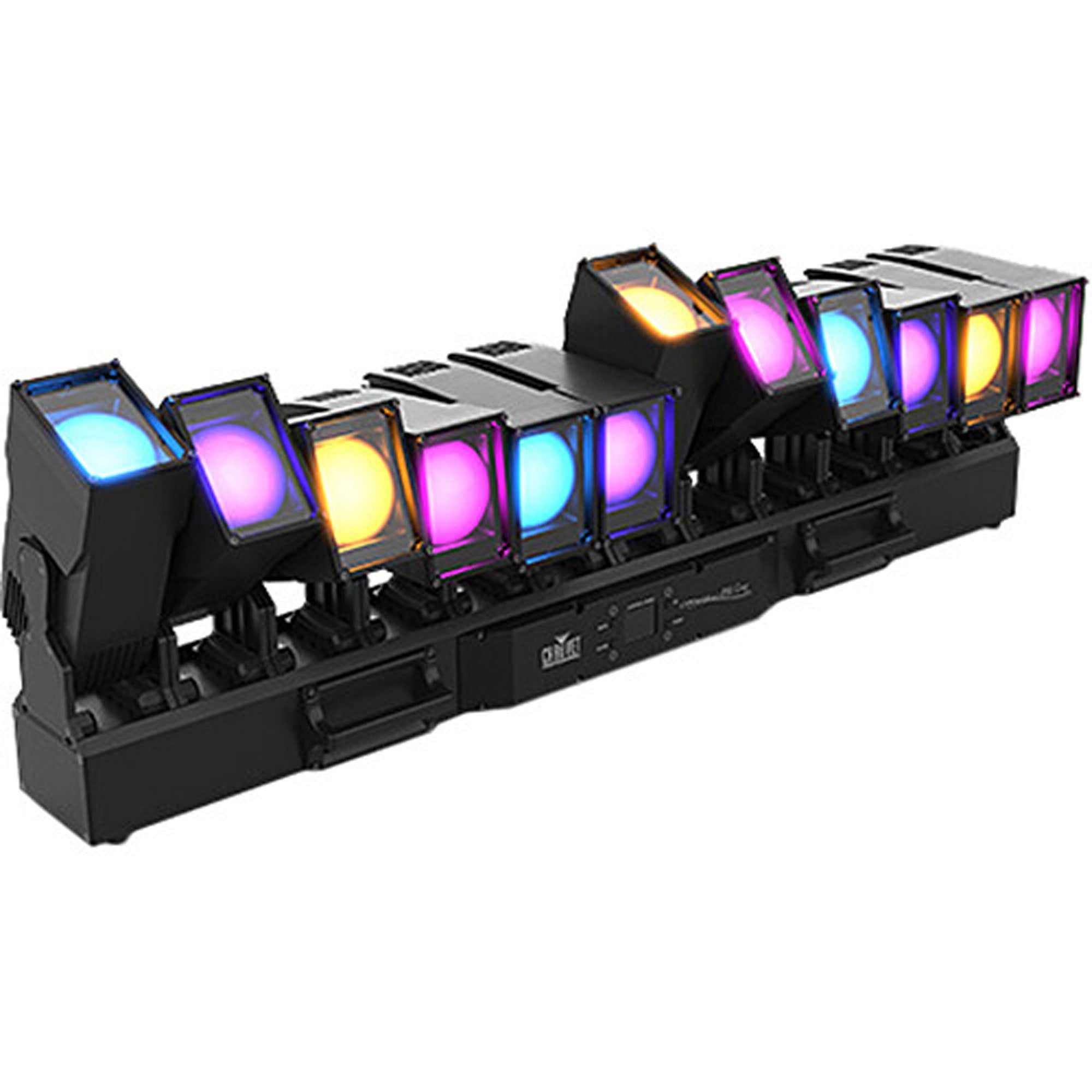

Chauvet Professional COLORado PXL Curve 12 IP65 Pixel-Mappable Motorized RGBW LED Batten

IP65-rated Motorized Batten with Individually Controllable Tilting Heads with 12 RGBW 45-watt LEDs and Pixel-mappable Control for DMX, sACN, Art-Net, Kling-Net, and RDM

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

Features

• IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.

• Quiet and quick operation of 200° of tilt of each if (12) heads

• Quiet and quick operation of (12) individual zoom zones

• Fully pixel mappable

• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects

• DMX, SACN, Art-Net, and Kling-Net control for full flexibility

• RDM Enabled for remote addressing and trouble shooting

• 5.7° to 36.3° zoom range for variable beam sizes

• TRUE1 compatible power input/output ports

• IP65-rated 5 pin DMX and TCP/IP input/output ports

• IP65-rated USBc software upload port

• Slotted Omega brackets for easy hanging on truss


Specifications

• Optical

• Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy

• Color Temperature (range): 2700 to 8000 K

• Beam Angle Spot: 5.7°

• Beam Angle Flood: 26.8°

• Beam Angle 50% Zoom: 13.8°

• Field Angle Spot: 9°

• Field Angle Flood: 33.9°

• Field Angle 50% Zoom: 19.2°

• Cutoff Angle Spot: 9.9°

• Cutoff Angle Flood: 36.3°

• Cutoff Angle 50% Zoom: 21.6°

• Zoom Range: 5.7° to 36.3°

• Lumens: 5,807 lm

• Illuminance (Spot) : 38,727 lux @ 5 m

• Illuminance (Flood) : 1,120 lux @ 5 m

• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

• Dynamic Effects

• Tilt: 200°

• Tilt Range: 60°, 180°, 200°

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 20Hz

• Standalone Color Mixing: No

• Color Temperature Presets: Yes

• Dim Modes: 5

• Built-in Automated Programs: Yes

• Customizable Programs: Yes

• Recall Custom Programs: Yes

• Construction / Physical

• Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)

• Weight: 76 lb (34.5 kg)

• Exterior Color: Black

• Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

• Connections

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65

• Power Input: Seetronic Powercon IP65

• Power Output: Seetronic Powercon IP65

• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65

• Cable Length (power): 5 ft (1.5 m)

• Control

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet

• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch

• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch

• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch

• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V

• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz

• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz

• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz

• Fuse: F12 A, 250 V

• Certifications / Qualifications

• CE, MET, UKCA, FCC

• IP Rating: IP65, temporary outdoor/wet use

• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

• What's Included

• COLORADO PXL Curve 12

• (2) Omega brackets

• Seetronic Powercon IP65 power cord

• Optional Accessories

• Professional Clamps

• Neutrik TRUE1 power linking cables

• 5-pin DMX Cables

• Ethercon Cables
