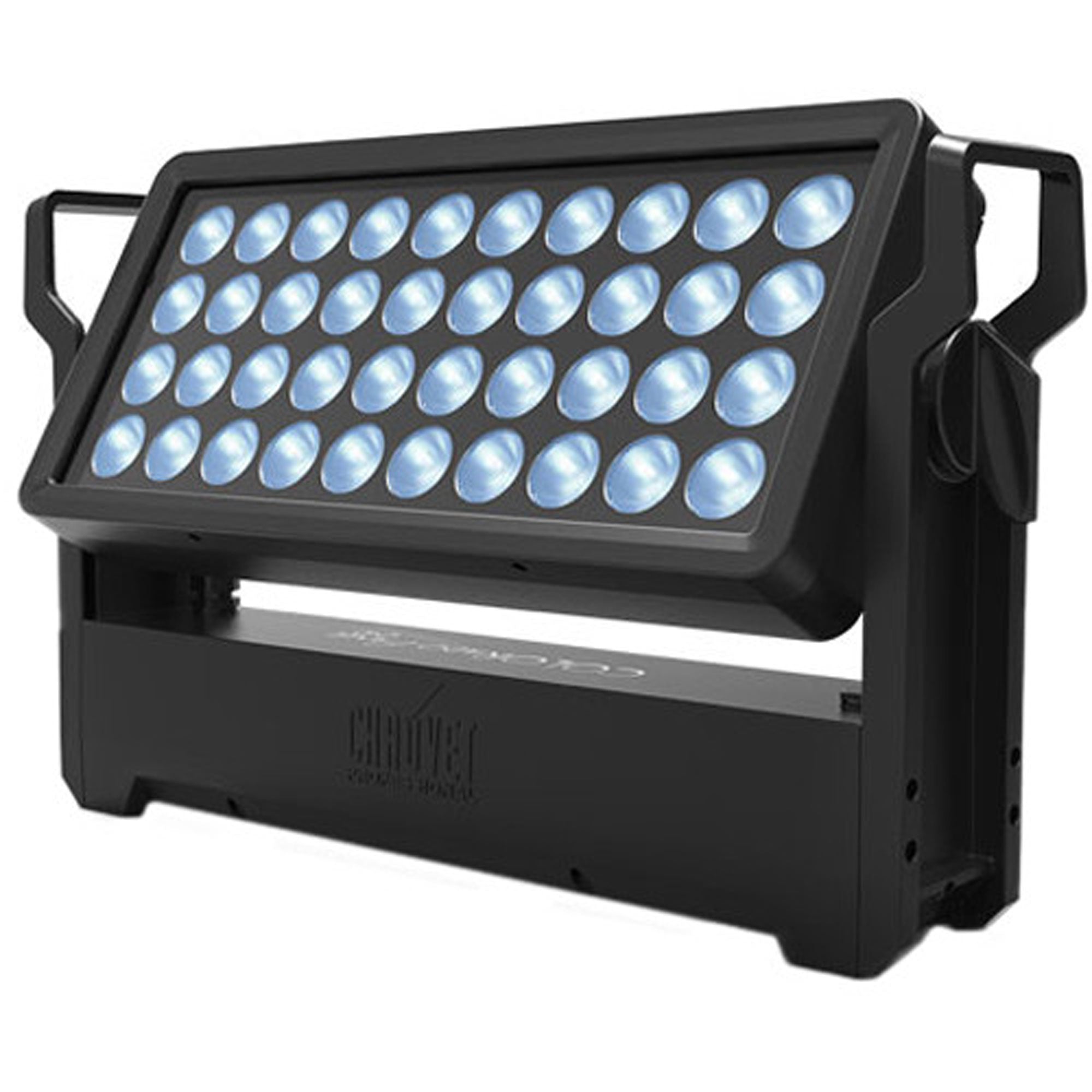

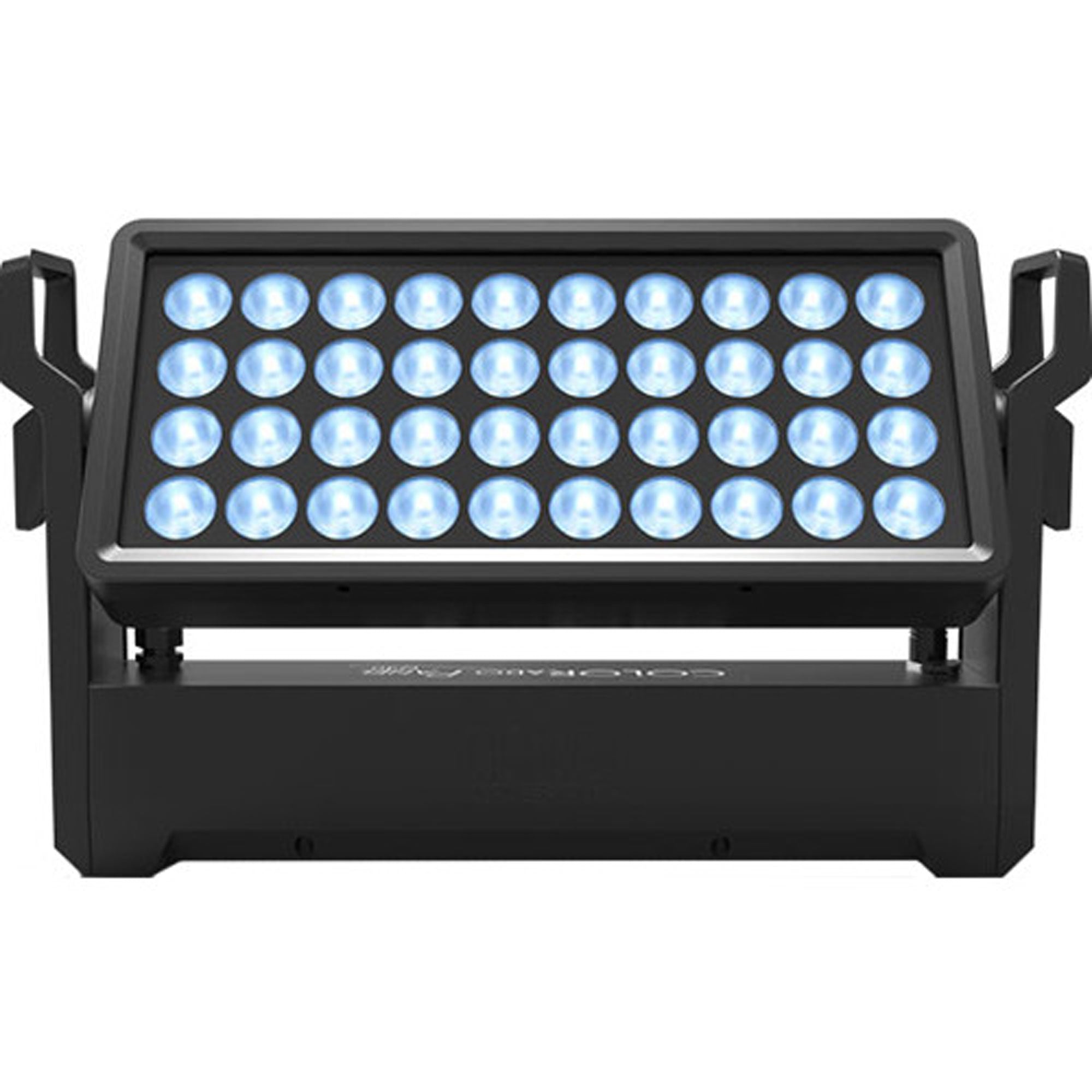

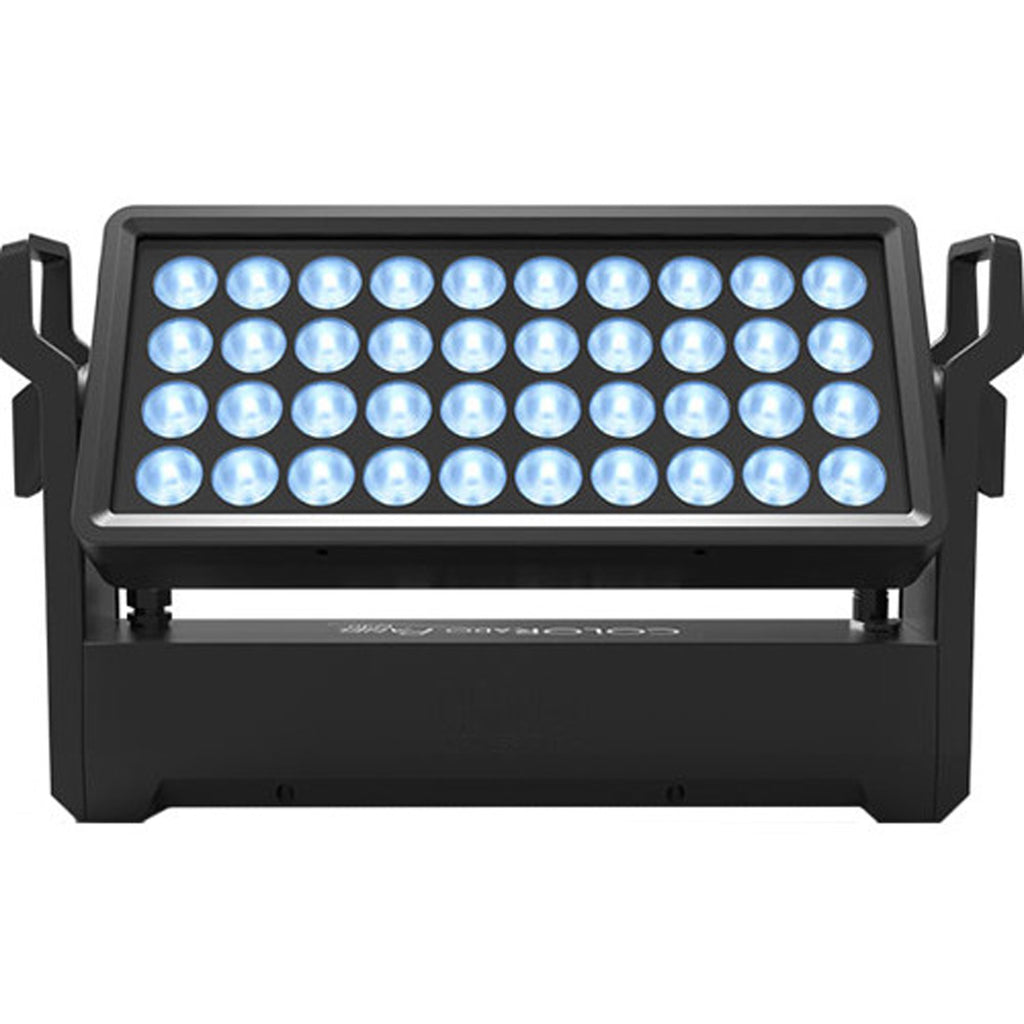

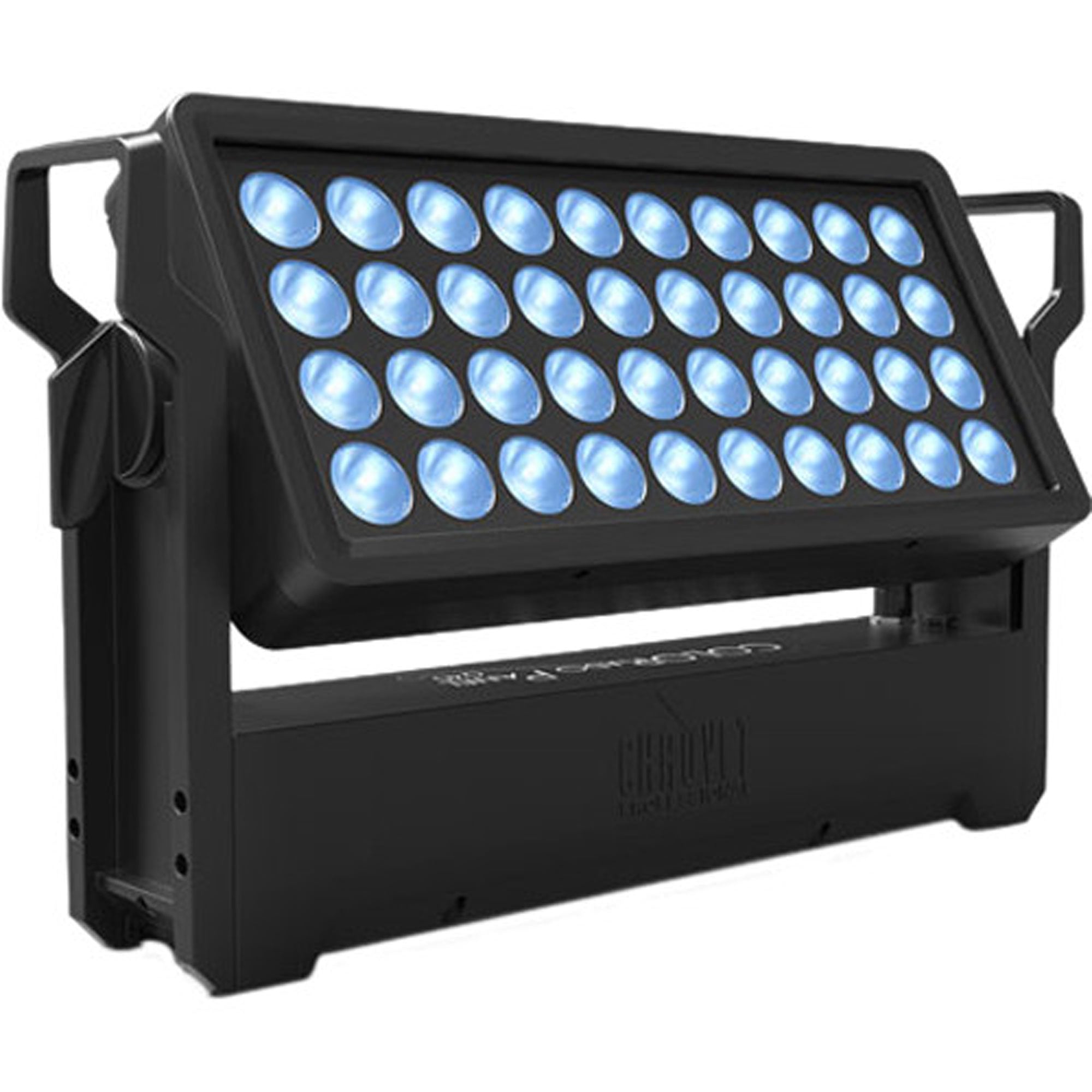

Chauvet Professional COLORado Panel Q40 Rectangular Wash Light Fixture

IP65 Rectangular Wash Light Fixture with 40 Calibrated RGBW LEDs

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

AT A GLANCE

• Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed

• Superior edge-to-edge color mixing

• At home in any weather conditions with IP rated power and DMX connections

• Included magnetic flood filter for wide area wash

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• WDMX & RDM (Remote Device Management) for added flexibility

• Selectable, smooth dimming curves to eliminate flicker and choppiness in fades

• Easy to read OLED display with password protection and touchscreen interface

• Advanced optics provide exceptional color mixing and high efficiency

• Included omega bracket for quick and easy truss/pipe mounting


SPECIFICATIONS

• OPTICAL

• Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy

• Color Temperature (range): 2800 to 10000 K

• Installed Optics: 15°

• Beam Angle (w/o filter): 20.4°

• Beam Angle (w/filter): 24.6°

• Field Angle (w/o filter): 33.8°

• Field Angle (w/ filter): 50.4°

• Lumens: 29,407Lumens (w/filter): 17,992

• Illuminance (w/o filter): 8,347 lux @ 5 m

• Illuminance (w/ filter): 2,590 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

• DYNAMIC EFFECTS

• Tilt Ranges: 0° to 150°

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 27 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes: 4

• Built-in Automated Programs: Yes

• CONSTRUCTION / PHYSICAL

• Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)

• Weight: 28.2 lb (12.8 kg)Exterior Color: Black

• Housing Material: Aluminum alloy, Aluminum die-cast

• Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

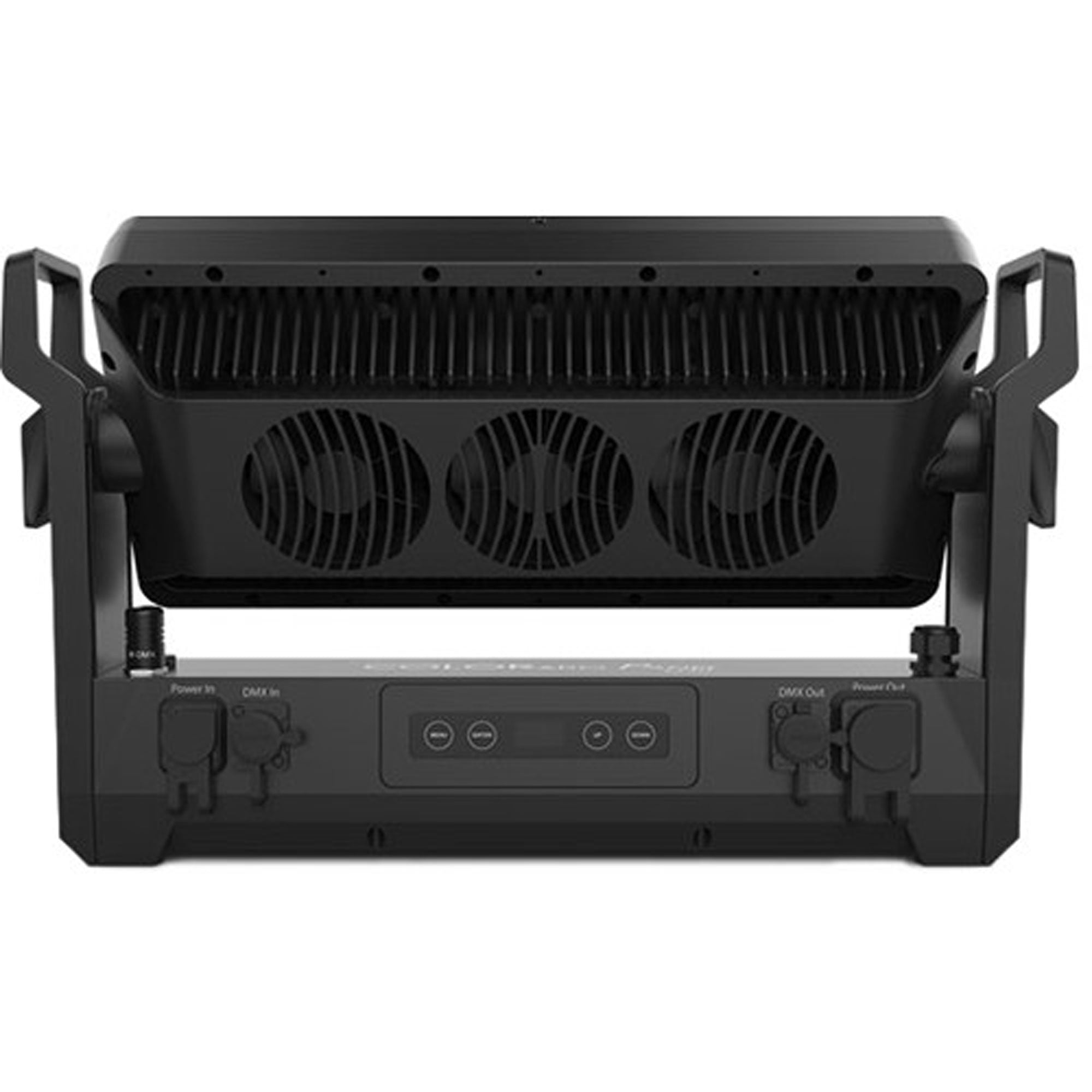

• CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Data Connectors: 5-pin IP65 XLR

• Cable Length (power): 5 ft (1.5 m)

• CONTROL

• Control Protocol: DMX, W-DMX, RDM

• DMX Channels: 4, 7, 11, 16 or 22

• Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

• ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V

• Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz

• Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz

• Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz

• CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC

• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

• WHAT'S INCLUDED

• Seetronic Powerkon IP65 power cord

• Color Blending Filter lens

• Omega bracket with mounting hardware

• OPTIONAL ACCESSORIES

• COLORado Panel Q40 Barndoor

• Professional Clamps: CTC-50HC, CTC-50HCN

• Seetronic Powerkon power linking cables

• 5-pin IP or Non-IP DMX Cables

• COLORado Panel Q40 Filter Pack
