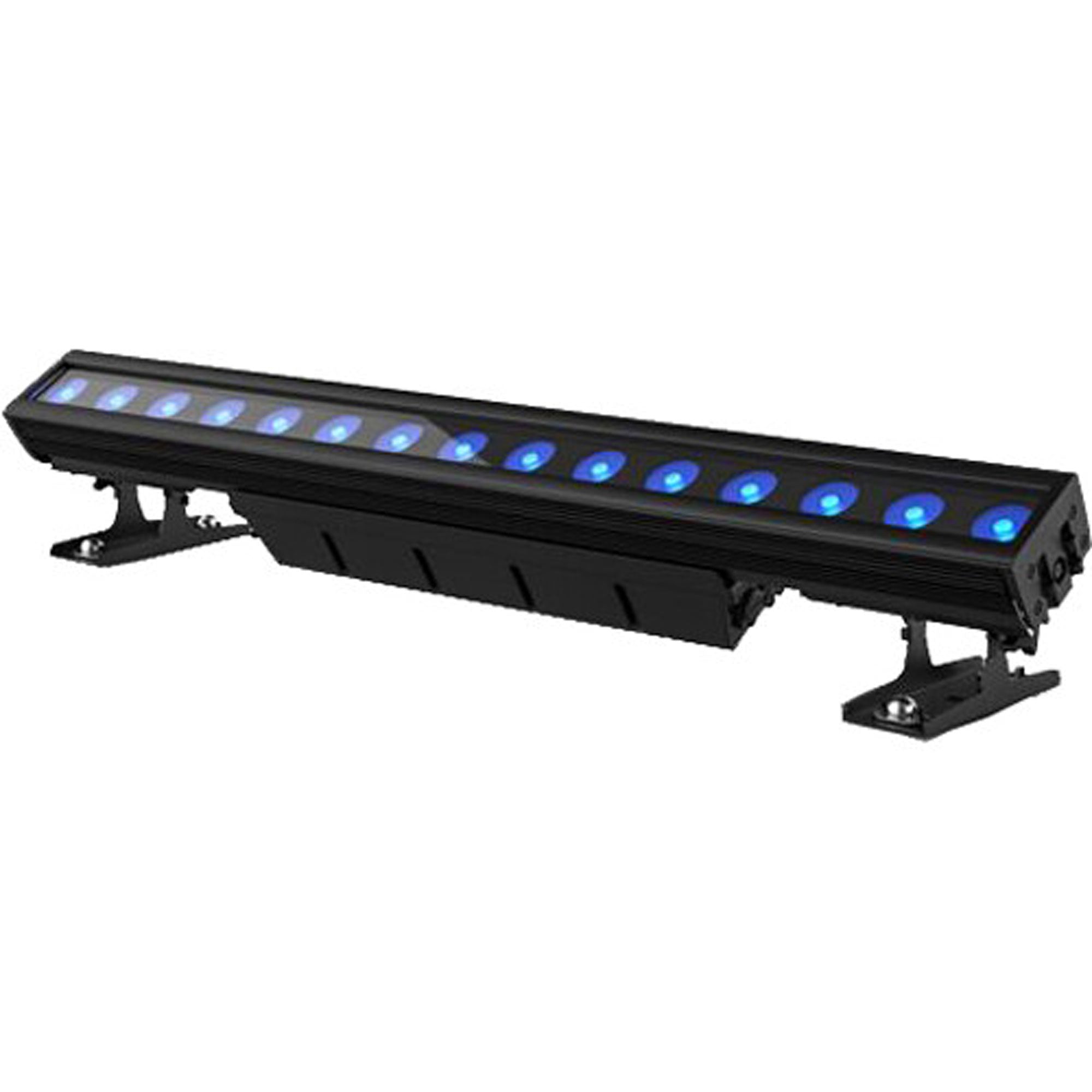

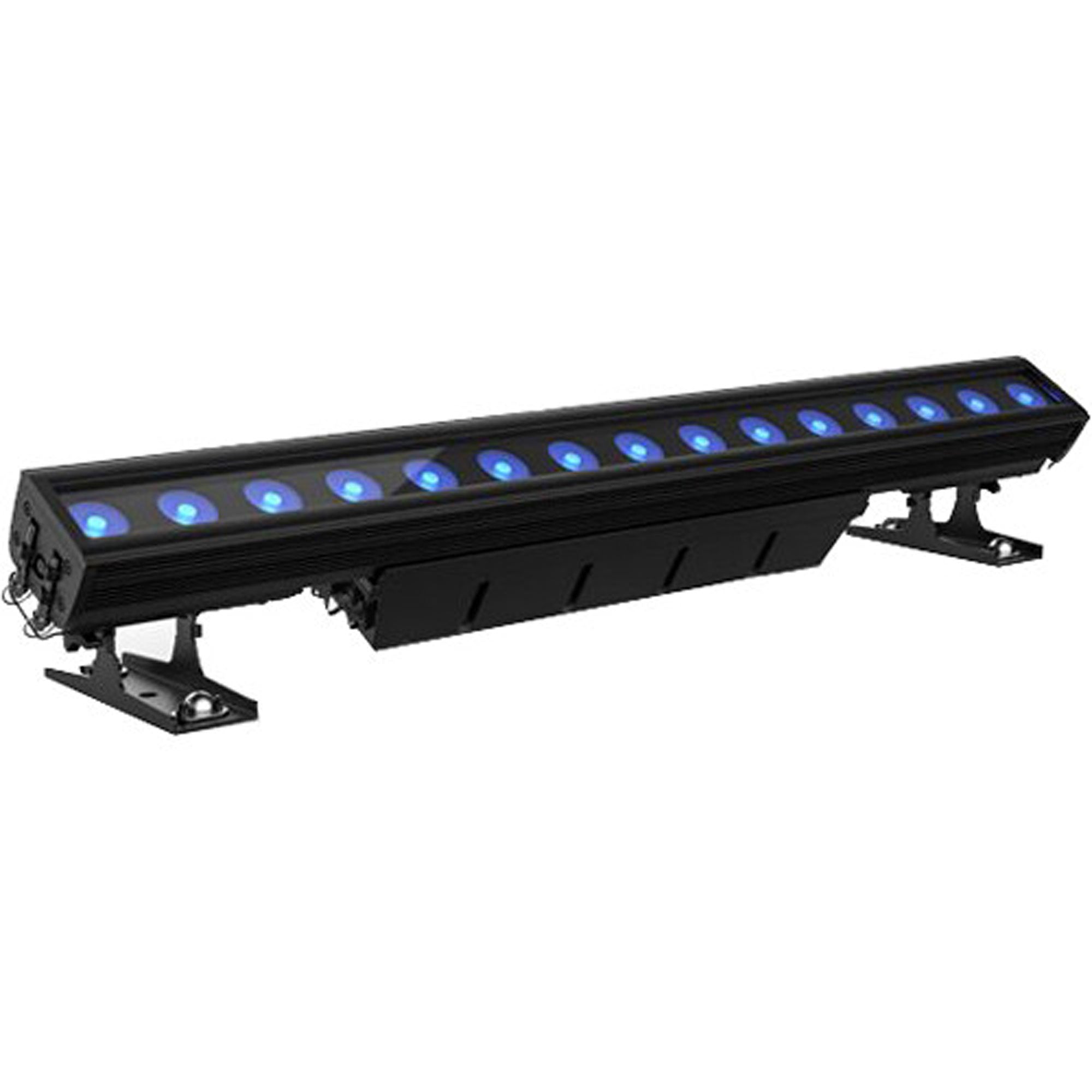

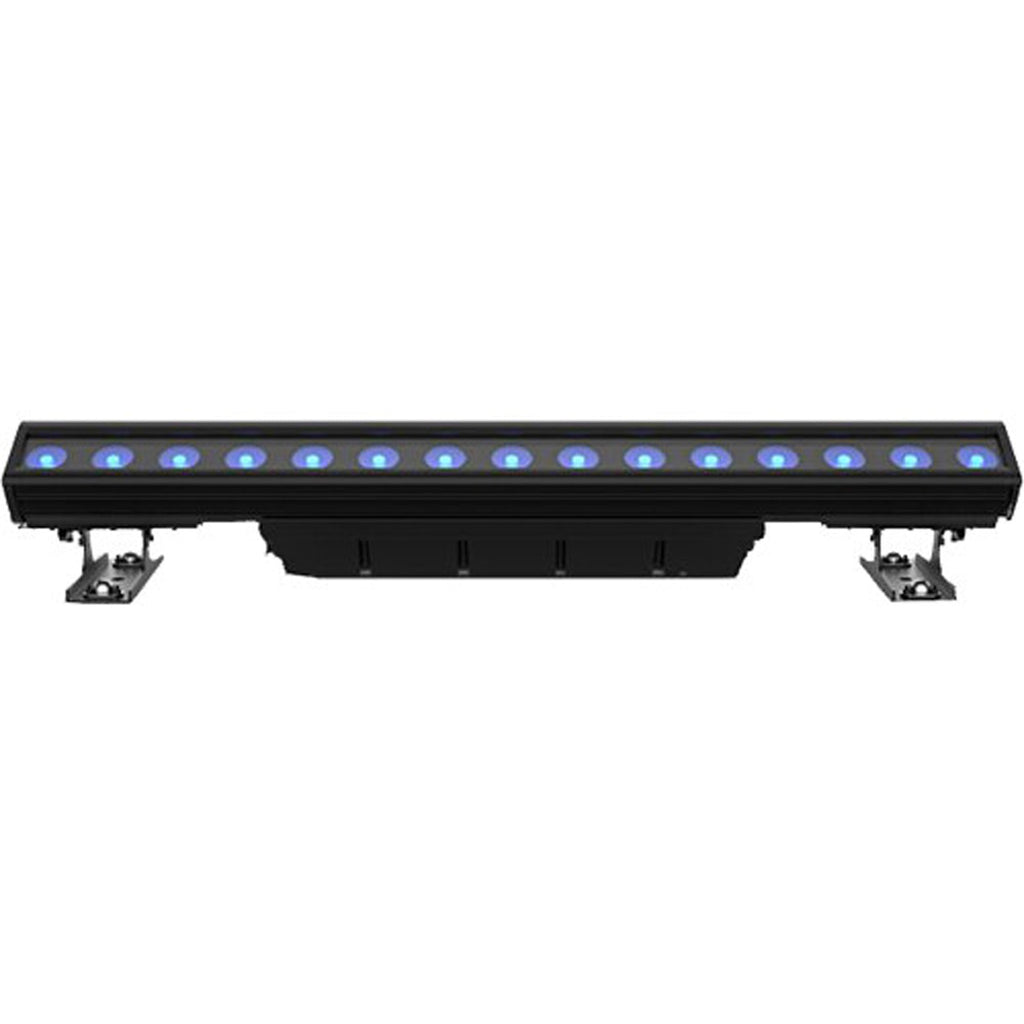

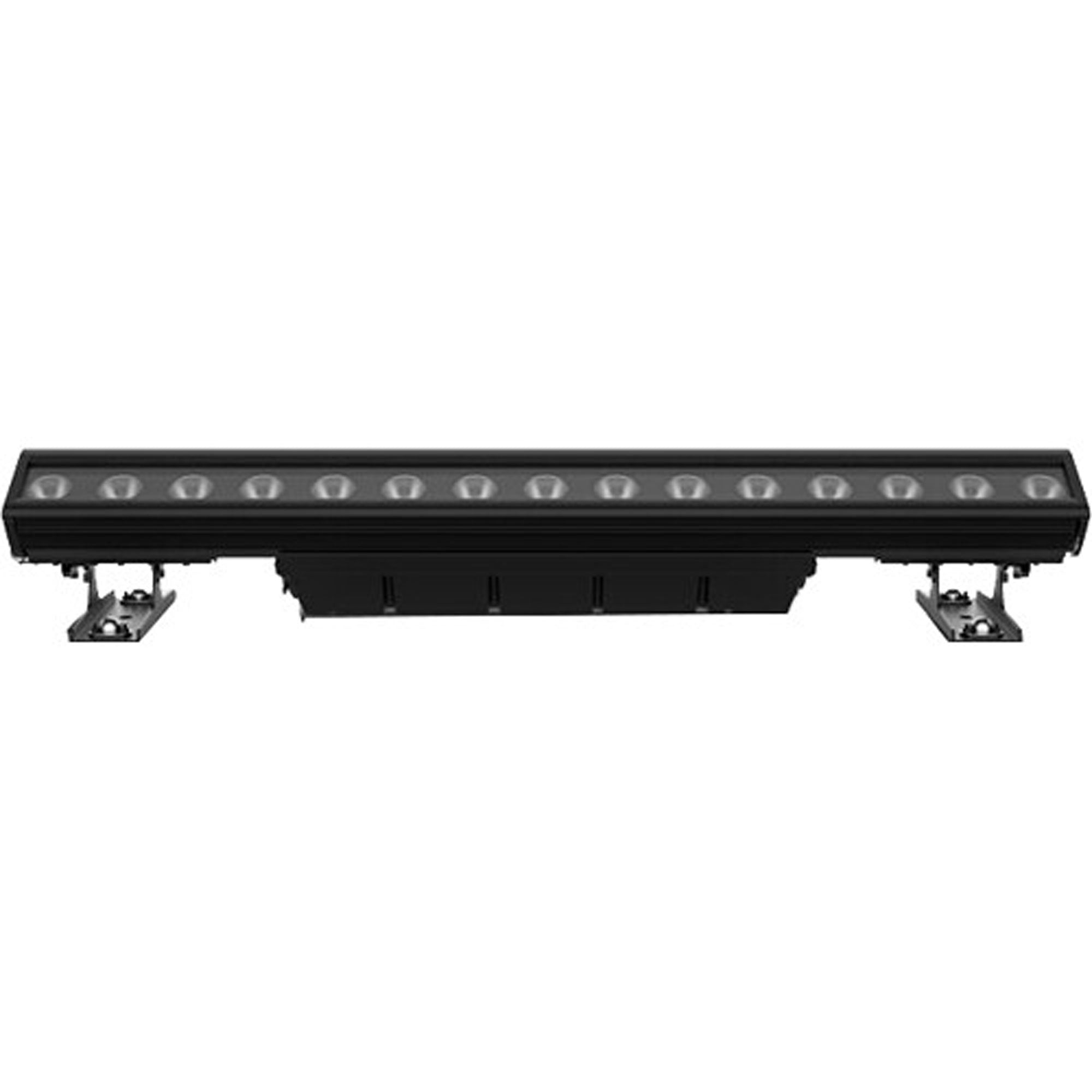

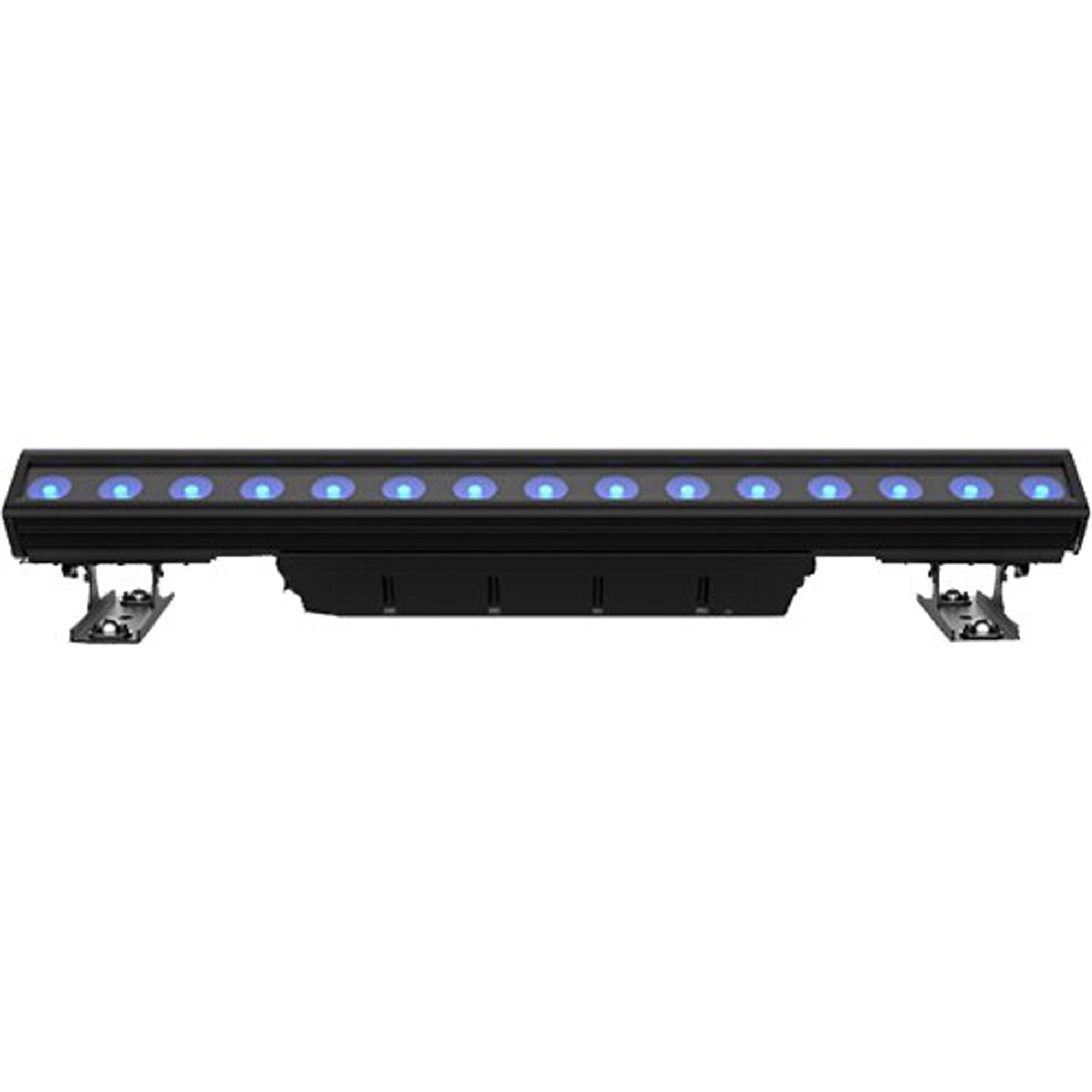

Chauvet Professional COLORado Batten Q15 RGBW LED Strip Lighting Fixture

IP65 Batten-style Wash Light Fixture with 15 Calibrated RGBW LEDs

COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of "skittles" and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with 1/4 turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.

AT A GLANCE

• Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out

• All environment operation with IP rated power and DMX connections

• Unique end-cap and back plate mounting options

• Color temperature presets, from 1800 K to 8000 K

• Selectable, smooth dimming curves for programming versatility

• Built for touring, live event, television, and theatrical productions

• Large, easy to navigate display with password protection


SPECIFICATIONS

• OPTICAL

• Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.

• Color Temperature (range): 1800 to 8000 K

• Installed Optics: 16°

• Beam Angle (Horizontal): 15.5°

• Beam Angle w/Filter (Horizontal): 41.9°

• Beam Angle (Vertical): 14.7°

• Beam Angle w/Filter (Vertical): 15.3°

• Field Angle (Horizontal): 28.6°

• Field Angle w/Filter (Horizontal): 77.9°

• Field Angle (Vertical): 28.1°

• Field Angle w/Filter (Vertical): 32.1°

• Lumens: 6,324

• Lumens w/Filter: 5,547

• Illuminance (total): 2399 lux @ 5 m

• Illuminance w/Filter (total): 653 lux @ 5 m

• Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

• DYNAMIC EFFECTS

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 25 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Dim Modes: 5

• Built-in Automated Programs: Yes

• Customizable Programs: Yes

• Recall Custom Programs: Yes

• CONSTRUCTION / PHYSICAL

• Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)

• Weight: 28.8 lb (13 kg)

• Exterior Color: Black

• Housing Material: Aluminum alloy

• CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

• Power Input: Seetronic Powerkon IP65

• Power Output: Seetronic Powerkon IP65

• Data Connectors: 5-pin IP65 XLR

• Cable Length (power): 5 ft (1.5 m)

• CONTROL

• Control Protocol: DMX, RDM

• DMX Channels: 1 Cell: 4, 6, 8, 10

• 15 Cell: 45, 60, 64, 66, 76

• Modes/Personalities: 9 personalities

• ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V

• Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz

• Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz

• Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

• CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC

• IP Rating: IP65, temporary outdoor/wet use

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

• WHAT'S INCLUDED

• Colorado Batten Q15

• Seetronic powerKON IP65 power cord

• 2 Omega Bracket

• Base Plate

• 2 Retaining Pins

• 2 Safety Cable

• Glare Shield

• Filter

• OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN

• Neutrik TRUE1 power linking cables

• 5-pin IP DMX Cables
