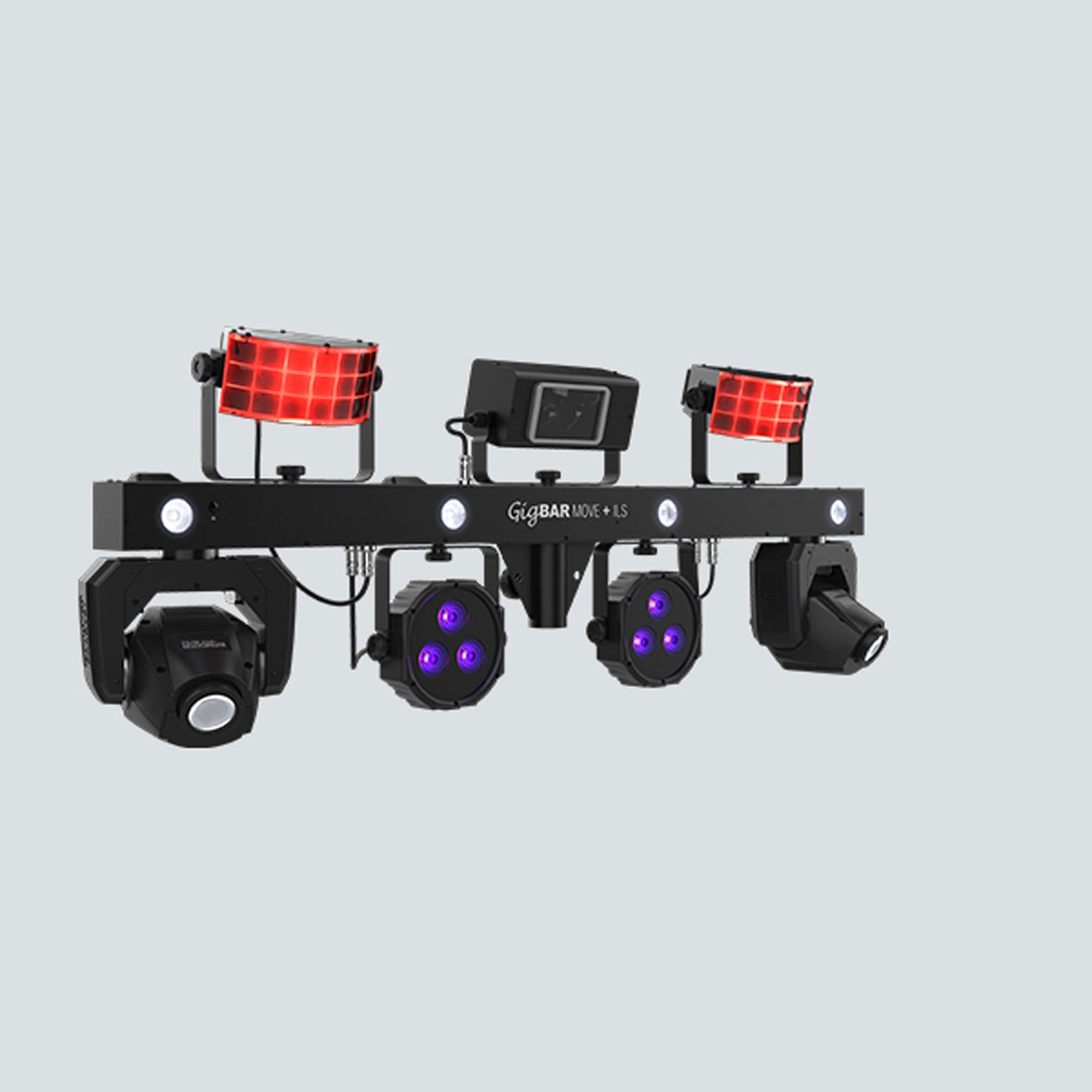

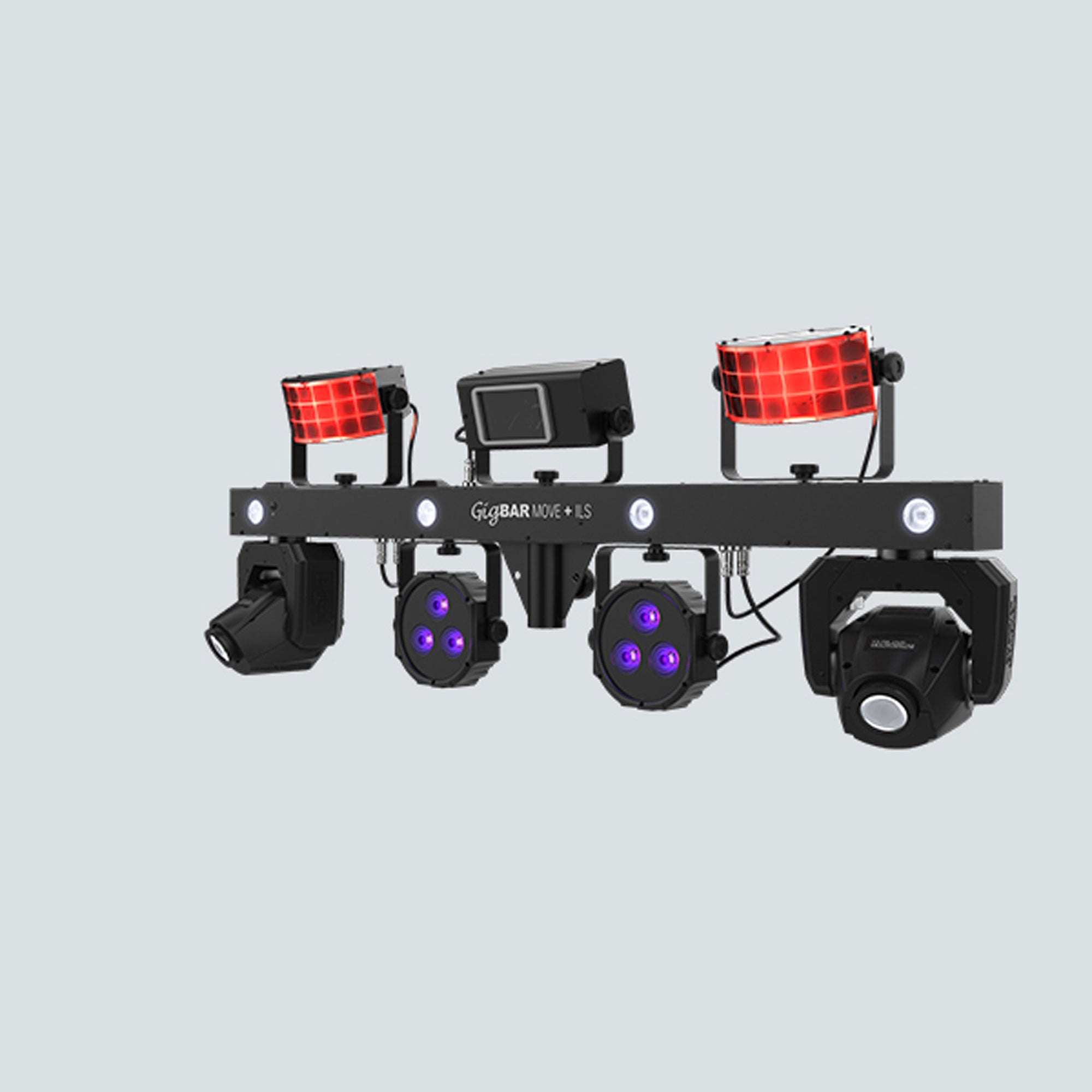

Chauvet DJ GigBAR Move + ILS Pre-Mounted 5-in-1 LED Lighting System

5-in-1 LED Lighting System with ILS Compatibility, 2 LED Derbies, 2 LED PARs, 2 LED Washes, Laser, Strobe Effect, Mounting Bar, Tripod, Wireless Footswitch, and UV

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Highlights

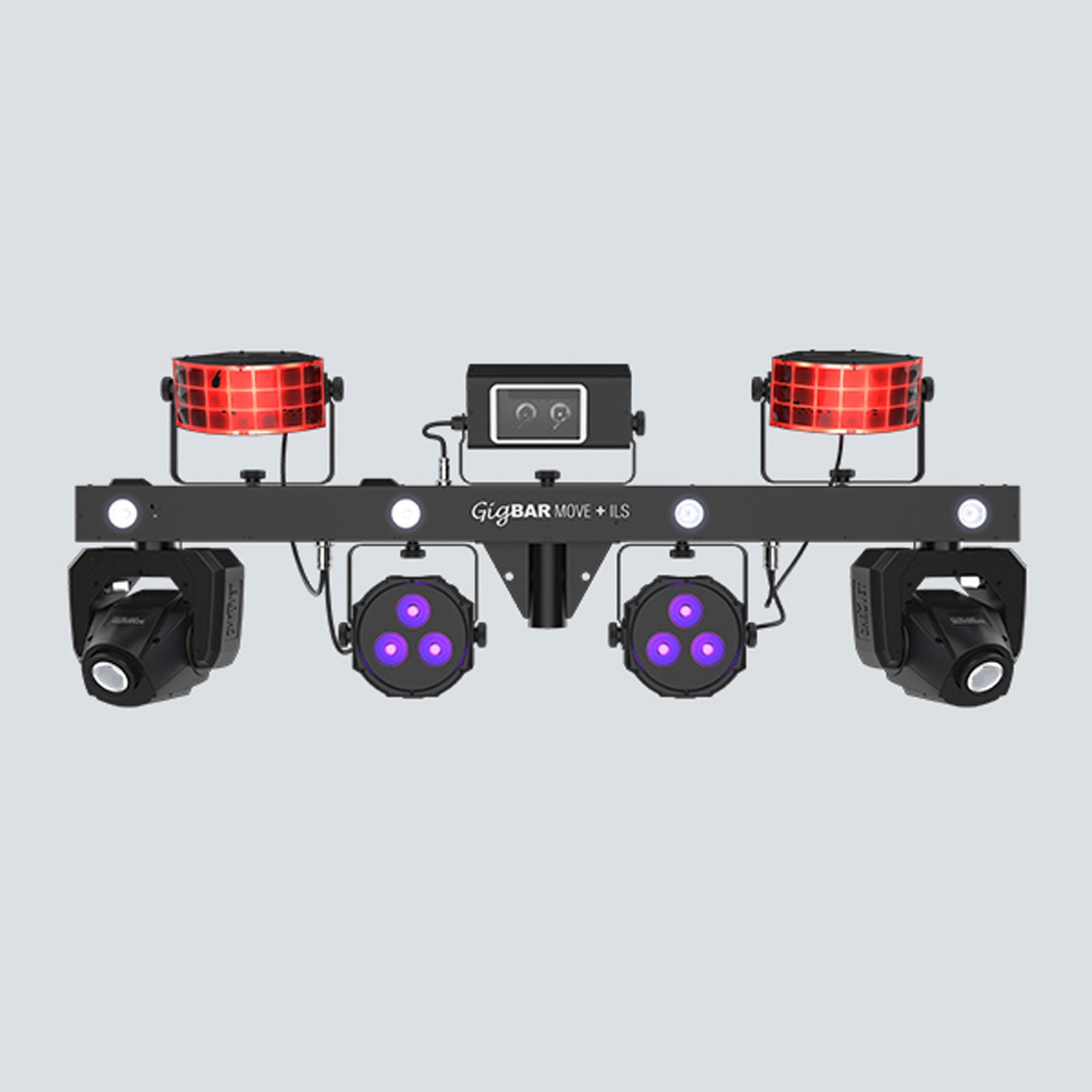

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver

• Use the included RF remote to trigger the built-in shows without needing line of sight

• Powerful moving heads with separate color and gobo wheels allow for creative programming

• Totem Mode keeps the moving heads focused on the dance floor

• Easy navigation and access to all moving head functions directly from the full-color LCD display

• Safely mounts to truss or ceilings using the 3/8 in threaded inserts

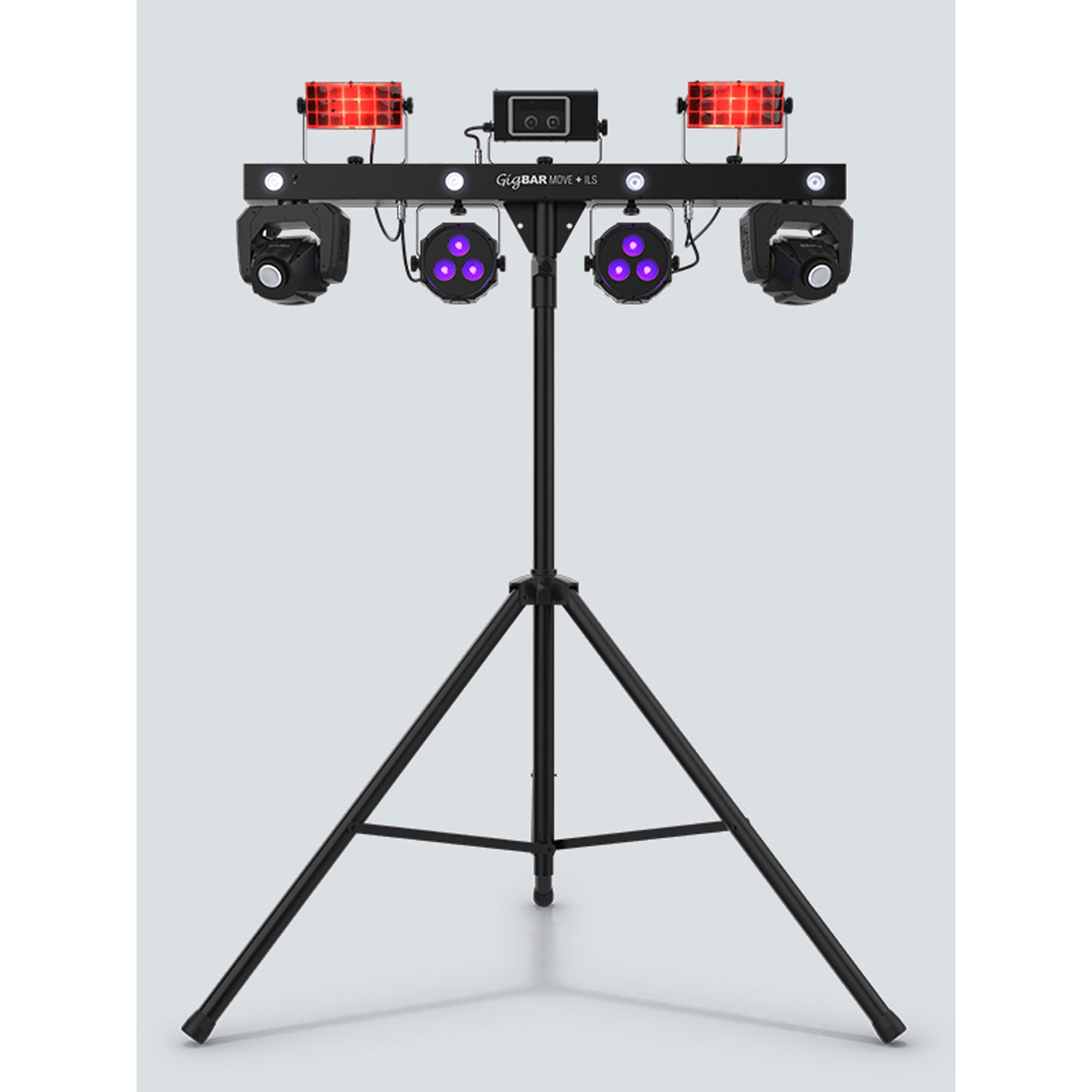

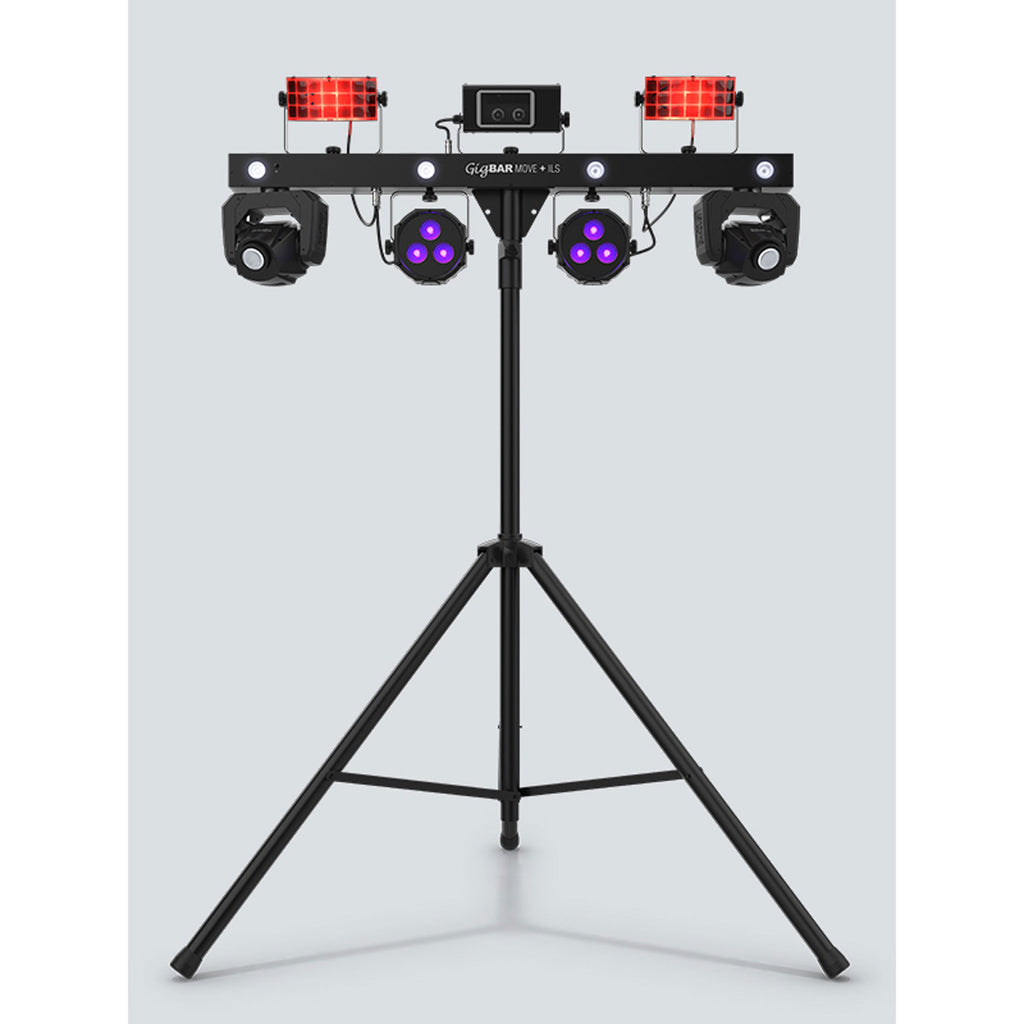

• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup

• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects

• Individual control of each effect ensures your show looks the way you need it to

• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch


Specifications

• DMX Channels: 3, 28, or 50

• DMX Connectors: 3-pin XLR

• Pan and Tilt: 540°/180°

• Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds

• Gobos: (moving head): 9 + open, continuous scroll at variable speeds

• Light Source: (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode

• Strobe Rate: 0 to 30 Hz

• Beam Angle: (moving head): 17° (pars): 22° (strobe): 30°

• Field Angle: (pars): 33° (strobe): 62°

• Coverage Angle: (derby): 131° (laser): 93°

• Fits Tripod Size: 1.5 in (37.4 mm)

• Illuminance: (pars): 1,205 lux @ 2 m (per par)(moving head): 5,140 lux @ 2 m (per head) (strobe): 130 lux @ 2 m

• Power Linking: 7 units @ 120 V; 12 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 250 W, 3 A @ 120 V, 60 Hz 248 W, 1.8 A @ 230 V, 50 Hz

• Weight: (bar only) 31 lbs (14 kg)

• Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)

• Approvals: CE, UKCA, RoHS, FCC, FDA

• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)

• Footswitch Operating Frequency: 433 MHz

• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)

• Max Unobstructed Distance (D-Fi): 600 ft (183 m)

• Footswitch Battery: 9 V alkaline

• Included Controllers: RF remote, wireless footswitch

• Cable Length: 10 ft (3 m)

• Tripod Thickness: 1.37 in (35 mm)

• Optional Controllers: RF

• RF Remote Battery: 23A, 12 V alkaline

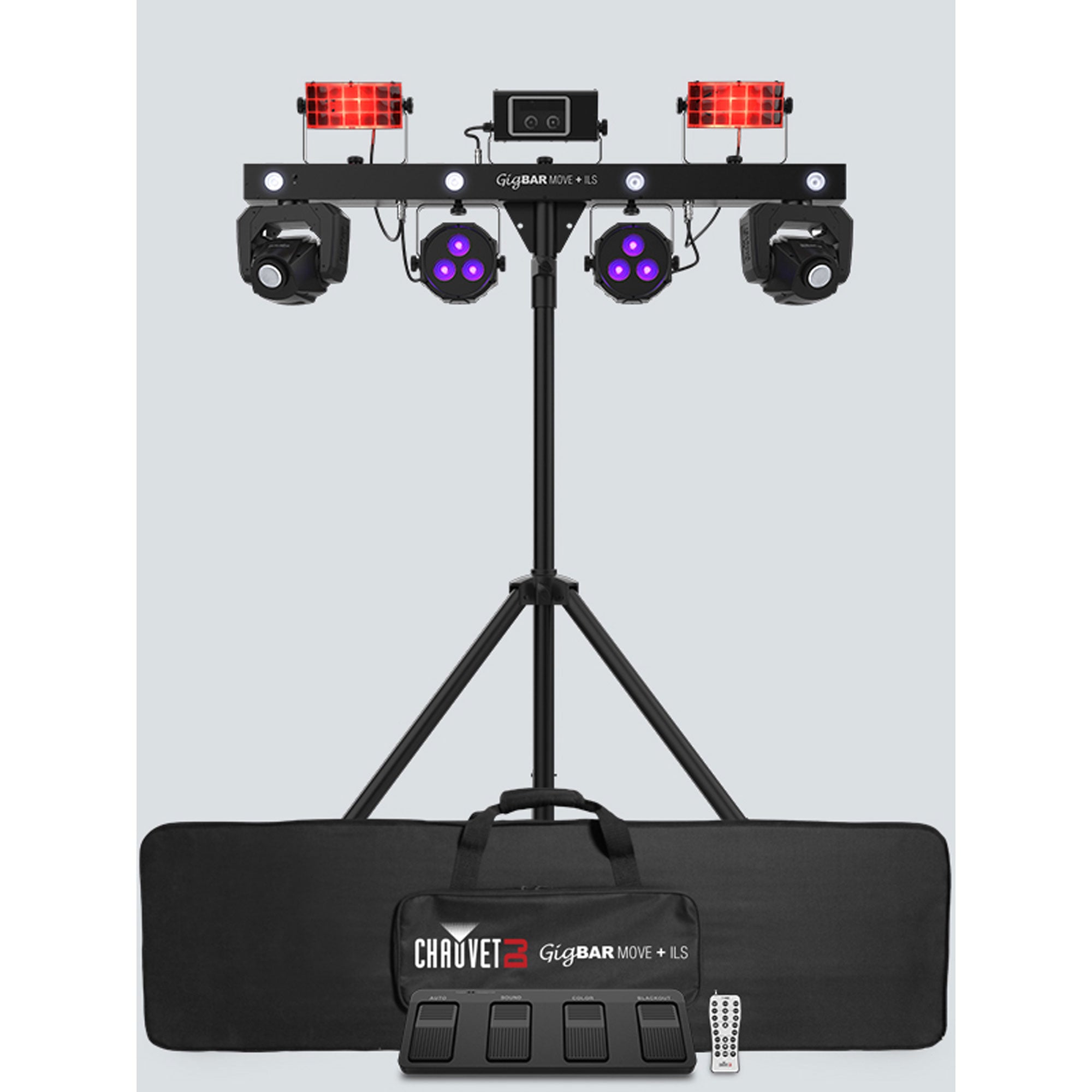

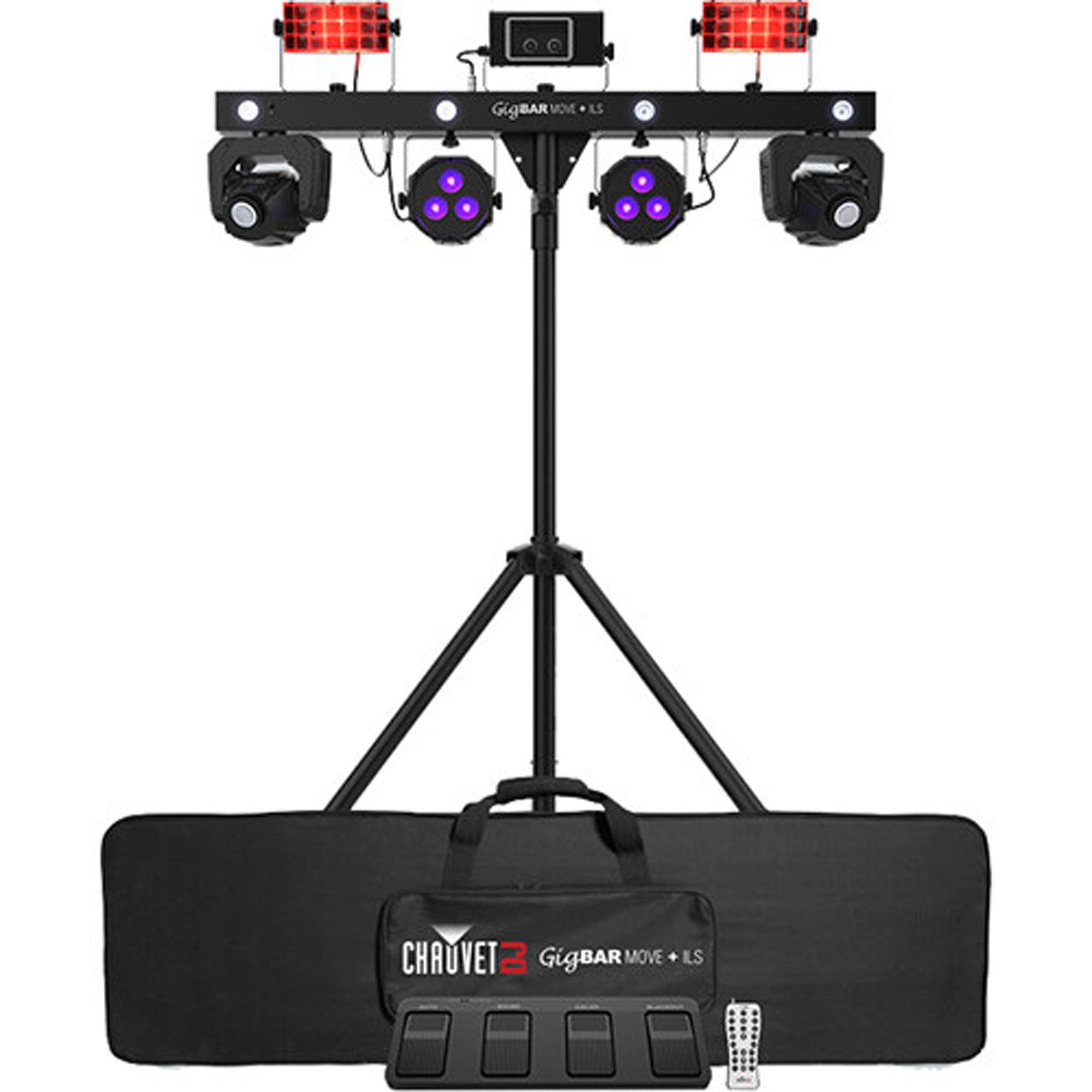

What's Included

• GigBAR Move + ILS

• Power cord

• RF Remote

• Carry bag

• Tripod

• Tripod carry bag

• Footswitch

• User Manual
