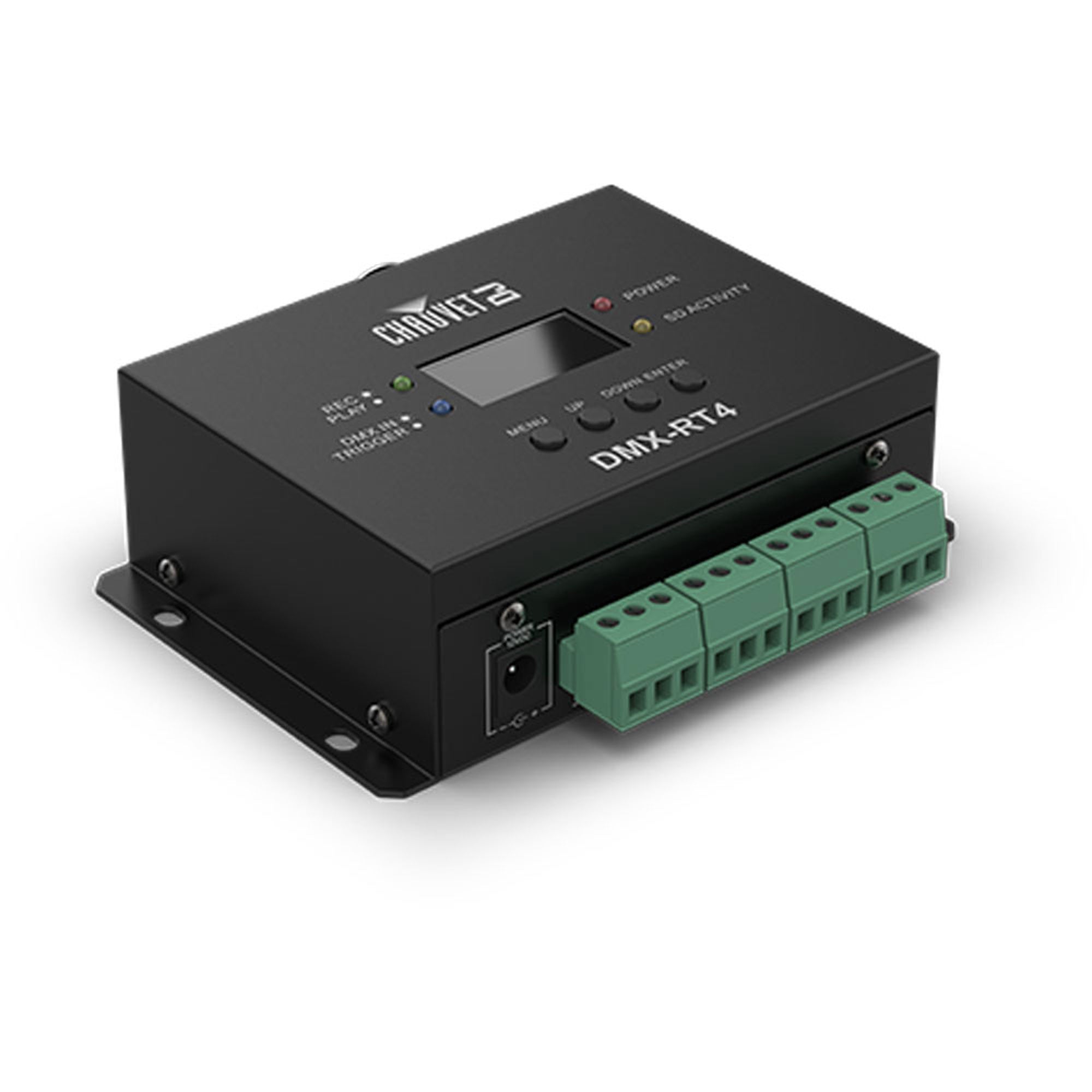

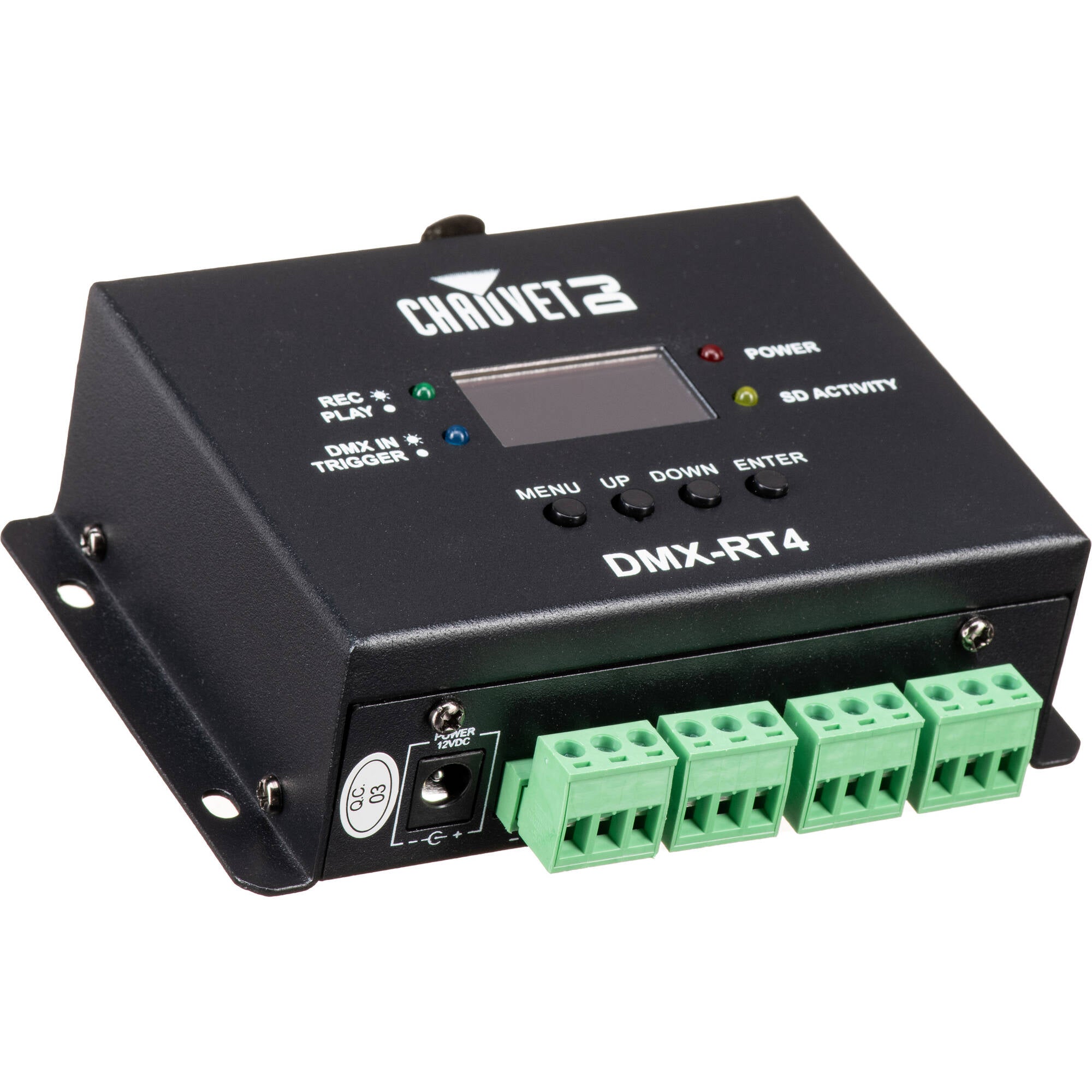

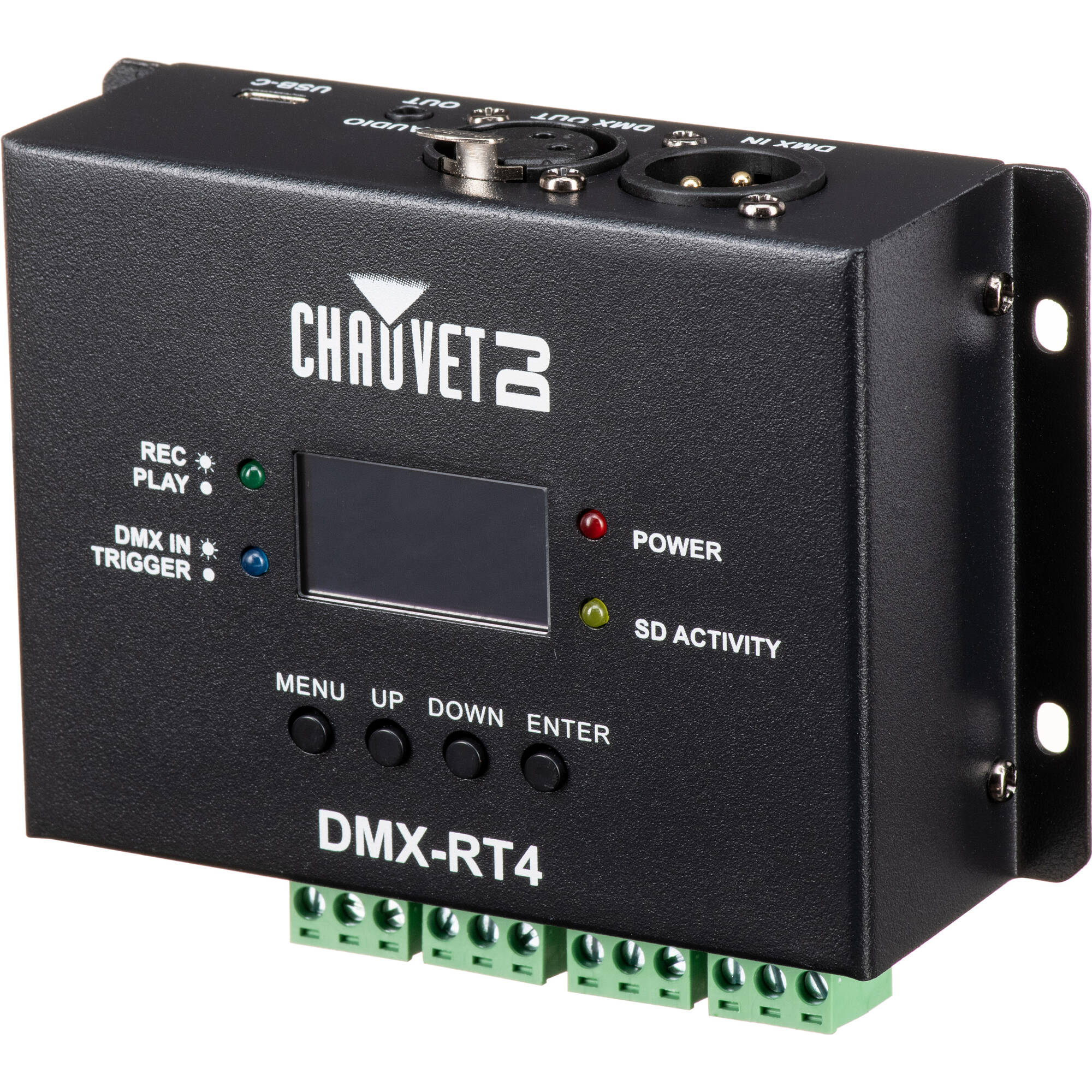

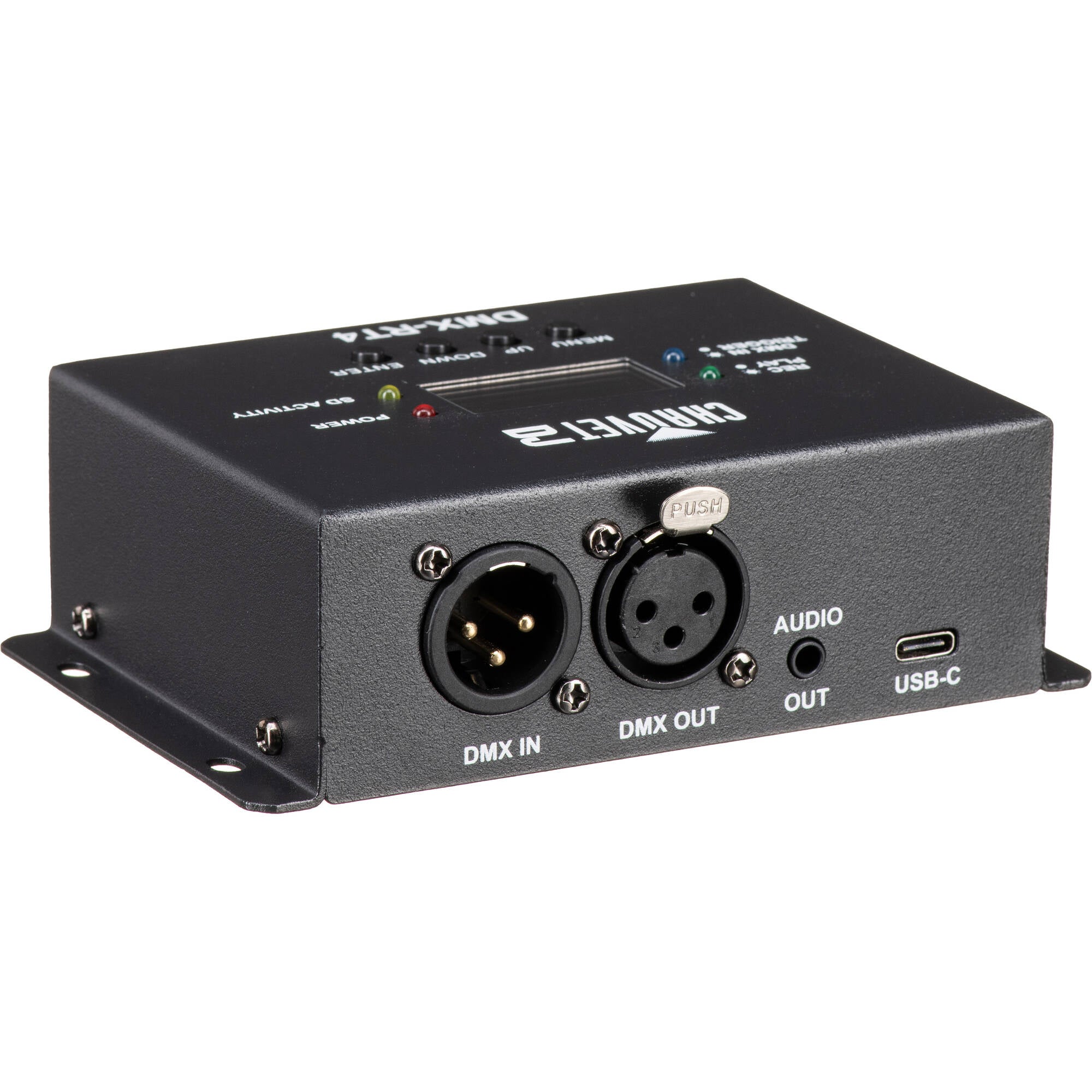

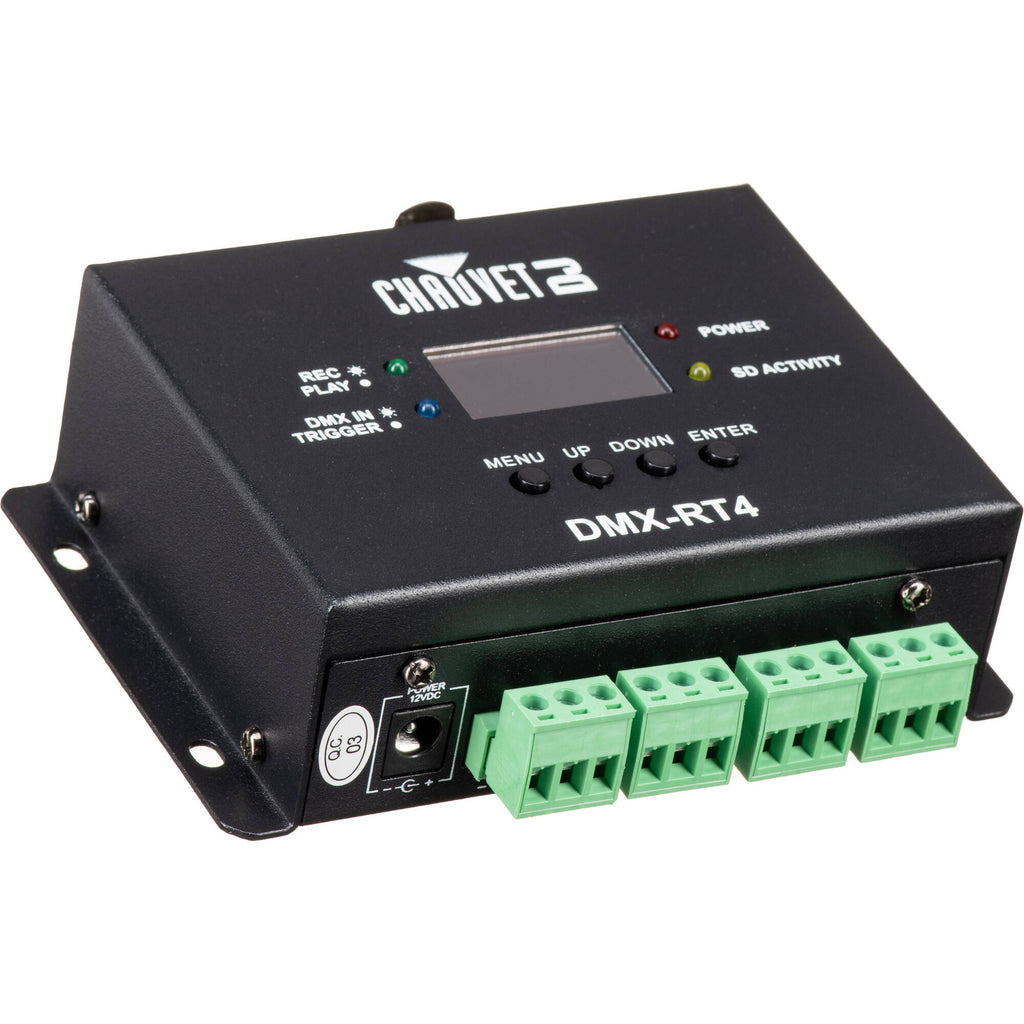

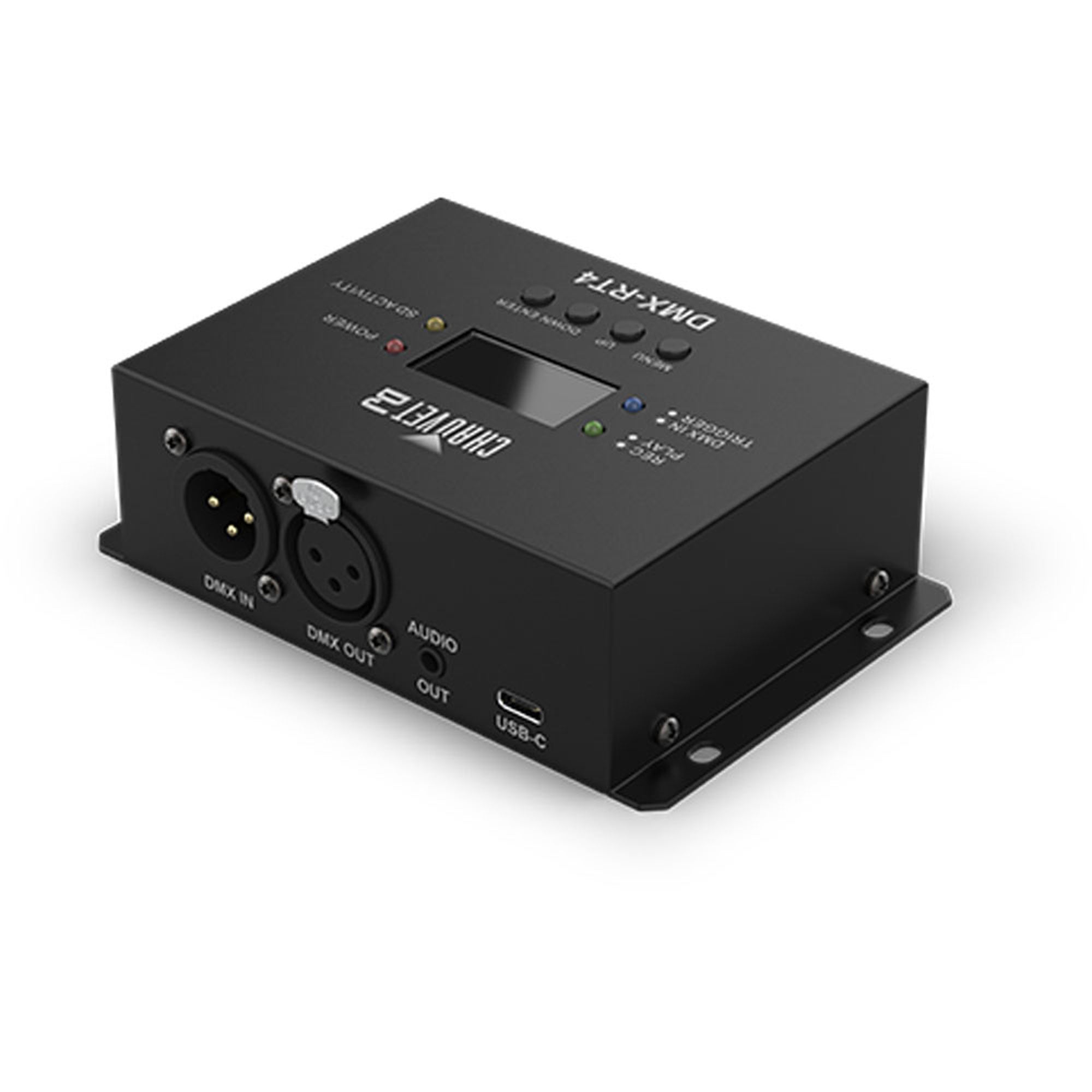

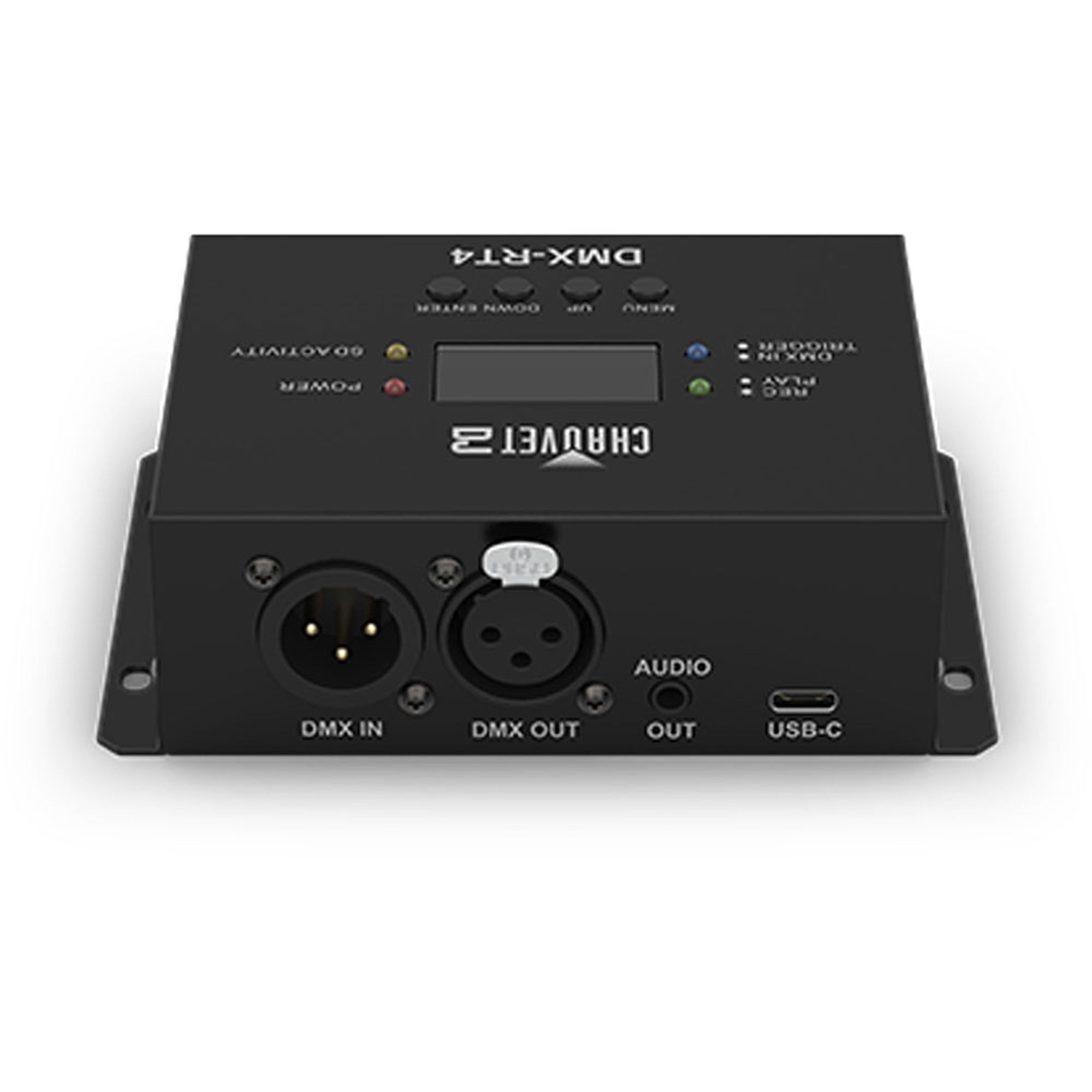

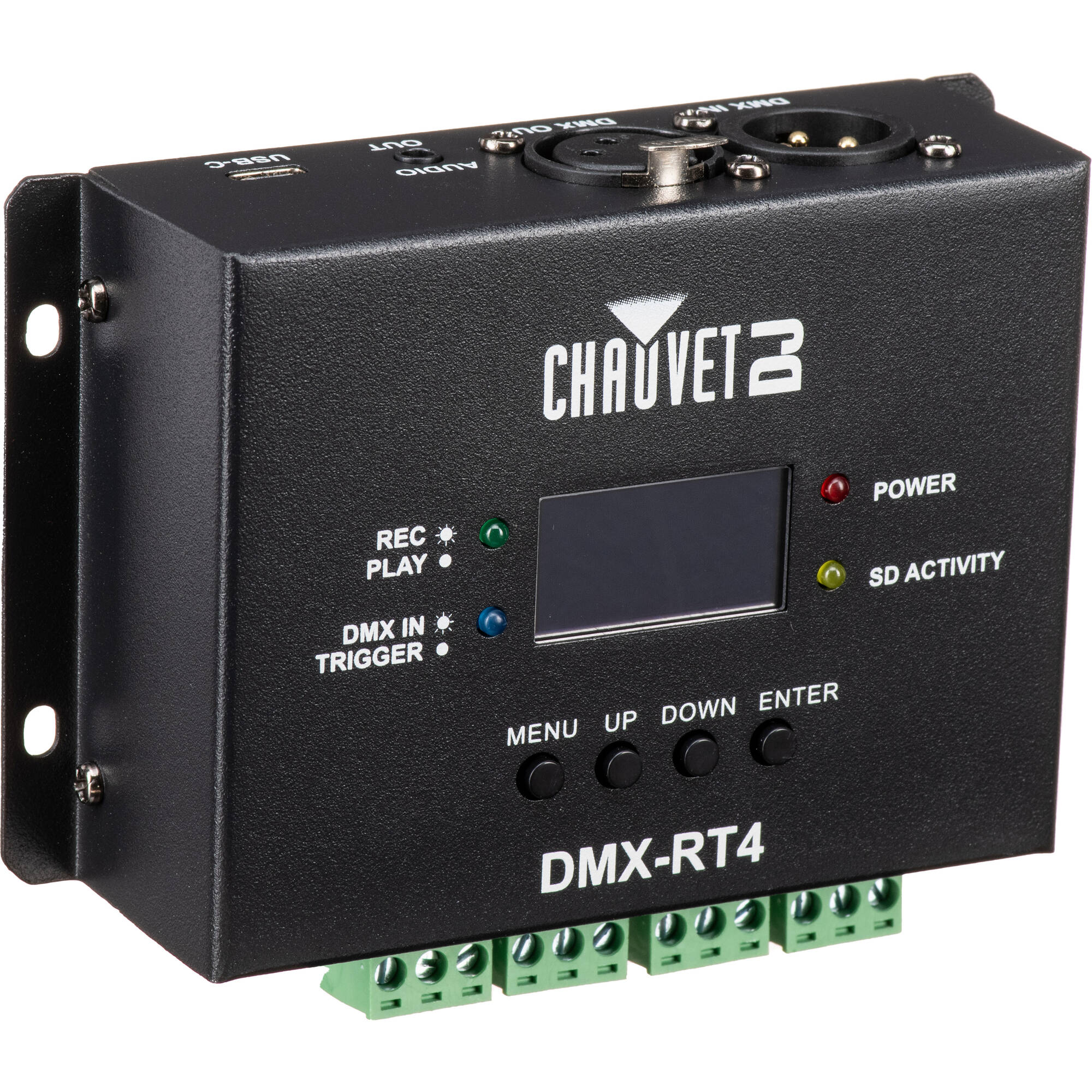

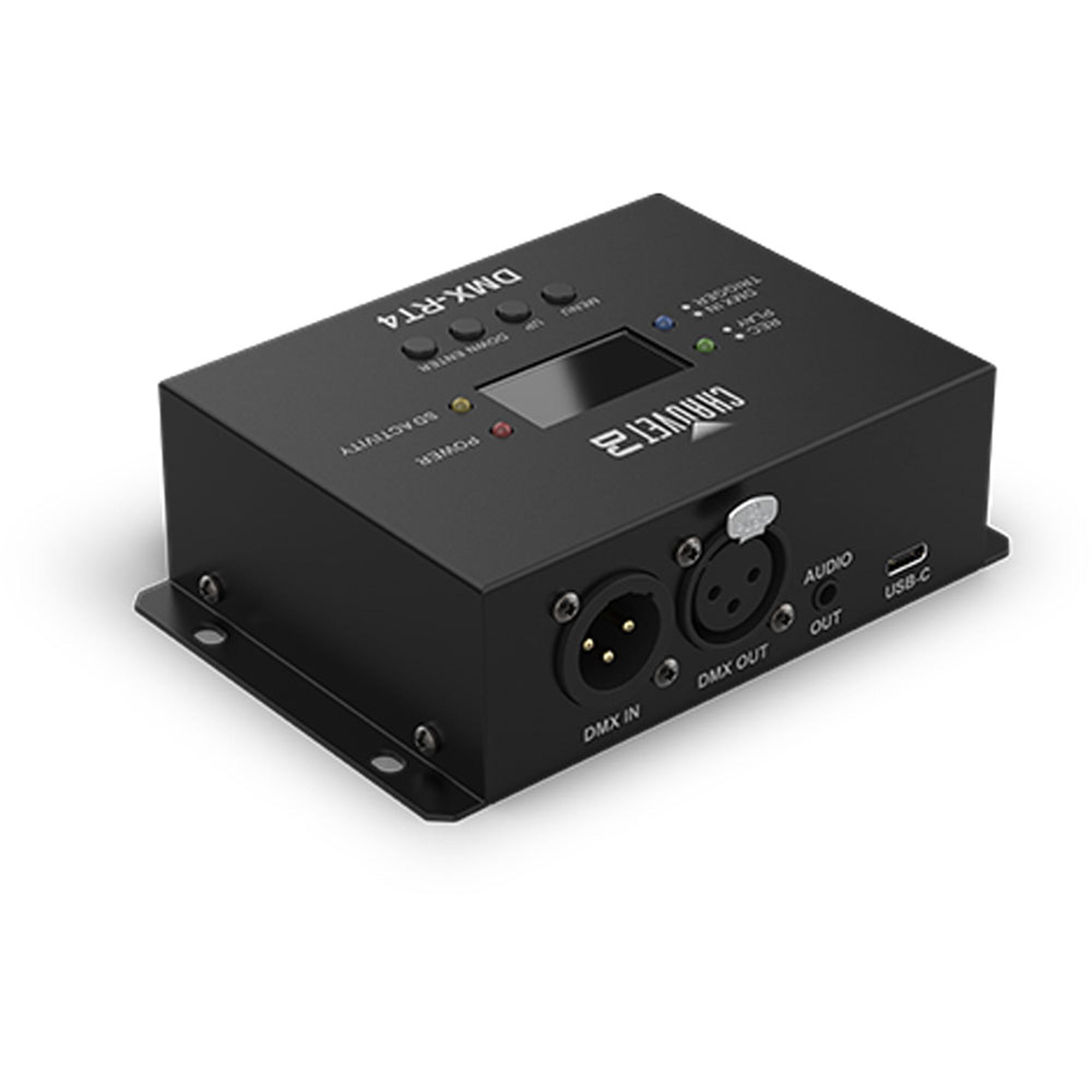

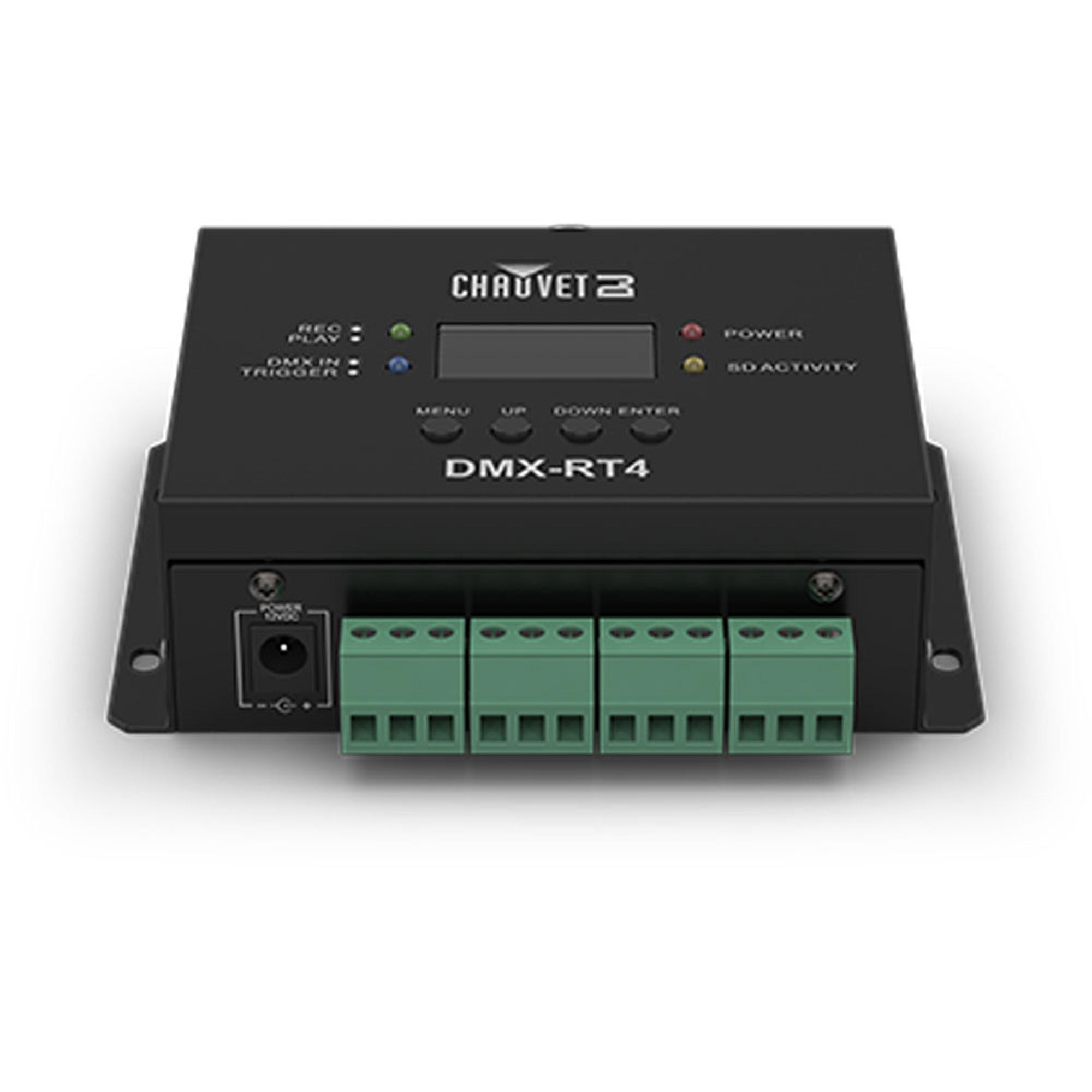

Chauvet DJ DMX-RT4 Recorder/Playback Device

DMX Recording and Playback Device with 4 Independent Triggers, 3-pin XLR DMX I/O, USB-C Connectivity, 3.5mm Audio Output, Password Protection, and 32GB Onboard Memory

Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DC voltage through terminal block to power specific triggers.

Highlights:

• DMX recording and playback device with 4 independent triggers

• Each trigger can be programmed and triggered separately

• Copy, backup and transfer show files using the USB-C connector

• Standard headphone connector (3.5mm) connects to external audio systems for amplified playback

• Password protection ensures shows will not be altered

• Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors

• Supplies DC voltage through terminal block to power specific triggers


Specifications:

• DMX Channels: 3-pin XLR

• Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)

• Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz 1 W, 0.03 A @ 230 V, 50 Hz

• Weight: 0.4 lb (0.2 kg)

• Size: 4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)

• Approvals: CE, UKCA, RoHS

• Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only)

• Onboard memory: 32 GB

• Filename max length (MP3/WAV): 12 characters

• Filename max length (show file): 11 characters

• Trigger Type: auto, toggle, N/O or N/C

• Terminal Block output: 12 VDC, 100 mA


What's Included:

• DMX-RT4

• External power supply

• Quick Reference Guide
