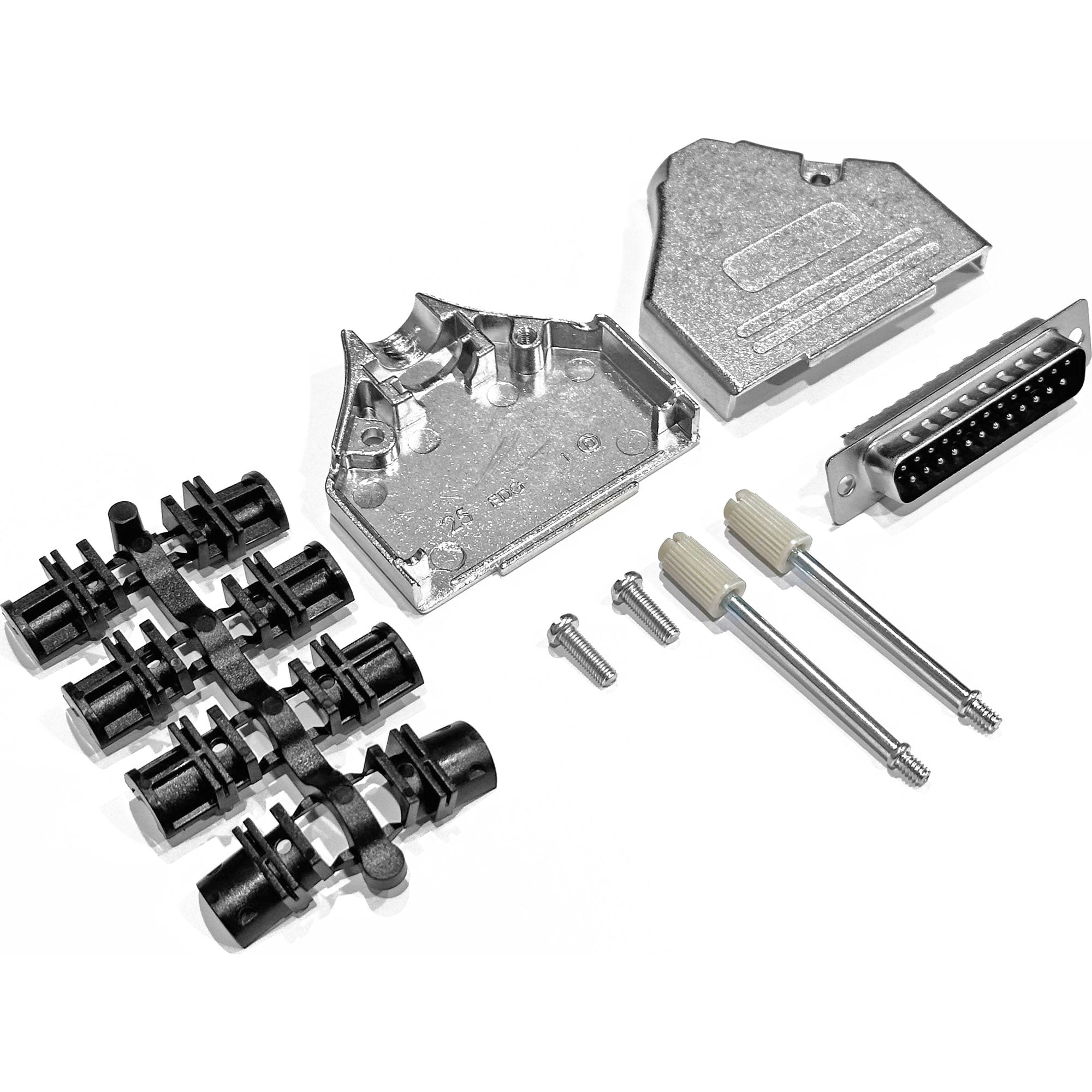

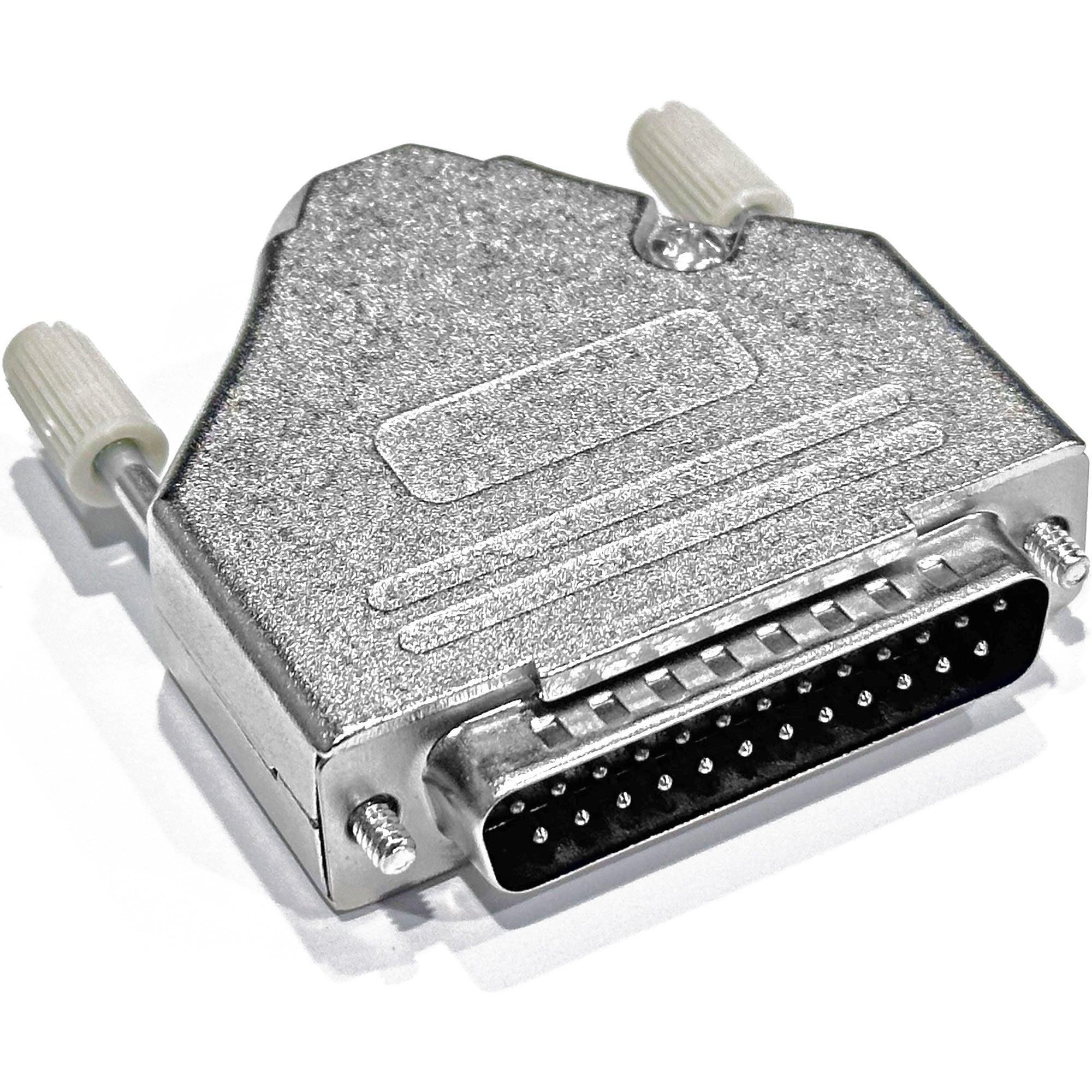

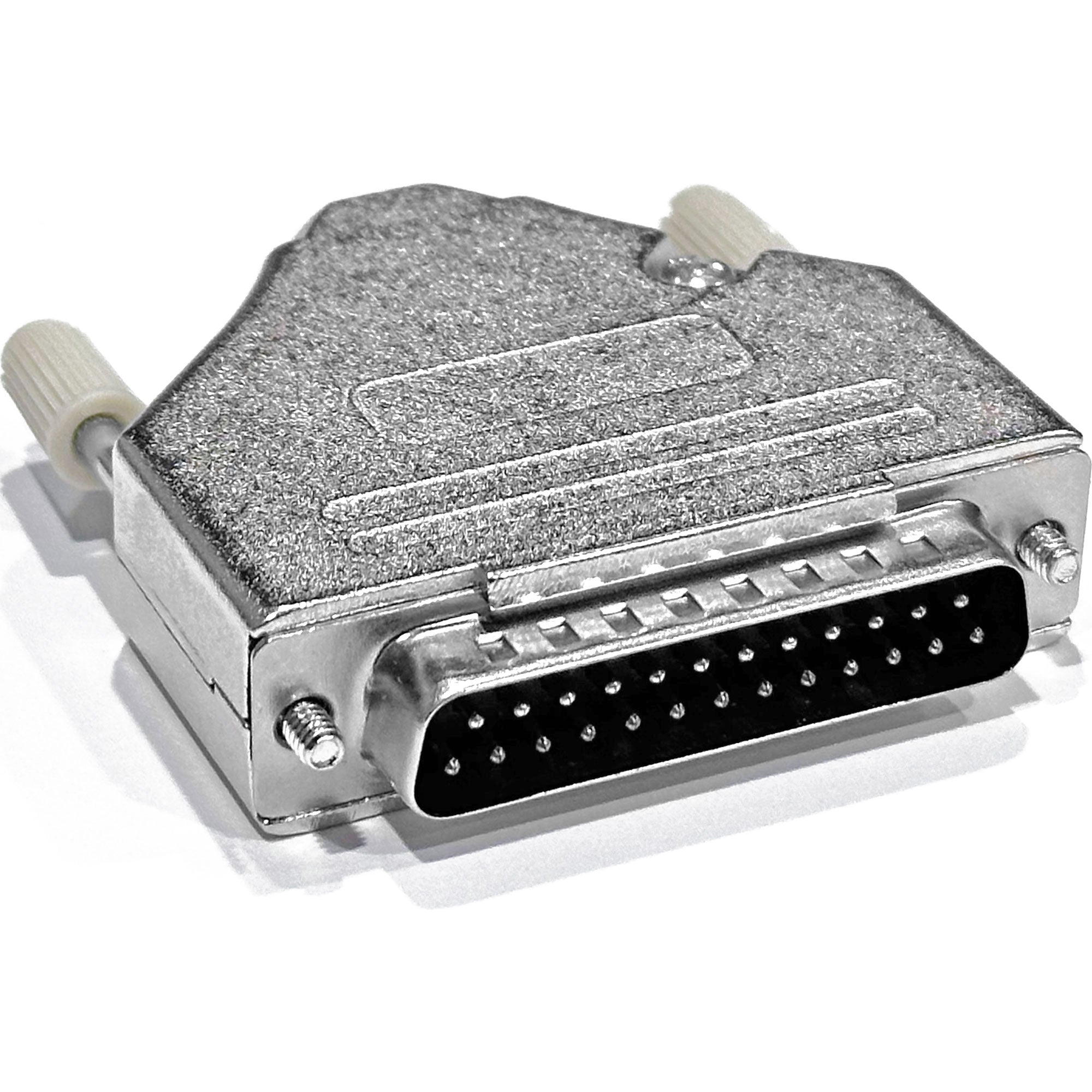

CBI DB25 D-Sub Complete Solder Connector Kit with Male Insert

25-Position D-Sub RFI/EMI Shield Backshell with Grommets and Solder Style Male Insert

CBI Kit CST, D-Sub Backshells & Clamps, Cable Clamp Kit, Two-Piece RFI/EMI Shield, 25 Position, Compatible With Connector Shell Size 3, Shielded.

CBI Solder D-Sub Connectors, Plug, Cable-to-Board, 25 Position, 20 D-Sub Contact Size, 3 D-Sub Shell Size, Shielded, Mating Retention, Mounting Holes.

Features:

• D-Sub Shell Size: B
• Series: Amplimite
• Body Orientation: Straight
• Housing Material: Zinc Alloy
• Number Of Contacts: 25
• Rohs: RoHS Certificate of Compliance

Specifications:

D Sub Backshell

• Product Type Features
• D-Shaped Connector Accessories: Cable Clamp Kit
• Product Type: Accessory
• Grommets: None
• Configuration Features
• Number of Positions: 25
• Body Features
• Cable Clamp Type: Two-Piece RFI/EMI Shield
• Cable Exit Angle: 180° (In-Line)
• Shield Plating Finish: Bright
• Grommets per Set: 0
• Cable Clamp Material: Zinc Alloy
• Shield Plating Material: Nickel over Copper
• Mechanical Attachment
• Screw & Hole Thread Size: 4-40
• Dimensions
• Cable Insulation Diameter Range: 6.48 - 11.94 mm [ .255 - .47 in ]
• Usage Conditions
• Operating Temperature Range: -55 - 105°C [ -67 - 221°F ]
• Operation/Application
• Compatible With Connector Shell Size: 3
• Shielded: Yes
• For Use With: Plug/Receptacle
• Packaging Features
• Packaging Method: Kit
• Packaging Quantity: 1

• Comment: All parts are packaged unassembled., Jackscrews must be purchased separately., Shielded cable clamps will not accept connector housings with clinch nuts.

25 Plug Solder Cup

• Product Type Features
• Shell Type: Full Metal Shell
• Connector & Housing Type: Plug
• Connector System: Cable-to-Board
• D-Sub Shell Size: 3
• Sealable: No
• Connector & Contact Terminates To: Printed Circuit Board
• Product Type: Connector
• Grounding Indents: With
• Grade: Standard
• Configuration Features
• Number of Positions: 25
• Preloaded: Yes
• Body Features
• Shell Plating Material: Tin
• Insert Material: Thermoplastic
• Color: Black
• Shell Material: Steel
• Contact Features
• Contact Base Material: Brass
• PCB Contact Termination Area Plating Material: Tin-Copper
• Contact Underplating Material: Nickel
• Contact Mating Area Plating Material: Gold Flash
• D-Sub Contact Size: 20
• Contact Current Rating (Max) (A): 3
• Contact Mating Area Plating Thickness (µin): .8
• Contact Type: Pin
• Termination Features
• Termination Method to Wire & Cable: Solder
• Mechanical Attachment
• PCB Mount Retention Type: None
• Mating Retention: With
• Mating Retention Type: Mounting Holes
• Connector Mounting Type: Board Mount
• Mounting Angle: Straight
• Housing Features
• Enclosure: Without
• Centerline (Pitch): 2.77 mm [ .11 in ]
• Dimensions
• Wire Size (mm²): .5 - .6
• Wire Size (AWG): 20
• Usage Conditions
• Operating Temperature Range: -55 - 105°C [ -67 - 221°F ]
• Operation/Application
• Shielded: Yes
• Circuit Application: Signal
• Industry Standards
• UL Flammability Rating: UL 94V-0
• Insert Flammability Rating: UL 94V-0
• Packaging Features
• Packaging Method: Tray
