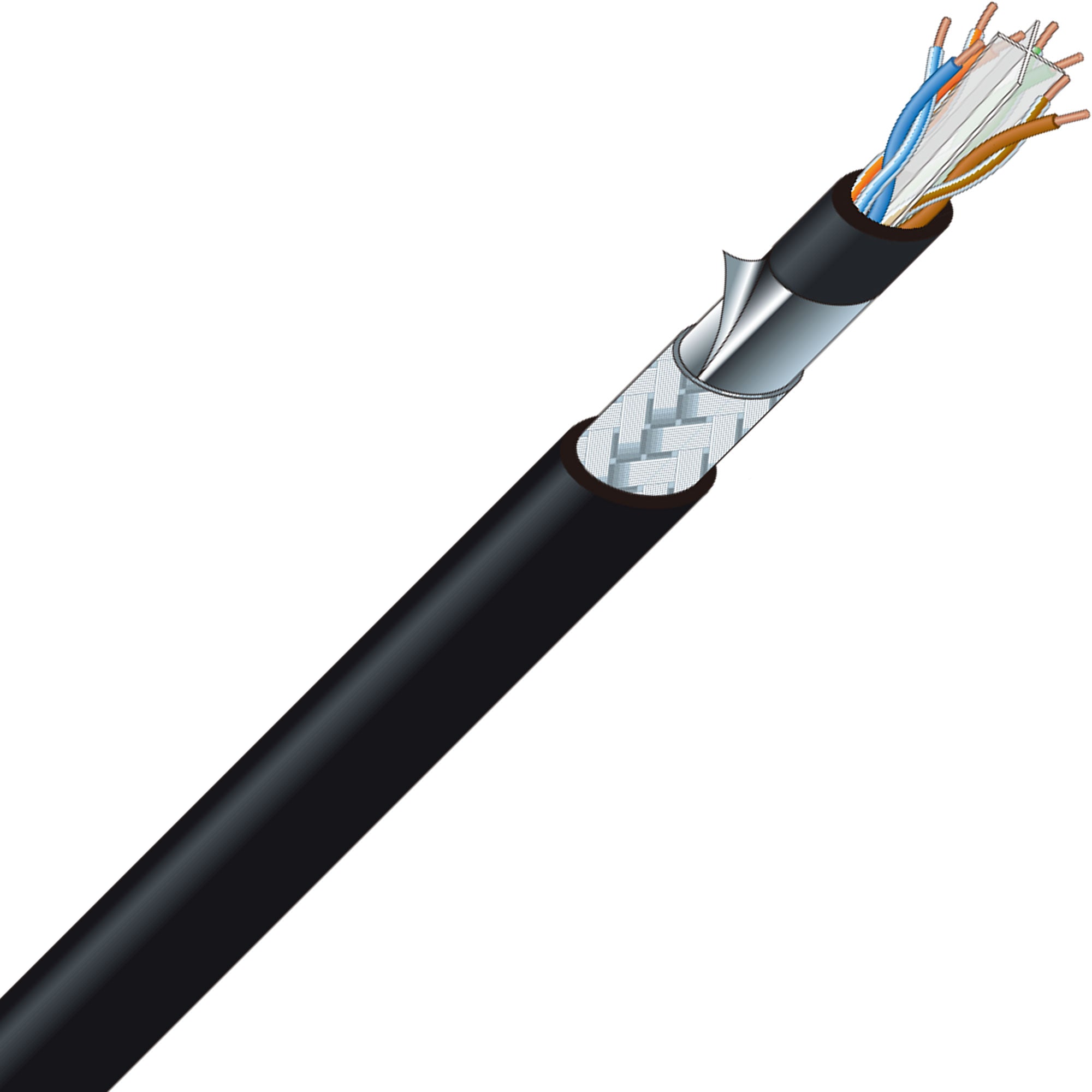

Canare RJC6A-4P-SFM Cat6a Flexible and Rugged STP Shielded Ethernet Cable (Black, By the Foot)

CanareSKU: CAN RJC6A4PSFM
MPN: RJC6A-4P-SFM

Price:
Sale price$2.00
Stock:
552 In Stock & Ready to Ship

Key Features

  • Shielded Cat 6a STP Cable
  • Flexible & Easy to Use
  • 23 AWG Solid Conductors
  • Abrasion Resistance PVC Jacket
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

Flexible and Rugged CAT6A Ethernet Cable with Overall Foil Shield - Great for Mobile Use - Sold by the Foot

This Cat 6a Canare RJC6A-4P-SFM Ethernet cable integrates 4 pairs of twisted 0.26mm_ conductors with double general shielding type SF/UTP.

Features:

  • Flexible and easy-to-use CAT6A STP cable.
  • 23 AWG solid conductors
  • High-density braided shield (87% coverage)
  • Abrasion resistance PVC jacket

Specifications:

  • Model: RJC6A-4P-SFM
  • Shield type: Overall foil and braid (SF/UTP)
  • Sales units: 100m, 200m
  • Nom. O.D. mm: 8.6
  • Weight kg/100m: 8.9
  • Conductors: Cross sec. area & composition, mm2/(AWG) Q'ty/mm: 0.26 (23), 1/0.57A
  • Conductors: DCR ohm/100m: 8.2
  • Impedance ohm: 100
  • Insertion loss 100 MHz dB/100m: 19.1
  • Insertion loss 250 MHz dB/100m: 31.1
Details
  • Manufacturer:  Canare
  • MPN: RJC6A-4P-SFM
  • Model Number: RJC6A-4P-SFM
  • UPC:
