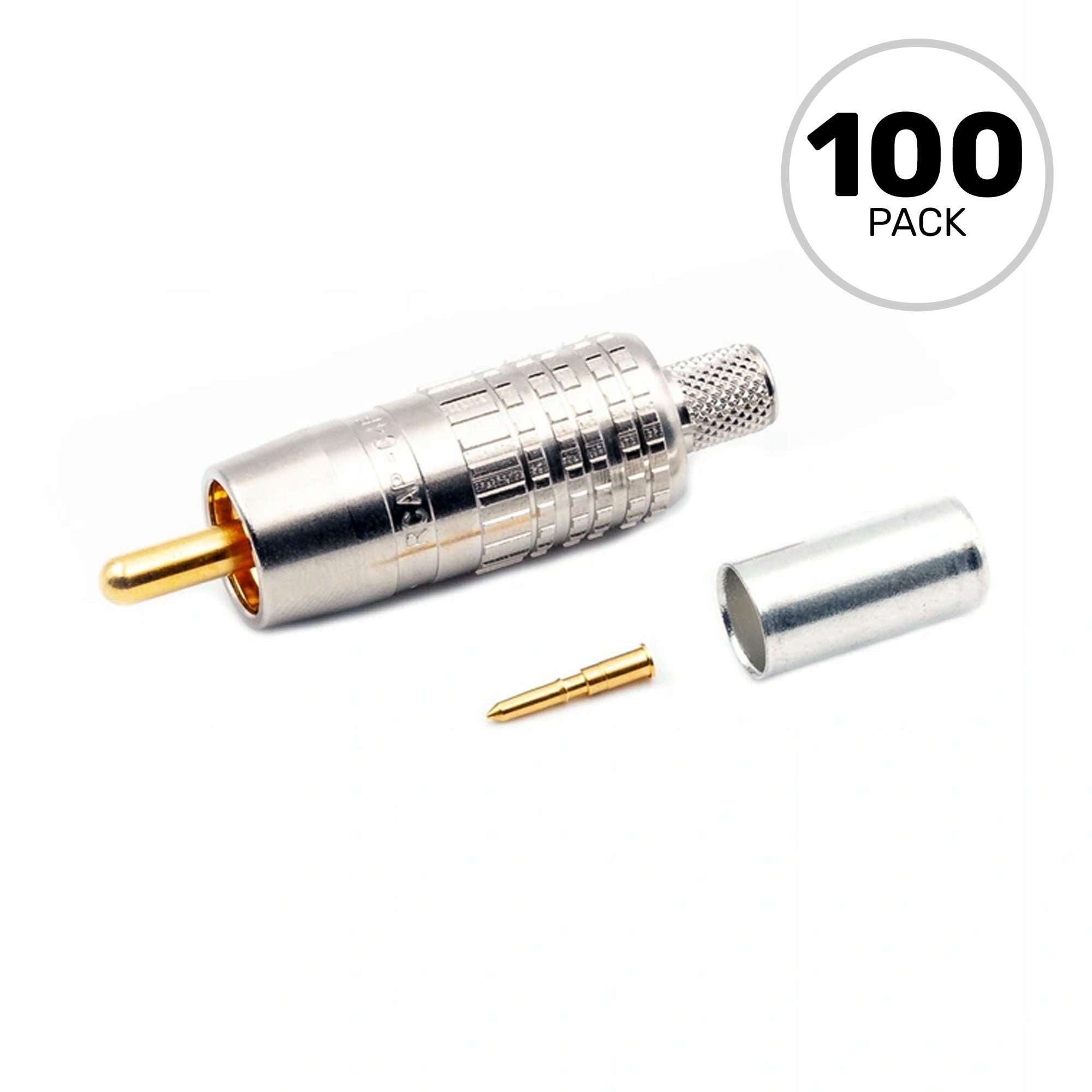

Canare RCAP-C4A 75 Ohm RCA Crimp Plug Connector for LV-61S, etc. (100 Pack)

75 Ohm RCA Crimp Plug for Canare LV-61s Cable - Full Box of 100 Connectors

Canare's all new 75 ohm type RCAP Video Crimp Plugs are impedance matched and achieve outstanding analog and digital electrical performance with a usable bandwidth to 200MHz. Our original 3-piece connector design offers consistent and extremely reliable terminations with a wide variety of 75 ohm coaxial cable sizes. This unique construction reduces set-up and assembly time by >80% because no soldering is ever required!

Features:

• Standard 75 ohm construction Crimp Pin & Sleeve
• DC to 200MHz >26dB Return Loss (<1.1 VSWR)
• Absolutely No Soldering Required
• Assembly Time Reduced by 80%
• Superior cable pull strength
• Internal Pressure Contact Fingers
• Gold plated center Shaft
• Easy Assembly using Canare Strip & Crimp Tools
• Operating temperature -20 to +60 degrees Celsius

Specifications:

• Model: RCAP-C4A
• Cable: LV-61S, 8241, 8279, RG-598/U
• Boot: CB25
• Crimp Die: TCD-4CA, TCD-451CA
• Crimp Pin: B11015E
• Sleeve: BN7015A
• NOMINAL SPECIFICATIONS

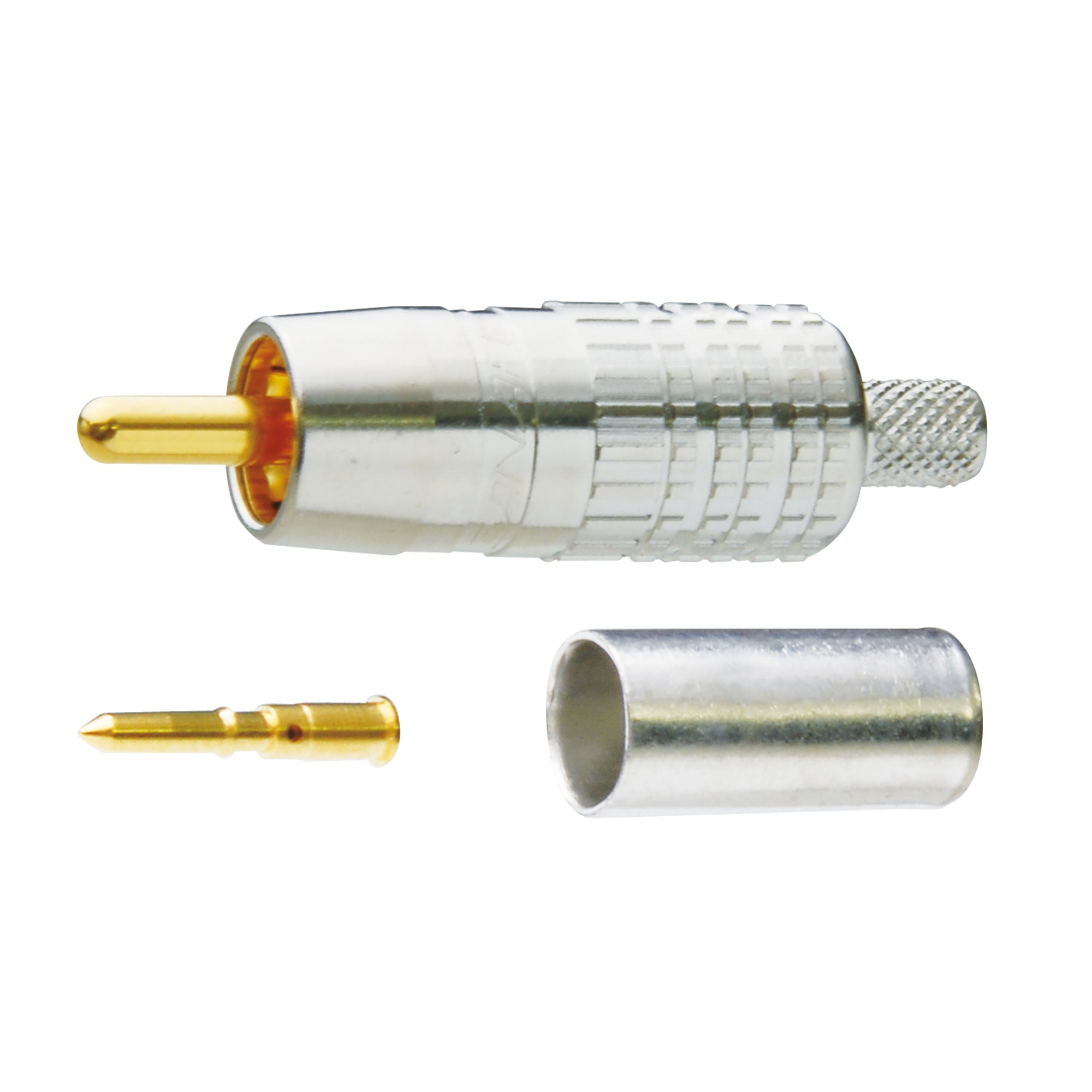

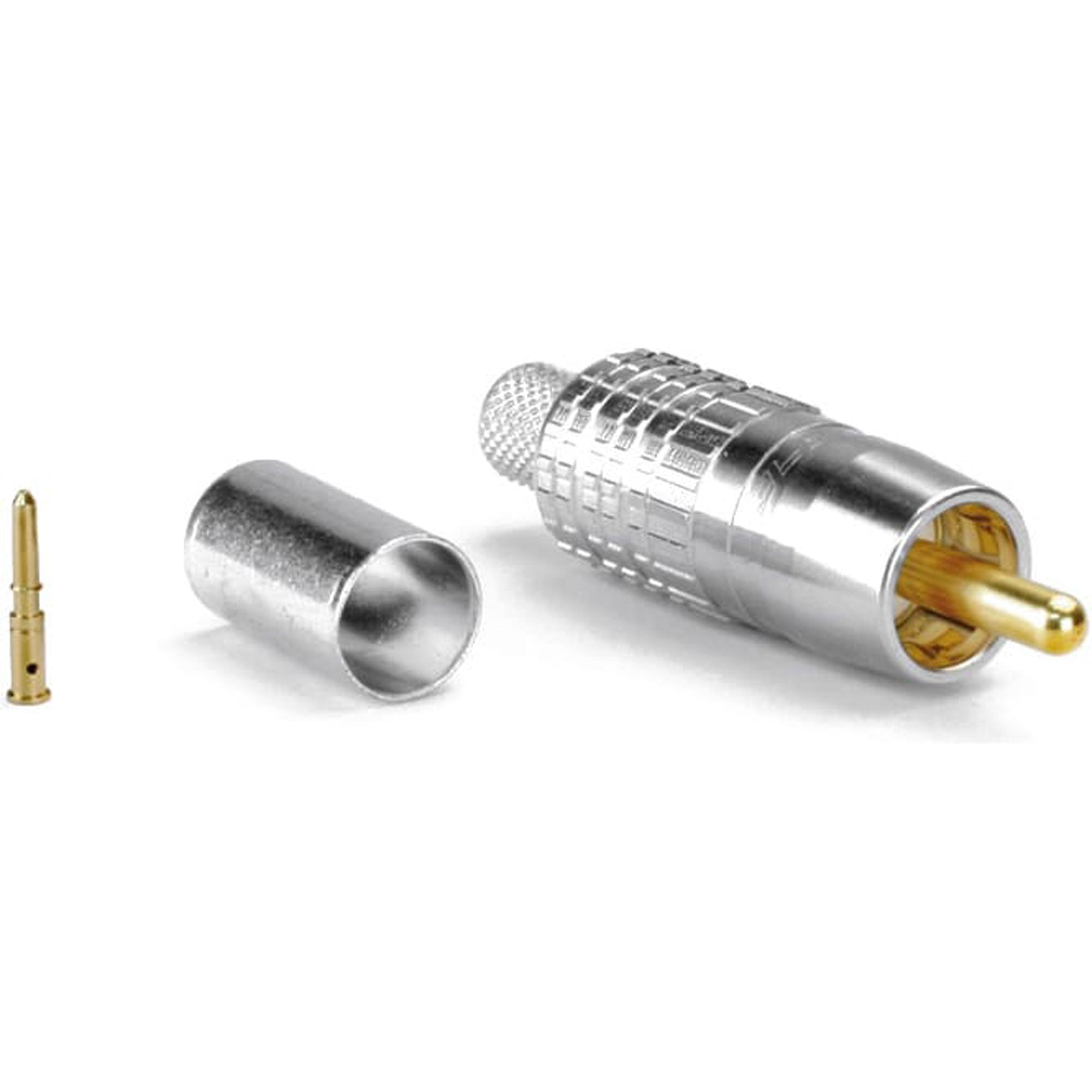

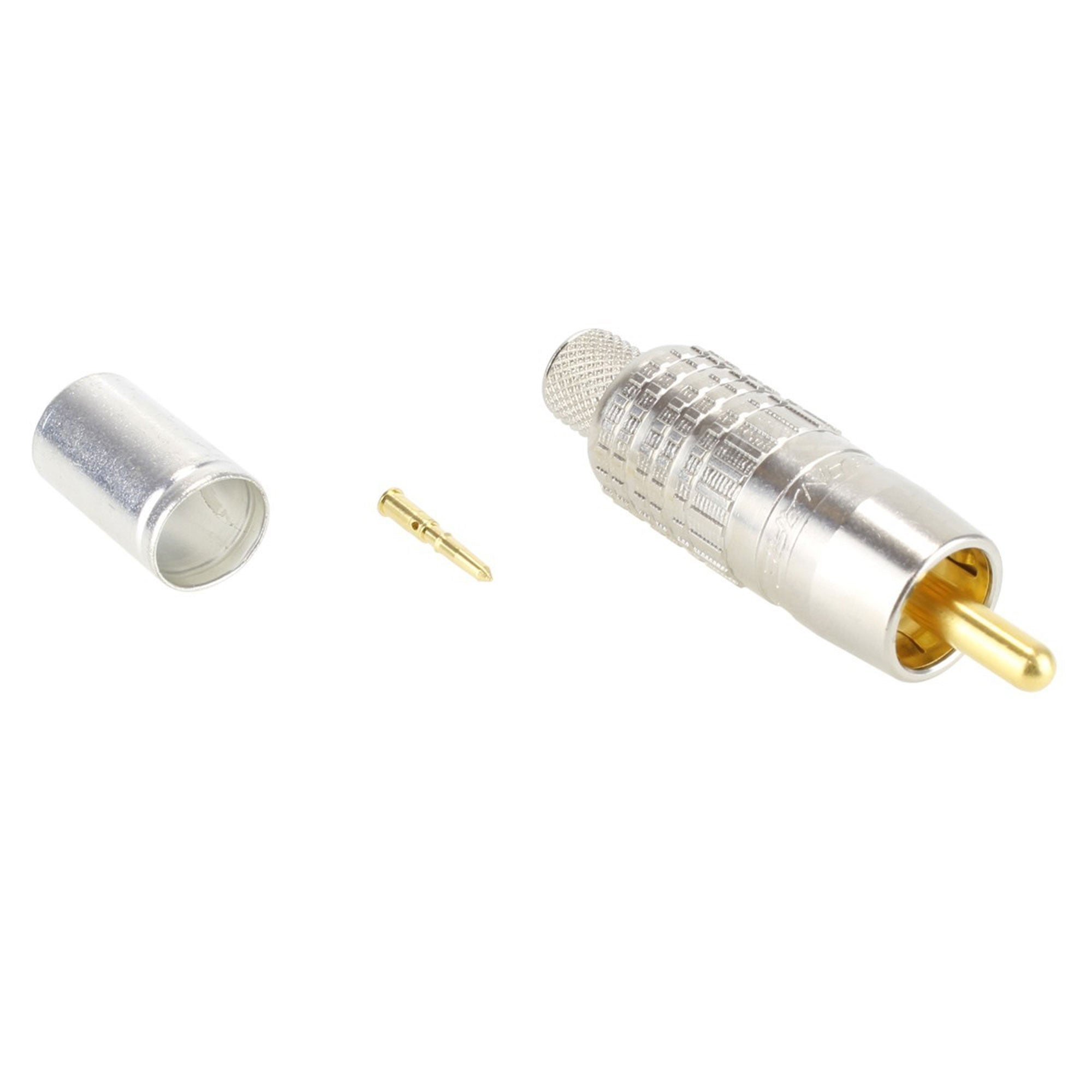

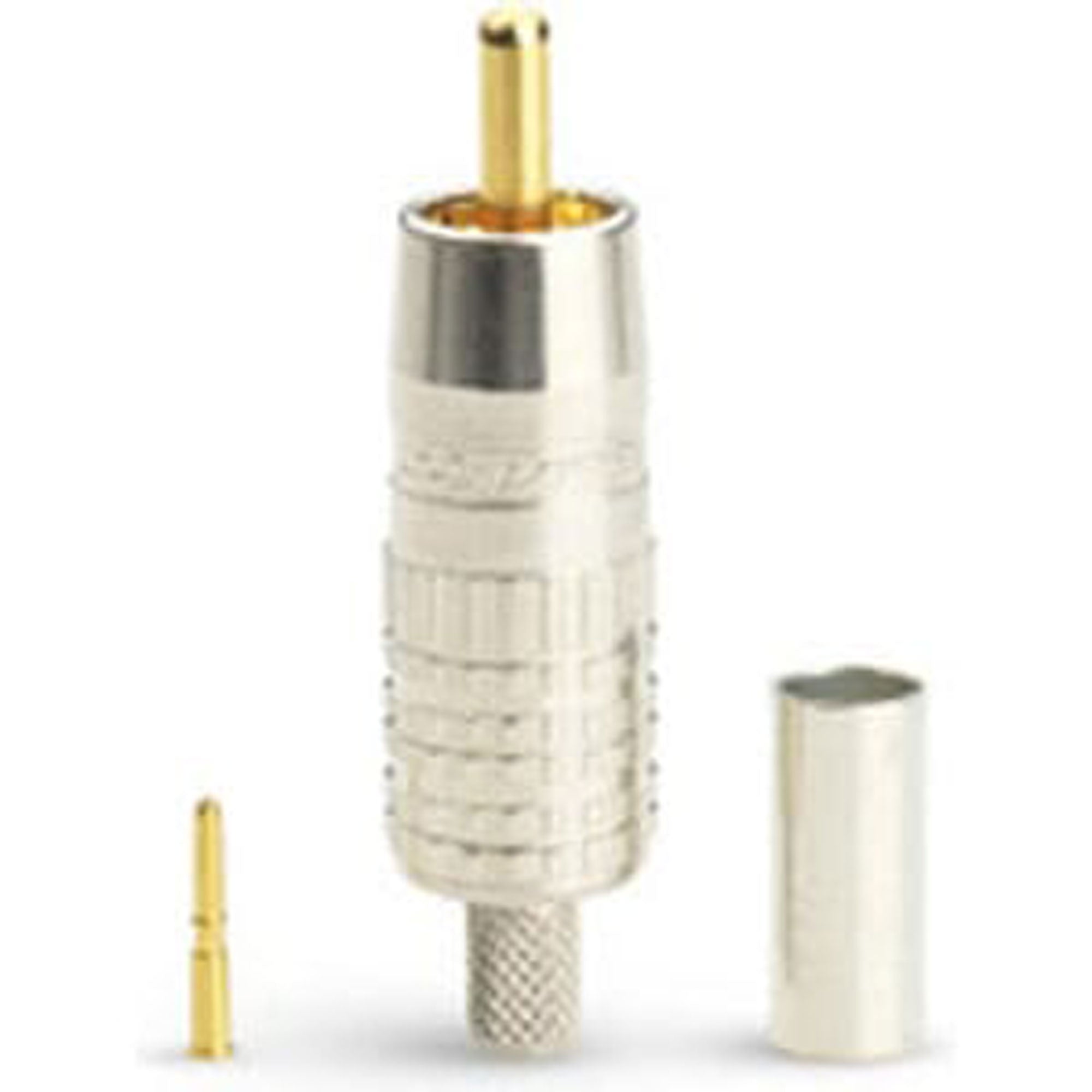

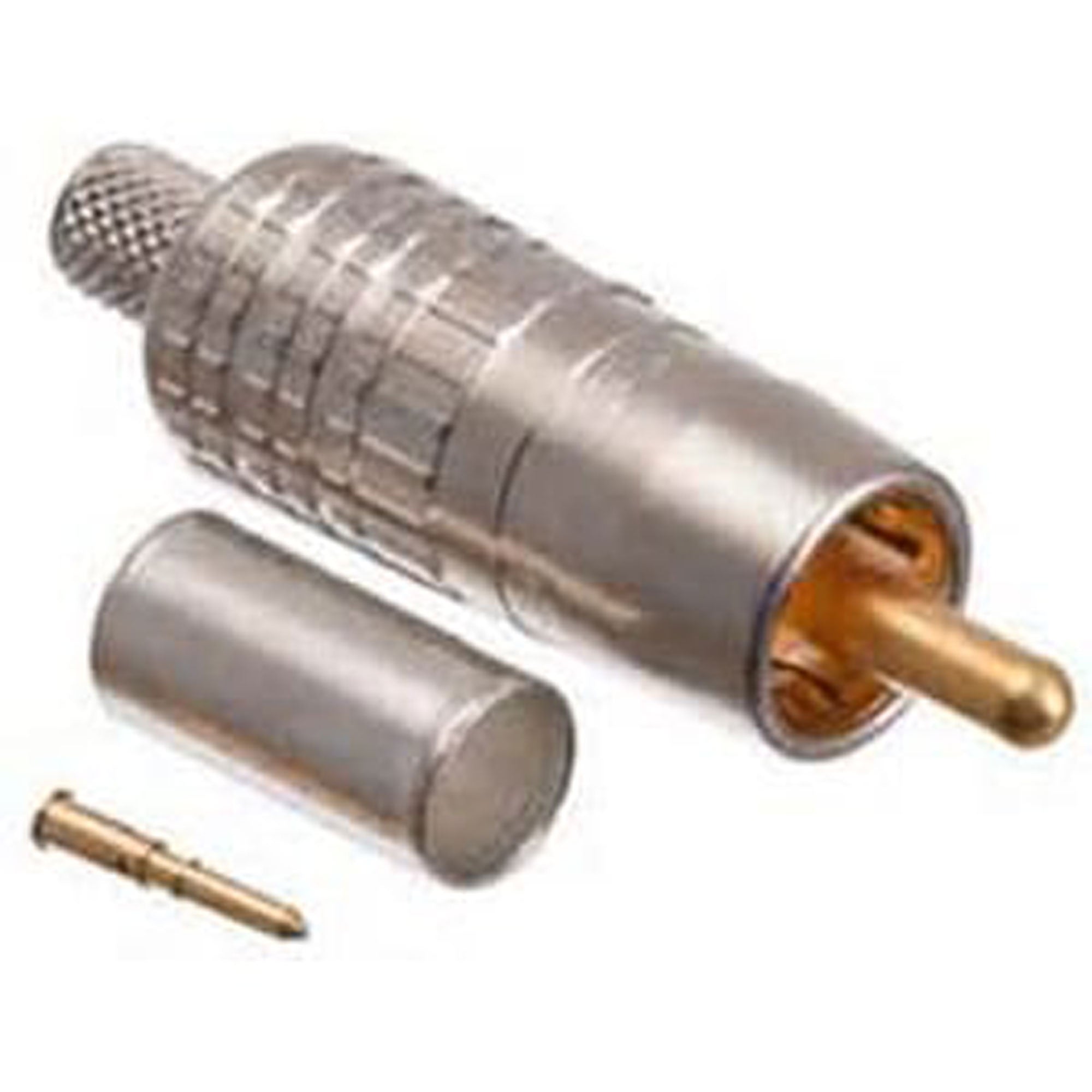

• Parts: Body, Crimp Pin, Sleeve
• Imp.: 75 ohm
• Bandwidth VSWR (Return Loss) DC to 200MHz: <1.1 (>26dB)
• Body Material (Plating): Brass (Nickel)
• Center Contact Material (Plating): Phosphor Bronze (Gold)
• Outer Contact Material (Plating): Beryllium Copper (Gold)
• Dielectric Material: PPO Noryl
• Crimp Pin Material (Plating): Brass (Gold)
• Crimp Sleeve Material (Plating): Copper (Tin)
• Cable Retention lbs. (kgs): >55 (>24.9)
• Insulation Resistance at 500V DC: >100M ohm
• Voltage Rating for 1 mim.: 500V AC (rms)
• Center Contact Resistance: <10m ohm
• Outer Contact Resistance: -
