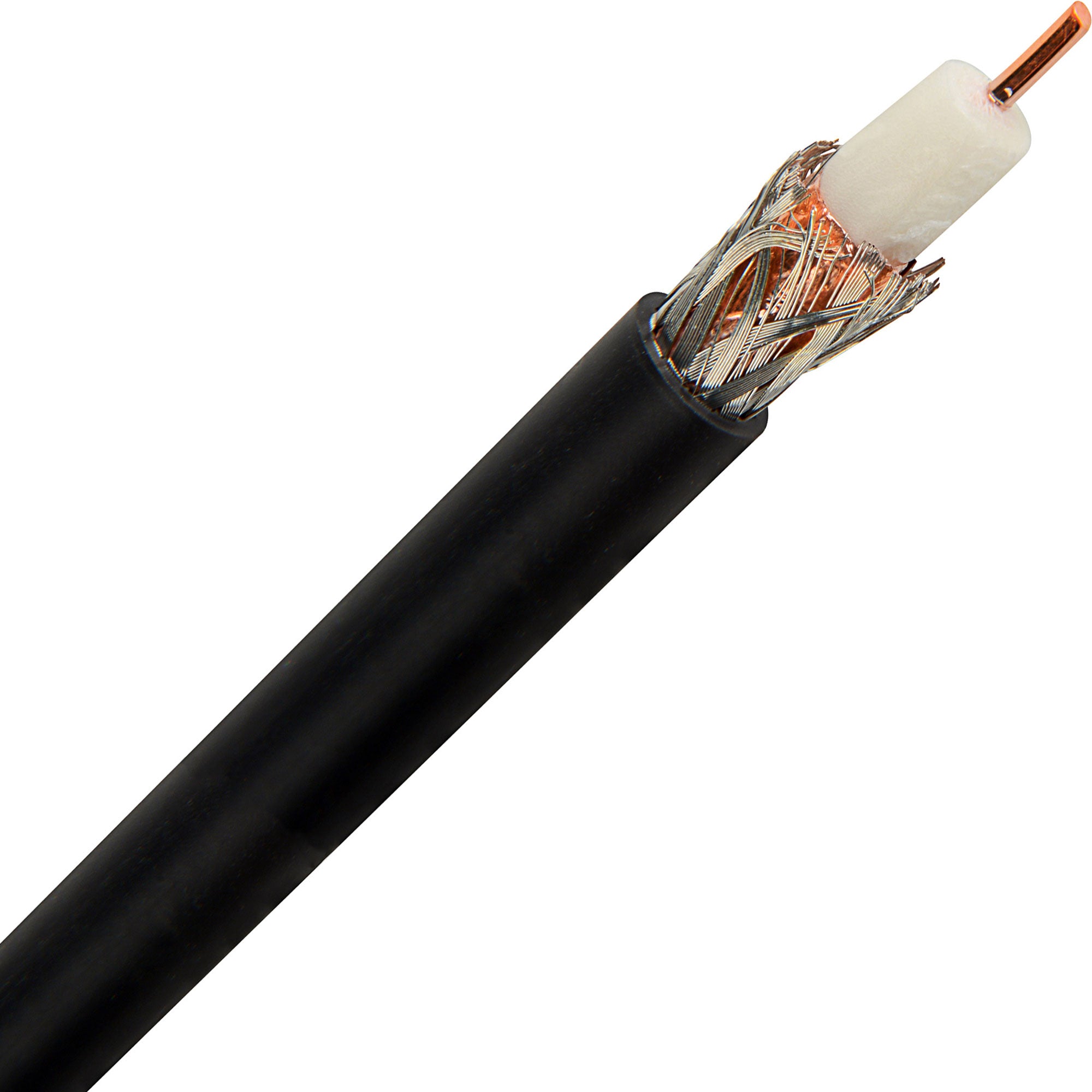

Canare L-5.5CUHD 75 Ohm Coaxial Cable for 12G-SDI (Black, 984'/300m)

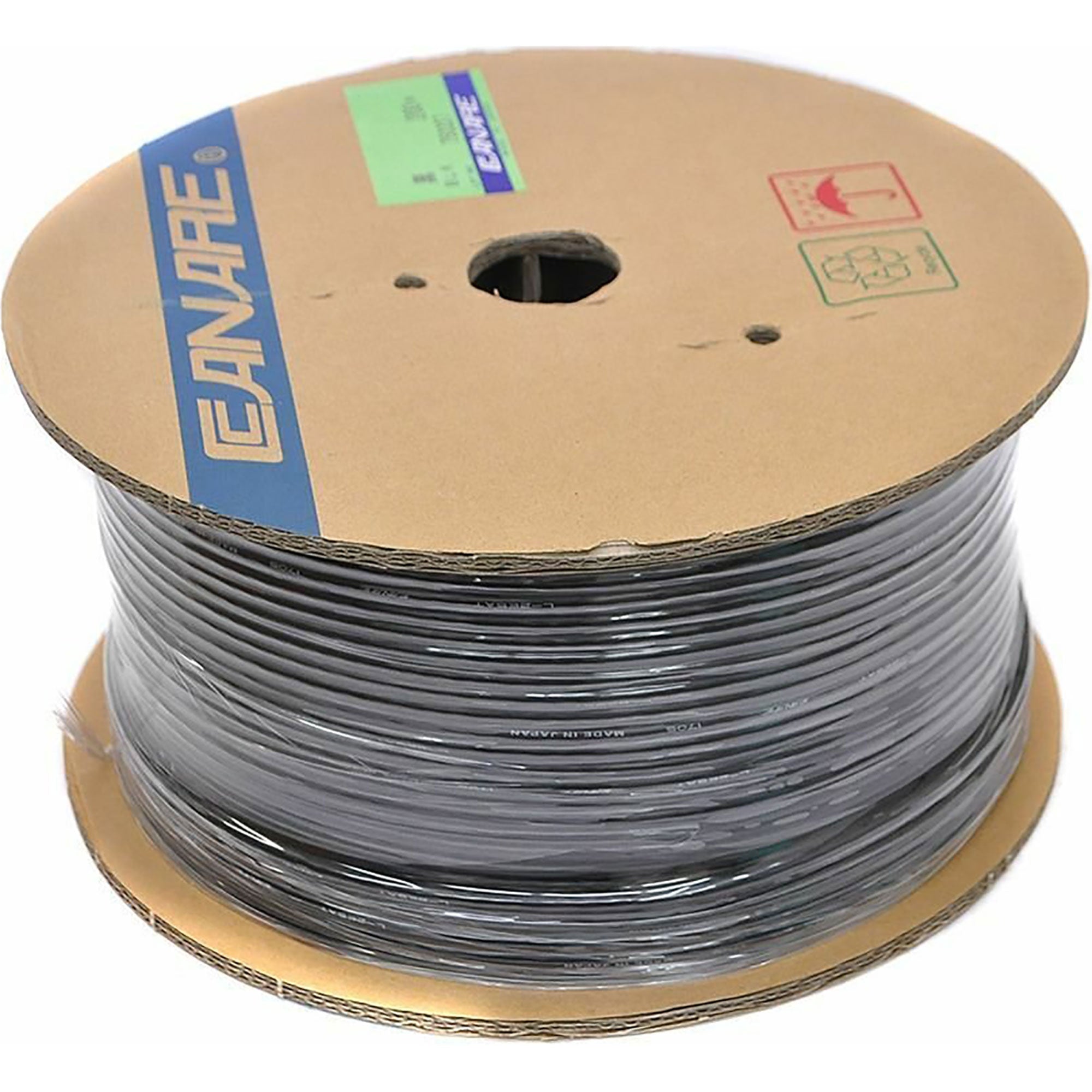

16 Gauge 75-Ohm 12G-SDI UHD Video Coax Cable - Full 984'/300m Roll

75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI)

This 12G-SDI / 4K UHD Video Coaxial Cable from Canare is used for long-distance video transmission in mobile truck production, ENG, and broadcast applications. It transmits HD-SDI signals up to 509', 3G-SDI signals up to 531', and 12G-SDI signals up to 335'.

Features:

• Specially designed for 12G-SDI
• Max. transmission distance of UHD over single link able to reach 100m or longer*.
• Excellent results in demanding tests.

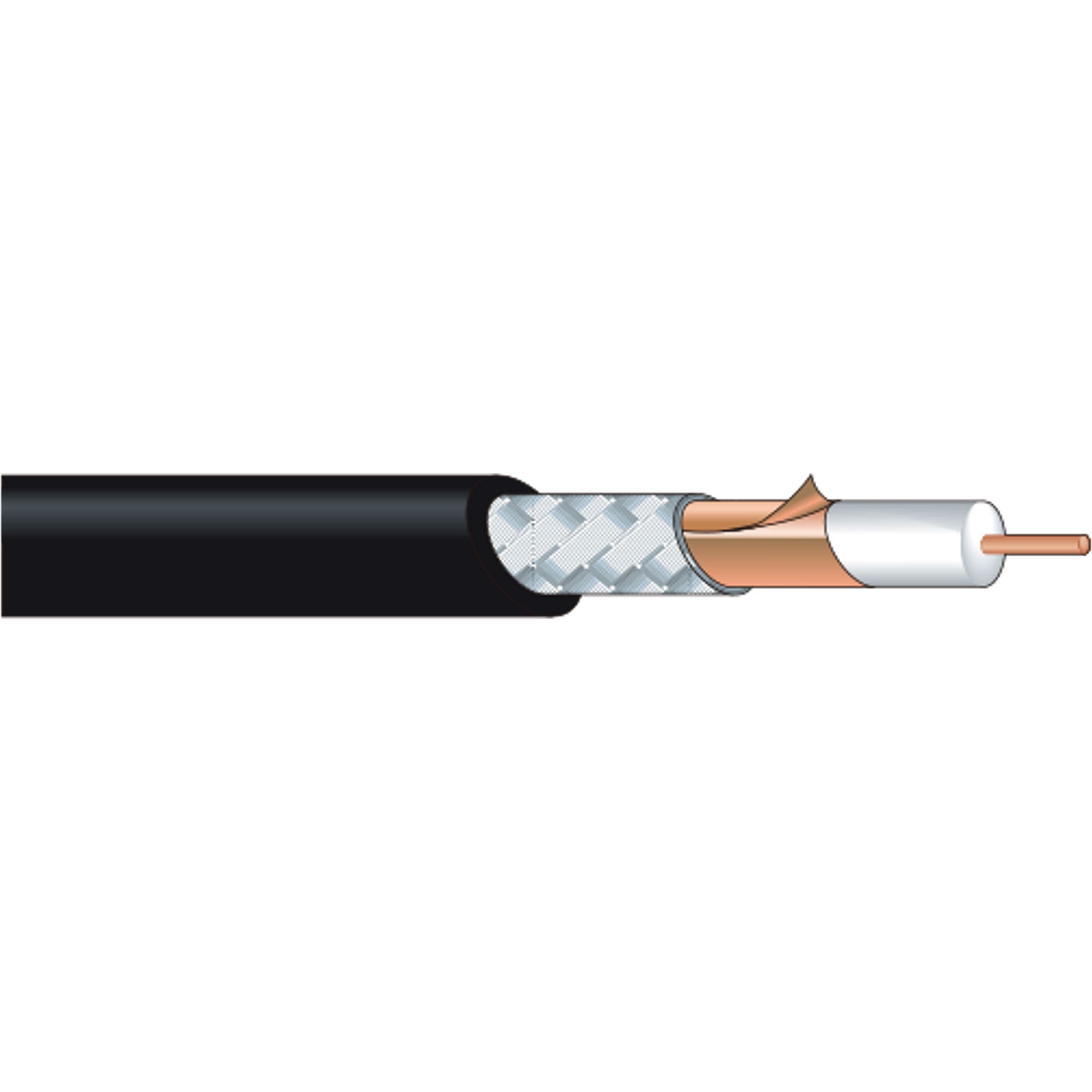

• Copper foil and high-density tinned copper braided shielding
• Highly-foamed multi-layer PE insulation
• Flame resistance UL 1666 Riser
• * Depending on receiving equipment.

Specifications:

• Model: L-5.5CUHD
• Standard Length ft. (m):
  328 (100)
  656 (200)
  984 (300)
• Nominal O.D. in. (mm): 0.303 (7.7)
• Weight lbs (kgs)/100m: 15.65 (7.1)
• Inner Cond Conductor Comp. (AWG) Q'ty/mm: (16) 1/1.35A
• Inner Cond O.D. in. (mm): 0.053 (1.35)
• Insulation O.D. in. (mm): 0.219 (5.55)
• Outer Conductors Shield Coverage & Comp.: Copper Laminated Tape + 0.12TA/8/24 (91%)
• Inner Cond. Resistance ohm/km: 12.8
• Outer Cond. Resistance ohm/km: 10.3
• Static Capacity (pF/m): 52
• Characteristic Impendence ohm: 75
• Attenuation dB/100m(328ft) @6GHz: 39.1
