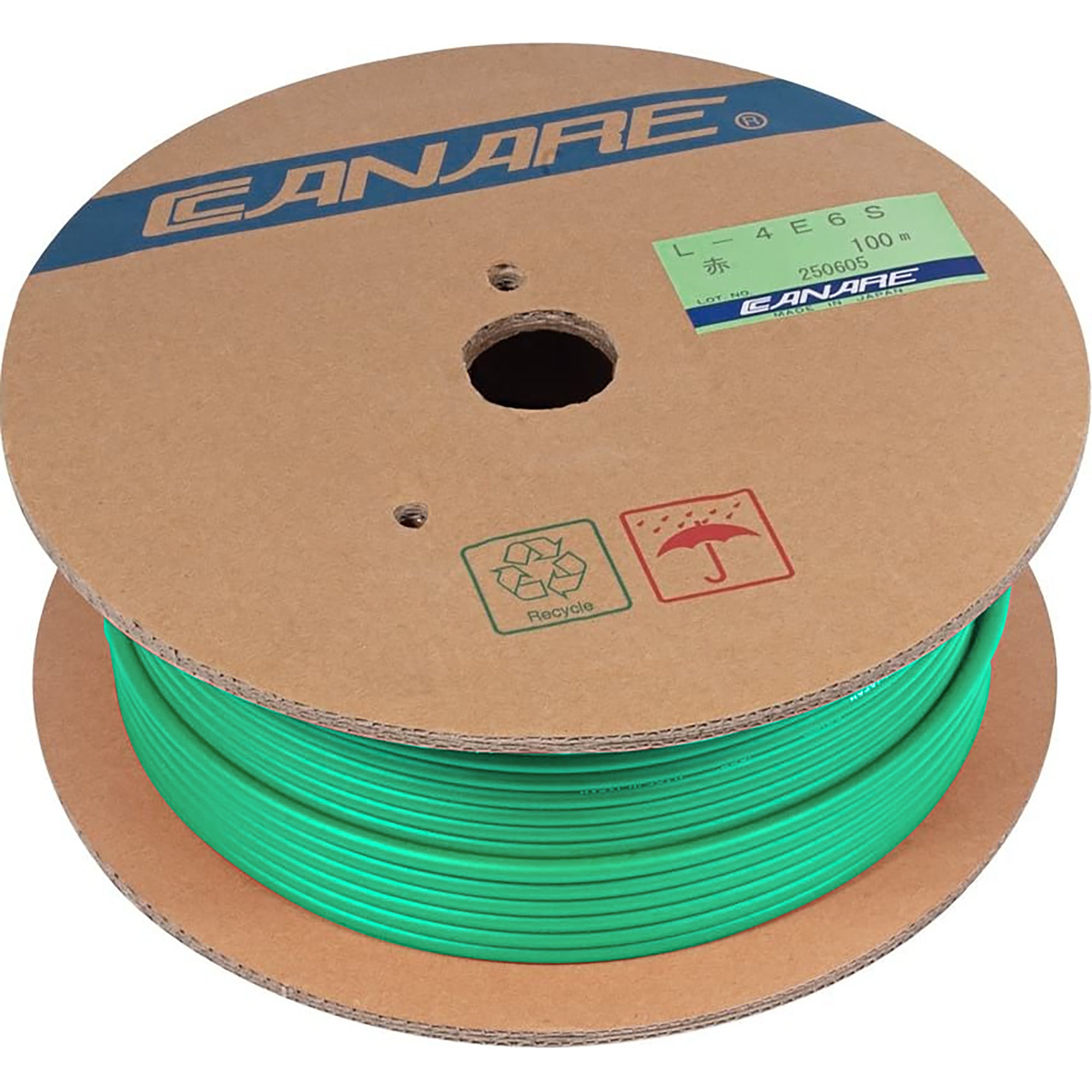

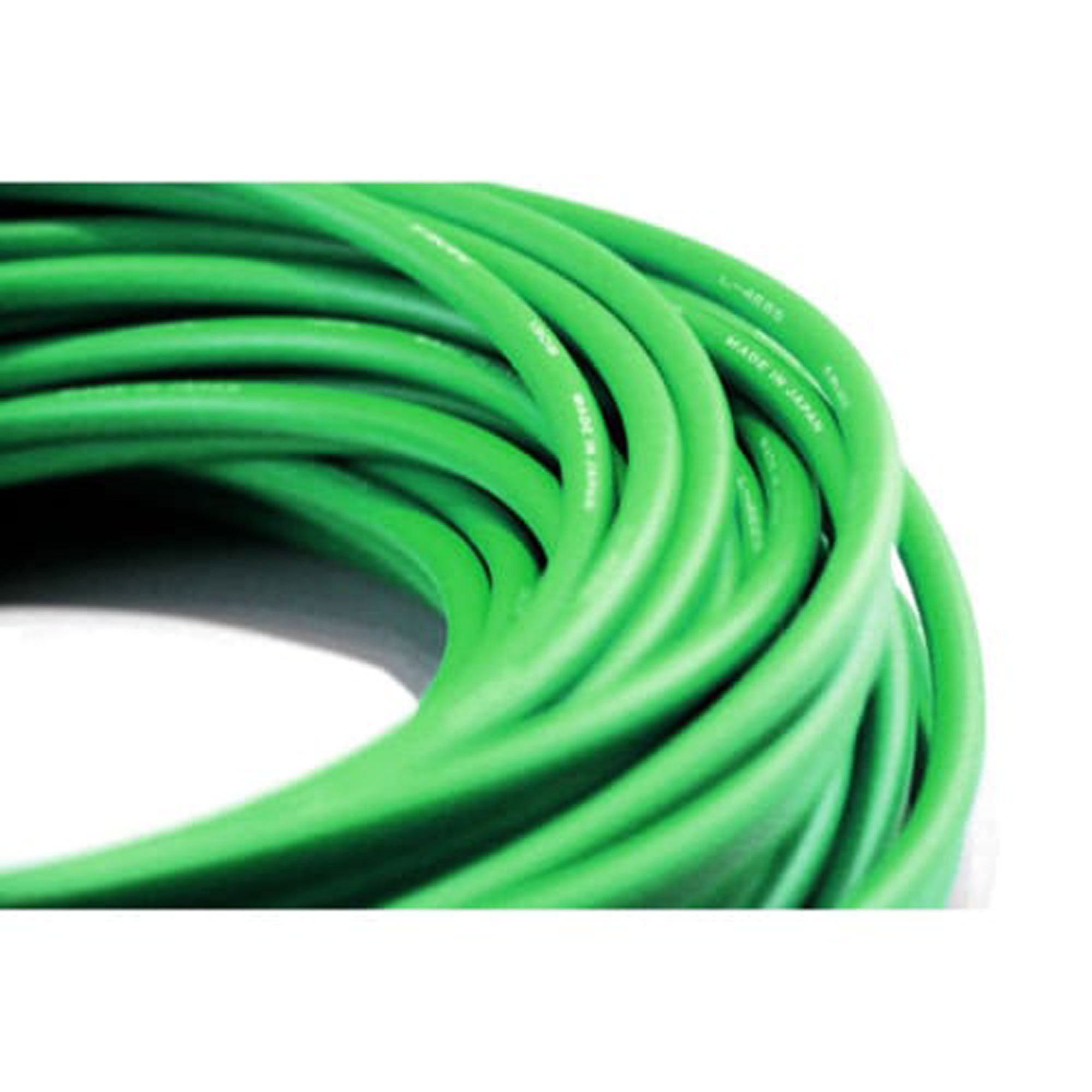

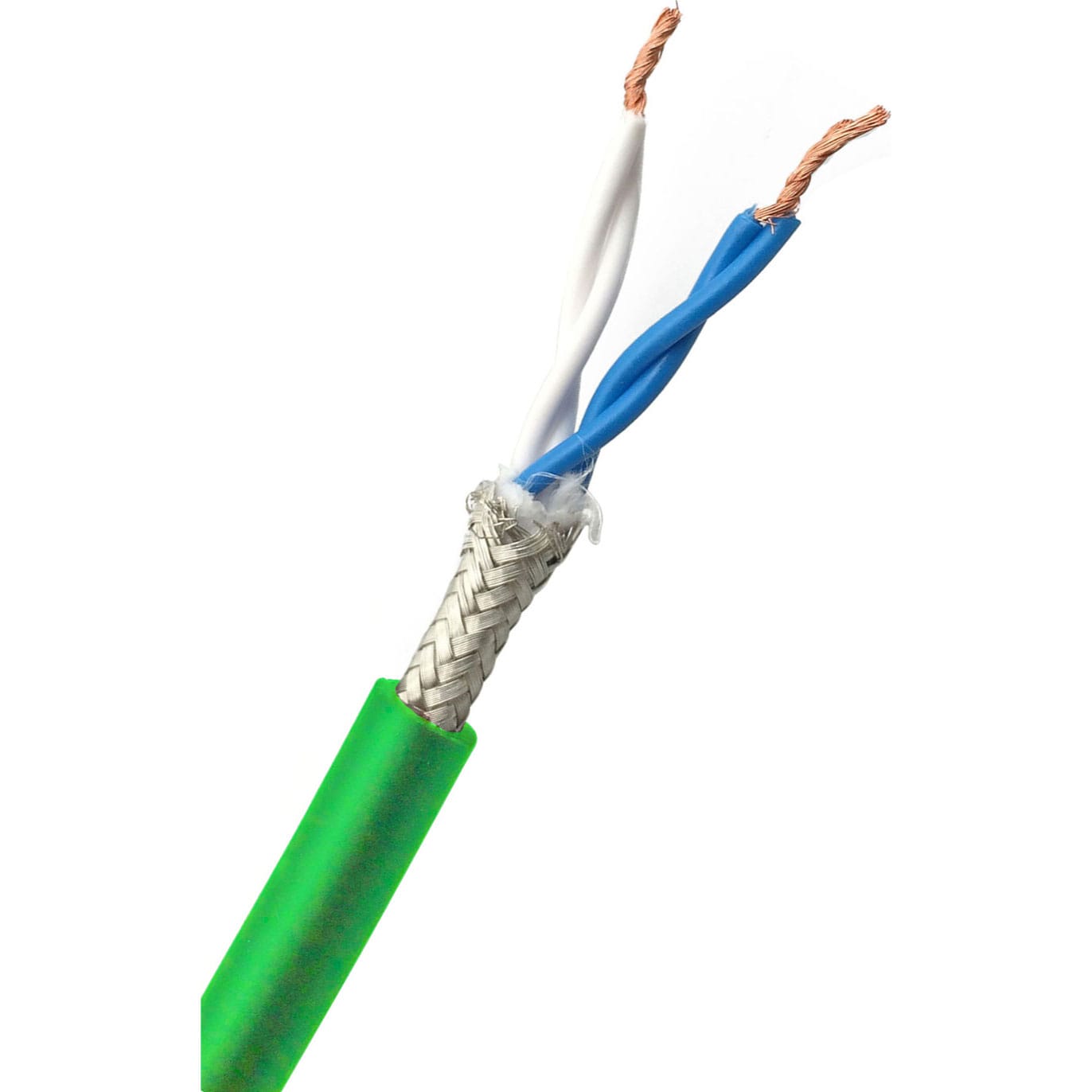

Canare L-4E6S Star Quad Microphone Cable (Green, 1000'/305m)

Green Star Quad Microphone Cable, 21 AWG - Full 1000'/305m Roll

The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

Features:

• Braided Copper Shield
• Flexible in Extreme Cold Weather
• Cross Linked PE Insulation
• Reduced Handling Noise
• Rejects EMI and RFI

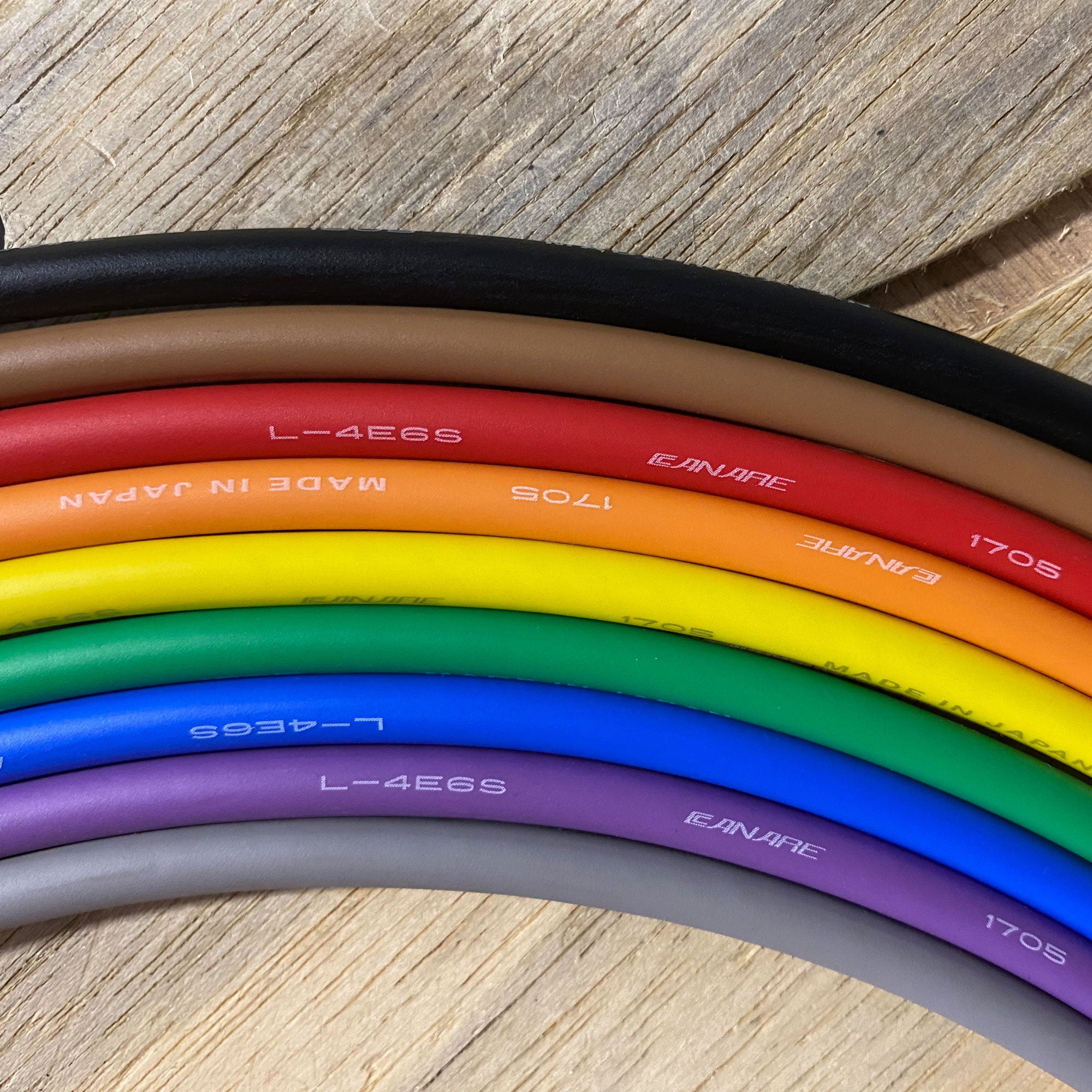

• 10 Matte Color Jacket Selections

Specifications:

• MECHANICAL SPECIFICATIONS
• Model: L-4E6S
• Std. Lng. ft. (m): 656 (200), 1000 (305)
• Wt Std. Lng. lbs (kgs): 24 (11), 35 (16)
• Nom. O.D. in. (mm): .236 (6.00)
• Jacket Nom. Thick. in. (mm): PVC .044 (1.12)
• Brittle Point F° (C°): -56 (-49)
• No. of Cond.: 4, 2 Blue, 2 White
• Insul. Type* Thick mil: IPE 15.7
• Cond-AWG (Qty./mil) Cross Sec. Area mil.² (Quad AWG): AC - #24 40/3.15 310 (#21)
• Pitch Twist Quad in. (mm): .79 (20)
• Shield Coverage: >95% TAC Braid
• Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
• ELECTRICAL PERFORMANCE/QUAD
• Cond. D.C.R. ohm/1000ft (ohm/100m): <29.9 (<9.8)
• Shield D.C.R. ohm/1000ft (ohm/100m): <9.1 (<3.0)
• Nom. Cap. between twin Blue and twin White conductors pF/m: 150
• Nom. Cap. between conductors to shield pF/m: 185
• Nom. Imp. (ohm): 44
• Nom. Atten. V/1000ft (V/100m): 0.9 (0.3)
• Group Delay Time nS/ft (nS/m): 1.80 (5.9)
