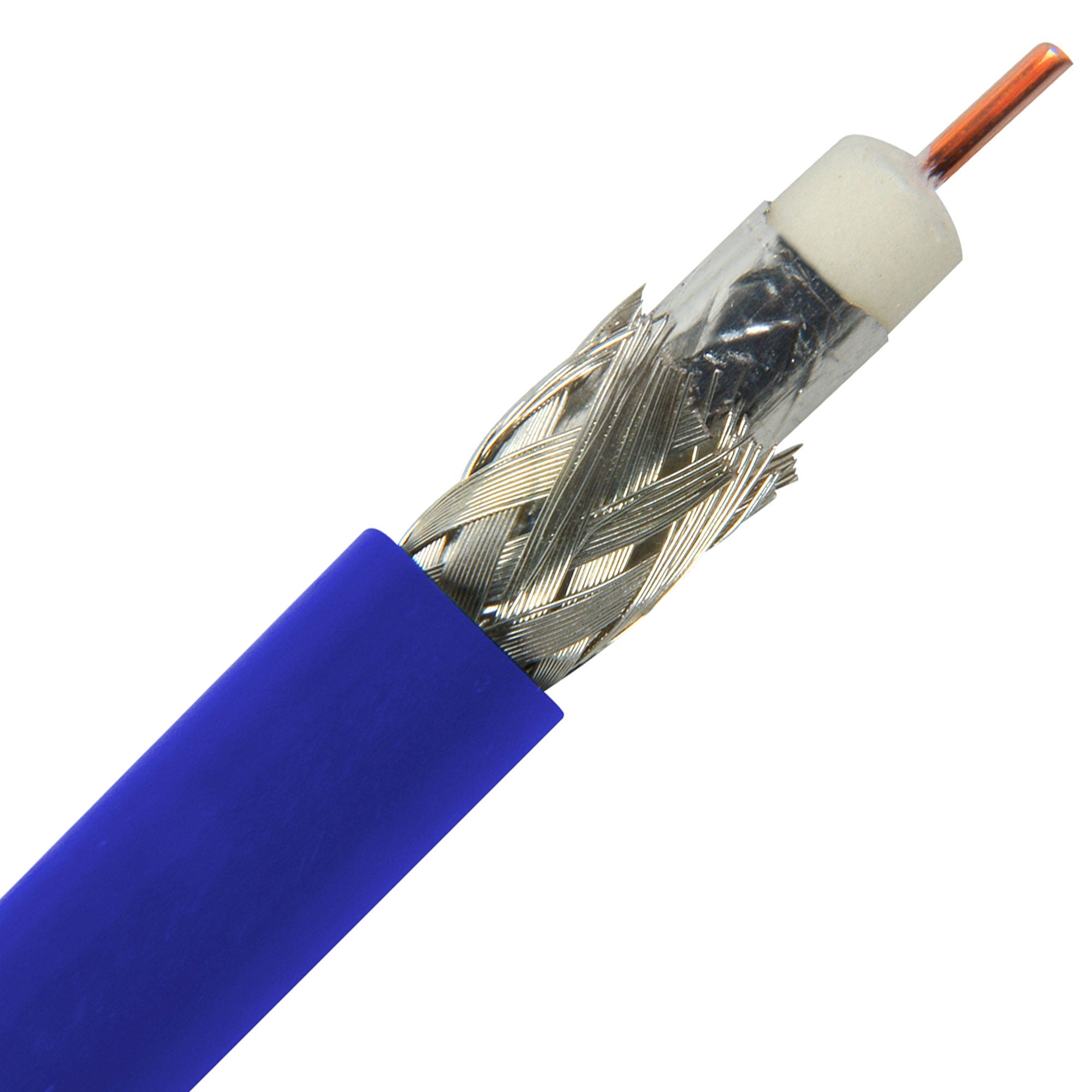

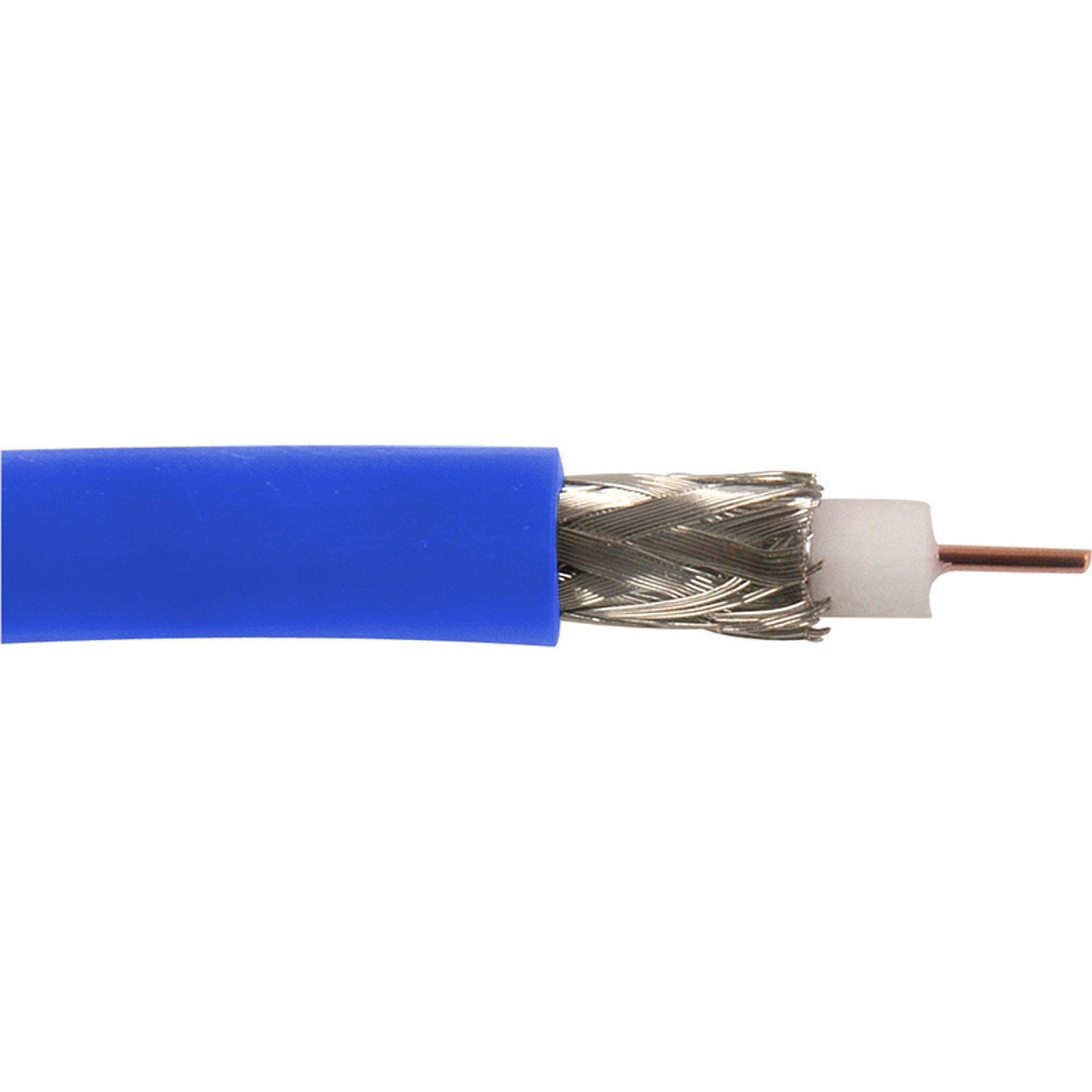

Canare L-4CFB 75 Ohm 3G-SDI / HD-SDI Digital Video Coaxial Cable RG-59 Type (Blue, 984'/300m)

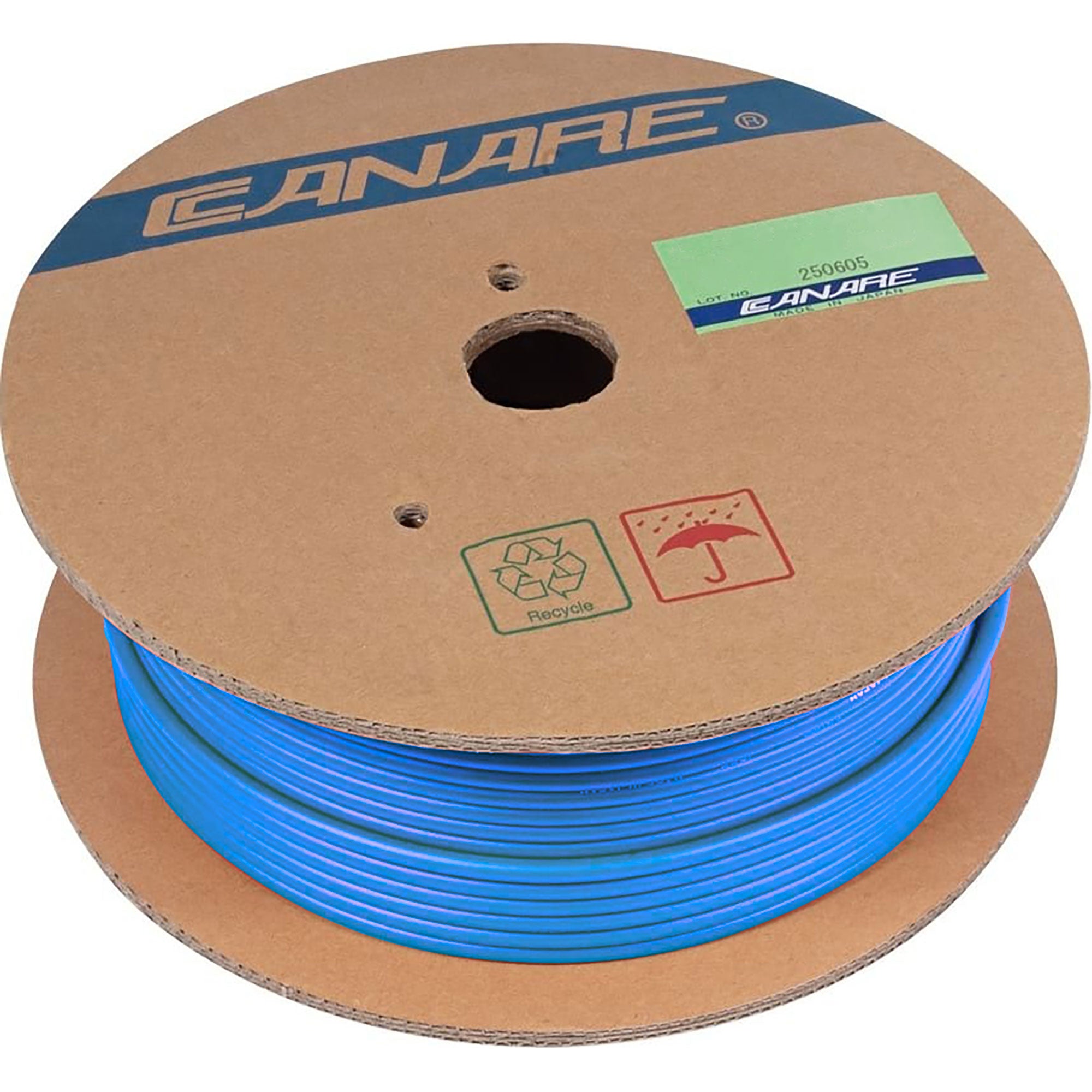

Blue 75 Ohm Digital Video Coaxial Cable, Single Channel, Low Attenuation, 20 AWG, RG59 Type - Full 984'/300m Spool

Canare 75 ohm precision digital video cables, offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards.

Features:

• Solid Copper Center Conductor
• Foam PE Dielectric
• Tinned Copper Braid + 100% Foil Shield
• Dielectric strips away clean from Conductor
• Precision Coax 100% Sweep Tested

Specifications:

• Mechanical Specifications:
• Std. Lng. ft. (m): 984 (300)
• Wt. Std. Lng. lbs. (kgs): 33 (15)
• Nominal O.D. in. (mm): .240 (6.1)
• PVC Jacket Thickness in. (mm): .035 (0.9)
• Brittle Point F (C): -22 (-30)
• Cond. Material AWG: Bare Copper #20
• Cond. O.D. in. (mm): .032 (0.80)
• Dielectric Insulation Type*: Foam PE
• Insulation O.D. in. (mm): .146 (3.7)
• Shield Material Coverage: AL Foil 100%, TAC Braid >93%
• *Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
• Electrical Performance:
• Cond. D.C.R. ohm/1000ft (ohm/100m): <11.0 (<3.6)
• Shield D.C.R. ohm/1000ft (ohm/100m): <3.0 (<1.0)
• Nom. Cap. @1KHz pF/ft (pF/m): 17 (55)
• Nom. Imp. ohm: 75
• Nom. Attn. @10MHz dB/1000ft (dB/100m): 10 (3.4)
• Velocity of Prop.: 79%
• Serial Digital Transmission Lengths @ 270 Mb/s **: 710 ft min., 920 ft max
• **For reference only.
