Key Features
- Sold by the Foot
- Shipped in a Continuous Length
- Solid Copper Center Conductor
- Foam PE Dielectric
- Tinned Copper Braid + 100% Foil Shield
Description

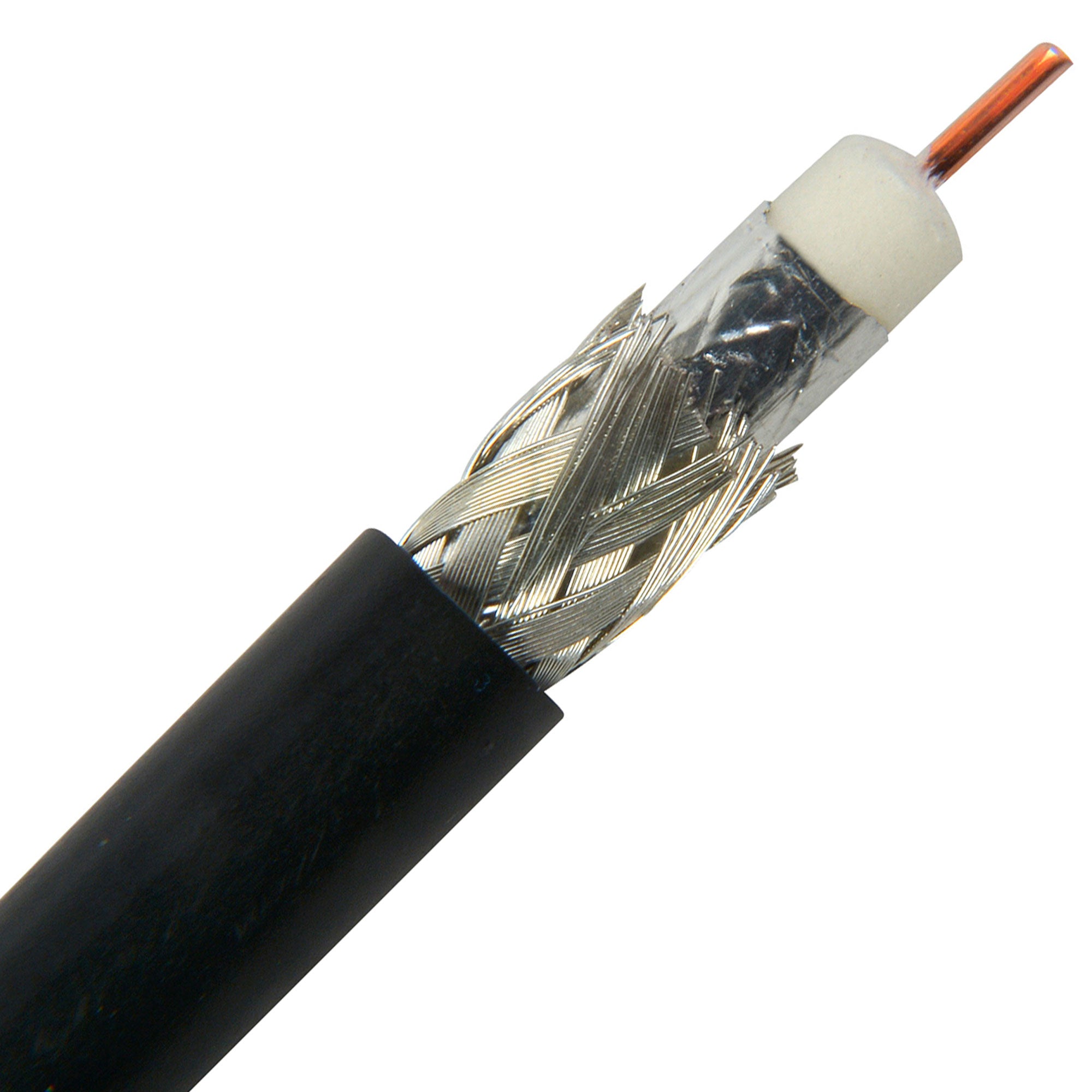

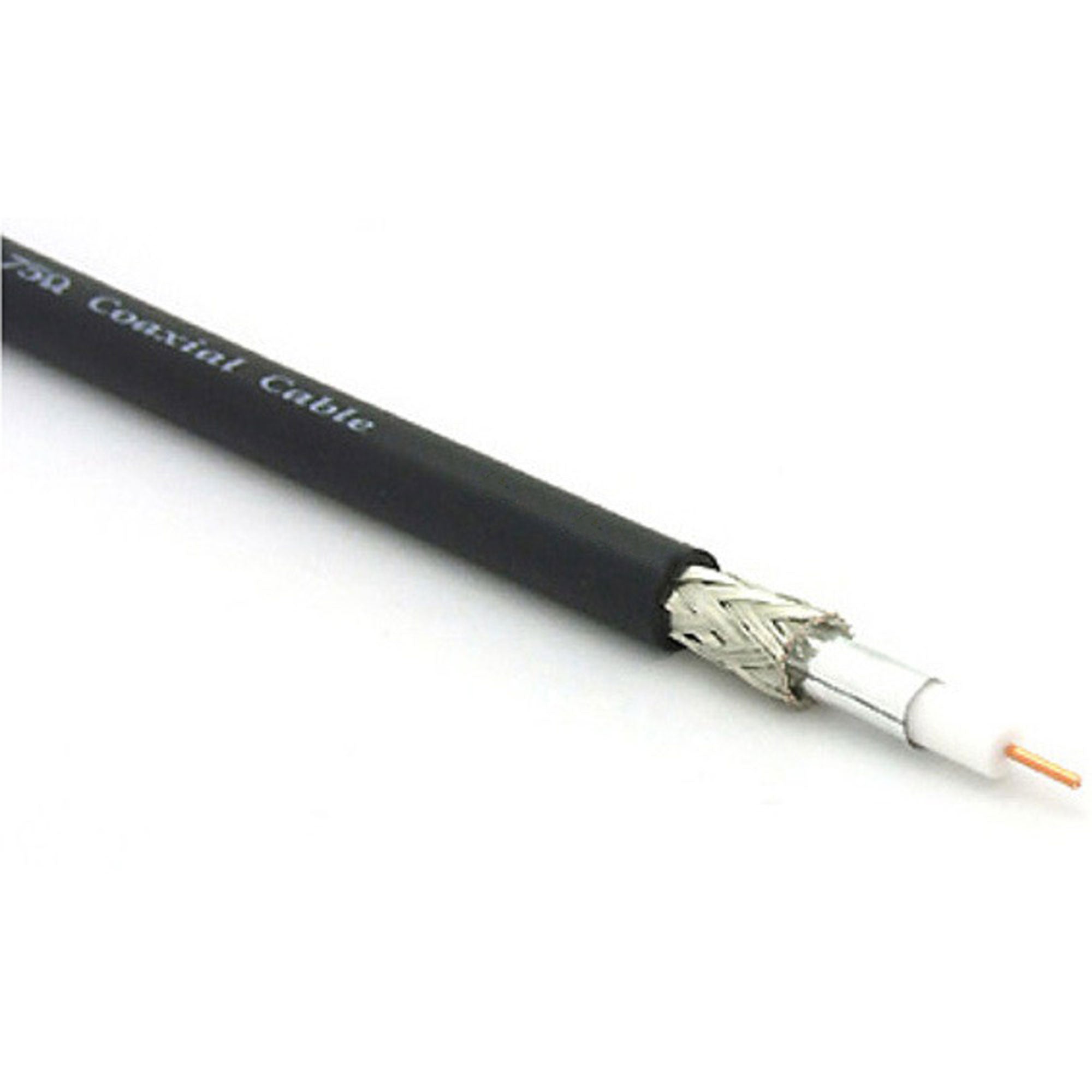

75 Ohm Digital Video Coaxial Cable, Single Channel, Low Attenuation, 25 AWG - Black - Sold by the Foot
Canare 75 ohm precision digital video cables, offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards.
Features:
- Solid Copper Center Conductor
- Foam PE Dielectric
- Tinned Copper Braid + 100% Foil Shield
- Dielectric strips away clean from Conductor
- Precision Coax 100% Sweep Tested
Specifications:
- Model Number: L-2.5CFB
- Nom. O.D (mm): 4.0
- Weight (kg/100m): 2.4
- AWG: 25
- Inner cond. O.D (mm): 0.50
- Insulation O.D (mm): 2.4
- Outer Conductors - Braid comp. (mm/ends/carriers): 0.12TA / 6 / 16 (92%)
- Inner cond. resist. (Ω/100m): 9.3
- Static capacity (pF/m): 55
- Attenuation (dB/100m - 3 MHz): 37.0
Details
- Manufacturer: Canare
- MPN: L-2.5CFB
- Model Number: L-2.5CFB
- UPC:
