Key Features
- For L-4.5CHD Cable
- Compatible with Amphenol HD-BNCs
- SMPTE ST 2082-1 Compliant
- Gold Plated Center Pin
- Package of 20 Connectors
Description

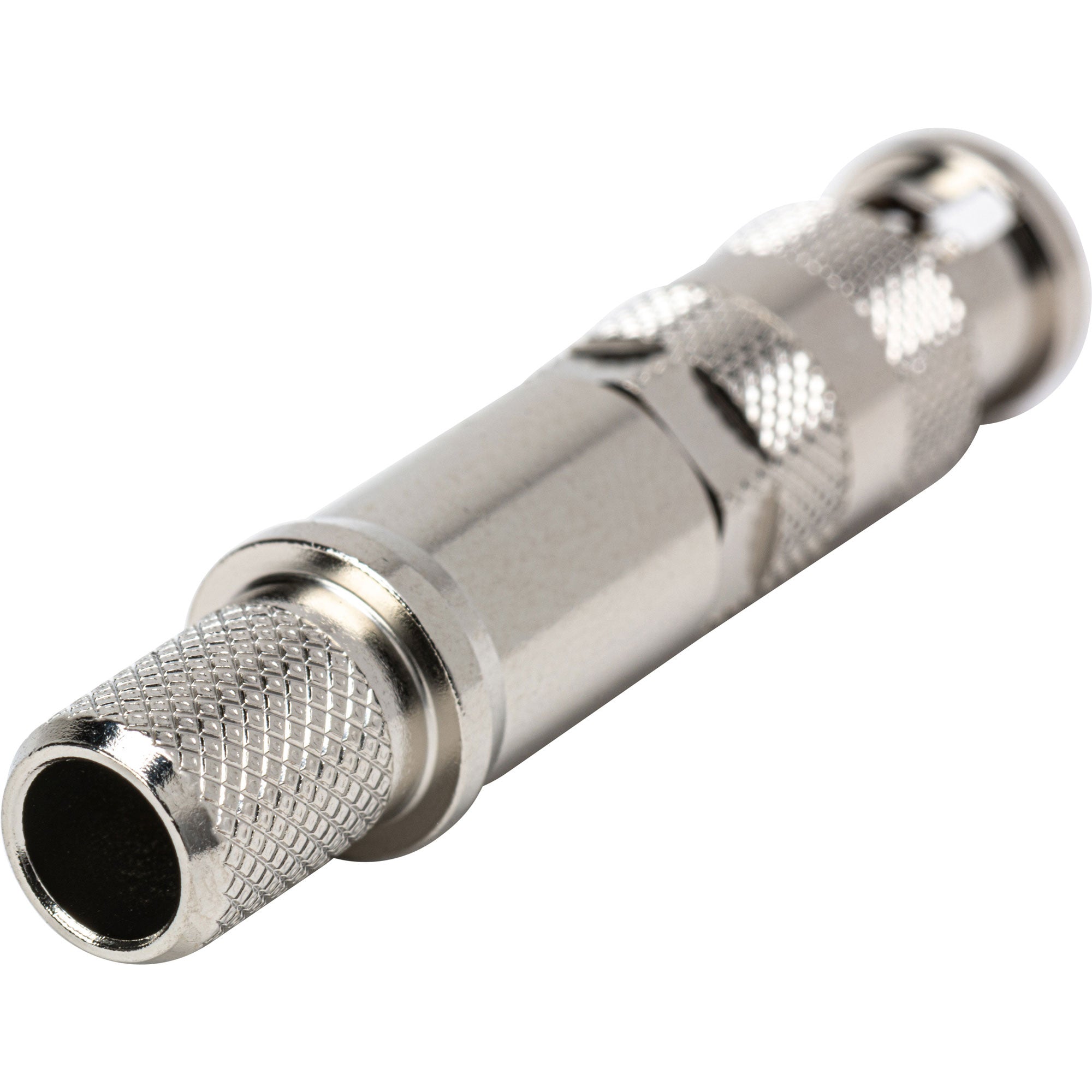

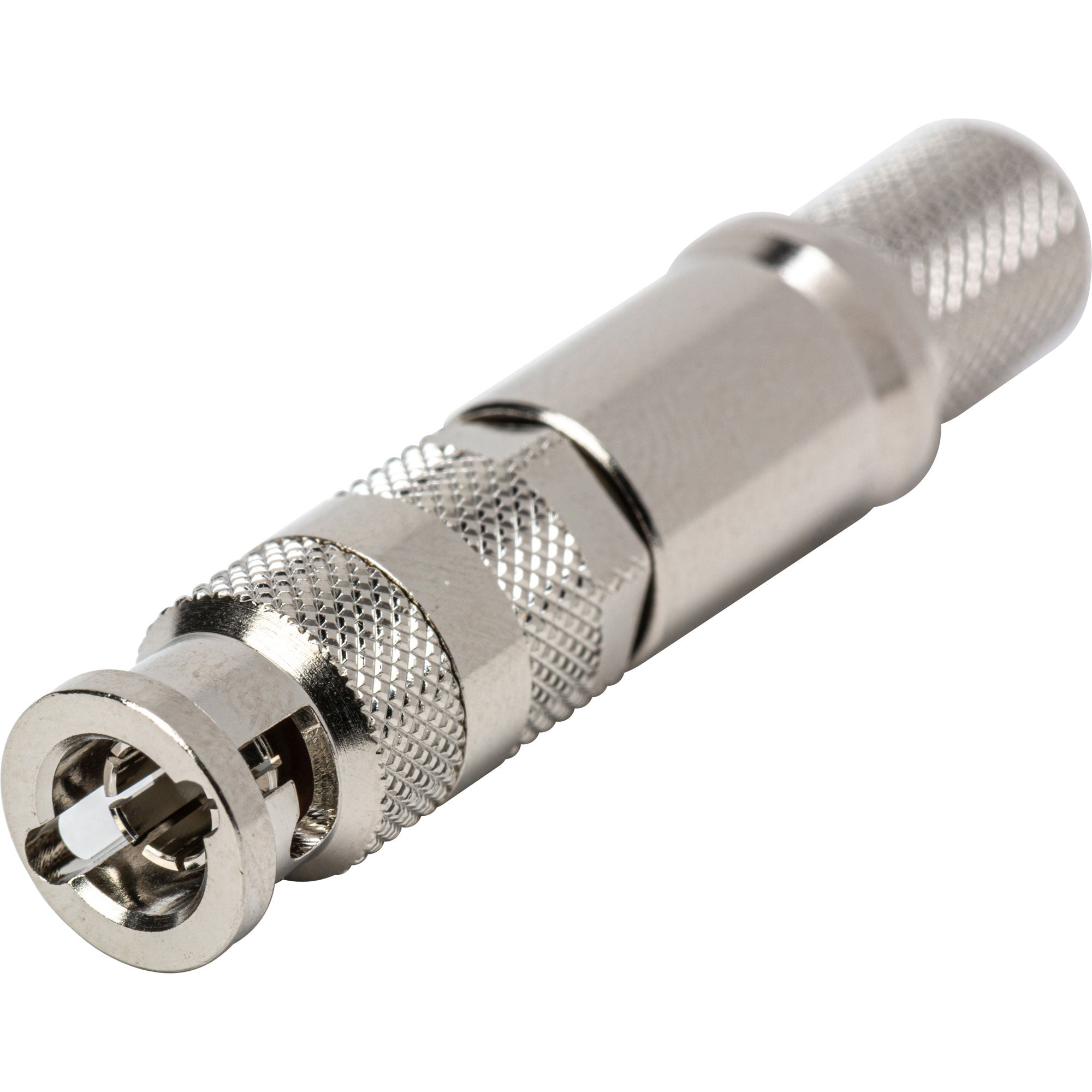

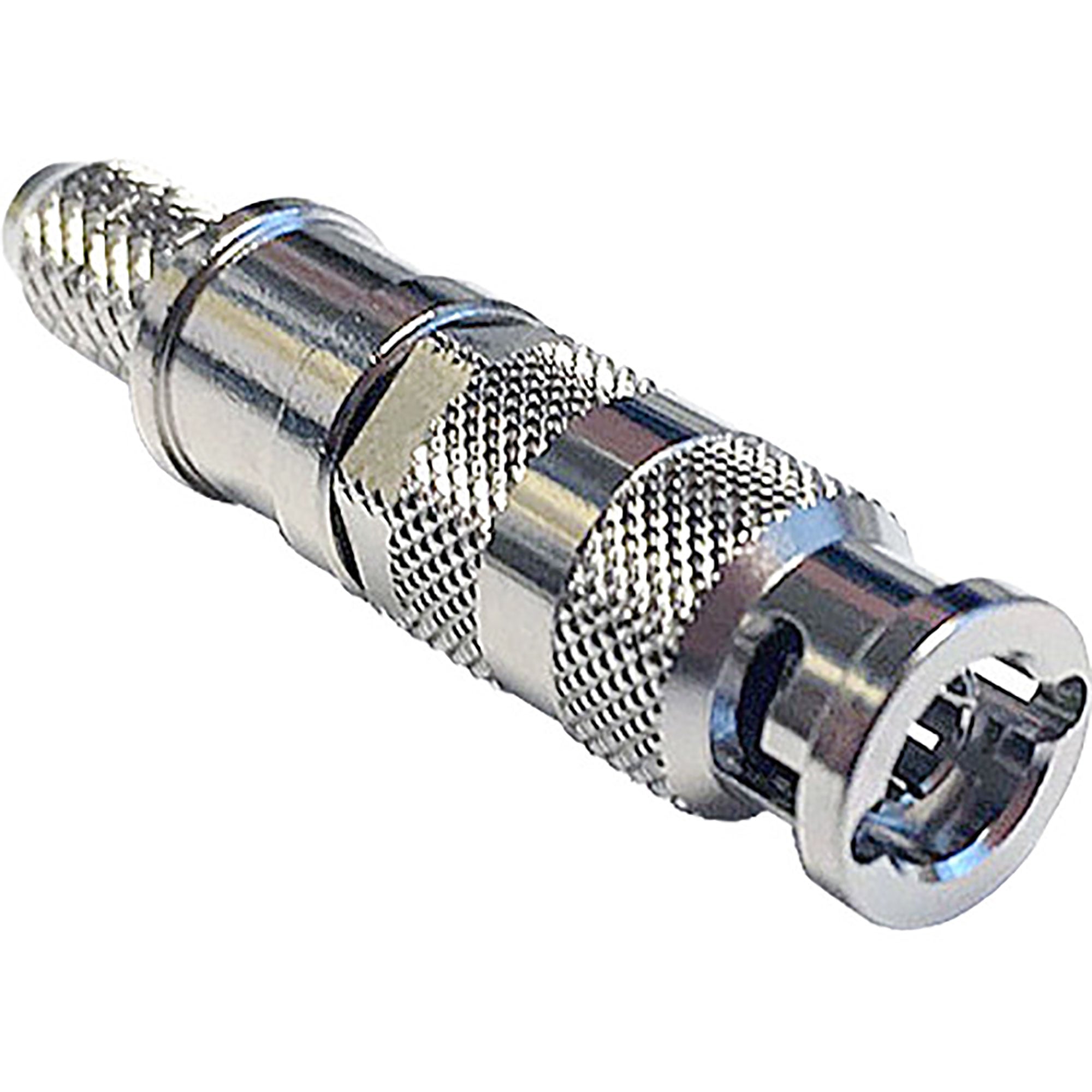

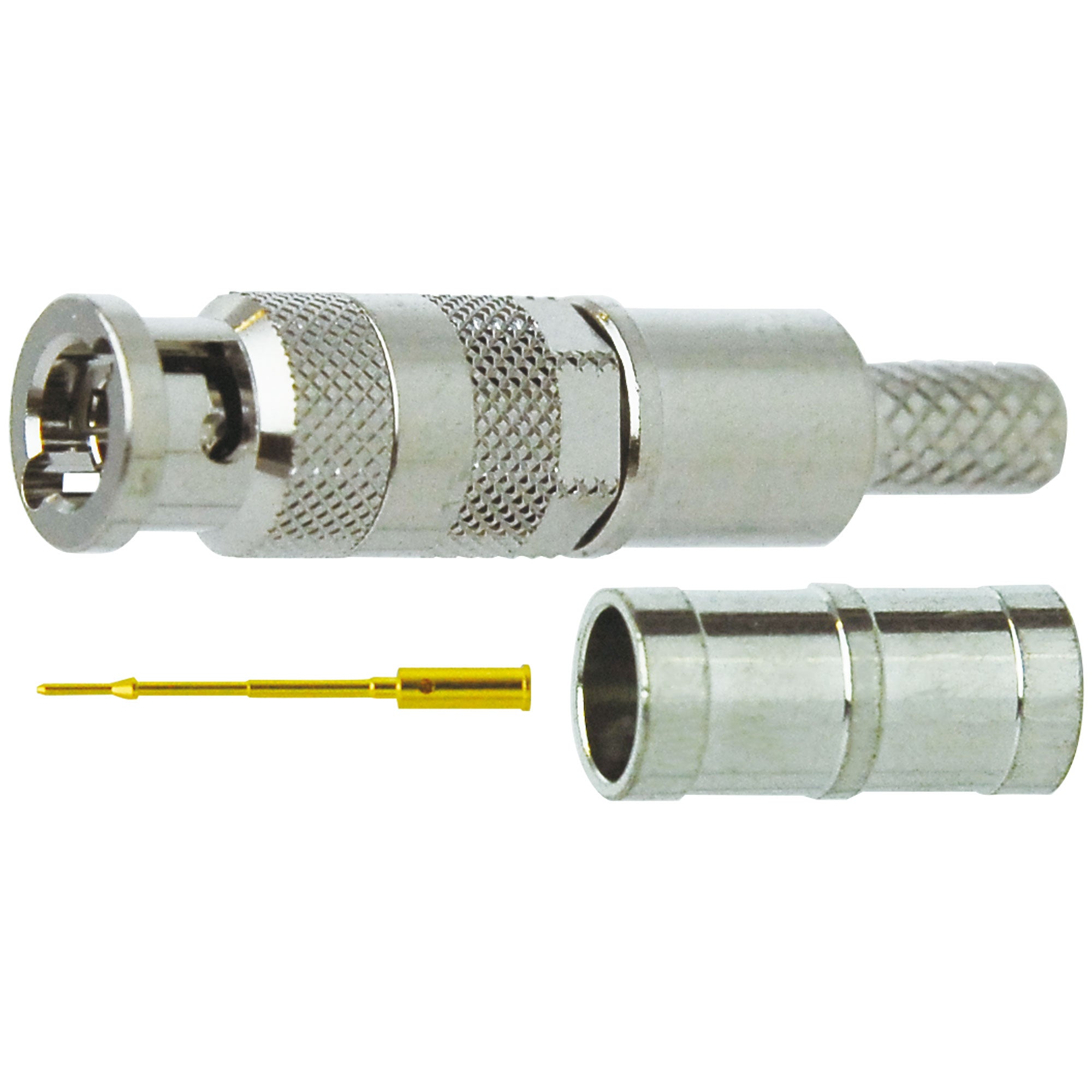

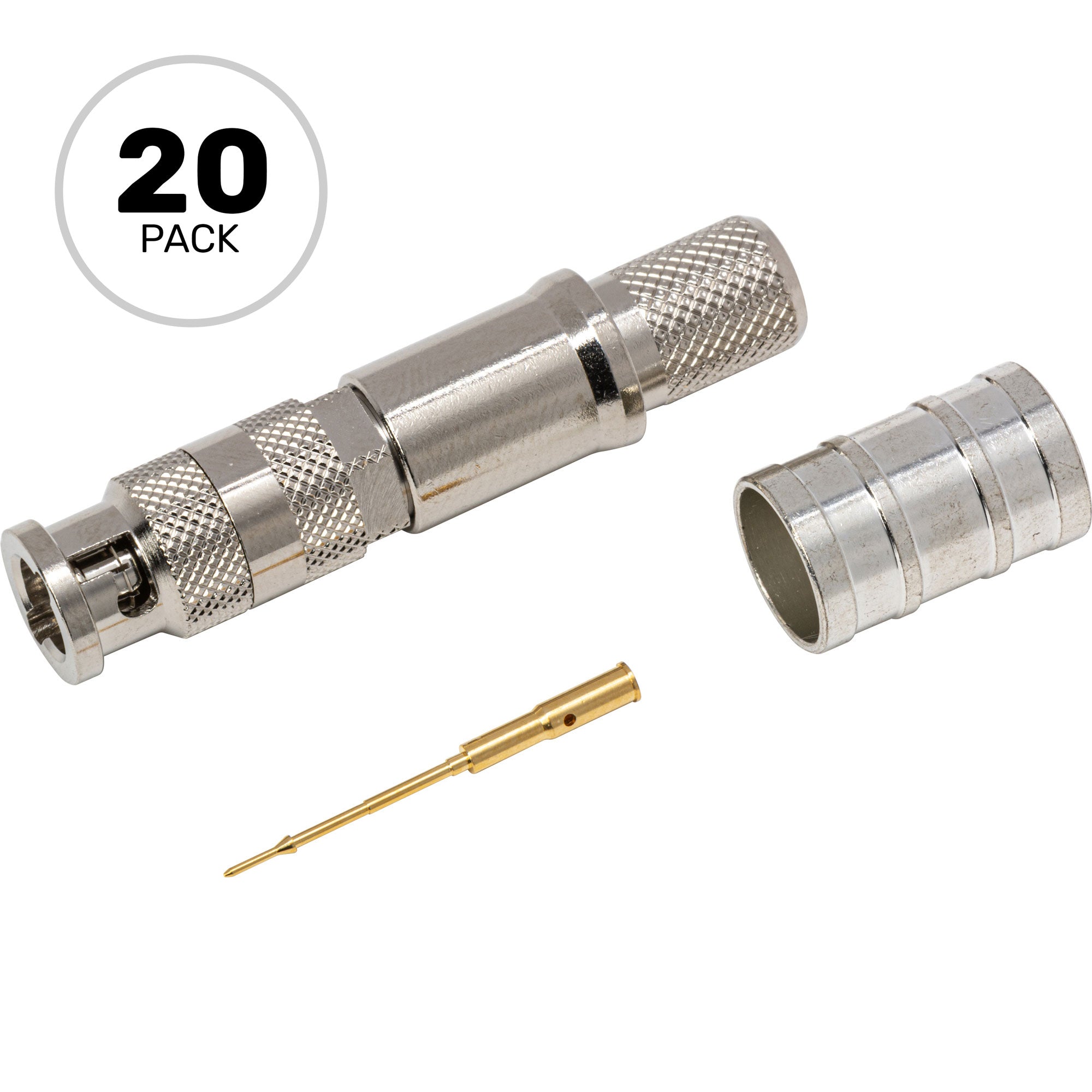

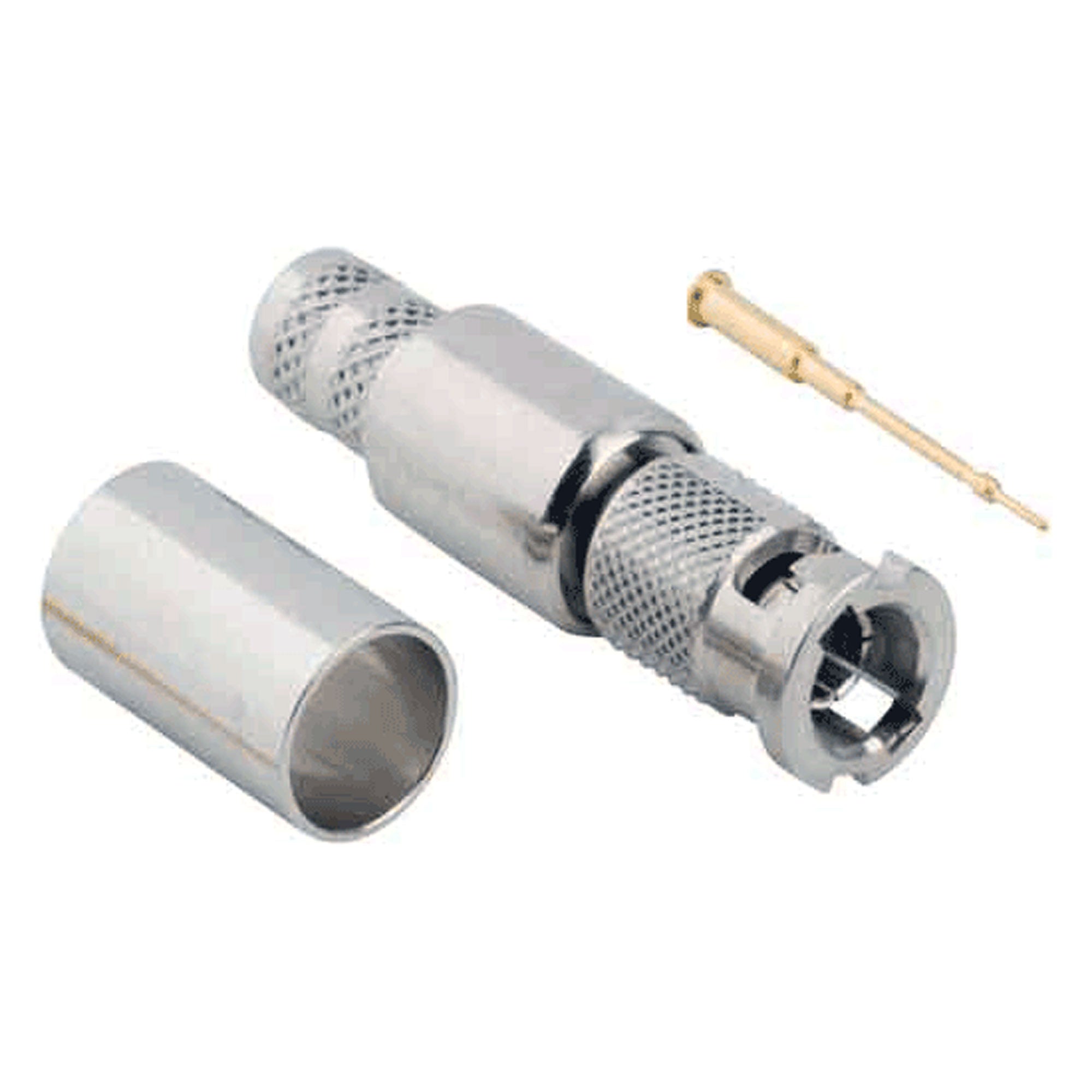

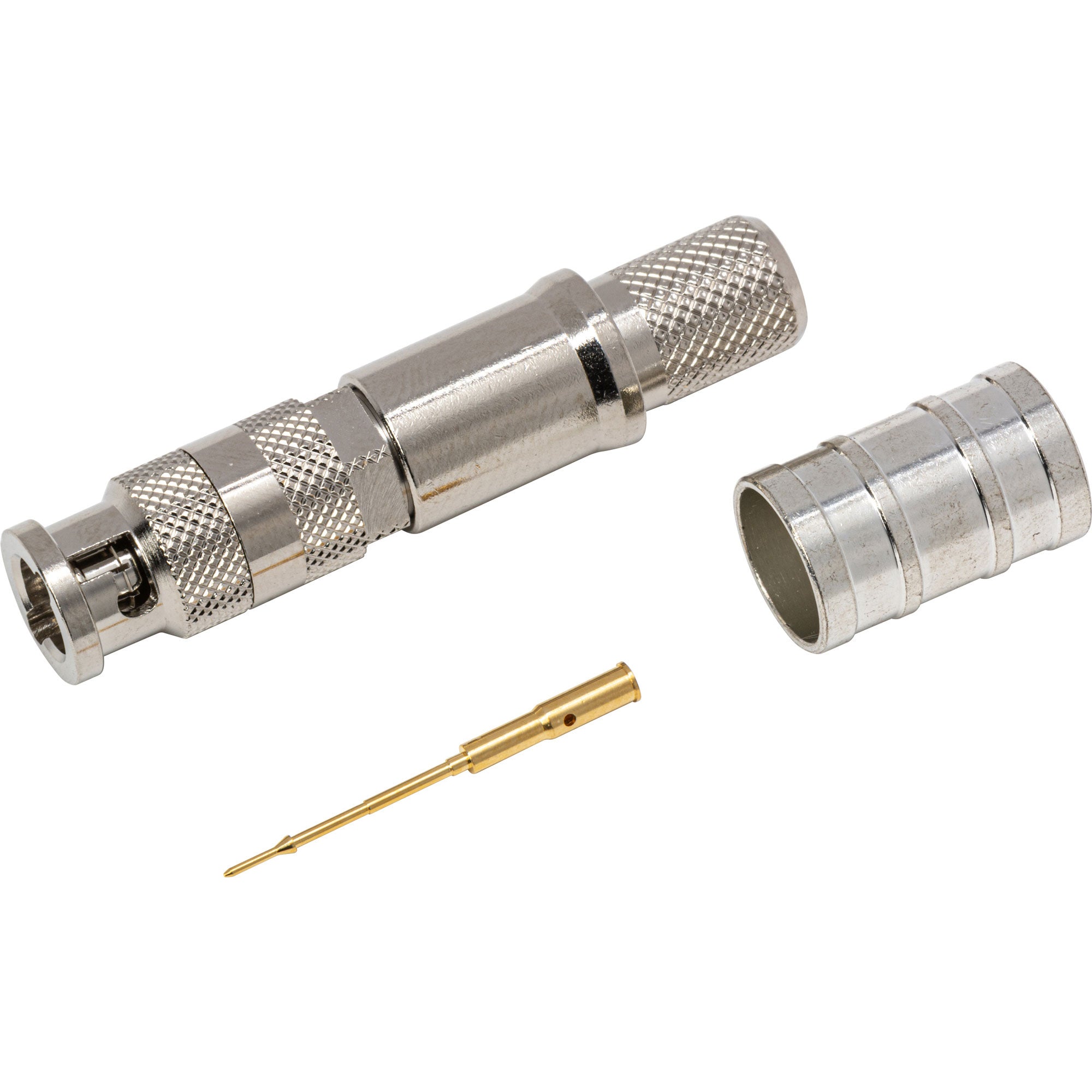

75 Ohm micro-BNC Crimp Plugs Supporting 12G-SDI for Canare L-4.5CHD Cable - Package of 20 Connectors
Canare is pleased to announce the immediate availability of Micro BNC connector the HBCP-D53. This micro BNC Plug was made specifically for Canare L-4.5CHD cable. These connectors are fully compatible with the Amphenol line of HD-BNC panel mount connectors found on some video routers and other video equipment. These new connectors are readily available and are compatible with existing removal tools.
Features:
- Compatible with Amphenol HD-BNCs
- SMPTE ST 2082-1 compliant
- Canare crimp design ensures quick and reliable installation
- Gold plated "snap-lock" center pin
- Beryllium copper outer contact
- Specially designed insertion and removal tool available (BET-D/H)
- Half the size of a standard BNC
- Ideal for high-density mounting
Specifications:
- Impedance: 75 ohms
- Frequency Range: up to 12GHz
- Return Loss (0-3GHz): 20dB or greater
- Return Loss (0-6GHz): 13dB or greater
- Return Loss (0-12GHz): 8dB or greater
Details
- Manufacturer: Canare
- MPN: HBCP-D53
- Model Number: HBCP-D53
- UPC:
