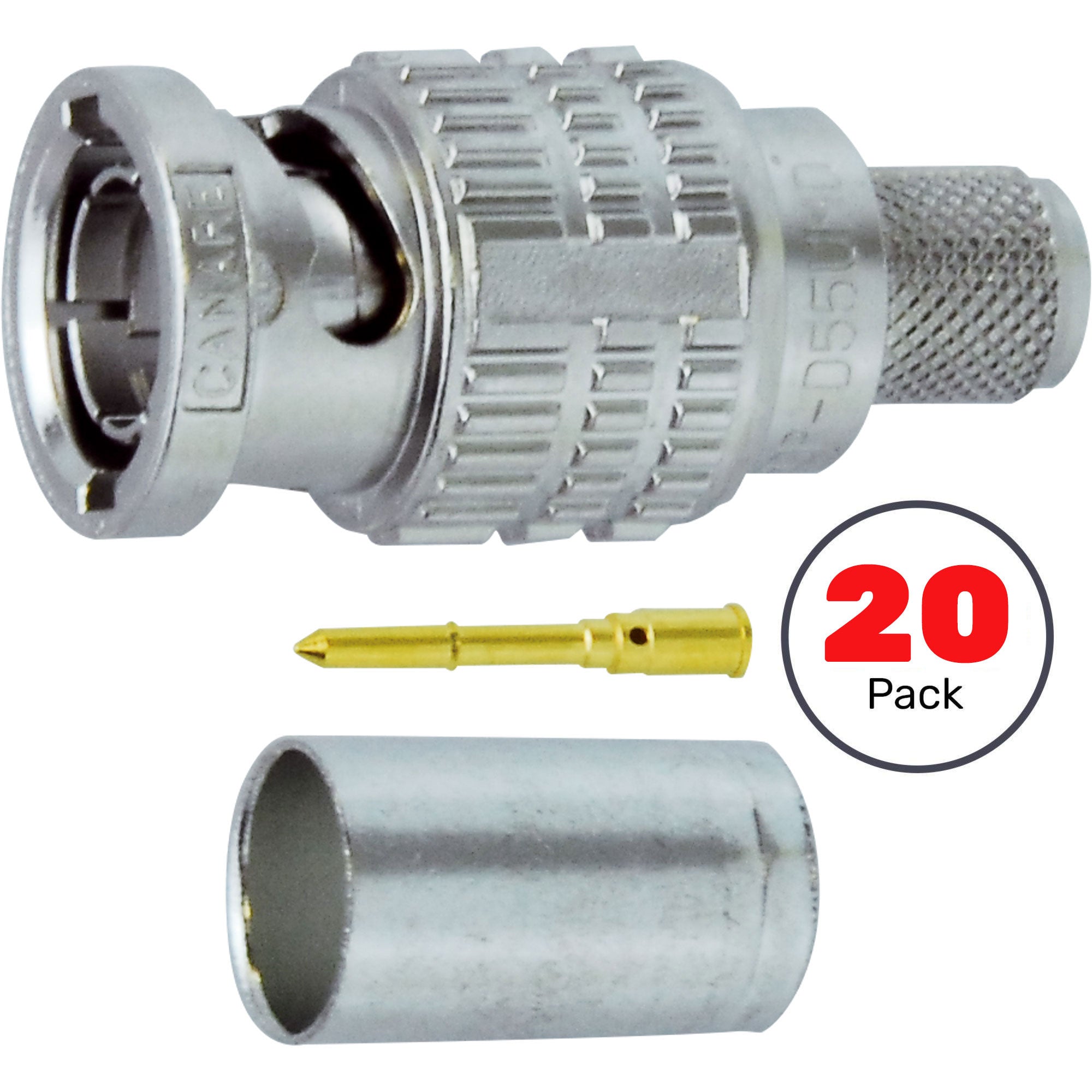

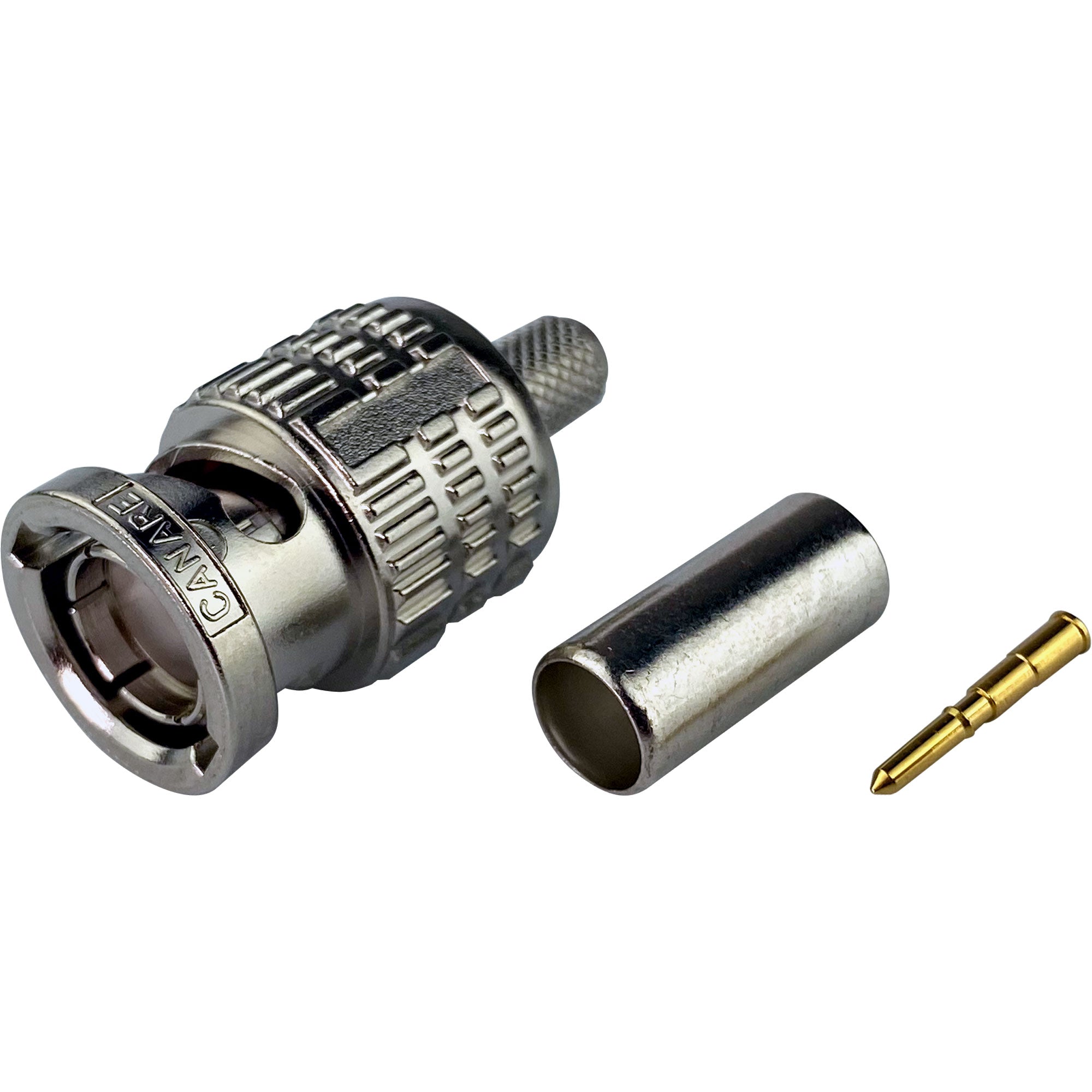

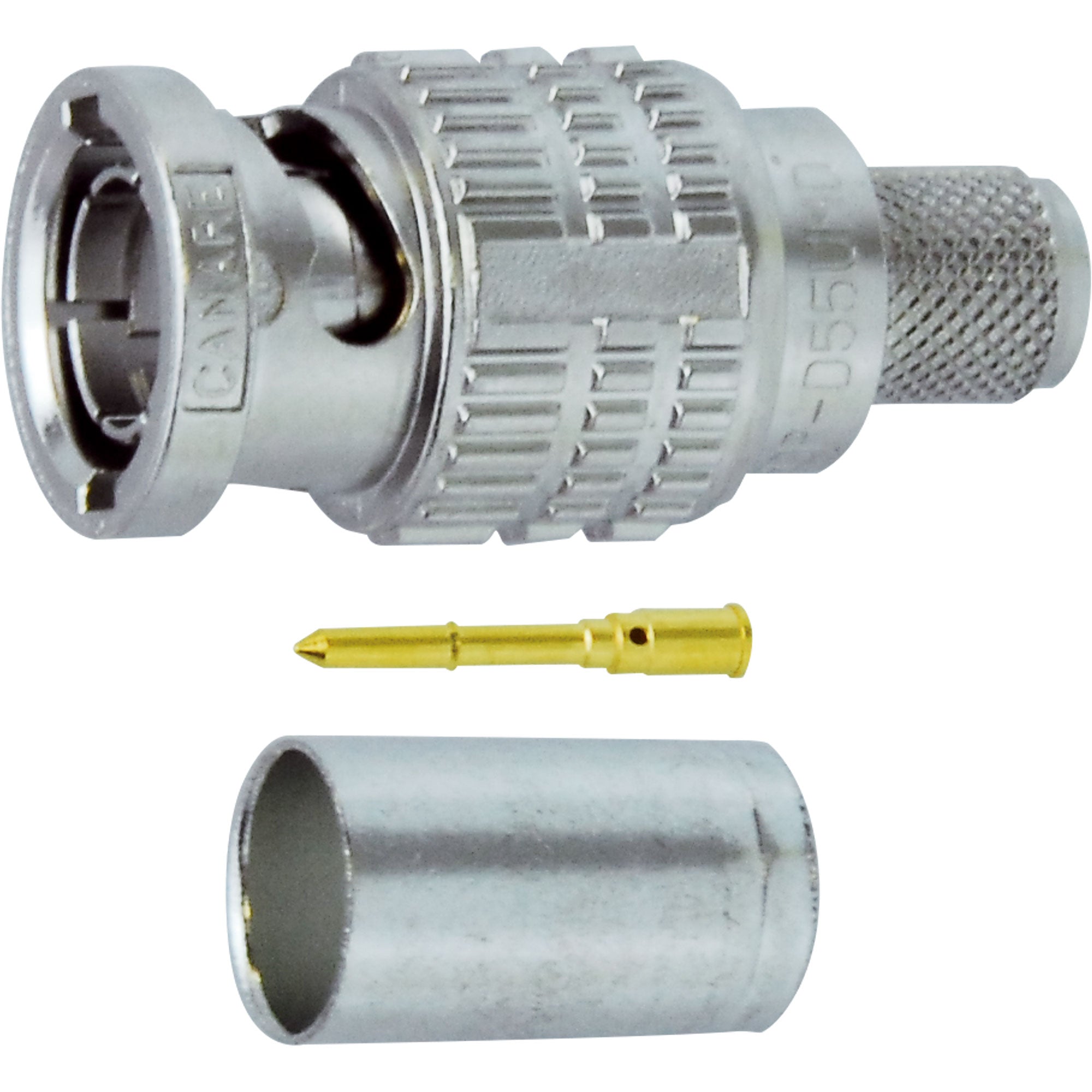

Canare BCP-D8UHD 75-Ohm BNC Male Crimp Connector for L-8CUHD Cable, 12G-SDI 4K UHD (20 Pack)

75-Ohm BNC Male Crimp Connector for L-8CUHD Cable - Full Box of 20 Connectors

The Canare BCP-D8UHD is a 75-ohm BNC male connector designed for use with Canare L-8CUHD 12G-SDI cables in video patchbays and direct connection with a variety of video equipment. It features an elongated body for improved grip and a crimp design for fast and secure installation. The gold-plated, snap-lock center pin and beryllium copper outer contact ensure high-quality signal transfer, and a position mark on the body simplifies the process of checking whether the connector is locked in place. The BCP-D8UHD connector is SMPTE ST-2082-1 compliant and capable of 12G-SDI 4K UHD.

Features:

• 12G-SDI 4K UHD Capable
• SMPTE ST-2082-1 Compliant
• Specifically engineered for the Canare 12G-SDI Cables.
• Canare crimp design ensures quick and reliable installation.
• Gold plated "snap lock" center pin and beryllium copper outer contact.
• Elongated body design for better grip.
• Position mark on the body makes it easier to check if the connector is locked.

Specifications:

• For Use with: Canare L-8CUHD 12G-SDI UHD Cable
• Connector: BNC Male
• Attachment Method: Crimp
• Impedance: 75 Ohms
• SMPTE Compliance: SMPTE ST-2082-1
• Plating: Gold-Plated Center Pin
• Contact: Beryllium Copper Outer Contact
• Boot: N/A
• Die Set: TC-2 + TCD-8HD
