Key Features
- Meets All Cat5e Standards
- Protects from EMI/RFI interference
- Standard RJ45 Connectors
- Available in 6 Colors
- 14 Feet in Length
- Black Color
Description

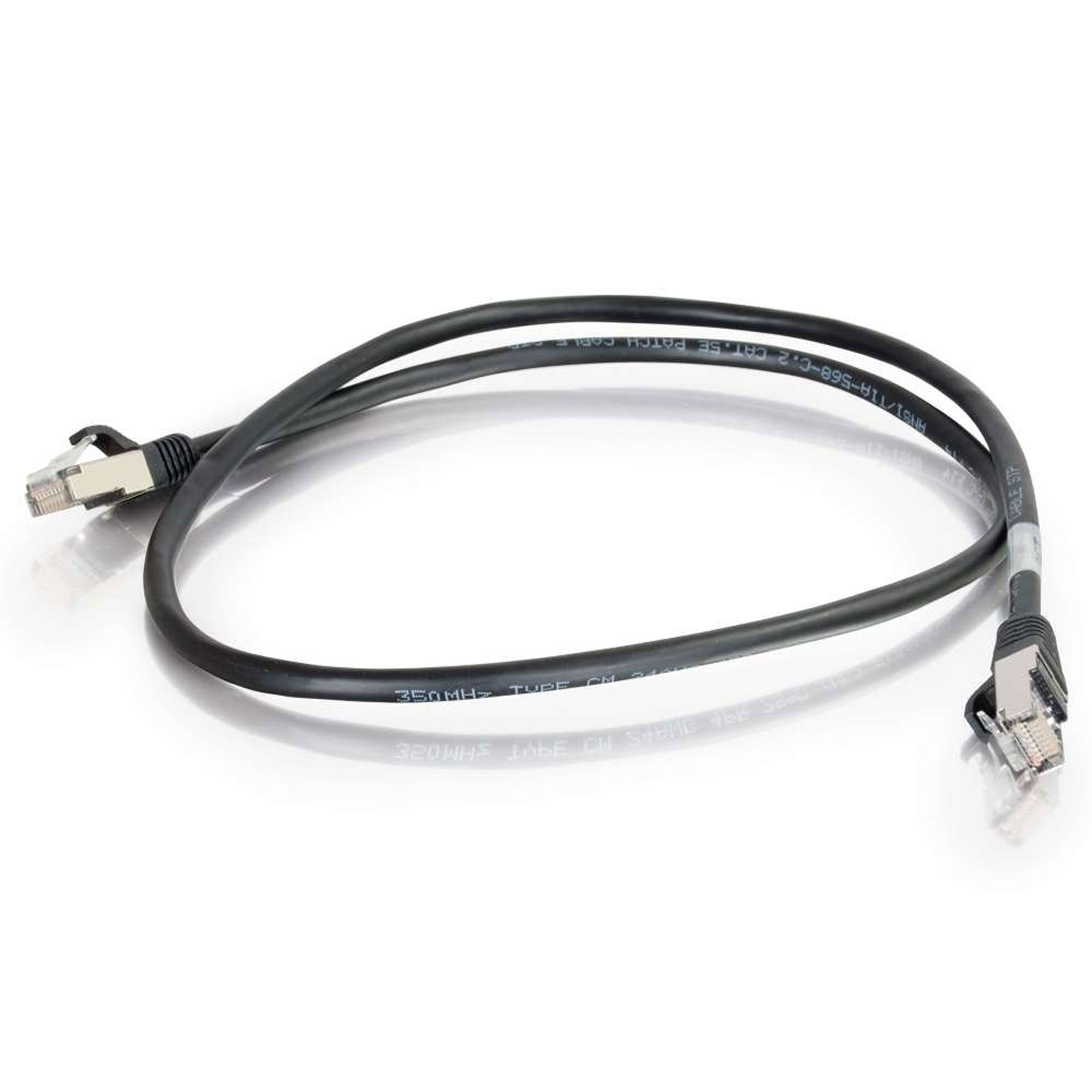

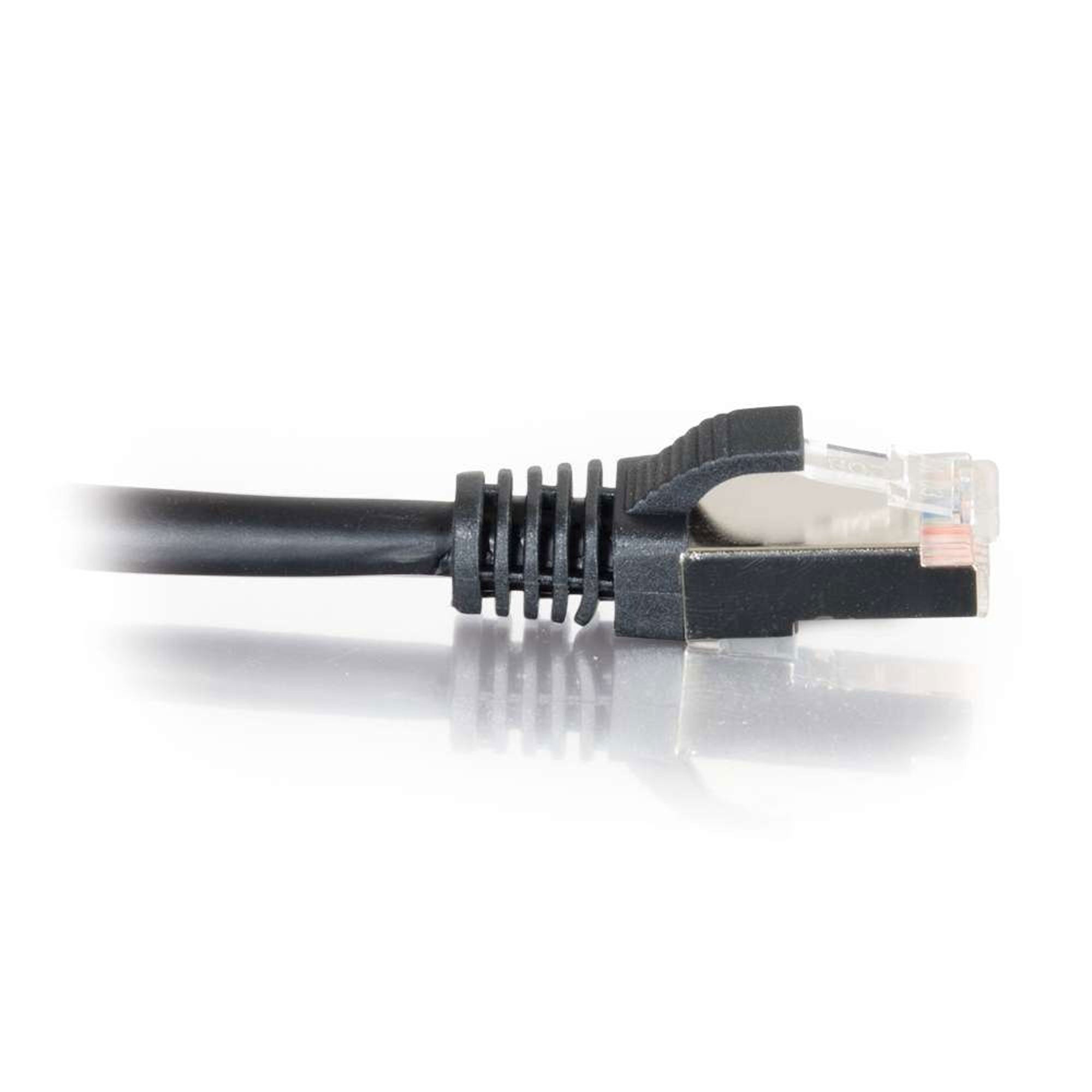

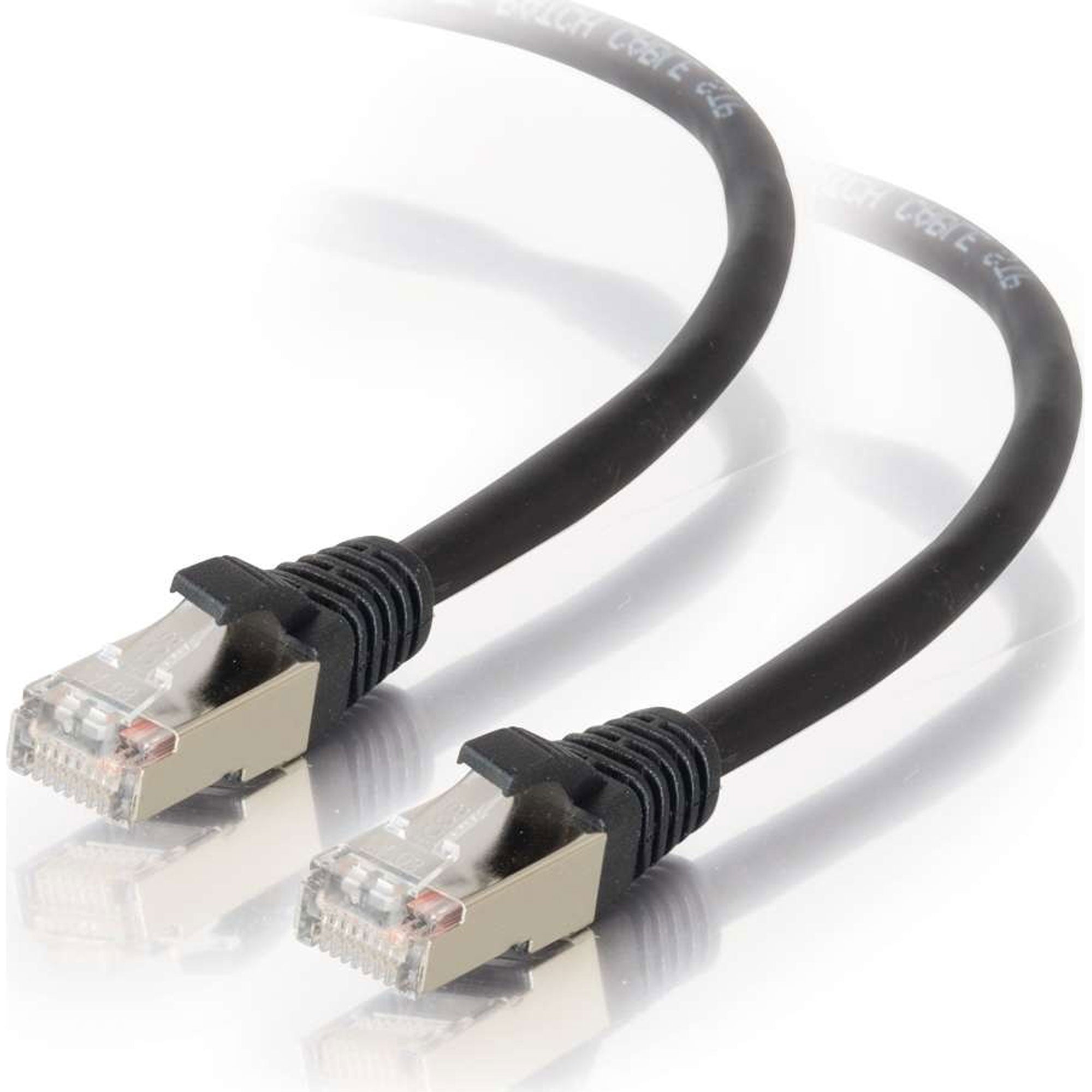

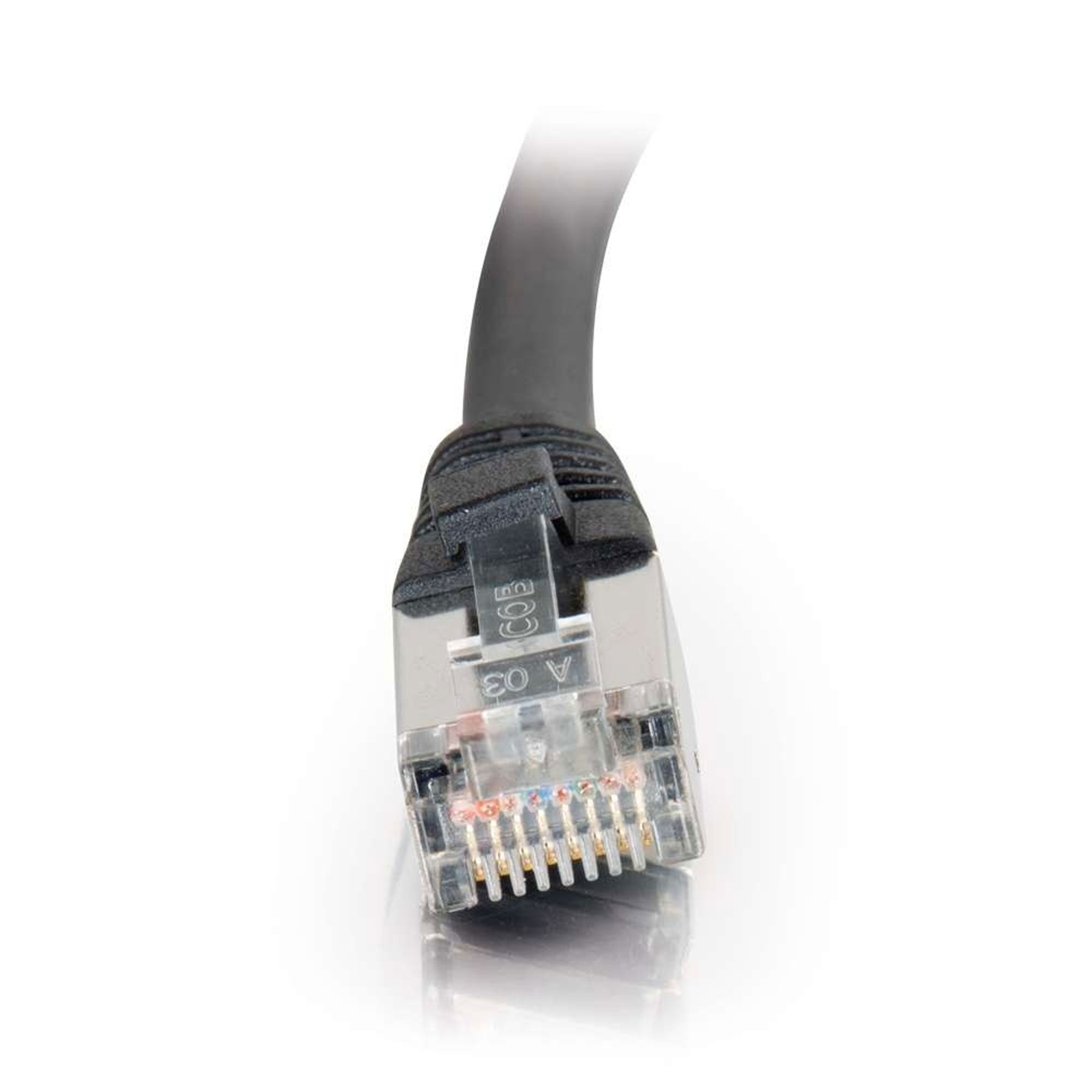

14ft (4.25m) Cat5e Snagless Shielded (STP) Ethernet Network Patch Cable - Black
This Cat5e shielded network patch cable is an ideal solution for making a network connecting in a noisy, EMI/RFI, environment. The F/UTP shielding features an overall cable shield which provides protection from EMI/RFI noise and electromagnetic interference. This cable meets or exceeds industry standards for NEXT and return loss. The molded boot provides extra strain relief and durability. Available in a variety of colors to easily color-code your network installation.
Features:
- Snagless design protects clips when plugging and unplugging
- Standard RJ45 connectors and foil braided wires
- Available in 6 colors to color-code a network
- Available in lengths up to 150ft
Specifications:
- Color : Black
- Length : 14.00 Foot
- UPC : 757120286943
- Warranty : Lifetime
- Vendor : C2G
- Weight : 0.400 LB
- Electrical Specifications
- Conductor DC Resistance: 89 Ohm/km (maximum)
- Insulation Resistance: 100 Ohm/km (minimum)
- Dielectric Strength: 500 MV/m
- Physical Characteristics
- Conductor Type/Size - 4-pair 24 AWG stranded STP
- F/UTP: Overall cable foil shielding with drain wire
- Insulation
- Material - H-D PE
- Diameter - 0.95 ± 0.05mm
- Colors - Black, Blue, Green, Grey, Red, Yellow
- Jacket
- Material - PVC
- Nominal Thickness - 0.55mm
- Outer Diameter - 5.30mm
- Connector
- Material - Polycarbonate
- Hood Material - Molded PVC
- Contact Material -Shielded 50 micron gold-plated RJ45
- Other Specifications
- Approvals - RoHS Compliant, Verified to ANSI/TIA-568-C-2
- Wired - TSB 568B (AT+T 258A)
- Package Type - Polybag
Details
- Manufacturer: C2G
- MPN: 28694
- Model Number: 28694
- UPC: 757120286943
