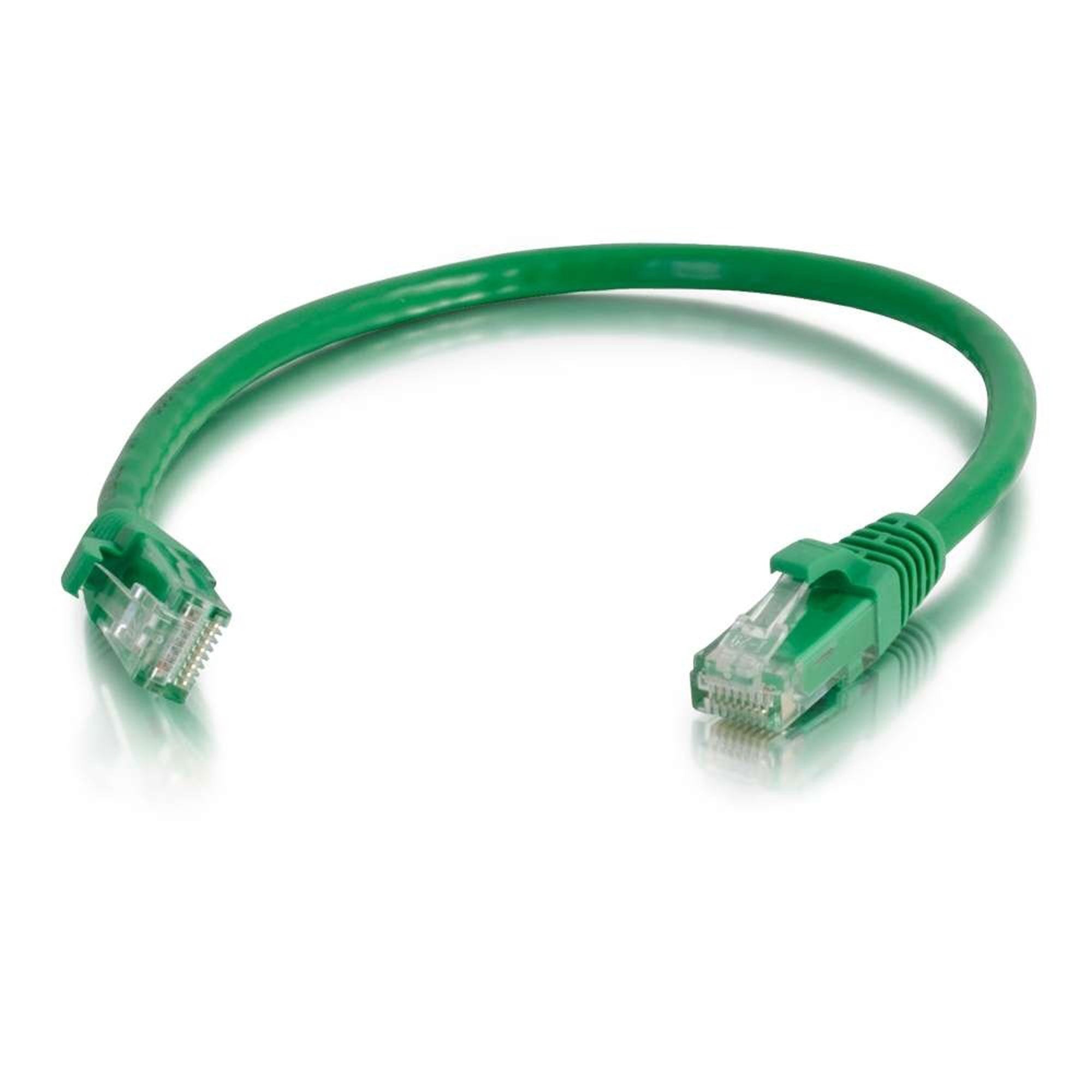

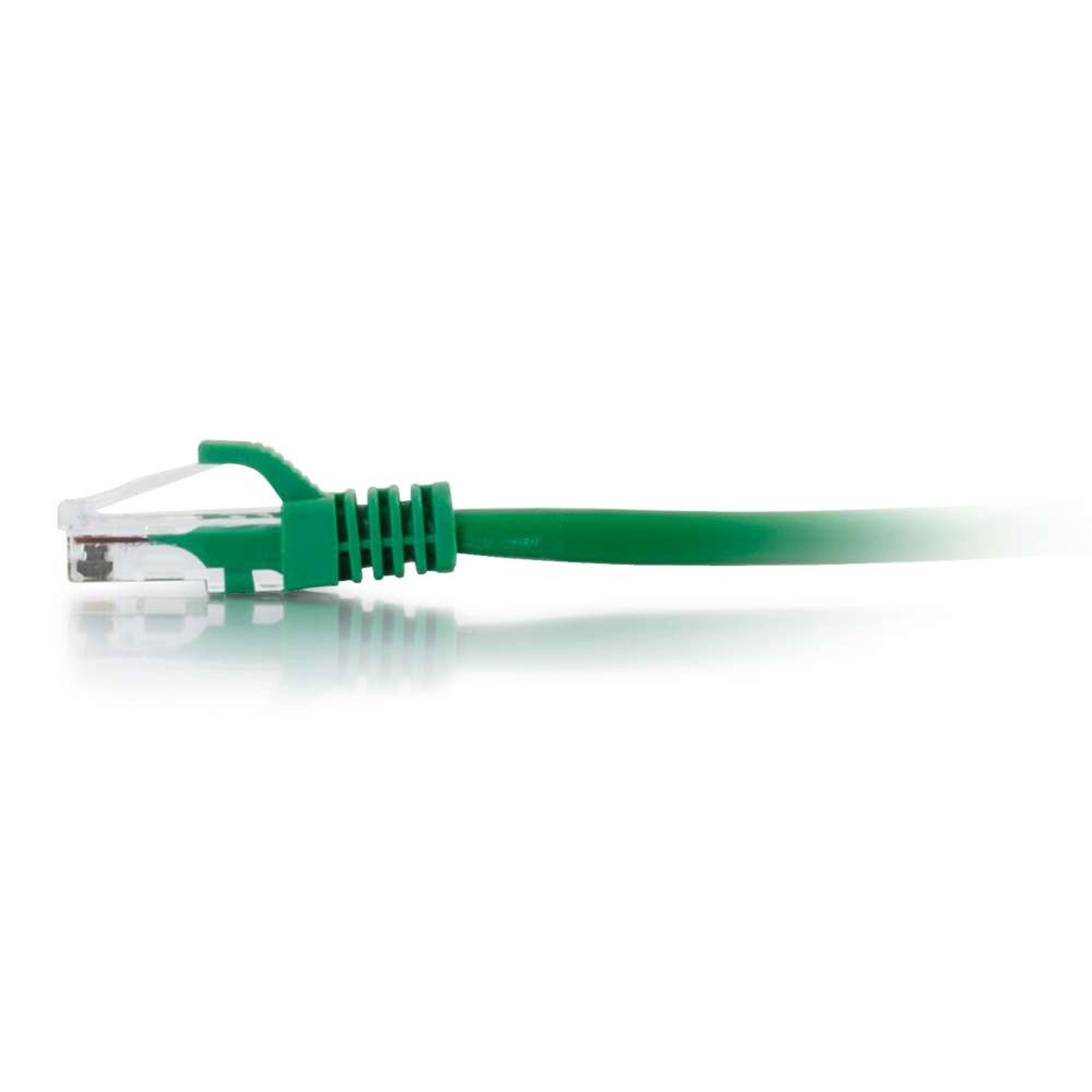

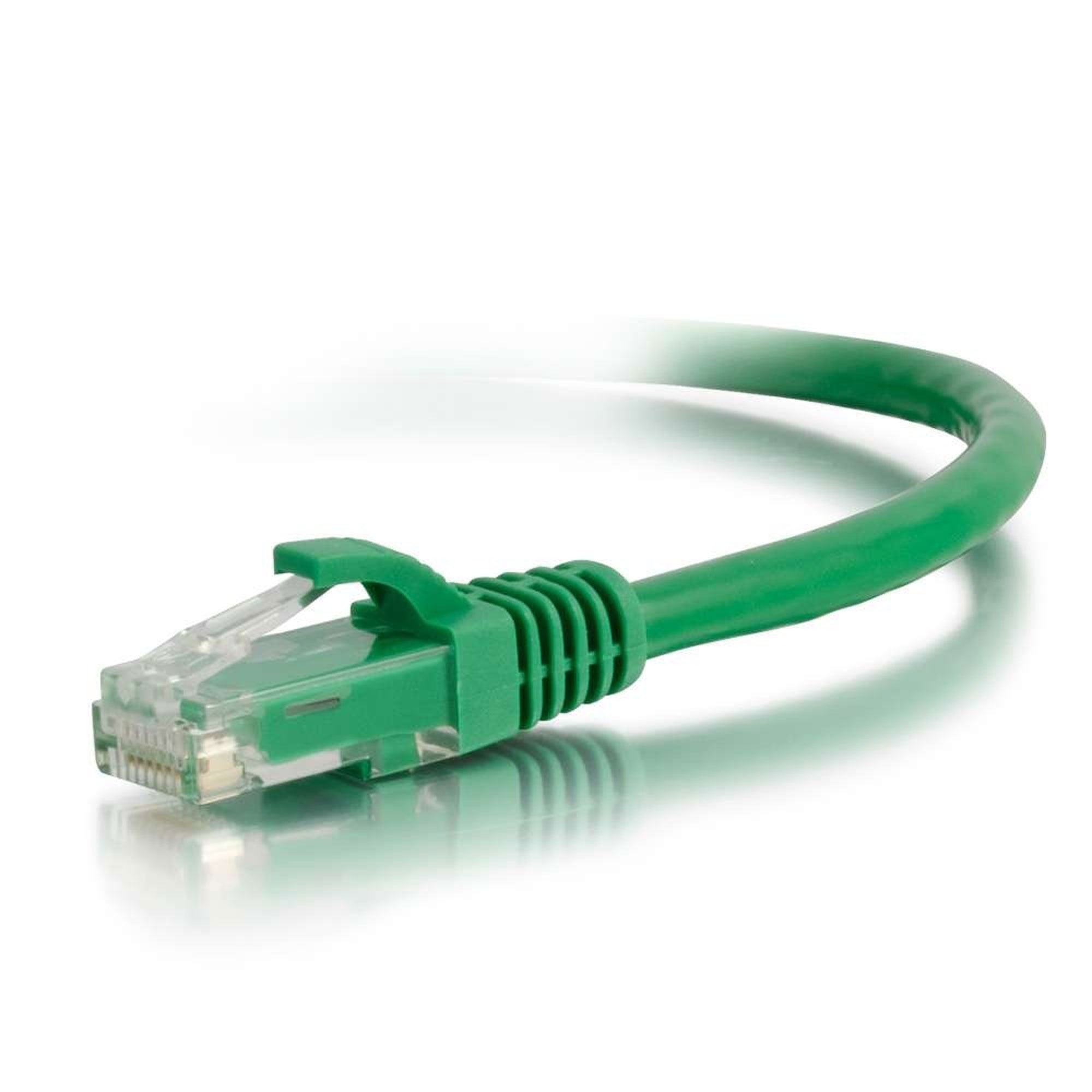

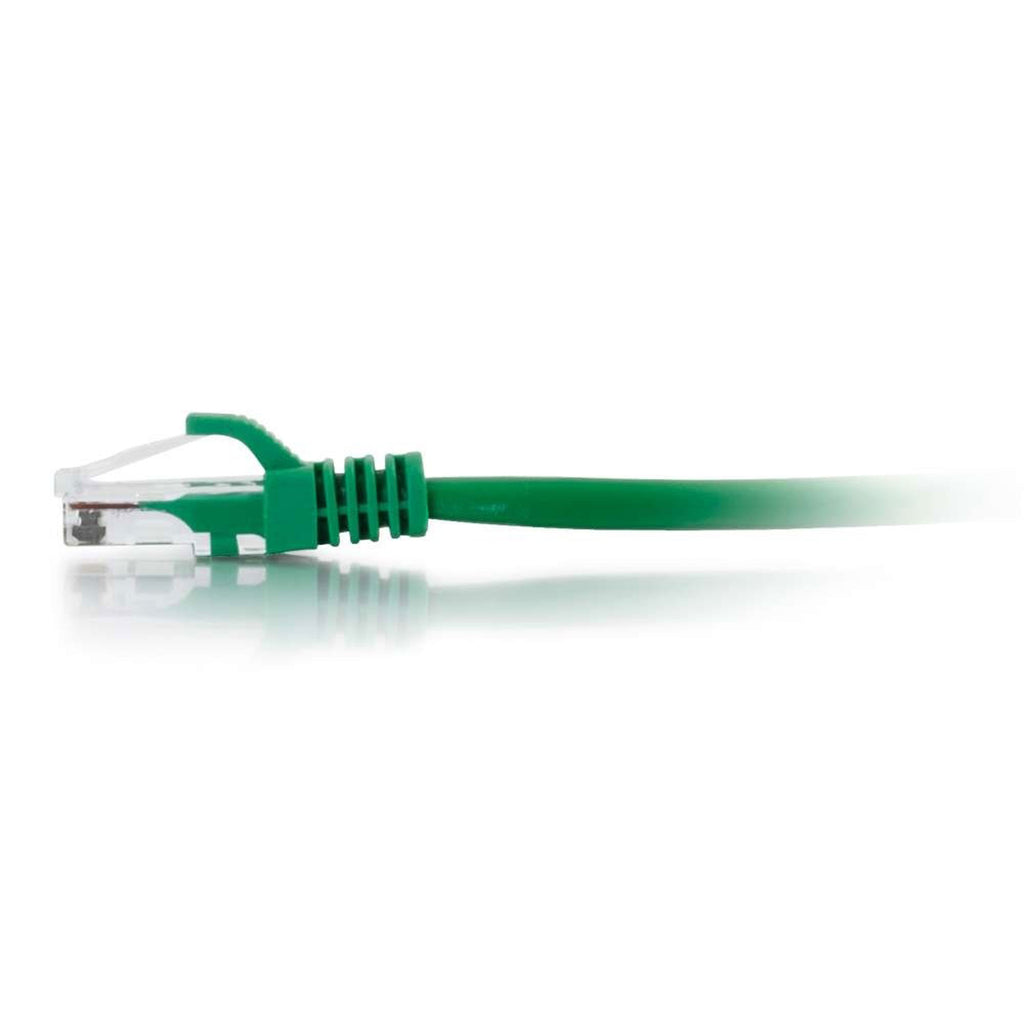

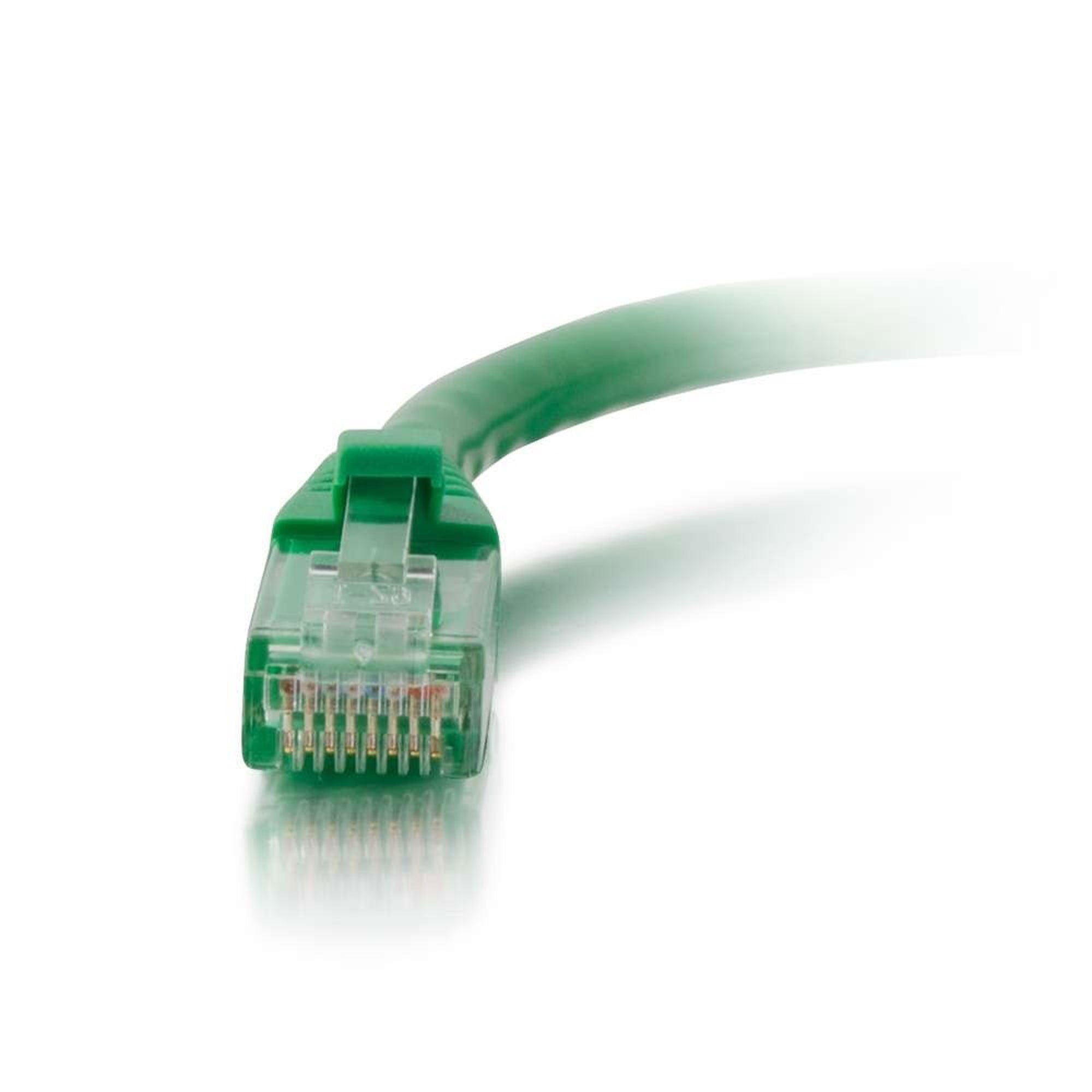

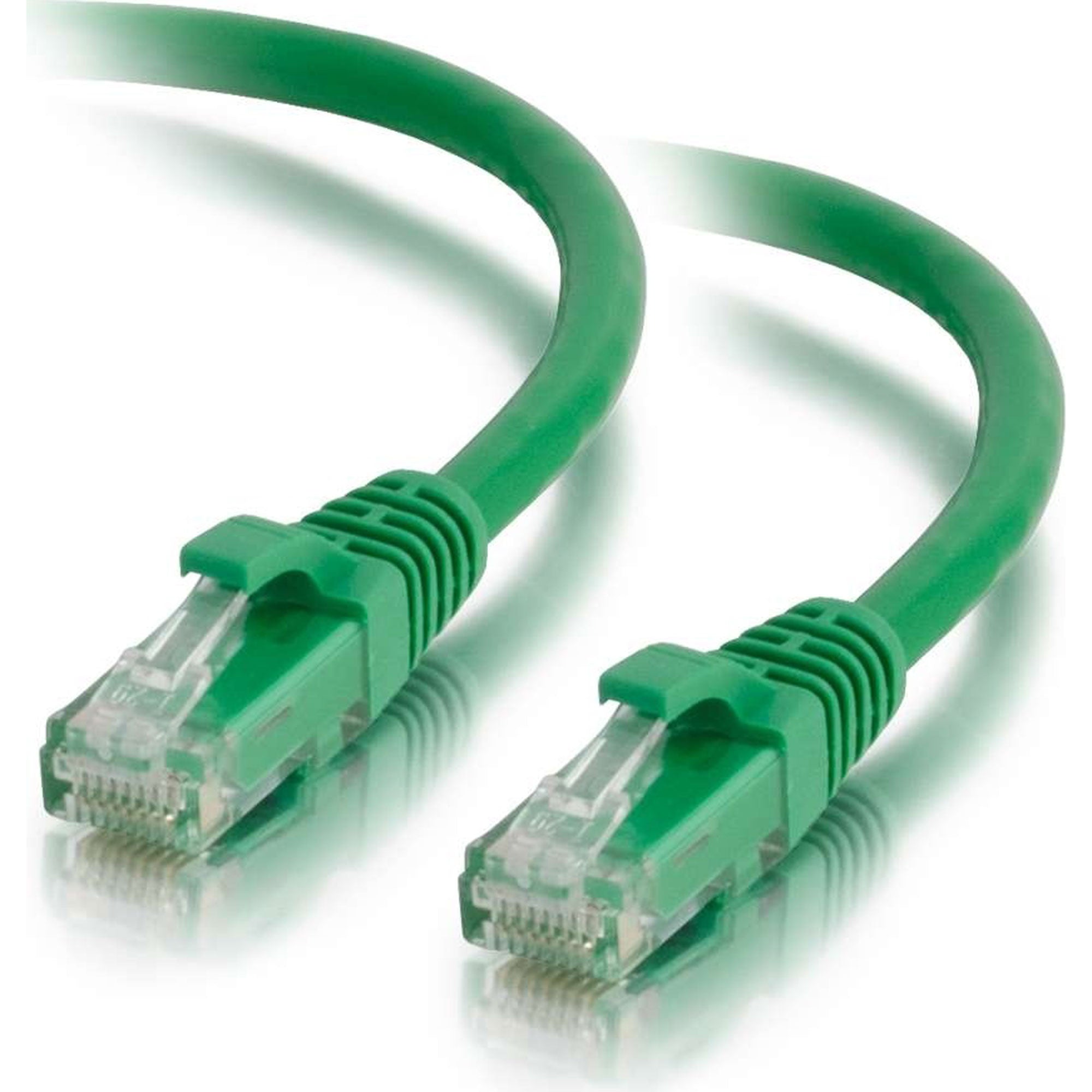

C2G Cat5e Snagless Unshielded (UTP) Ethernet Network Patch Cable - Green (35')

35ft (10.7m) Cat5e Snagless Unshielded (UTP) Ethernet Network Patch Cable - Green

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Features:

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color-code a network
• Available in lengths up to 150ft

Specifications:

• Color : Green
• Length : 35.00 Foot
• Jacket Rating : Standard
• UPC : 757120004196
• Warranty : Lifetime
• Vendor : C2G
• Weight : 0.776 LB
• Electrical Characteristics
• Conductor DC Resistance - 89Ω/km (maximum)
• Insulation Resistance - 100Ω/km (maximum)
• Dielectric Strength - 500MV/m
• Certification: TIA/EIA
• Physical Characteristics
• Wiring Scheme - TSB 568B (AT&T 258A)
• Approvals - RoHS Compliant
• Package Type - Polybag
• Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.95 ± 0.02mm
• Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
• Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender - Male
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Moulded PVC
• Overall Cable
• Jacket - FR-PVC
• Minimum Average Thickness - 0.55mm
• Outer Diameter - 5.30 ± 0.15mm
• Product Uses
• 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice
