Key Features
- Supports NTSC/PAL/HD/UHD 4K at 10-bit
- Supports 4K Resolution over SDI or HDMI
- 1 x HDMI & 10 x 6G-SDI Inputs
- Tri-Sync/Black Burst Ref Sync Input
- 10 x Built-In Frame Synchronizers
- Multiview Monitoring in HD
- Program Outputs in UHD/HD/SD
- 4 x Keyers Total: 3 x Luma, 1 x Chroma
- 12-Channel Audio Mixer
- Hardware or Software Mac/Windows Control
Description

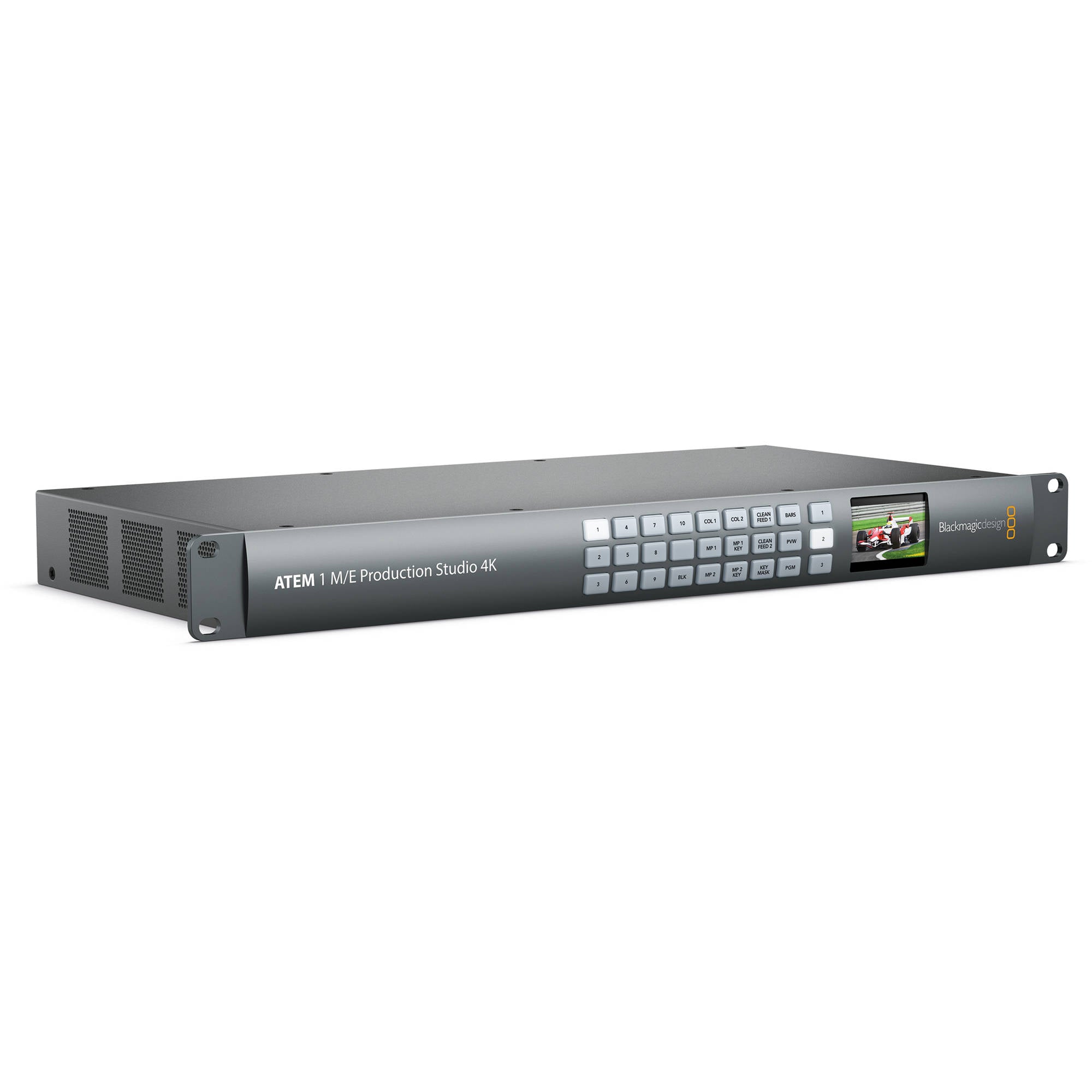

The advanced ATEM 1 M/E Production Studio 4K model switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers. Featuring 10 inputs, chroma keys, transitions, media pool, 4 upstream keyers, downstream keyers, audio mixer, multi view, full motion DVE, stinger transitions, large media pool with full motion clips and 3 auxiliary outputs!
Specifications:

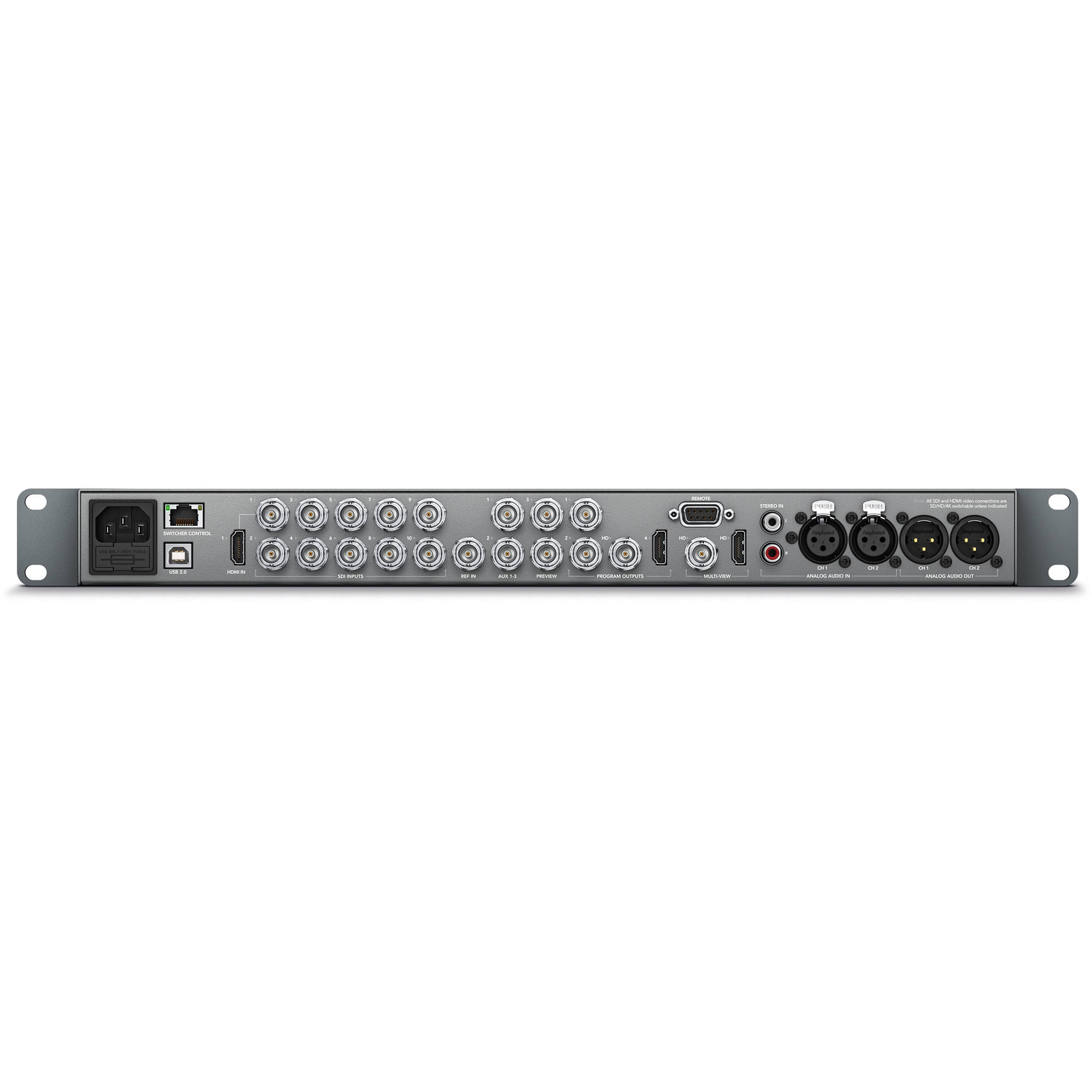

- Connections
- Total Video Inputs
- 11 with 10 active.
- Total Video Outputs
- 10
- Total Aux Outputs
- 3
- SDI Rates
- 270Mb, 1.5G, 3G, 6G
- Total Audio Inputs
- 2 x XLR. 2 x RCA.
- Total Audio Outputs
- 2 x XLR Program.
- Timecode Connections
- None
- Reference Input
- Tri-Sync or Black Burst.
- Video Input Re-Sync
- On all 10 inputs.
- SDI Video Inputs
- 10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
- HDMI Video Input
- 1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
- Analog Audio Outputs
- 2 x XLR.
- SDI Audio Outputs
- 2 Ch embedded into SDI output on all outputs.
- SDI Program Outputs
- 2 x 10-bit SD/HD/Ultra HD 4K switchable.
- HDMI Program Outputs
- 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
- Down Converted SDI Program Output
- 1 x 10-bit (Ultra HD 4K to HD)
- SDI Preview Output
- 1 x 10-bit SD/HD/Ultra HD 4K switchable.
- Total Multi Views
- 1
- SDI Multi View Outputs
- 1
- HDMI Multi View Outputs
- 1
- Control Panel Connection
- Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
- Tally Output
- Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
- Computer Interface
- 1 x USB 2.0 port.
- Standards
- SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
- 1080i50, 1080i59.94
- Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97
- SDI Compliance
- SMPTE 259M, SMPTE 292M, SMPTE 424M.
- Video Sampling
- 4:2:2.
- Color Precision
- 10-bit
- Color Space
- REC 601, REC 709, REC 2020.
- HDMI Input Resolutions for Computers
- 720 x 480i 59.94Hz,
- 720 x 576i 50Hz,
- 1280 x 720 59.94Hz,
- 1280 x 720 50Hz,
- 1920 x 1080 50Hz,
- 1920 x 1080 59.94Hz,
- 3840 x 2160 23.98Hz,
- 3840 x 2160 24Hz,
- 3840 x 2160 25Hz,
- 3840 x 2160 29.97Hz.
- Product Specifics
- Upstream Keyers
- 4 with Chroma/Linear/Luma key.
- Downstream Keyers
- 2
- Talkback Support
- None
- Mix Minus Support
- None
- Chroma Keyers
- 4
- Linear/Luma Keyers
- 7
- Transition Keyer (Stinger/DVE)
- 1 Stinger, 1 DVE.
- Total Number of Layers
- 8
- Pattern Generators
- 7
- Color Generators
- 2
- DVE with 3D Borders & Drop Shadow
- 1
- Control Panel Compatibility
- ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Includes ATEM Software Control Panel.
- Media Player
- Media Players
- 2
- Channels
- Channels
- Media Pool Still Image Capacity
- 32 with fill and key.
- Media Pool Clip Capacity
- 2 with fill and key.
- Media Player Clip Length in 720 HD
- 1600 frames.
- Media Player Clip Length in 1080 HD
- 720 frames.
- Media Player Clip Length in
- Ultra HD
- 180 frames.
- Maximum Clip Length in NTSC/PAL
- 3600 frames.
- Media Pool Still Image Format
- PNG, TGA, BMP, GIF, JPEG and TIFF.
- Media Pool Video File Format
- TGA Sequence.
- Media Pool Audio File Format
- WAV, MP3 and AIFF.
- Multi View Monitoring
- Multi View Monitoring
- 1 x 10 views.
- Routable Windows
- 8
- Tally
- Red for program and green for preview indication.
- Windows Source Labels
- Yes
- Multi View Video Standard
- HD
- Display
- Interface
- Minimum monitor resolution of 1366 x 768.

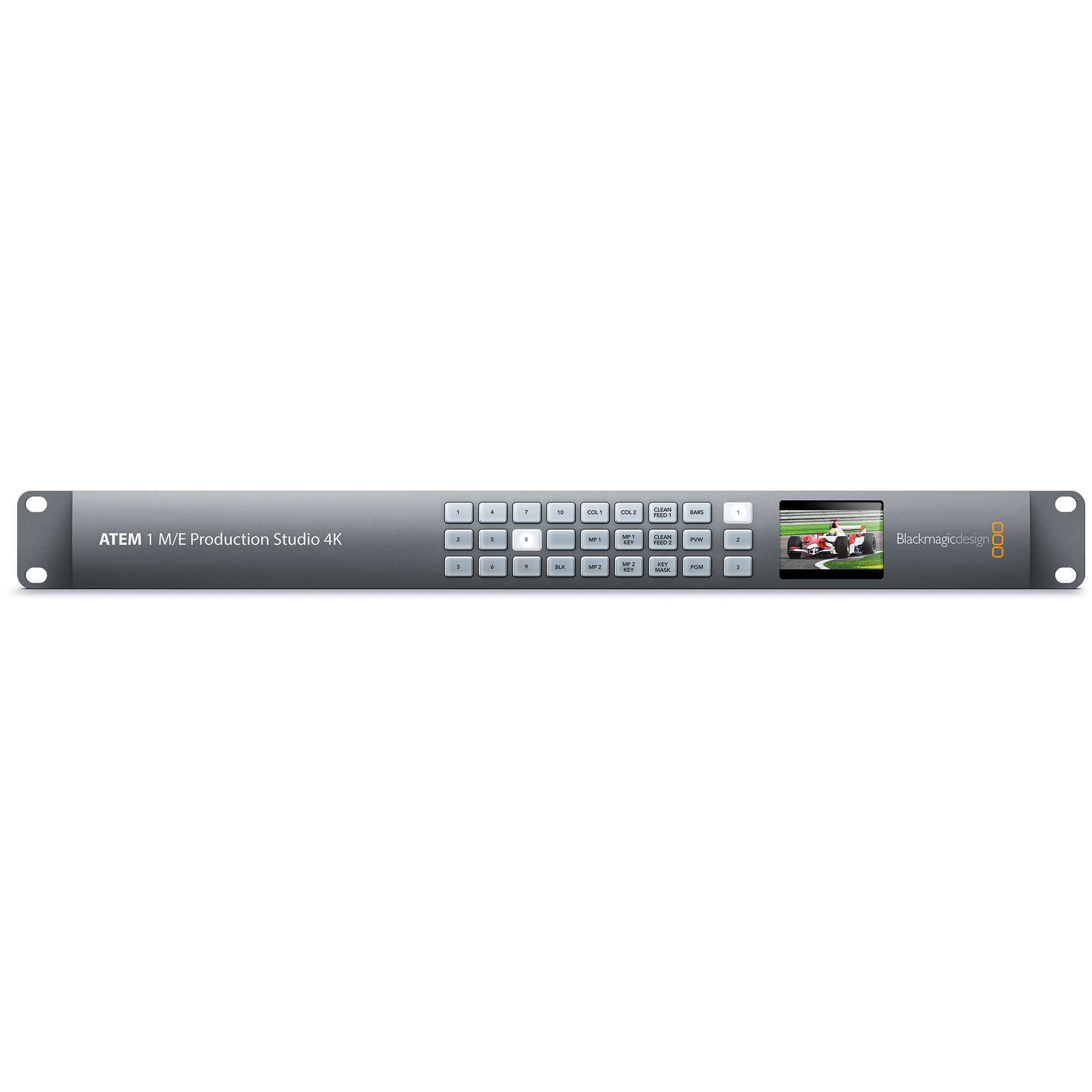

- Front Panel
- Built in LCD monitor for video
- and 42 LED buttons for Aux switching.
- Processing
- Colorspace Conversion
- Hardware based real time.
- Processing Delay
- < 2 Lines.
- Audio Mixer
- 12 input x 2 channel mixer.
- Selectable On/Off/Audio-Follow-Video.
- Level and Peak metering.
- Master gain control.
- Analog outputs may be used for separate monitoring.
- 4K to HD Down Conversion
- Yes, program x 1.
- Software
- Control Panel Included
- ATEM Software Control Panel included free for
- Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit.
- Software Updates
- Using USB 2.0 connection directly connected
- to Mac OS or Windows computers. Includes
- ATEM Setup Utility
- Configuration
- Set via ATEM Software Control Panel, excluding
- ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
- Operating Systems
- Mac 10.14 Mojave,
- Mac 10.15 Catalina or later.
- Windows 8.1 and 10.
- Power Requirements
- Power Supply
- 1 x Internal 100 - 240V AC.
- Physical Installation
- 1 Rack Unit Size.
- Environmental Specifications
- Operating Temperature
- 0° to 40° C (32° to 104° F)
- Storage Temperature
- -20° to 60° C (-4° to 140° F)
- Relative Humidity
- 0% to 90% non-condensing
- What's Included
- ATEM 1 M/E Production Studio 4K
- Welcome wallet with QR code for software download
- Warranty
- 12 month Limited Manufacturer's Warranty.
Details
- Manufacturer: Blackmagic Design
- MPN: SWATEMPSW1ME4K
- Model Number: SWATEMPSW1ME4K
- UPC: 9338716002195
