Best-Tronics BT39IF Cable Mount 39 Pin Connector with Dust Cap, Strain Relief & Wiring Kit (Female)

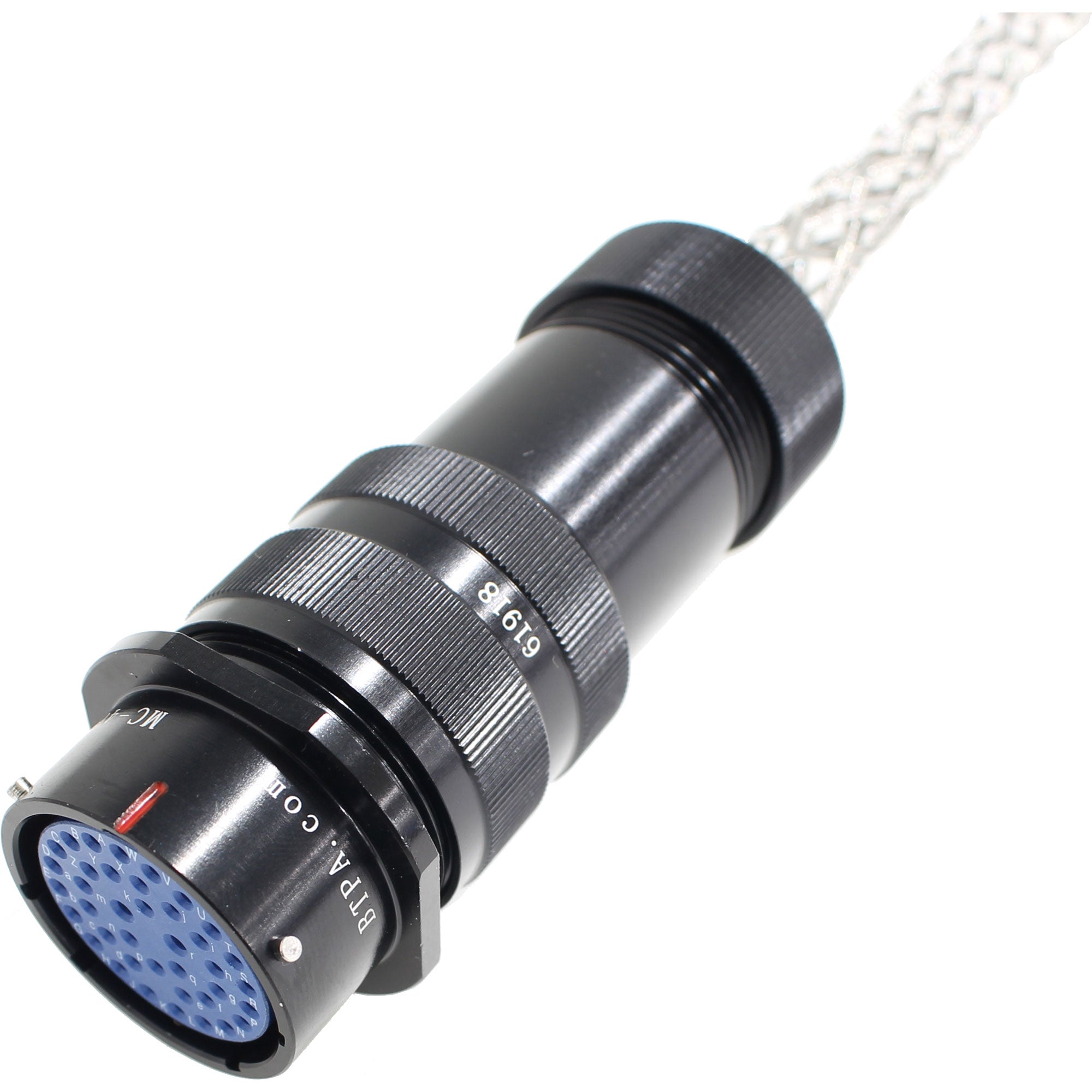

BT39IF Inline (Cable Mount) Female 39 Pin Connector with dust cap, metal strain relief and wiring kit. 0.5" - 0.625" Cable diameter range allowance for strain relief and connector opening.

*Mates with W1IM, W1CM, MP-6216-39P-C, and MP-6256-39P-C*

The 39 pin female inline connector is a perfect way to easily patch up to 12 balanced audio channels in a single connection. These inline connectors come in handy for making trunk cables (multipin on each end) and multipin to XLR fan cables. The 39 pin inline connectors will mate with 39 pin inline connectors for extensions, or 39 pin chassis connectors to consolidate connection points.

All of the BT39 connectors feature a complete wiring kit equipped with all necessary heat shrink, wiring diagrams, strip lengths for cable, and metal strain reliefs. The BT39 connectors also feature fixed solder-cup pins. This helps combat pins breaking from "pin float" that other multipin connectors often fall victim to. The fixed pins also means for less assembly time inserting pins.

What's In The Kit?

• BT39 Female Inline (cable mount) Connector
• BT39 Female Inline (cable mount) Dust Cap

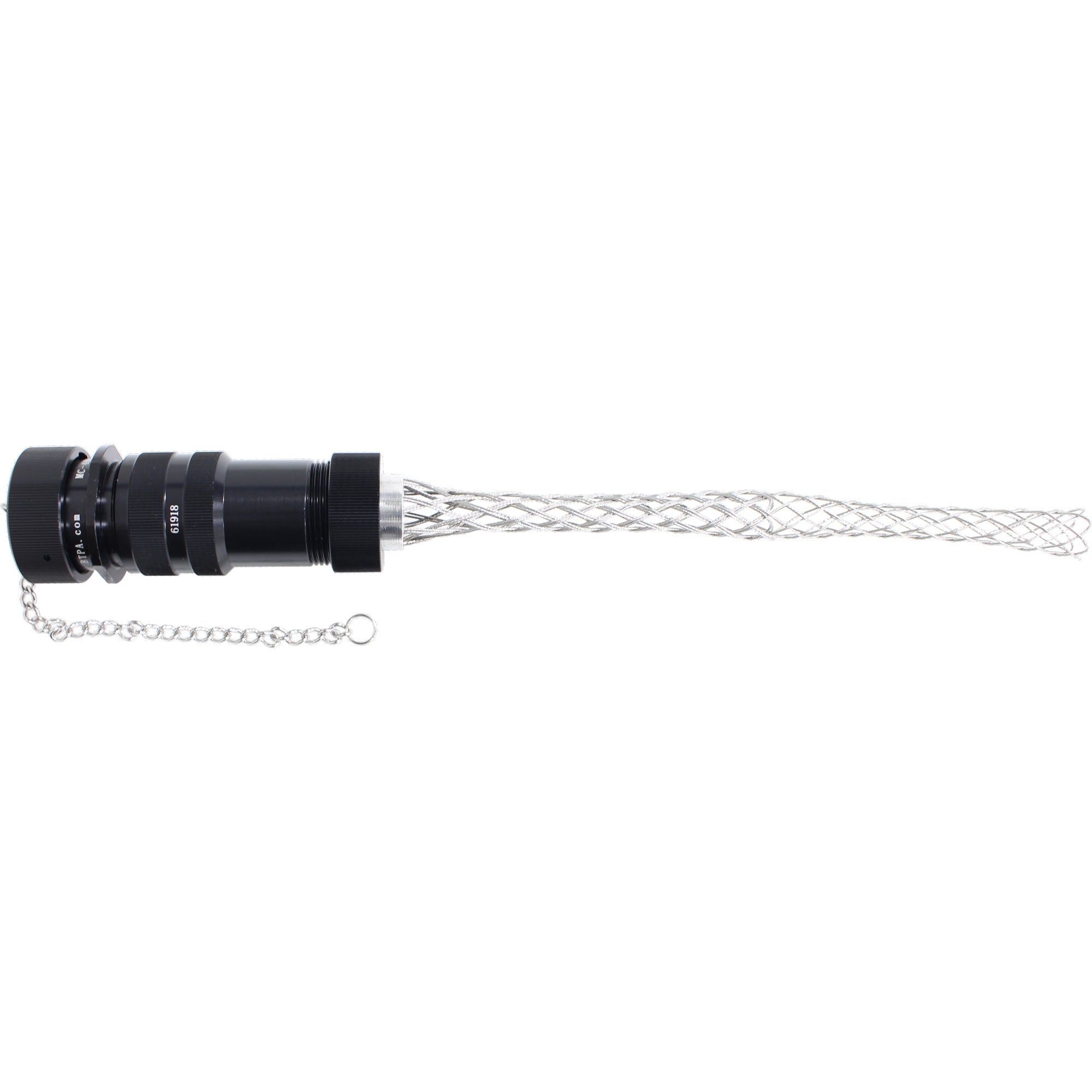

• Metal strain relief for cable O.D. ranges of 0.5" to 0.625"
• All necessary heat shrink for proper assembly
• BT39 Wiring instructions featuring strip length guide, wiring chart, and chassis hole sizes

Key Features

• Mates with widely used W1IM and MP-6216-39P-C connectors
• 12 Channel maximum audio channel count
• Red indicator line for easily mating connectors
• Metal mesh strain relief (on inline connectors)

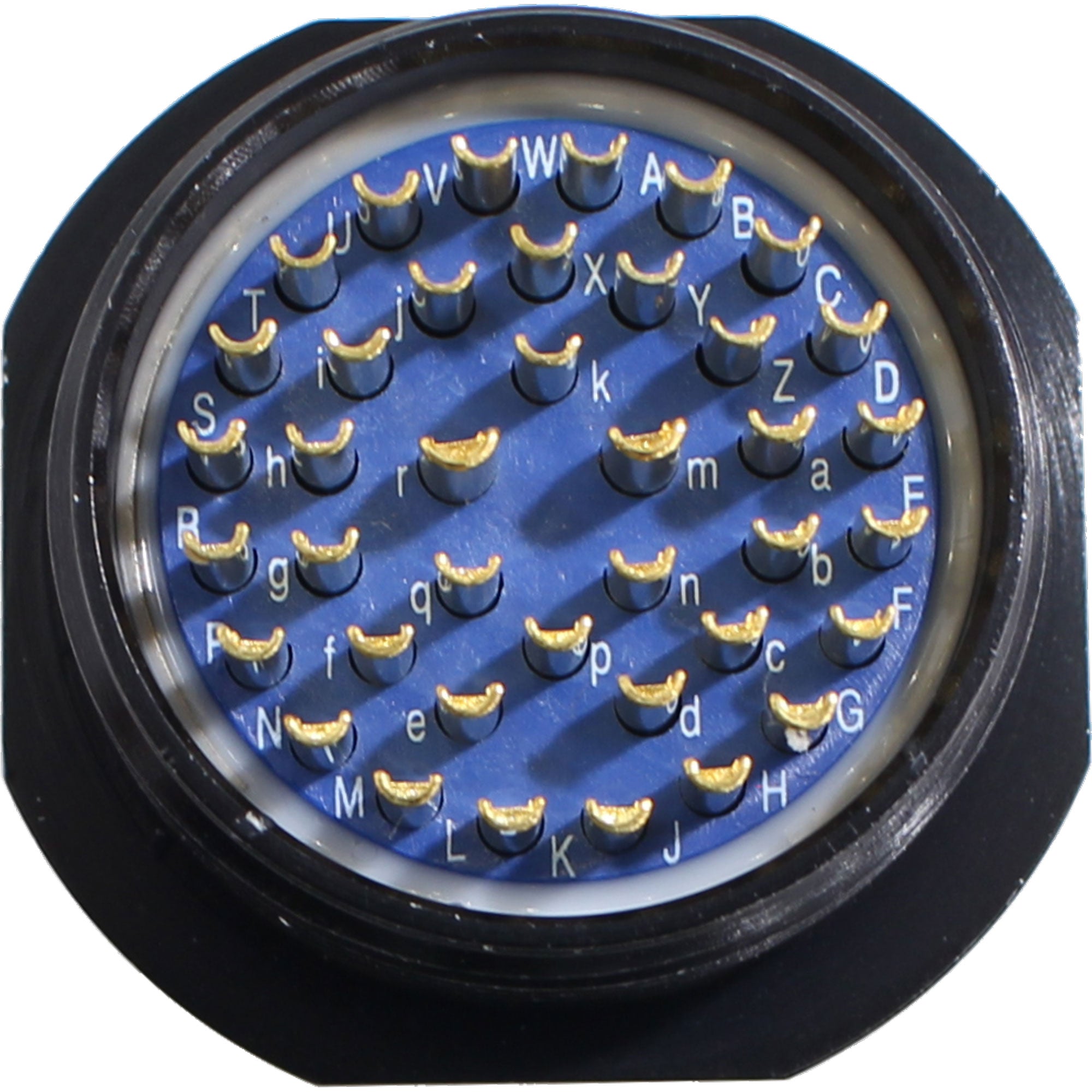

• Solder type contacts in fixed pin field for rigidity on the road
• Nodes to accept locking ring (on male connector) for a robust and secure connection
• Full DIY Kit comes with connector, dust cap, wiring instructions, all necessary heat shrink
• 1U Panel Mount Format

Recommended Cable

• 12 channel applications, we recommend the Mogami W2933 or the Canare MR202-12AT
• 8 channel applications, we recommend the Mogami W2932 or the Canare MR202-8AT

History/Development

These circular connectors are a military style of connector that are used within the pro A/V industry. Our 50+ year history of contract manufacturing within the military industry makes us no stranger to these types of connectors. We leveraged our experience of operating in the military industry to create a more affordable and readily available 39 pin connector.

These connectors have been field tested and used for years before we have decided to list them for sale as bulk components. The connectors have proven to withstand the rigors of the road and the live music industry.

Specifications:

• Weight 0.3 lbs
• SKU BT39CM
• Color Black
• Operating Temperature -55°C - +- 125°C
• Gender Male
• Number Of Contacts 39
• Locking Ring Yes
• Locking Ring Material Metal
• Termination Solder Type
