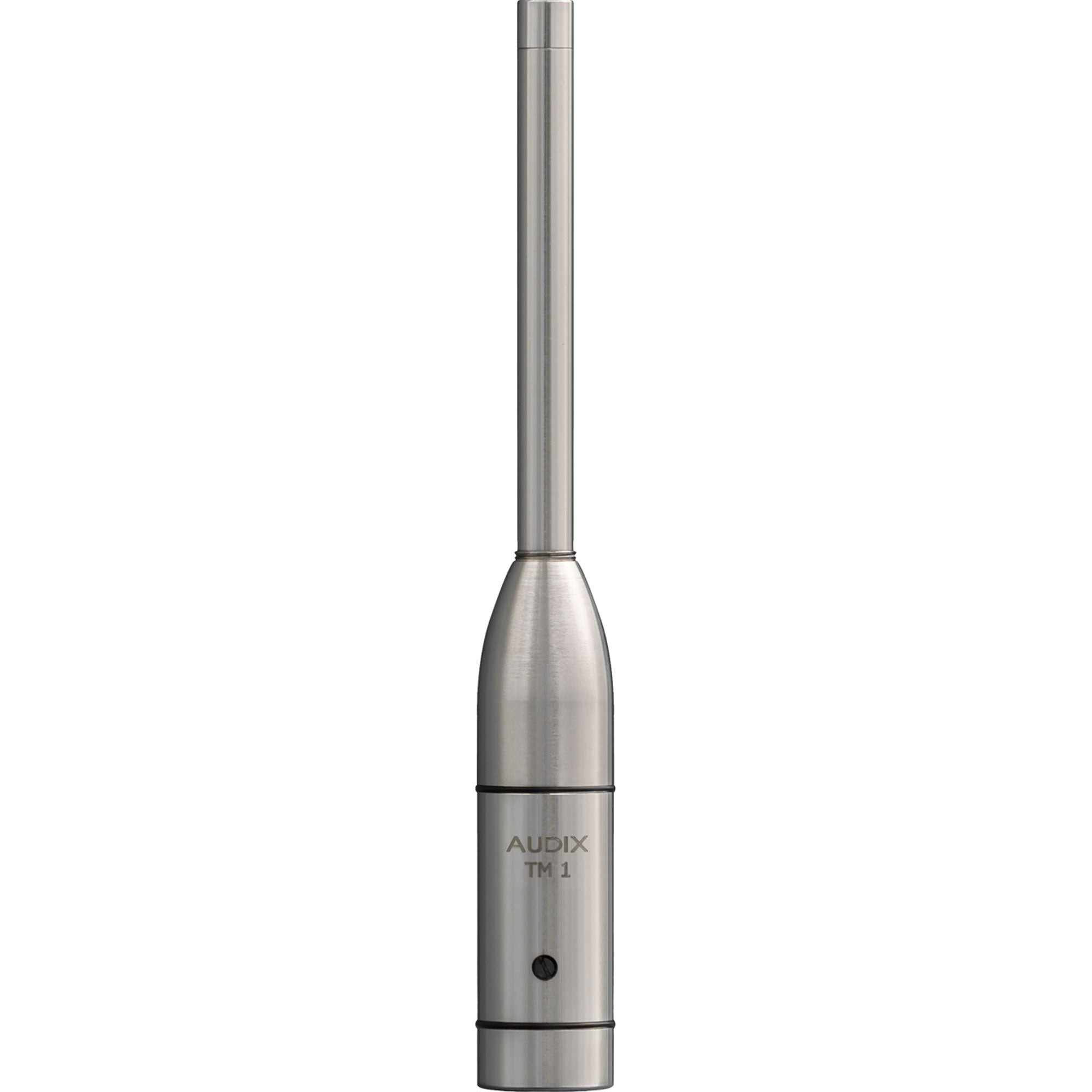

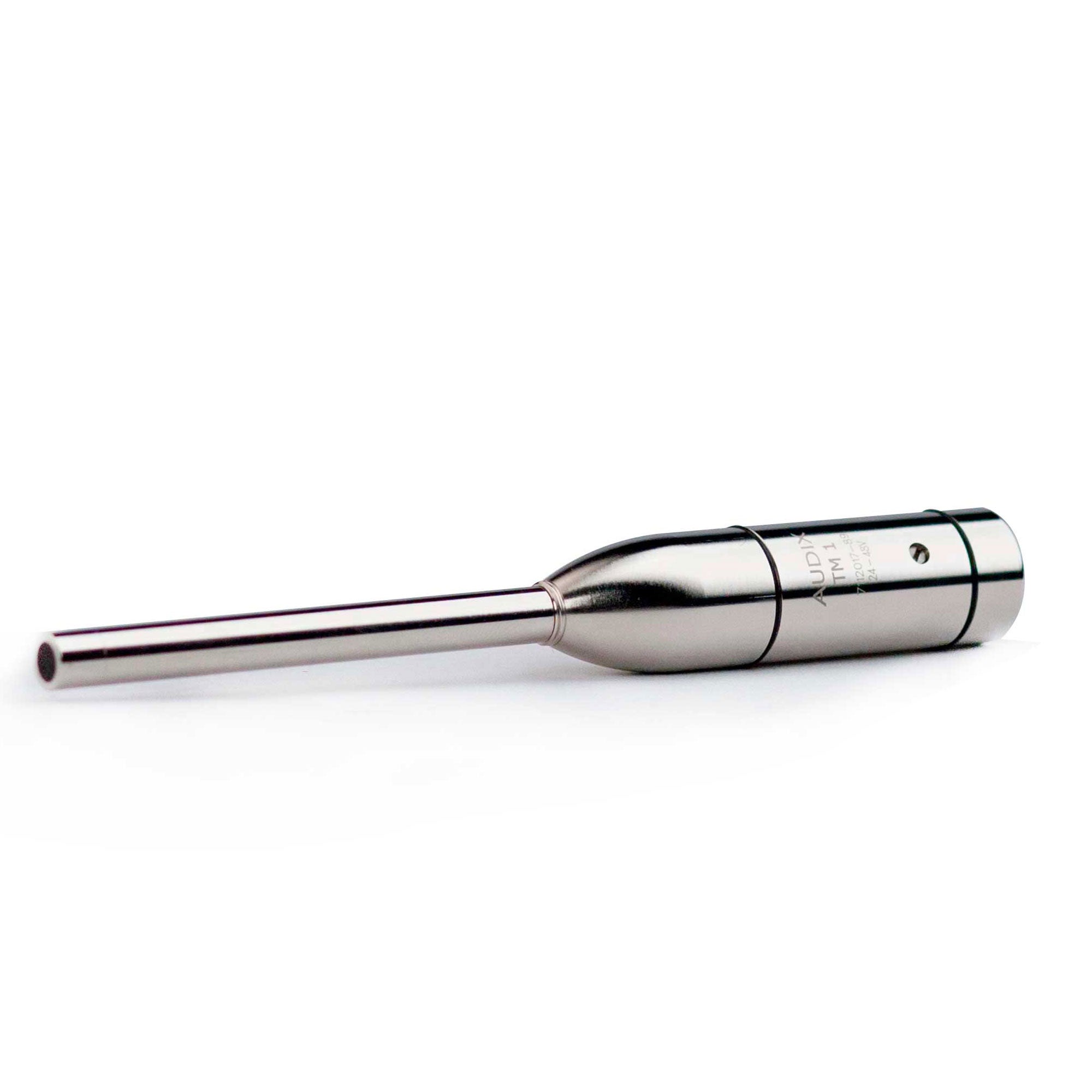

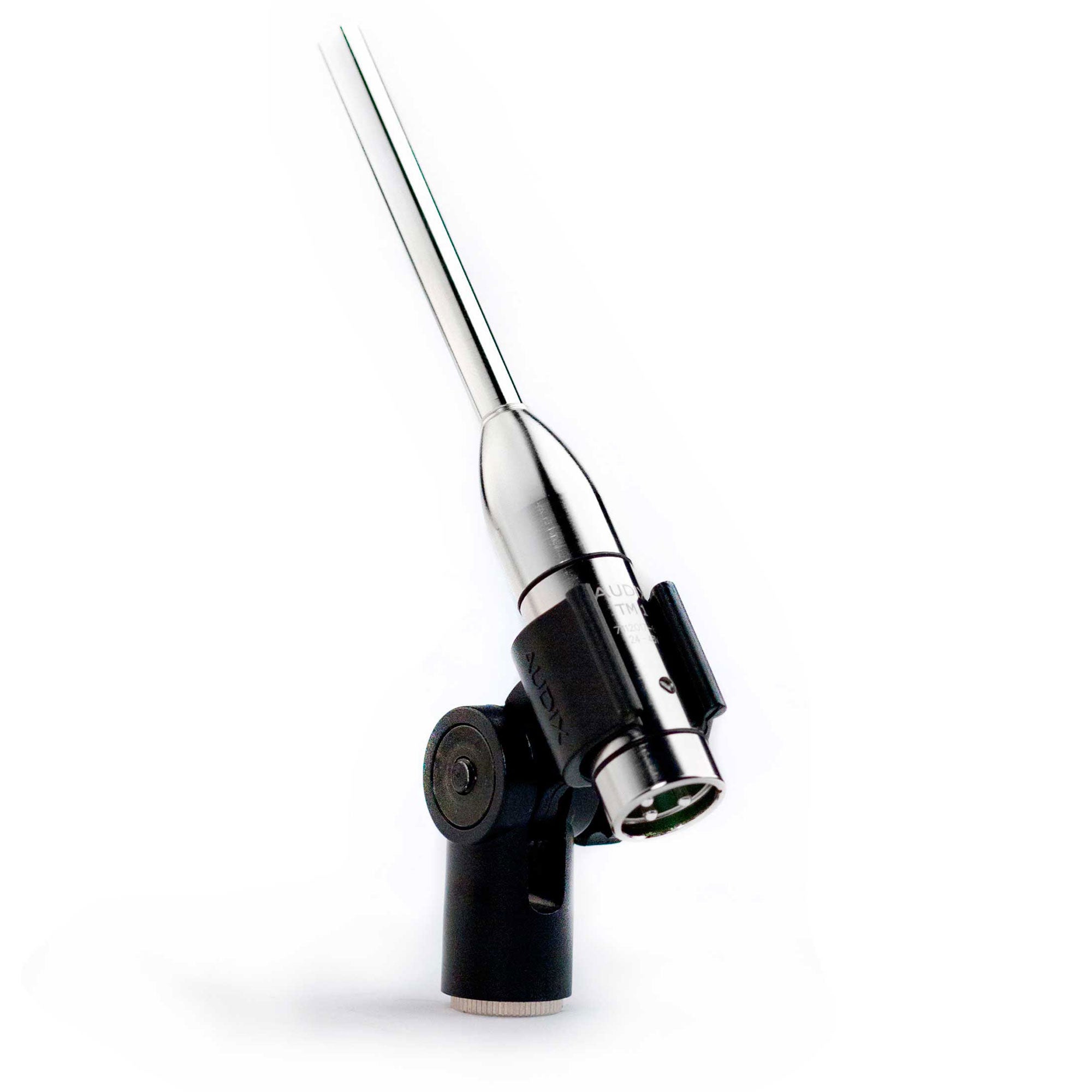

Audix TM1 Test & Measurement Microphone

Highly Accurate Test and Measurement Microphone

Omni-directional test and measurement microphone for RTA and software systems.

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz - 25 kHz, the TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts.

The TM1 is designed, machined, assembled and tested by Audix in the USA.

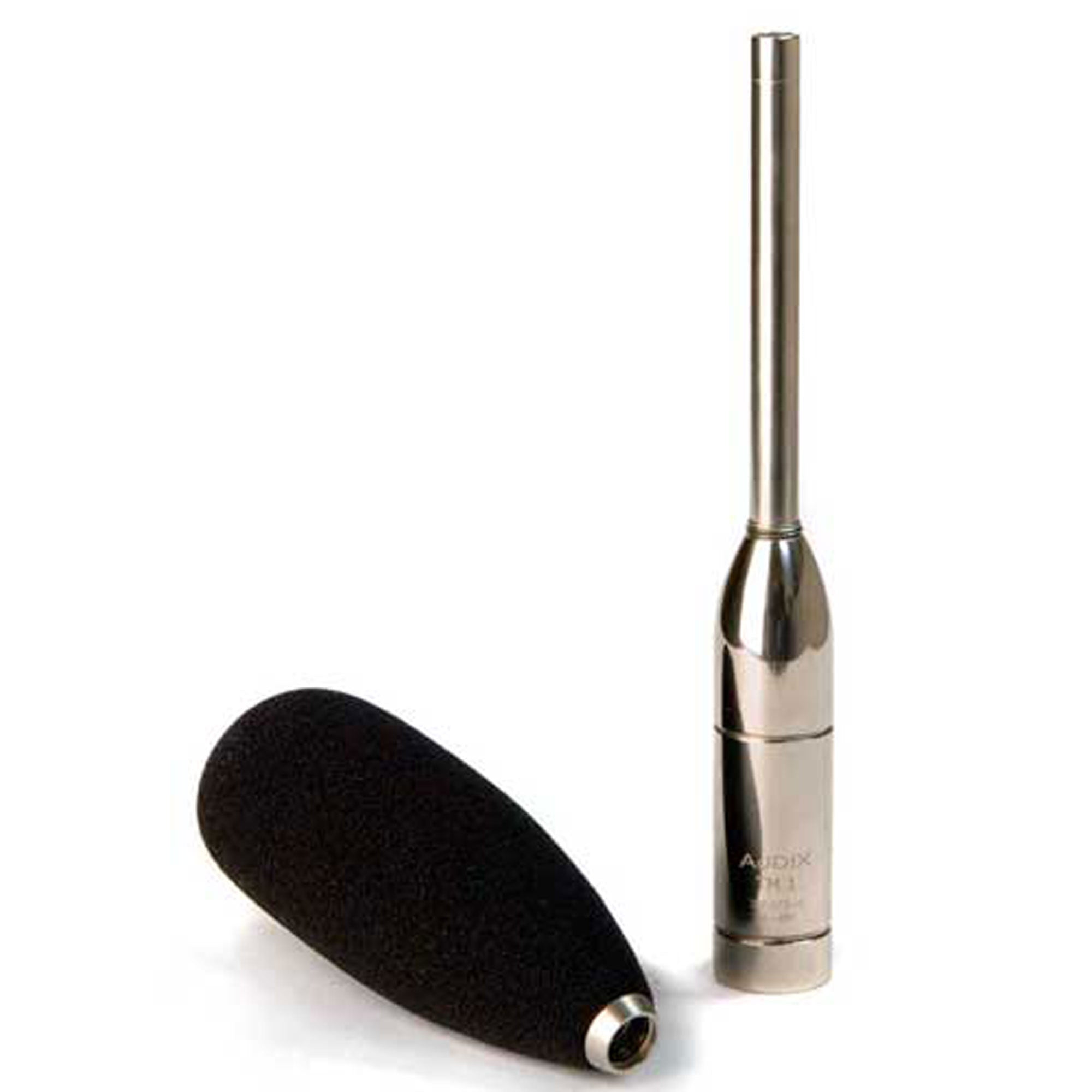

Model Variation: TM1PLUS - includes calibration data file and sensitivity, threaded acoustic windscreen, and TM1CA4231 machined calibration adapter

Features:

• 6mm pre-polarized condenser capsule
• Hi SPL response
• Precision machined brass housing
• Low noise electronics
• Linear Accurate Response
• Omnidirectional Polar Pattern
• Flat Frequency Range
• Precision Machined 4-Stage Brass Body

Specifications:

• Transducer: Pre-polarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20Hz to 25kHz (+/- 2dB)
• Dynamic Range (Typical): 112dB
• Signal-to-Noise Ratio: 66dB
• EIN: 28dB A-weighted
• Maximum Input Sound Level: 130dB with distortion < 1% 140dB Max
• Power Requirements: 18 - 52V Phantom
• Output Impedance: 200 ohms
• Output Connectors: 3-pin XLR
• Sensitivity: 6.5mV / Pa @ 1k
• Housing: 4 Piece Precision Machined Brass
• Dimensions: Length 5.9" (150mm)
